Epoxid cicloalifatic vs. Epoxid standard pentru înaltă tensiune

When specifying insulation materials for medium voltage equipment, the choice between cycloaliphatic epoxy and standard bisphenol-A epoxy resin is far more consequential than most procurement teams realize. Cycloaliphatic epoxy resin consistently outperforms standard epoxy in dielectric strength, UV resistance, and outdoor environmental durability — making it the preferred material for MV molded insulation components operating above $12\text{ kV}$ or in harsh environments. Engineers and EPC contractors who default to standard epoxy for cost reasons often face accelerated surface tracking¹, insulation degradation, and costly unplanned outages within 3–5 years. This article breaks down exactly where each material excels, where it fails, and how to make the right selection for your specific application.

Tabla de conținut

• What Is Cycloaliphatic Epoxy and How Does It Differ from Standard Epoxy?
• How Do Dielectric and Mechanical Properties Compare Under High Voltage Stress?
• Which Epoxy System Should You Specify for Your MV Application?
• What Are the Most Common Installation and Handling Mistakes with Epoxy Insulators?

What Is Cycloaliphatic Epoxy and How Does It Differ from Standard Epoxy?

Both cycloaliphatic and standard (bisphenol-A) epoxy resins are thermosetting polymer systems widely used in MV molded insulation — but their molecular architectures produce dramatically different performance profiles under electrical stress and environmental exposure.

Standard Bisphenol-A (BPA) Epoxy is derived from the reaction of bisphenol-A with epichlorohydrin. Its aromatic ring structure delivers excellent mechanical rigidity and adhesion, but those same aromatic bonds are vulnerable to uv photodegradation² and surface carbonization under electrical discharge — a phenomenon known as tracking.

Cycloaliphatic Epoxy replaces the aromatic rings with aliphatic cyclic structures (typically based on 3,4-epoxycyclohexylmethyl-3,4-epoxycyclohexane carboxylate). This molecular difference produces a resin that is inherently tracking-resistant and UV-stable.

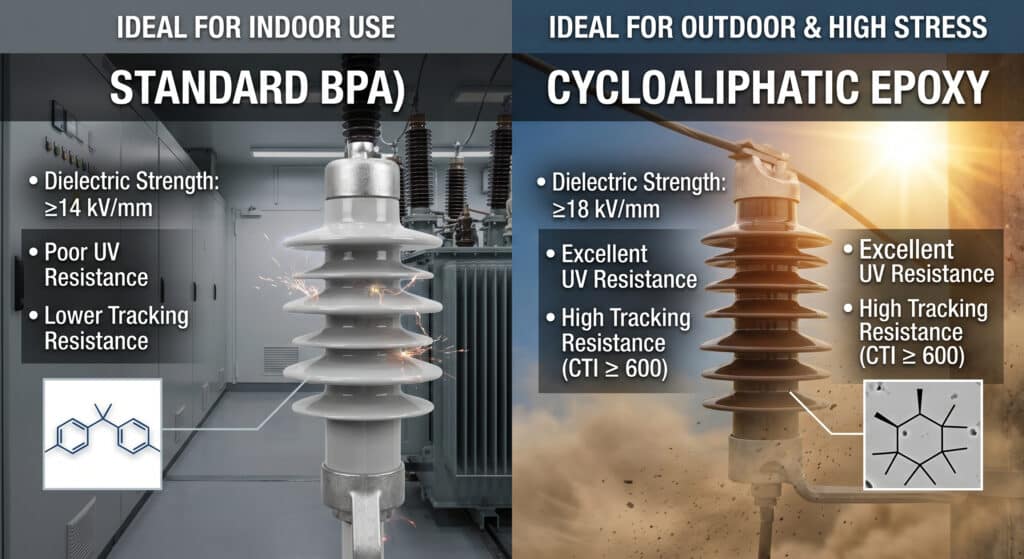

Key material characteristics at a glance:

• Rezistența dielectrică: Cycloaliphatic $\ge 18\text{ kV/mm}$; Standard Epoxy $\ge 14\text{ kV/mm}$
• Tracking Resistance: Cycloaliphatic — comparative tracking index³ (CTI) $\ge 600$ (Class I per IEC 60112); Standard Epoxy — CTI $175\text{–}300$
• UV Resistance: Cycloaliphatic — excellent (no chalking); Standard — poor (surface chalking within 12–24 months outdoors)
• Clasa termică: Both typically Class F ($155^\circ\text{C}$) or Class H ($180^\circ\text{C}$) depending on hardener system
• Compliance Standards: IEC 60068, IEC 60243, IEC 60587, ASTM D495
• IP Rating Compatibility: Both support IP65–IP67 enclosure integration when properly cast

The fundamental takeaway: standard epoxy is engineered for indoor, controlled environments. Cycloaliphatic epoxy is engineered for electrical stress + environmental aggression simultaneously.

How Do Dielectric and Mechanical Properties Compare Under High Voltage Stress?

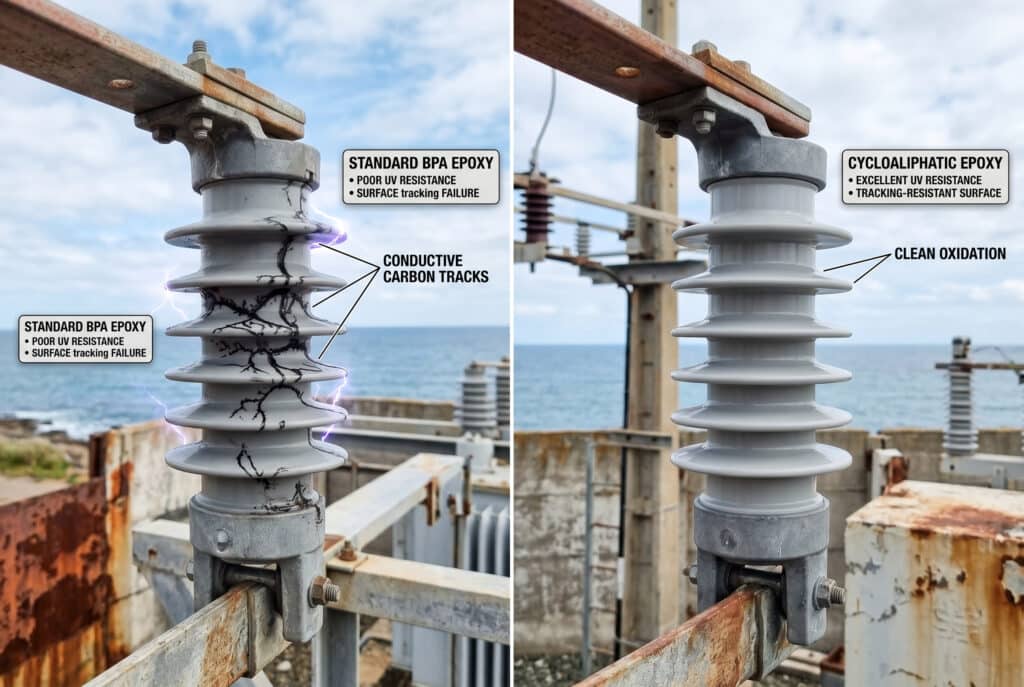

Under continuous high voltage stress, the performance gap between these two resin systems becomes measurable — and consequential. The core failure mode for standard epoxy under MV conditions is surface tracking: electrical discharge carbonizes the aromatic surface, forming conductive carbon tracks that progressively reduce creepage distance until flashover occurs. Cycloaliphatic epoxy, by contrast, oxidizes cleanly under discharge without forming conductive byproducts.

Comparative Performance Table

Parametru	Cycloaliphatic Epoxy	Standard BPA Epoxy
Rezistența dielectrică4	$\ge 18\text{ kV/mm}$	$\ge 14\text{ kV/mm}$
CTI (IEC 60112)	$\ge 600$ (Class I)	$175\text{–}300$ (Class IIIb)
UV Resistance	Excellent — no surface degradation	Poor — chalking & micro-cracking
Thermal Endurance	Class F–H ($155\text{–}180^\circ\text{C}$)	Class F ($155^\circ\text{C}$) typical
Rezistența la flexiune	$120\text{–}140\text{ MPa}$	$130\text{–}160\text{ MPa}$
Water Absorption (24h)	$< 0,1$	$0.1\text{–}0.3$
Outdoor Suitability	✅ Full outdoor rated	❌ Indoor use only
Relative Cost Index	$1.4\text{–}1.8\times$	$1.0\times$ (baseline)

Standard epoxy does retain a slight edge in raw flexural strength — which is why it remains appropriate for indoor MV bus bar support insulators and cast resin transformers in climate-controlled substations.

Customer Case — Reliability Failure in Coastal Substation:
A power distribution contractor in Southeast Asia contacted our team after experiencing repeated insulation flashover events at a $24\text{ kV}$ coastal substation within 18 months of commissioning. Post-failure analysis confirmed the molded insulation components had been manufactured using standard BPA epoxy — specified to reduce procurement cost by approximately 12%. Salt-laden humidity had accelerated surface tracking along the creepage path. After replacing all molded insulation components with cycloaliphatic epoxy parts meeting IEC 60587 (Tracking and Erosion Test), the installation has operated without incident for over 30 months. The original cost saving was eliminated several times over by the emergency replacement and downtime costs.

Which Epoxy System Should You Specify for Your MV Application?

Selecting the correct epoxy system requires matching material properties to your operating environment and voltage class — not simply defaulting to the lower-cost option. Here is a structured selection framework used by our engineering team at Bepto.

Pasul 1: Definirea cerințelor electrice

• Voltage class: For systems $\ge 12\text{ kV}$, cycloaliphatic is strongly recommended.
• Creepage distance requirements: IEC 60815 pollution class III–IV → cycloaliphatic mandatory.
• Impulse withstand voltage (BIL): Higher BIL ratings benefit from cycloaliphatic’s superior dielectric strength.

Step 2: Assess Environmental Conditions

• Outdoor / semi-outdoor installation: Cycloaliphatic only.
• Humidity > 85% RH sustained: Cycloaliphatic preferred (lower water absorption).
• Salt fog / coastal / industrial pollution: Cycloaliphatic mandatory (salt mist test⁵ IEC 60068-2-52 compliance).
• Cicluri de temperatură: Both perform adequately; cycloaliphatic shows less micro-cracking over thermal cycles.

Pasul 3: Potrivirea standardelor și a certificărilor

• IEC 60587 (Tracking & Erosion) — required for outdoor cycloaliphatic components.
• IEC 60243 (Dielectric Strength) — verify test voltage matches your system BIL.
• IEC 60112 (CTI) — minimum CTI 400 for MV outdoor; CTI 600 preferred.

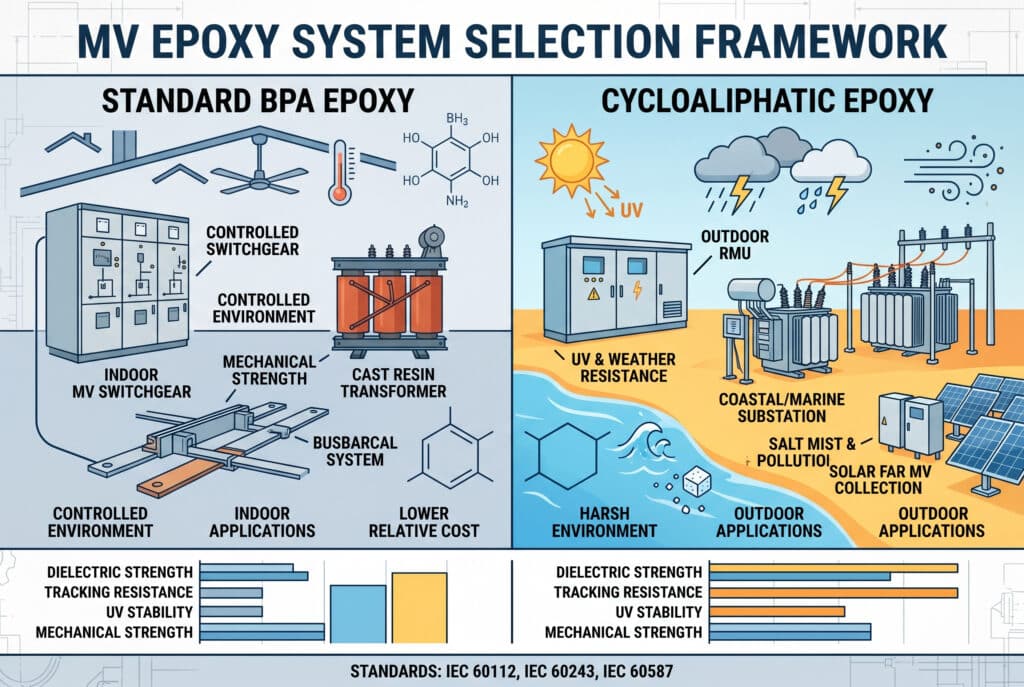

Application Scenario Matrix

Aplicație	Recommended Epoxy	Key Reason
Indoor MV Switchgear (AIS)	Standard or Cycloaliphatic	Controlled environment
Outdoor Ring Main Unit	Cycloaliphatic	UV + moisture exposure
Coastal / Marine Substation	Cycloaliphatic (mandatory)	Salt fog + humidity
Industrial Plant (heavy pollution)	Cycloaliphatic	Chemical & particulate
Solar Farm MV Collection	Cycloaliphatic	Outdoor UV + thermal cycling
Cast Resin Dry-Type Transformer	Standard BPA	Mechanical strength priority

What Are the Most Common Installation and Handling Mistakes with Epoxy Insulators?

Lista de verificare pentru instalare

1. Verify voltage and creepage ratings match the system specification before installation — never assume dimensional fit equals electrical compatibility.
2. Inspect for micro-cracks on all cast surfaces prior to installation; hairline cracks from improper storage or transport are invisible until flashover.
3. Clean contact surfaces with isopropyl alcohol — contamination at the insulator-conductor interface increases contact resistance and localized heating.
4. Apply correct torque values to mounting hardware; over-torquing cast epoxy components causes internal stress fractures.
5. Perform pre-commissioning insulation resistance test (minimum $1000\text{ V DC}$ Megger; IR value should exceed $1000\text{ M}\Omega$).

Common Specification and Installation Errors

• Specifying standard epoxy for outdoor applications to reduce cost — the single most common and costly mistake in MV insulation procurement.
• Ignoring pollution level classification per IEC 60815 when sizing creepage distance — under-specified creepage is the leading cause of tracking failure.
• Storing epoxy components in direct sunlight or high-humidity warehouses prior to installation — even cycloaliphatic resin can absorb moisture if packaging is compromised.
• Mixing epoxy insulator grades within the same insulation system — mismatched thermal expansion coefficients cause mechanical stress at interfaces.

Concluzie

Choosing between cycloaliphatic and standard epoxy for medium voltage molded insulation is ultimately a decision about where your equipment will operate and what failure costs you can accept. For any outdoor, coastal, polluted, or high-humidity MV application above 12kV, cycloaliphatic epoxy is not a premium option — it is the correct engineering specification. Standard BPA epoxy remains a cost-effective and reliable choice for indoor, climate-controlled environments where tracking resistance and UV stability are not primary concerns. At Bepto Electric, our molded insulation components are available in both systems, manufactured to IEC 60587 and IEC 60243, with full material certification provided.
