Delta-connected secondary wiring on voltage transformers (PT/VT) is one of the most error-prone tasks in medium voltage power distribution systems — and the consequences of getting it wrong range from inaccurate metering to catastrophic insulation failure.
The most common mistakes include reversed polarity on one winding, incorrect open-delta (V-V) configuration, and missing neutral reference grounding — all of which violate IEC 61869-3 requirements1 and directly compromise system reliability.
For electrical engineers and EPC contractors commissioning substations or industrial switchgear panels, these errors are often invisible until a fault event exposes them. This article breaks down the five most critical wiring mistakes in delta-connected VT secondaries, explains the engineering logic behind each, and provides a practical selection and installation checklist aligned with IEC Standards.
Table of Contents
- What Is an Open-Delta Secondary Configuration in Voltage Transformers?
- Why Do Wiring Mistakes in Delta-Connected VT Secondaries Cause System Failures?
- How Do You Correctly Select and Apply Open-Delta VT Wiring for Your Application?
- What Are the Most Common Installation Errors and How Do You Avoid Them?
What Is an Open-Delta Secondary Configuration in Voltage Transformers?
A voltage transformer (PT/VT) is a precision instrument transformer designed to step down high system voltages to a standardized secondary level — typically 100V or 110V (line-to-line) per IEC 61869-3 — for use in protection relays, energy meters, and fault detection circuits.

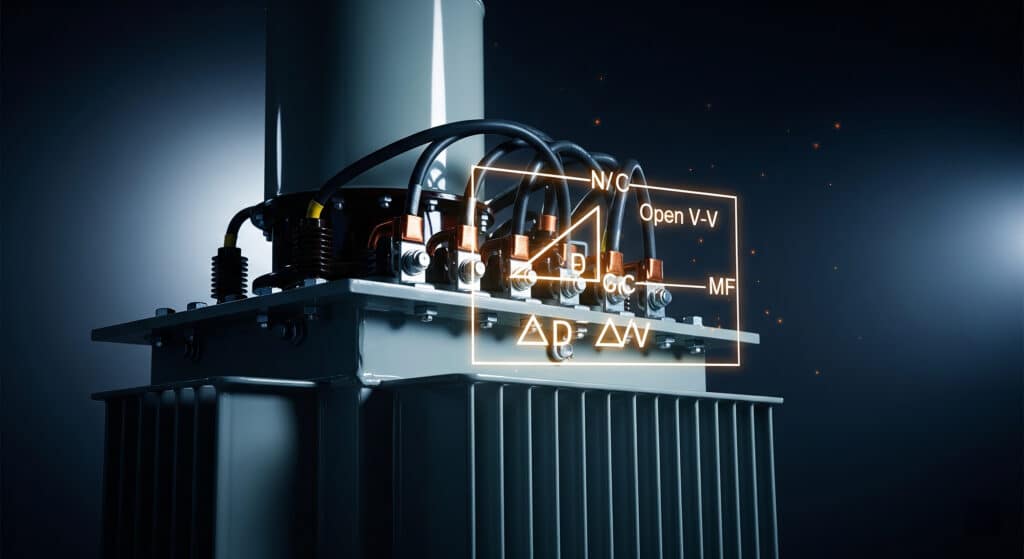

In a delta-connected secondary, three single-phase VTs are interconnected in a closed or open triangular loop. The open-delta (V-V) configuration2 uses only two VTs to approximate three-phase voltage measurement, making it a cost-effective solution for ground fault detection in ungrounded or impedance-grounded MV systems.
Key technical characteristics of a properly specified VT for delta secondary wiring:
- Voltage Ratio: Typically 6kV/√3 : 100V/√3 for star-primary, or 6kV : 100V for delta-primary configurations
- Insulation Class: Class A (105°C) minimum; Class E or B preferred for industrial environments
- Dielectric Strength: ≥28kV (1-minute power frequency withstand per IEC 61869)
- Accuracy Class3: 0.2 or 0.5 for metering; 3P or 6P for protection
- Burden Rating: Matched to connected relay/meter load (VA rating critical)
- Creepage Distance: ≥25mm/kV for Pollution Degree III environments
- Enclosure: IP54 minimum for indoor switchgear; IP65 for outdoor installations
- Standards Compliance: IEC 61869-3, GB 1207, optional UL listed versions
The open-delta topology is specifically used in residual voltage detection4 — the third winding (or open corner) outputs a residual voltage signal (typically 100/3 V or 100V) during single-phase earth faults, triggering protection relays.
Misunderstanding this fundamental purpose is the root cause of most wiring errors.
Why Do Wiring Mistakes in Delta-Connected VT Secondaries Cause System Failures?
The delta secondary is not a simple parallel or series circuit — it is a phase-angle sensitive network. A single reversed terminal or swapped phase connection introduces a vector error that corrupts every downstream measurement and protection function simultaneously.
Engineering Impact of Common Wiring Errors
| Wiring Error | Root Cause | System Impact | IEC Violation |
|---|---|---|---|
| Reversed polarity on one VT | P1/P2 or S1/S2 terminal swap | 180° phase error; false differential relay trip | IEC 61869-3 Cl. 5.3 |
| Incorrect open-delta corner | Wrong terminal used as open point | Residual voltage output incorrect; earth fault undetected | IEC 61869-3 Cl. 7.2 |
| Phase sequence mismatch | A-B-C vs A-C-B wiring | Negative-sequence voltage injection; metering reversal | IEC 60044-2 |
| Missing burden matching | VA overload on secondary | Accuracy class degradation; thermal stress on windings | IEC 61869-3 Cl. 6.5 |
| Ungrounded open-delta corner | No reference to earth | Floating potential; insulation stress on relay inputs | IEC 61869-3 Cl. 5.6 |

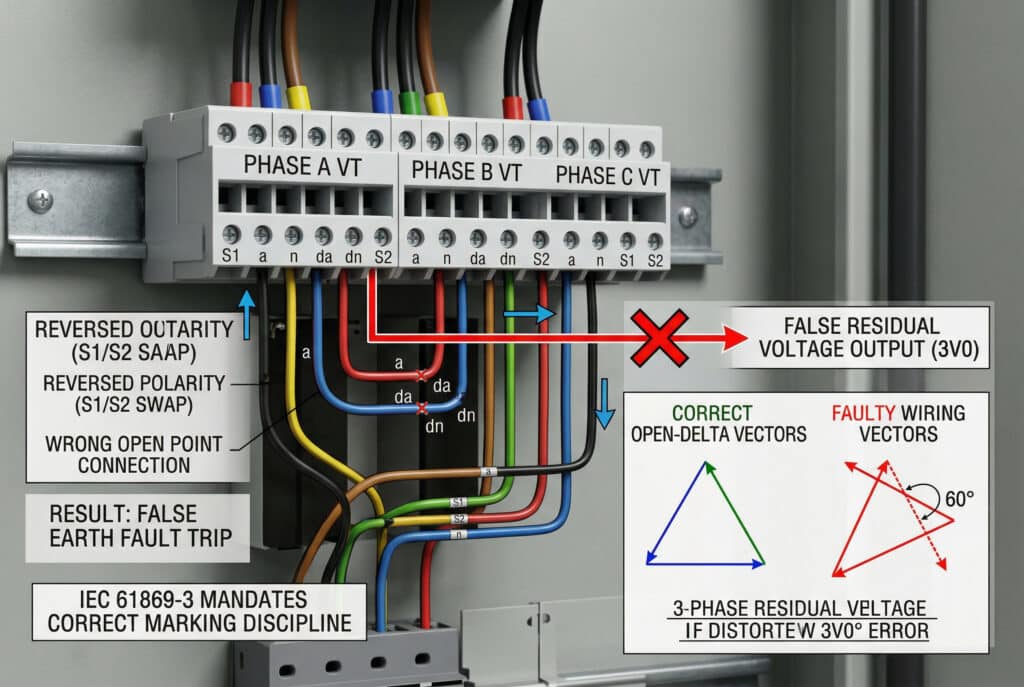

A real case from our project experience: A procurement manager at an EPC firm in Southeast Asia contacted Bepto after a newly commissioned 11kV substation showed persistent false earth fault alarms within 48 hours of energization.
After remote diagnostics, we identified that the open-delta corner terminal (da-dn) had been connected in reverse on one of the three single-phase VTs — a polarity error that produced a 60° vector displacement instead of the expected residual voltage output. The protection relay was reading a permanent “fault” condition on a healthy system.
Rewiring the secondary terminals per IEC 61869-3 polarity markings resolved the issue immediately. No hardware replacement was needed — only correct installation.
This case illustrates a critical point:
VT reliability is not just about component quality. It is equally about installation discipline.
The IEC 61869-3 standard mandates clear terminal marking conventions:
- Primary terminals: P1, P2 (or A, N for single-phase)
- Secondary terminals: S1, S2 (or a, n)
- Residual voltage winding: da, dn (for open-delta earth fault detection)
Ignoring these markings — or assuming they are interchangeable — is the single most common cause of VT secondary wiring failures in power distribution projects.
How Do You Correctly Select and Apply Open-Delta VT Wiring for Your Application?
Correct open-delta VT wiring starts before installation — it starts at the specification and procurement stage. Here is a structured selection process aligned with IEC Standards and real-world power distribution requirements.
Step 1: Define Electrical Requirements
- System Voltage: Confirm nominal voltage (e.g., 6kV, 10kV, 11kV, 33kV)
- VT Ratio: Select primary/secondary ratio matching protection relay input (e.g., 10000/√3 : 100/√3 V for star; 10000 : 100V for delta primary)
- Accuracy Class: 0.5 for revenue metering; 3P for earth fault protection relays
- Burden (VA): Calculate total connected burden — relay + meter + wiring resistance. Never exceed rated VA or accuracy degrades
Step 2: Consider Environmental Conditions
- Indoor Switchgear (AIS): Epoxy-cast insulation, IP54, Class B thermal rating

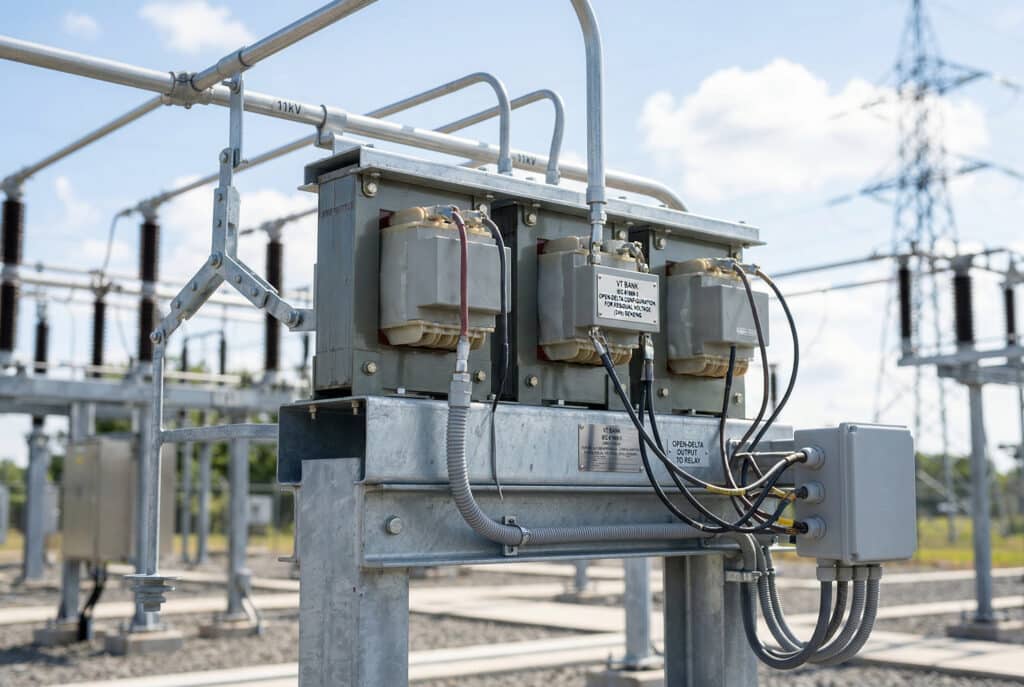

- Outdoor Substation: Silicone or porcelain housing, IP65, extended creepage distance (≥31mm/kV for Pollution Degree IV)
- High Humidity / Coastal: Anti-condensation heater in VT compartment; hydrophobic silicone insulation surface
- Industrial (High Vibration): Reinforced terminal block; anti-vibration mounting
Step 3: Match Standards and Certifications
- Confirm IEC 61869-3 compliance on test report (not just nameplate claim)
- Verify type test certificates: lightning impulse, power frequency withstand, temperature rise, accuracy
- For export projects: confirm CE marking or regional equivalent
- Request factory acceptance test (FAT) report for each batch
Application Scenarios for Open-Delta VT Wiring
- Industrial Power Distribution: Earth fault detection in ungrounded 6–10kV motor feeder circuits
- Power Grid Substations: Residual voltage input to directional earth fault relays (DEF protection)
- Renewable Energy (Solar/Wind): Grid-tie protection requiring zero-sequence voltage monitoring
- Marine & Offshore: IT-system earth fault monitoring per IEC 60092 requirements
What Are the Most Common Installation Errors and How Do You Avoid Them?

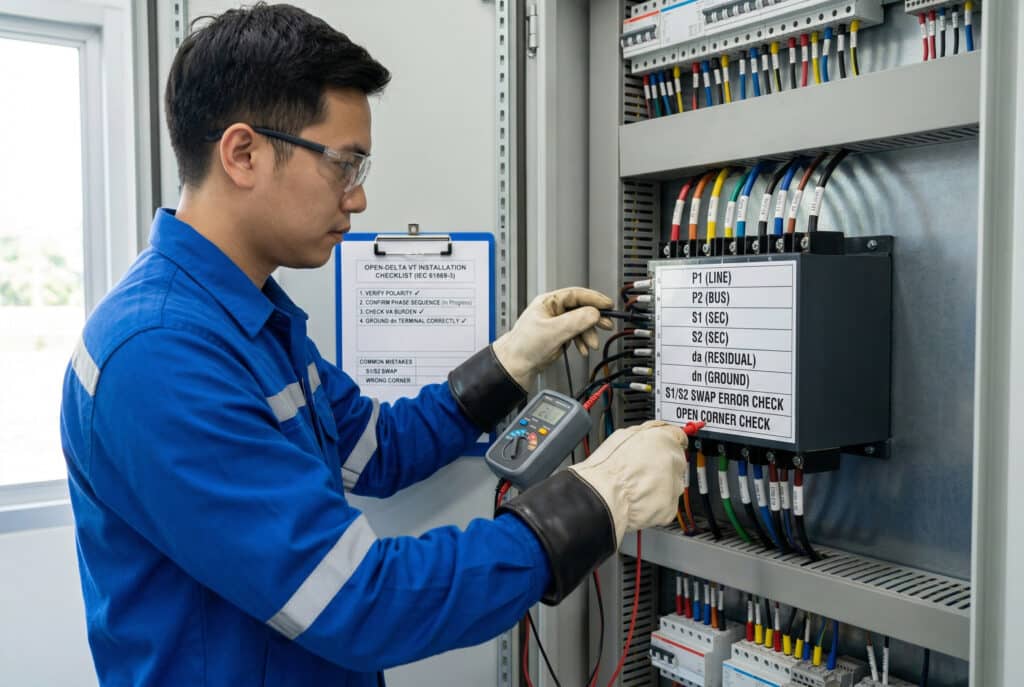

Installation Checklist: Open-Delta VT Secondary Wiring
- Verify polarity markings5 before any connection — cross-reference VT nameplate with IEC 61869-3 terminal diagram
- Confirm phase sequence at primary terminals using a phase rotation meter before energizing
- Check VA burden — measure actual connected load and compare against VT rated burden; derate by 20% as safety margin
- Ground the open-delta corner correctly — connect the dn terminal to protective earth via a dedicated grounding conductor (not shared with other instrument circuits)
- Perform secondary injection test — inject known voltage at secondary terminals and verify relay input readings match expected values
- Insulation resistance test — minimum 100MΩ between secondary winding and earth before energization (per IEC 61869-3)
- Label all secondary cables with phase identification and VT reference number immediately after wiring
Common Mistakes to Avoid
- Swapping S1 and S2 terminals: Introduces 180° phase reversal — the most frequent error in field installations
- Using the wrong open corner: Connecting the residual voltage output to a standard metering input burns relay input circuits
- Sharing secondary circuits: Never connect metering and protection windings to the same secondary terminal block — burden interaction corrupts both
- Skipping the insulation test: A VT with micro-cracks in epoxy insulation will pass visual inspection but fail under operating voltage within weeks
- Ignoring rated frequency: A 50Hz VT used on a 60Hz system shows ~20% magnetizing current increase — affects accuracy and thermal performance
Conclusion
Open-delta secondary wiring on voltage transformers is a precision task governed by strict IEC Standards — and the margin for error is zero.
The most reliable systems are built on correctly specified VTs, disciplined terminal polarity verification, and proper burden matching before commissioning.
Whether you are designing a 10kV industrial substation or a grid-connected renewable energy protection system, these installation fundamentals directly determine long-term reliability. At Bepto Electric, our VTs are manufactured and tested to full IEC 61869-3 compliance, with complete type test documentation available for every project.
FAQs About Open-Delta VT Secondary Wiring
Q: What is the correct terminal connection sequence for an open-delta secondary wiring configuration on a medium voltage voltage transformer?
A: Connect S1-S2 of VT-A to S1-S2 of VT-B in series, leaving the open corner (dn terminal) for residual voltage output. Always follow IEC 61869-3 polarity markings — P1 to line, P2 to neutral.
Q: Why does my open-delta VT secondary produce incorrect residual voltage readings during earth fault simulation tests?
A: Most commonly caused by reversed S1/S2 polarity on one VT or incorrect phase sequence at primary terminals. Verify terminal markings against the IEC 61869-3 wiring diagram and perform secondary injection testing before commissioning.
Q: What accuracy class should I specify for a voltage transformer used in open-delta earth fault protection in a 10kV power distribution system?
A: Specify accuracy class 3P or 6P for protection applications per IEC 61869-3. Class 0.5 is for metering only and is not suitable for residual voltage earth fault detection circuits.
Q: How do I calculate the correct VA burden for an open-delta connected VT secondary circuit in an industrial substation?
A: Sum all connected relay and meter VA ratings plus estimated cable resistance losses. Apply a 20% safety margin and select the next standard VA rating (e.g., 10VA, 15VA, 30VA) per IEC 61869-3 burden classes.
Q: Can I use a standard single-phase voltage transformer for open-delta residual voltage detection, or do I need a dedicated earth fault VT design?
A: For open-delta earth fault detection, you need a VT with a dedicated residual voltage winding (da-dn terminals) rated for full line voltage continuously. Standard single-phase VTs without this winding will saturate and fail under sustained earth fault conditions.
-
