The vanguard of overhead distribution automation. Rugged, pole-mounted circuit breakers and Auto-Reclosers (ACR) engineered to withstand extreme climates while delivering lightning-fast fault isolation.
UV-Resistant Shield

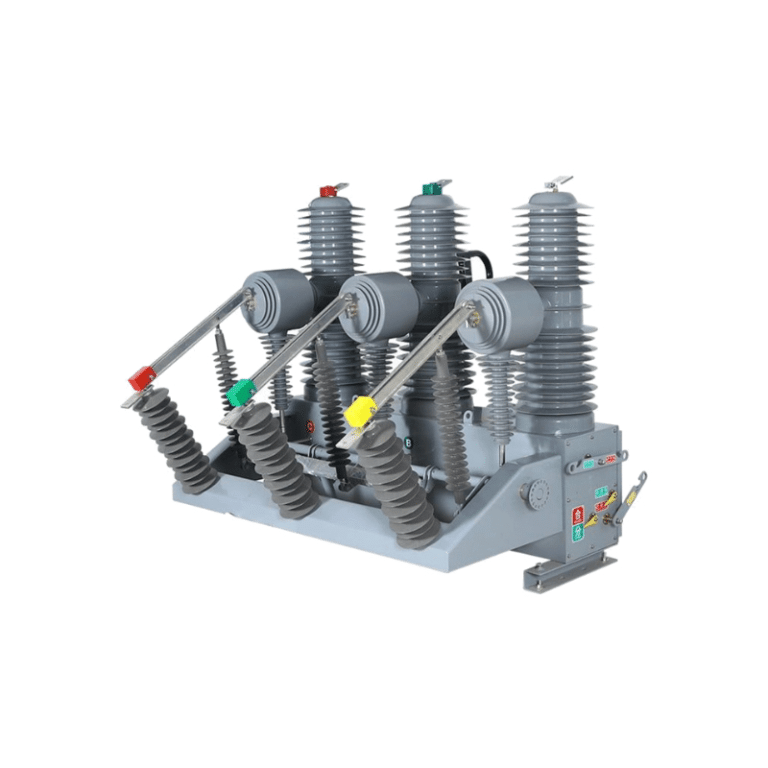

1 of 1An Outdoor Circuit Breaker is a highly robust protective device mounted on utility poles or outdoor substation structures. It is designed to interrupt massive short-circuit currents on overhead distribution lines. Often equipped with smart controllers, they function as Auto-Reclosers (ACR), automatically opening and closing to clear temporary faults (like lightning strikes or fallen branches) without manual intervention.
Reduces sustained outages by up to 80%. The breaker can be programmed to automatically reclose multiple times after a fault trip, clearing transient faults before locking out on permanent ones.
Supplied with a pole-mounted intelligent control cabinet. Supports standard SCADA communication protocols (DNP3, IEC 60870-5-104) for remote monitoring and telemetry.
Equipped with high-precision Current Transformers (CT) and optional voltage sensors directly within the poles, providing the controller with real-time, accurate line data without external instrument transformers.
| Parameter | Unit | 12kV Outdoor Series | 24kV Outdoor Series | 36kV / 40.5kV Series |
|---|---|---|---|---|
| Rated Voltage | kV | 12 | 24 | 40.5 |
| Rated Current | A | 630 / 1250 | 630 / 1250 | 1250 / 2500 |
| Short-Circuit Breaking Current | kA | 20 / 25 / 31.5 | 20 / 25 | 25 / 31.5 |
| Lightning Impulse (BIL) | kV | 75 | 125 | 185 |
| Creepage Distance (Min) | mm/kV | ≥ 25 (Standard) / ≥ 31.5 (High Pollution) | ||
| Ingress Protection | IP | IP65 (Mechanism) / IP67 (SF6 Tank) | ||
| Controller Compatibility | - | Compatible with standard RTU/FTU (DNP3, IEC 60870) | ||
We offer the outdoor circuit breaker as a standalone mechanical unit or as a complete package paired with an intelligent control cabinet (RTU/FTU). For Auto-Recloser (ACR) functionality or remote SCADA control, purchasing the complete package with the control cabinet and connecting aviation cables is highly recommended to ensure protocol compatibility.

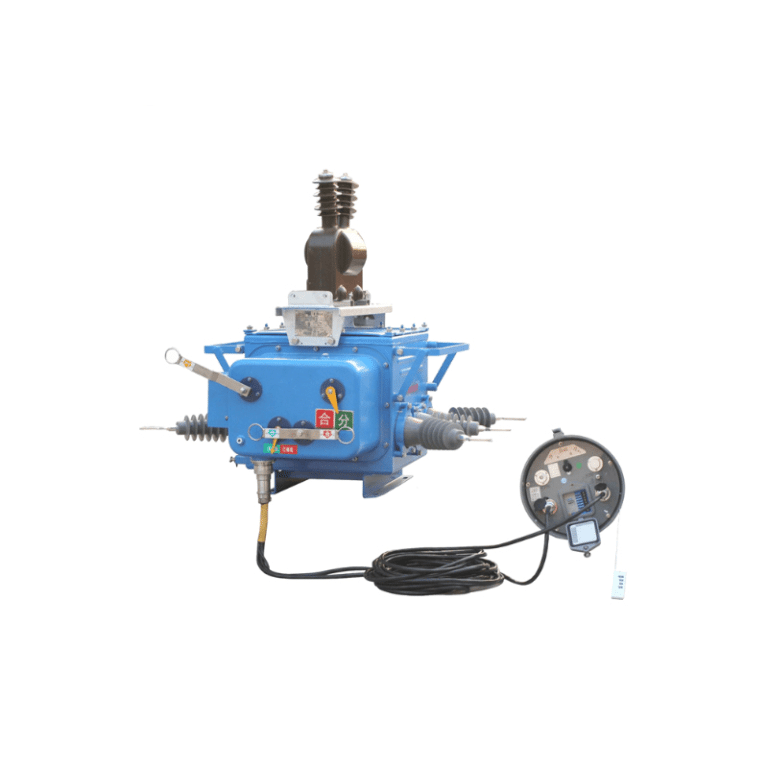

Our SF6 Dead-Tank models are equipped with an over-pressure rupture disk. In the highly unlikely event of an internal arc fault, this disk bursts safely, directing expanding gases in a controlled direction to prevent the stainless-steel tank from exploding, ensuring the safety of linesmen below.
Yes. While primarily operated via the motorized mechanism powered by the control box (which has battery backup), the breaker features highly visible manual trip/close levers. These can be safely operated from the ground using a standard insulated hook stick.
Submit your requirements on a business day, and our engineers will provide an initial OEM proposal within 24 hours.
