Diagnosing Mechanism Jamming in Freezing Temperatures

Introduction

When an outdoor VCB or SF6 CB fails to trip or close in freezing temperatures, the consequences are immediate and severe: a fault that cannot be cleared, a feeder that cannot be restored, and a maintenance team dispatched to a live substation in hazardous winter conditions to diagnose a problem that should have been prevented during the equipment specification and commissioning phase. Mechanism jamming in cold environments is one of the most reliability-critical failure modes in medium voltage outdoor circuit breaker operation — and it is almost entirely predictable and preventable when the root causes are correctly understood.

The direct answer: mechanism jamming in freezing temperatures on outdoor VCBs and SF6 CBs is caused by four distinct root mechanisms — lubricant congealing¹ below pour point, moisture ingress and ice formation in the mechanism housing, SF6 gas pressure loss due to liquefaction², and thermal contraction³-induced mechanical binding — each requiring a specific diagnostic approach and corrective action to restore reliable operation.

For maintenance engineers managing substation reliability programs in cold climates, medium voltage equipment procurement managers specifying outdoor circuit breakers for northern installations, and EPC contractors commissioning substations in freezing environments, this guide delivers the systematic diagnostic framework that resolves mechanism jamming at its root cause rather than its symptoms.

Table of Contents

• What Makes Outdoor VCB and SF6 CB Operating Mechanisms Vulnerable to Freezing Temperatures?
• How Do You Systematically Diagnose the Root Cause of Mechanism Jamming in Cold Conditions?
• How Do You Specify and Upgrade Outdoor Circuit Breakers for Reliable Operation in Freezing Environments?
• What Are the Most Damaging Maintenance Mistakes That Allow Mechanism Jamming to Recur?

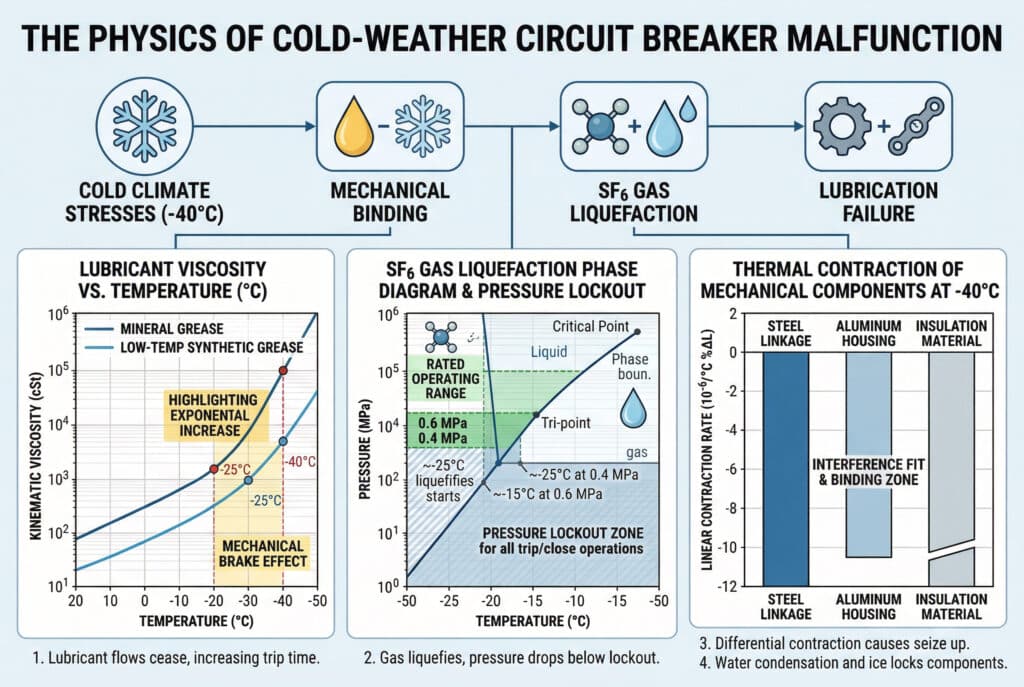

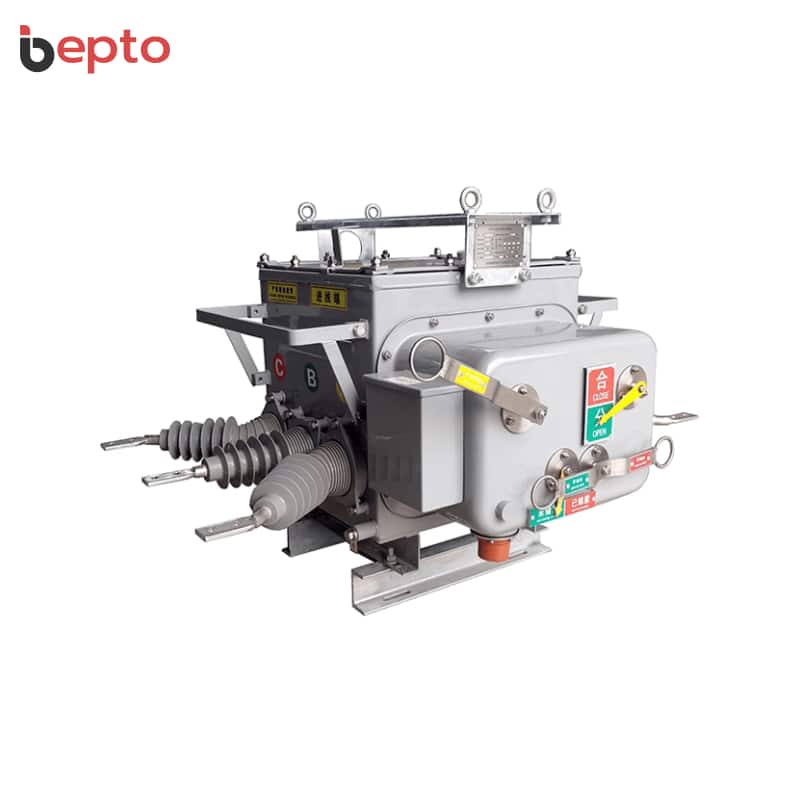

What Makes Outdoor VCB and SF6 CB Operating Mechanisms Vulnerable to Freezing Temperatures?

The operating mechanism of an outdoor VCB or SF6 CB is a precision mechanical system designed to release stored spring energy and drive contact separation in 30–50 ms. In freezing temperatures, multiple physical phenomena simultaneously attack the mechanism’s ability to execute this sequence — and understanding each one is the prerequisite for correct diagnosis.

The Four Root Mechanisms of Cold-Weather Jamming

1. Lubricant Congealing
   All spring-charged operating mechanisms rely on lubricant films at pivot points, cam surfaces, latch interfaces, and linkage bearings. Standard mineral-based greases have pour points between –15°C and –25°C. Below these temperatures, viscosity increases exponentially — a grease that flows freely at +20°C can increase in viscosity by a factor of 100–1,000 at –30°C, transforming from a lubricant into a mechanical brake that prevents latch release and linkage travel.

2. Moisture Ingress and Ice Formation
   Outdoor mechanism housings are subject to diurnal temperature cycling — warm days followed by freezing nights cause condensation inside the housing. Water accumulates at low points in the mechanism, on latch surfaces, and in the gaps between moving components. At 0°C, this moisture freezes and physically locks moving parts. A 0.1 mm ice film on a latch surface can generate sufficient adhesion force to prevent spring release entirely.

3. SF6 Gas Pressure Loss (SF6 CBs Only)
   SF6 gas liquefies at temperatures that depend on the filling pressure. At 0.4 MPa filling pressure, SF6 begins to liquefy at approximately –25°C. At 0.6 MPa, liquefaction begins near –15°C. When gas liquefies, the pressure in the interruption chamber drops below the minimum operating pressure, triggering the pressure lockout switch and preventing both trip and close operations — a safety feature that is correctly preventing operation under conditions where arc interruption cannot be guaranteed.

4. Thermal Contraction-Induced Mechanical Binding
   Steel and aluminum components contract at different rates as temperature drops. In mechanisms with mixed-material linkages, differential thermal contraction creates interference fits at pivot pins, bearing bores, and guide rails that did not exist at ambient temperature. A pivot pin that rotates freely at +20°C can seize in its bore at –30°C due to differential contraction between a steel pin and an aluminum housing.

Key Technical Parameters for Cold-Climate Outdoor VCB and SF6 CB Specification

• Rated Operating Temperature Range: Standard: –25°C to +55°C; Extended cold climate: –40°C to +55°C per IEC 62271-100⁴
• Lubricant Specification: Low-temperature synthetic grease⁵; pour point ≤ –50°C for –40°C rated mechanisms
• Mechanism Housing Protection: IP55 minimum; IP65 for high-humidity cold environments
• SF6 Gas Filling Pressure: 0.4–0.6 MPa at +20°C reference; verify liquefaction temperature against site minimum temperature
• Heater Power: 50–200 W mechanism housing heater; thermostat-controlled activation at +5°C
• Heater Supply Monitoring: Heater circuit supervision alarm to SCADA; heater failure in winter is a reliability-critical event
• Standards: IEC 62271-100 (operating temperature classification), IEC 62271-111 (outdoor pole-mounted VCBs), IEC 60068-2-1 (cold temperature testing)
• Material Specification: Stainless steel or hot-dip galvanized external fasteners; aluminum alloy mechanism housing with thermal expansion coefficient matched to internal components

How Do You Systematically Diagnose the Root Cause of Mechanism Jamming in Cold Conditions?

When a mechanism jamming event occurs in freezing temperatures, the diagnostic sequence must be systematic — because the four root mechanisms require completely different corrective actions, and applying the wrong remedy wastes time and can cause additional damage.

Diagnostic Decision Matrix: Mechanism Jamming Root Cause Identification

Symptom	Probable Root Cause	Diagnostic Confirmation	Corrective Action
Trip coil energizes but mechanism does not move	Lubricant congealing at latch	Measure coil current (normal); attempt manual trip lever	Warm mechanism; replace with low-temp grease
Trip coil energizes; partial travel then stalls	Ice formation on linkage	Visual inspection of mechanism interior; moisture trace	Dry and seal housing; install heater
Trip and close both locked out; no coil response	SF6 pressure lockout active	Read gas pressure gauge; compare to temperature-pressure curve	Restore gas pressure; check for leaks
Mechanism moves slowly; trip time > 2× baseline	Differential thermal contraction binding	Measure trip time at temperature; compare to baseline	Warm to operating temperature; check bore clearances
Intermittent operation; fails only at coldest hours	Heater circuit failure	Check heater continuity and thermostat function	Replace heater element; restore thermostat calibration

Diagnostic Step 1: Read the Gas Pressure Gauge (SF6 CBs)

For SF6 CBs, this is always the first diagnostic step in a cold-weather jamming event. The gas pressure gauge on an outdoor SF6 CB has three zones:

• Green zone: Normal operating pressure — gas interruption capability confirmed
• Yellow zone (low pressure alarm): Reduced interruption capability; operation permitted but maintenance required
• Red zone (lockout): Pressure below minimum; trip and close operations are mechanically locked out by the pressure switch

If the gauge reads in the red zone at the ambient temperature of the jamming event, cross-reference the reading against the manufacturer’s temperature-pressure curve. If the pressure is consistent with SF6 liquefaction at the recorded temperature, the lockout is operating correctly — the root cause is insufficient gas filling pressure for the site’s minimum temperature, not a mechanism fault.

Diagnostic Step 2: Measure Trip Coil Current During Failed Operation

Connect a clamp meter to the trip coil circuit and attempt a trip operation. Three outcomes are diagnostic:

• No current flow: Control circuit fault — check fuses, wiring continuity, and remote/local selector position before assuming a mechanism fault
• Normal inrush current (5–15 A for 110 VDC coils) but no mechanism movement: Latch release failure — lubricant congealing or ice on latch surface is the probable cause
• Reduced inrush current: Trip coil resistance has increased due to cold — measure coil resistance and compare to nameplate value; resistance increase > 15% indicates coil degradation requiring replacement

Diagnostic Step 3: Inspect Mechanism Housing Interior

With the breaker isolated and earthed per substation safety procedures, open the mechanism housing and inspect:

• Lubricant condition: Congealed grease appears white, waxy, and immobile; normal low-temperature grease remains translucent and slightly viscous even at –30°C
• Moisture and ice: Ice deposits appear as white crystalline formations at low points, on latch surfaces, and between close-fitting components; condensation traces appear as rust streaks or water staining
• Seal condition: Inspect housing gaskets and cable entry glands for cracking, compression set, or displacement; failed seals are the moisture ingress pathway
• Heater element: Check heater element continuity with a multimeter; a failed heater in an outdoor mechanism housing is the single most common root cause of cold-weather jamming in substations where heaters were originally specified

Real-World Case: Medium Voltage Substation Cold-Start Failure

A power utility in northern China contacted us after experiencing repeated mechanism jamming events on outdoor VCBs at a 35 kV rural distribution substation during the winter season. The breakers had been operating reliably for four years. The jamming events occurred exclusively during the coldest pre-dawn hours when ambient temperature dropped below –28°C, and the breakers recovered normal operation by mid-morning as temperatures rose.

Diagnostic inspection revealed two concurrent root causes: the mechanism housing heaters had failed on three of the six breakers — undetected because there was no heater supervision alarm connected to the substation SCADA — and the original lubricant specification was a mineral-based grease with a pour point of –20°C, inadequate for the site’s recorded minimum temperature of –32°C. We supplied replacement low-temperature synthetic grease rated to –55°C, replacement heater elements, and a heater supervision relay wired to the SCADA alarm input. No further jamming events were recorded through the following two winter seasons.

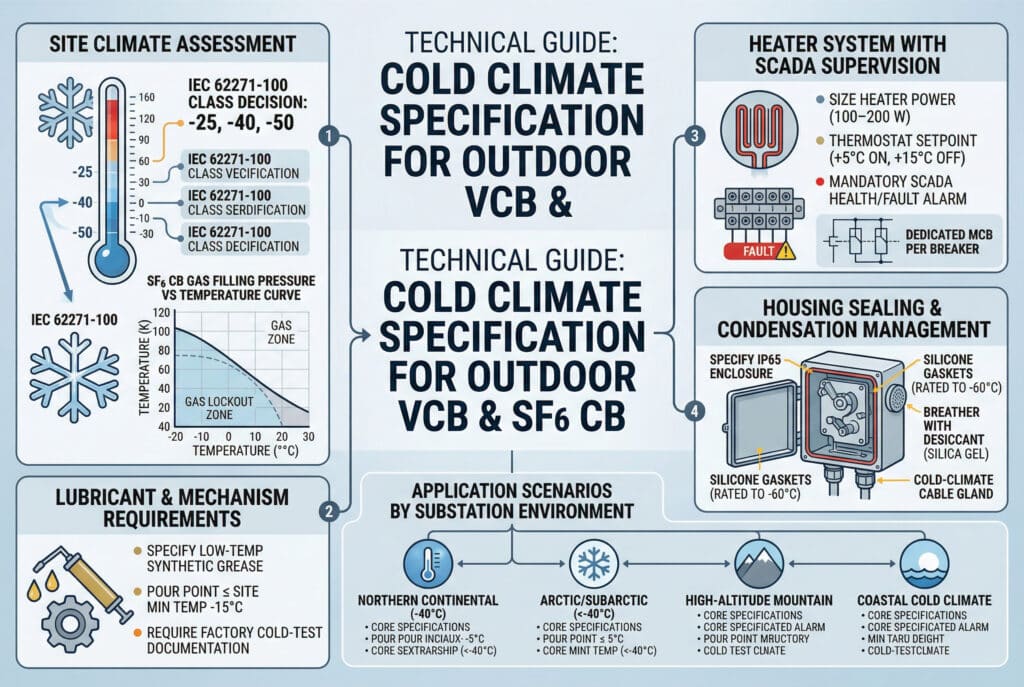

How Do You Specify and Upgrade Outdoor Circuit Breakers for Reliable Operation in Freezing Environments?

Preventing mechanism jamming in freezing temperatures requires decisions made at the specification stage — retrofitting cold-climate capability to a standard-specification outdoor VCB or SF6 CB is significantly more expensive and less reliable than specifying correctly at procurement.

Step 1: Establish the Site Minimum Temperature and Temperature Classification

• Record the site’s historical minimum ambient temperature from meteorological data; use the 1-in-50-year minimum, not the average winter minimum
• Select IEC 62271-100 temperature class:
    – Class “minus 25”: Standard; suitable for sites with minimum temperature ≥ –25°C
    – Class “minus 40”: Extended cold climate; required for sites with minimum temperature between –25°C and –40°C
    – Class “minus 50”: Extreme cold; special order for Arctic and subarctic installations
• For SF6 CBs, verify that the specified gas filling pressure does not produce liquefaction above the site minimum temperature; request the manufacturer’s temperature-pressure curve for the specific filling pressure

Step 2: Specify Lubricant and Mechanism Requirements

• Require low-temperature synthetic grease with pour point ≤ (site minimum temperature – 15°C) as a safety margin
• Specify lubricant brand and grade in the purchase order — do not accept “suitable low-temperature lubricant” as a specification; require the manufacturer to document the specific product and its pour point
• For –40°C rated mechanisms, require factory cold-temperature operation test per IEC 60068-2-1 with documented trip and close times at minimum rated temperature

Step 3: Specify Heater System with SCADA Supervision

• Heater power: Size for maintaining mechanism housing interior at minimum +5°C at site minimum ambient temperature; typical 100–200 W for standard outdoor VCB mechanism housing
• Thermostat setpoint: Activate at +5°C interior temperature; deactivate at +15°C
• Heater circuit supervision: Mandatory — wire heater healthy/fault status to SCADA digital input; a failed heater must generate a maintenance alarm before the next cold spell, not be discovered after a jamming event
• Supply circuit: Dedicate a separate MCB for each breaker’s heater circuit; shared heater supply circuits mean a single MCB trip disables heaters on multiple breakers simultaneously

Step 4: Specify Housing Sealing and Condensation Management

• IP65 minimum for mechanism housing in cold-climate installations; IP55 is insufficient for environments with freezing rain, snow ingress, and high diurnal temperature variation
• Silicone gaskets: Specify silicone rubber housing gaskets rated to –60°C; EPDM gaskets become brittle and lose sealing effectiveness below –30°C
• Breather with desiccant: Specify pressure-equalizing breather with silica gel desiccant on mechanism housing; prevents condensation by absorbing moisture from air entering during temperature cycling
• Cable entry glands: Specify cold-climate rated glands with silicone seals; standard NBR glands harden and crack below –20°C

Application Scenarios by Substation Environment

• Northern Continental Climate Substations (–25°C to –40°C): IEC Class “minus 40” VCB; synthetic grease; 150 W heater with SCADA supervision; IP65 housing
• Arctic and Subarctic Installations (below –40°C): Class “minus 50” special specification; Arctic-grade synthetic grease; dual redundant heaters; heated control cable conduit
• High-Altitude Mountain Substations: Cold temperature combined with altitude derating; specify both temperature class and altitude correction simultaneously
• Coastal Cold Climate (–20°C with salt fog): IP65 housing; silicone-coated insulation; stainless steel external hardware; anti-condensation heater mandatory
• Medium Voltage Industrial Plant in Cold Region: Outdoor VCB preferred over SF6 CB to eliminate gas liquefaction risk; motor-charged mechanism with heater supervision alarm to plant DCS

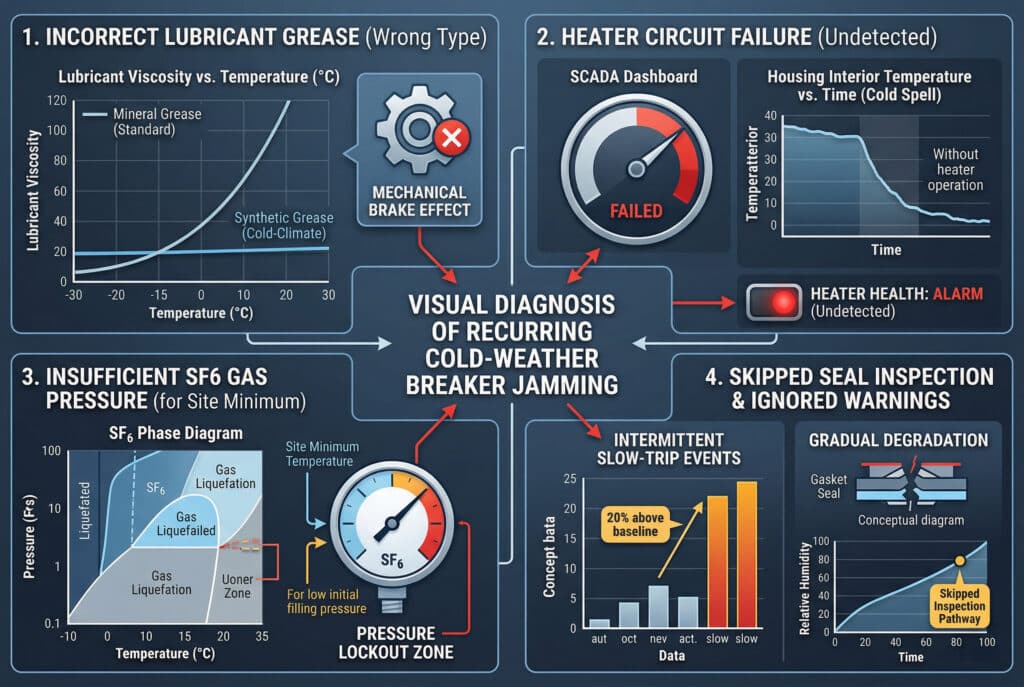

What Are the Most Damaging Maintenance Mistakes That Allow Mechanism Jamming to Recur?

Maintenance Checklist for Cold-Climate Outdoor VCBs and SF6 CBs

1. Verify heater operation at every scheduled maintenance visit: Measure heater element resistance and confirm thermostat activation temperature; do not assume heaters are functional because they were working at the previous visit
2. Inspect and replace desiccant breather annually: Saturated desiccant provides no moisture protection; replace silica gel cartridge every 12 months in high-humidity cold environments regardless of color indicator status
3. Perform lubrication inspection before winter season: Check lubricant condition at all pivot points, cam surfaces, and latch interfaces in September/October before temperatures drop; do not wait for a jamming event to discover congealed grease
4. Test trip and close operation at minimum expected winter temperature: If the substation has a scheduled maintenance window in autumn, perform a trip time test and record the result as a cold-season baseline; compare to the warm-season baseline to detect early-stage lubricant degradation
5. For SF6 CBs: verify gas pressure against temperature-pressure curve at minimum winter temperature: Calculate the expected gas pressure at the site minimum temperature and confirm the gauge reading will remain in the green zone; if not, top up gas pressure before winter

Common Maintenance Mistakes That Allow Jamming to Recur

• Applying warm-climate lubricant during winter maintenance: If a maintenance team uses standard mineral grease during a cold-weather service visit because the correct low-temperature grease is not in stock, the mechanism will jam again at the next cold spell — always maintain cold-climate lubricant inventory at substations in freezing environments
• Restoring operation by warming the mechanism without addressing the root cause: Applying a heat gun to a jammed mechanism to restore operation for the immediate fault restoration is acceptable as an emergency measure, but returning the breaker to service without correcting the underlying cause — failed heater, wrong lubricant, failed housing seal — guarantees recurrence
• Ignoring intermittent slow-trip events as “acceptable cold-weather behavior”: A trip time that is 20% above baseline at –20°C is an early warning of lubricant degradation or heater failure — not normal behavior for a correctly specified cold-climate outdoor VCB
• Skipping housing seal inspection during summer maintenance: Housing gaskets and cable glands degrade gradually; a seal that appears intact in summer may fail under the thermal cycling stress of the first winter freeze-thaw cycle — inspect seals annually regardless of season

Conclusion

Mechanism jamming in freezing temperatures is not an unavoidable consequence of operating outdoor VCBs and SF6 CBs in cold climates — it is a predictable failure mode with well-defined root causes, systematic diagnostic methods, and proven preventive measures. The four root mechanisms — lubricant congealing, moisture ingress and ice formation, SF6 gas liquefaction, and differential thermal contraction — each leave distinct diagnostic signatures that guide the correct corrective action. For medium voltage substation reliability in cold environments, the investment in correct cold-climate specification, heater supervision, and annual pre-winter maintenance is orders of magnitude smaller than the cost of a single mechanism jamming event during a live fault condition. The core takeaway: specify for the coldest day your site will ever experience, supervise every heater circuit on SCADA, and inspect lubricant condition before every winter — because a mechanism that jams at –30°C was failing slowly for months before the temperature dropped.

FAQs About Mechanism Jamming Diagnosis for Outdoor VCBs and SF6 CBs
