In medium voltage power distribution systems, arc interruption is one of the most critical — and most failure-prone — challenges engineers face. When a fault current strikes, every millisecond counts. A vacuum circuit breaker (VCB) works by extinguishing the electrical arc inside a sealed vacuum interrupter, where the absence of ionizable medium causes the arc to collapse rapidly at the first current zero crossing. Yet despite this elegant mechanism, many engineers and procurement managers still struggle to select, apply, and maintain VCBs correctly — leading to premature failure, unexpected downtime, and costly replacements. Whether you’re designing a new indoor switchgear panel, upgrading an aging substation, or sourcing reliable MV protection devices for an EPC project, understanding how a vacuum circuit breaker truly works is the foundation of every sound decision.

Table of Contents

• What Is a Vacuum Circuit Breaker and How Is It Structured?
• How Does a Vacuum Circuit Breaker Interrupt Current?
• Where and How Should You Apply a Vacuum Circuit Breaker?
• What Are the Common Installation Mistakes and Maintenance Tips for VCBs?
• FAQs

What Is a Vacuum Circuit Breaker and How Is It Structured?

A vacuum circuit breaker (VCB) is a medium voltage switching device that uses a high-vacuum environment as its arc-quenching medium. Unlike oil or SF6 circuit breakers, the VCB relies on the dielectric strength¹ of vacuum — typically below $10^{-3}$ Pa — to prevent arc re-ignition after current interruption.

Core Structural Components

• Vacuum Interrupter (VI): The heart of the VCB. A sealed ceramic or glass envelope housing fixed and moving contacts in a near-perfect vacuum. Rated dielectric withstand voltage typically reaches 40–60 kV across a 10 mm contact gap.
• Moving Contact Assembly: Connected to the operating mechanism via an insulating drive rod. Travel distance is typically 10–12 mm for 12 kV class devices.
• Insulating Cylinder / Epoxy Housing: Provides external insulation and mechanical support. Material: high-strength epoxy resin, tracking resistance class CTI $\ge$ 600.
• Operating Mechanism: Spring-charged or permanent magnet actuator (PMT) that drives contact opening and closing. Closing time: $\le$ 80 ms; Opening time: $\le$ 60 ms.
• Arc Shield: Internal metallic shield inside the vacuum interrupter that captures metal vapor generated during arcing, protecting the ceramic envelope.

Key Technical Parameters

Parameter	Typical Value
Rated Voltage	3.6 kV – 40.5 kV
Rated Current	630 A – 4000 A
Short-Circuit Breaking Current	16 kA – 50 kA
Vacuum Pressure	$\le 10^{-3}$ Pa
Mechanical Endurance	$\ge$ 10,000 operations
Standard	IEC 62271-1002

All Bepto Indoor VCBs comply with IEC 62271-100 and carry CE / CQC certifications, ensuring compatibility with international switchgear projects.

How Does a Vacuum Circuit Breaker Interrupt Current?

The interruption process of a vacuum circuit breaker follows a precise physical sequence that distinguishes it from all other MV switching technologies.

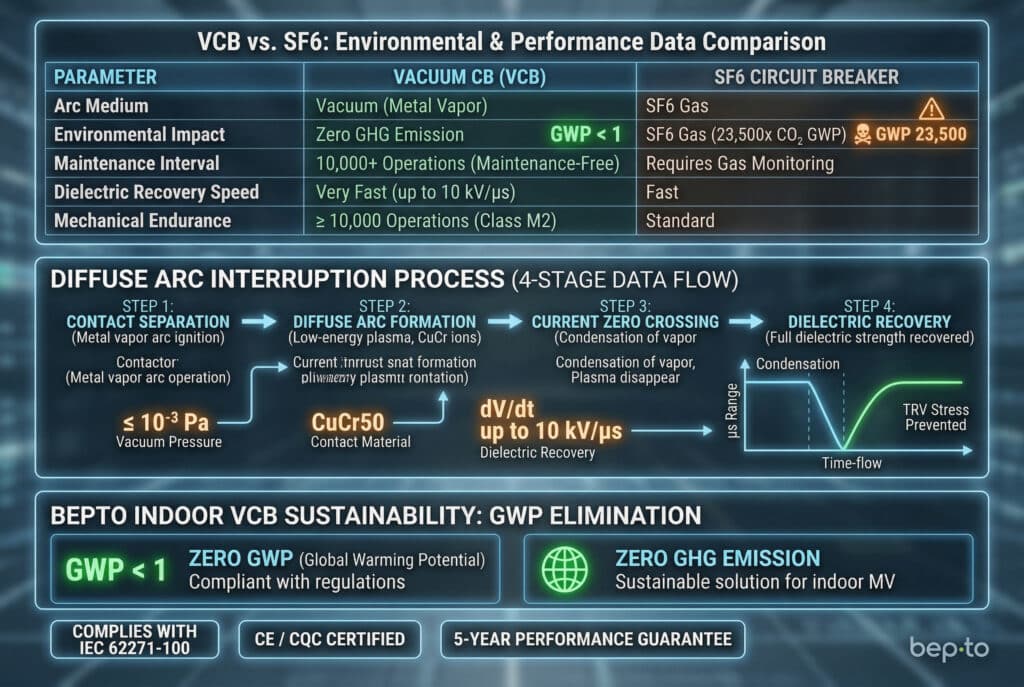

The Four-Stage Arc Interruption Process

1. Contact Separation: When a trip signal is issued, the operating mechanism drives the moving contact away from the fixed contact. At the moment of separation, a metal vapor arc is ignited between the contacts.
2. Diffuse Arc Formation: In vacuum, the arc does not behave like an air arc. Instead, it forms a diffuse, low-energy plasma consisting of metal ions evaporated from the contact surface (typically cucr alloy³).
3. Current Zero Crossing: As the AC current naturally approaches zero, the arc energy drops sharply. The metal vapor condenses back onto the contact surfaces and arc shield within microseconds.
4. Dielectric Recovery: After current zero, the vacuum gap recovers its full dielectric strength ($dV/dt$ up to 10 kV/$\mu$s), preventing re-ignition even under transient recovery voltage⁴ (TRV) stress.

VCB vs. SF6 Circuit Breaker — Performance Comparison

Parameter	Vacuum CB (VCB)	SF6 Circuit Breaker
Arc Medium	Vacuum (metal vapor)	SF6 gas
Environmental Impact	Zero GHG emission	SF6 is 23,500× CO₂ GWP
Maintenance Interval	10,000+ operations	Requires gas monitoring
Indoor Suitability	Excellent	Limited (gas leakage risk)
Dielectric Recovery Speed	Very fast	Fast
Operating Noise	Low	Medium
Preferred Application	Indoor MV switchgear	Outdoor / high voltage

Customer Story — Reliability Under Fault Conditions

One of our clients, a procurement manager at an industrial park EPC contractor in Southeast Asia, had previously sourced VCBs from a low-cost supplier. After 18 months, three units failed to interrupt fault current correctly, causing downstream transformer damage and a 72-hour production shutdown. After switching to Bepto Indoor VCBs with $CuCr_{50}$ contact material and verified vacuum integrity testing, their system has operated fault-free for over 3 years. The lesson: vacuum interrupter quality — not just rated specs — determines real-world reliability.

Where and How Should You Apply a Vacuum Circuit Breaker?

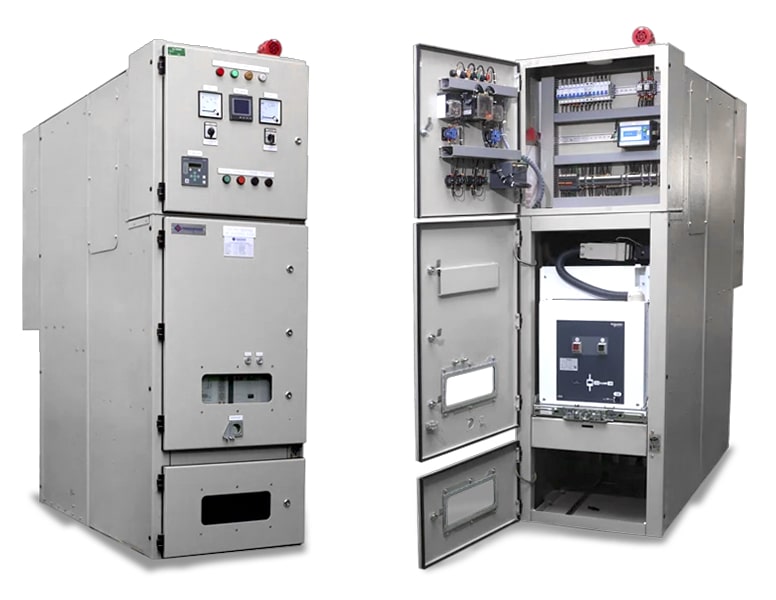

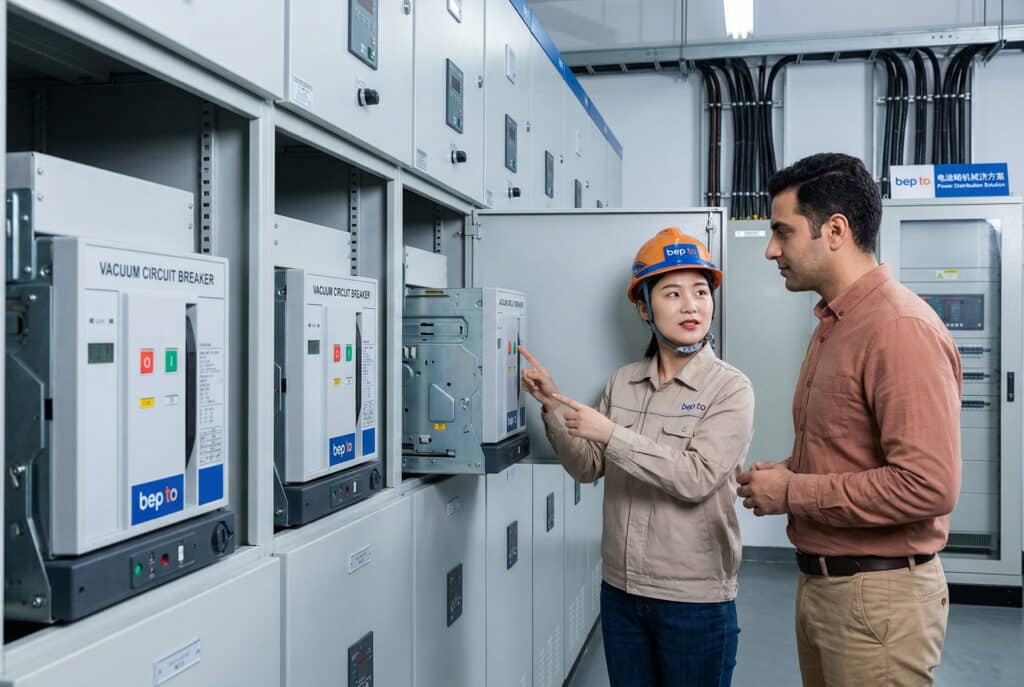

Selecting the right VCB for your application requires a structured approach. Here is the step-by-step selection guide we use with every project inquiry at Bepto.

Step 1: Define Electrical Requirements

• System Voltage: Match rated voltage to your MV network (e.g., 12 kV for most industrial systems)
• Rated Current: Size for continuous load current with $\ge$ 20% margin
• Short-Circuit Level: Confirm $I_{sc}$ from grid study; select breaking capacity $\ge$ system fault level

Step 2: Consider Environmental Conditions

• Indoor vs. Outdoor: VCBs are optimized for indoor switchgear; for outdoor use, specify weatherproof enclosure
• Ambient Temperature: Standard range –25°C to +40°C; specify extended range for extreme climates
• Altitude: Derate insulation for installations above 1000 m ASL
• Pollution Degree: IEC PD2 for clean indoor; PD3 for industrial environments with dust or condensation

Step 3: Match Standards & Certifications

• IEC 62271-100 (AC circuit breakers)
• IEC 62271-200 (AC metal-enclosed switchgear)
• GB/T 1984 (China national standard, required for domestic projects)

Application Scenarios

• Industrial Power Distribution: Motor feeder protection, transformer incomer, bus coupler in 6–35 kV switchgear
• Power Grid & Utility Substation: Feeder protection panels in 10 kV / 35 kV distribution substations
• Solar & Renewable Energy: MV collection switchgear at wind farm and utility-scale solar PV plants
• Data Centers: Critical power infrastructure requiring high mechanical endurance and fast reclosing capability
• Marine & Offshore: Compact indoor VCBs for vessel power distribution boards (specify salt-fog resistance)

What Are the Common Installation Mistakes and Maintenance Tips for VCBs?

Even the highest-quality VCB can underperform if installed or maintained incorrectly. Based on 12+ years of field experience, here are the most critical checkpoints.

Installation Steps

1. Verify nameplate ratings match system voltage, current, and short-circuit level before installation

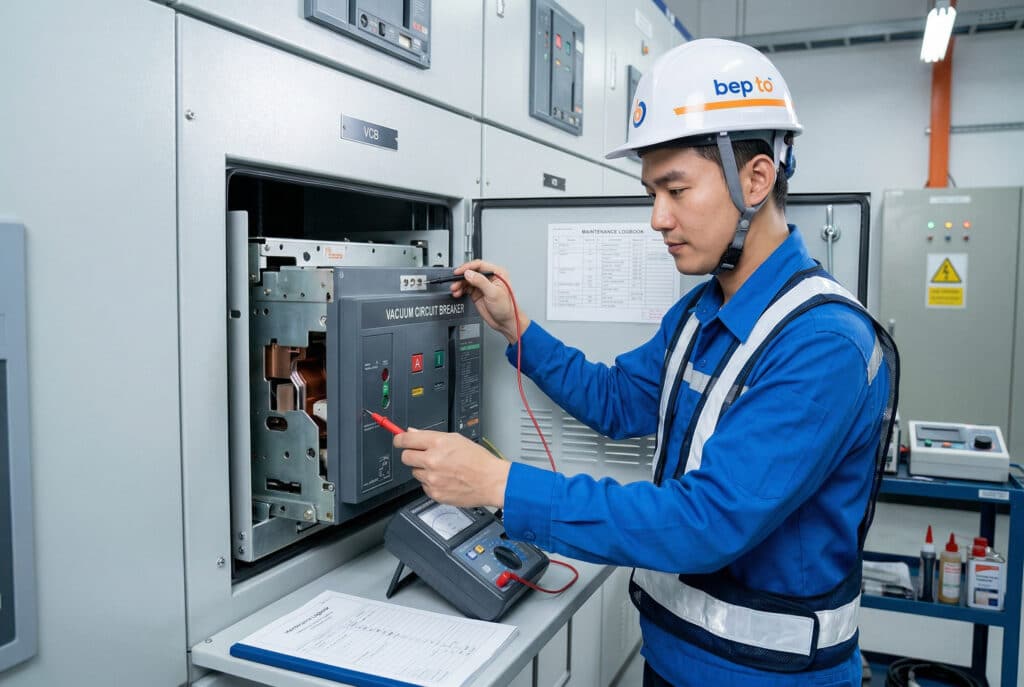

2. Inspect vacuum integrity using a hi-pot tester — apply 80% of rated dielectric voltage across open contacts
3. Check contact travel and wipe — moving contact travel must meet manufacturer spec (typically 10–12 mm)
4. Torque all bus connections to specified values to prevent hot joints under load current
5. Perform functional test — minimum 5 close/open operations before energization

Common Mistakes to Avoid

• ❌ Under-rating the breaking capacity — always confirm system fault level from a proper short-circuit study
• ❌ Skipping vacuum integrity test — a degraded vacuum interrupter will fail silently until a fault occurs
• ❌ Ignoring contact wear indicators — VCBs have a mechanical counter; replace VI when contact erosion limit is reached
• ❌ Incorrect spring charging — incomplete spring charge causes slow contact opening, increasing arc duration and contact damage
• ❌ Mixing incompatible accessories — always use OEM-matched secondary plugs, auxiliary switches, and trip coils

Maintenance Schedule

Interval	Action
Every 6 months	Visual inspection, clean insulator surfaces
Every 2 years	Lubricate mechanism, check contact gap
Every 2000 operations	Full mechanism overhaul
Every 10,000 operations	Replace vacuum interrupter

Conclusion

A vacuum circuit breaker is far more than a simple on/off switch — it is a precision arc-interruption device whose reliability depends on vacuum integrity, contact material quality, and correct application engineering. For indoor medium voltage power distribution and switchgear systems, VCBs offer the optimal combination of fast dielectric recovery, zero environmental impact, and long mechanical endurance. At Bepto Electric, every Indoor VCB we supply is tested to IEC 62271-100, backed by full technical documentation, and supported by our engineering team from specification to commissioning. Choose the right VCB, and your power distribution system will deliver decades of reliable service.
