In medium voltage switchgear installations across industrial plants, epoxy contact boxes are among the most structurally critical insulation components — and among the most vulnerable to thermal degradation. When operating temperatures fluctuate repeatedly, the epoxy resin matrix undergoes cumulative mechanical stress that eventually manifests as visible cracking, surface tracking, or catastrophic dielectric failure.
Thermal stress cracking in epoxy contact boxes is not a random event — it is a predictable failure mode driven by material physics, installation conditions, and maintenance gaps.
For maintenance engineers and reliability teams managing medium voltage assets in heavy industrial environments, understanding why this cracking occurs — and how to prevent it — is essential to avoiding unplanned outages and protecting switchgear reliability. This article provides a technical deep dive into the root causes, failure indicators, and corrective strategies for epoxy contact box thermal cracking.
Table of Contents
- What Is an Epoxy Contact Box and Why Does It Matter?
- What Are the Technical Root Causes of Thermal Stress Cracking?
- How Does Industrial Plant Environment Accelerate Contact Box Degradation?
- How Do You Troubleshoot and Resolve Epoxy Contact Box Cracking?
- FAQ
What Is an Epoxy Contact Box and Why Does It Matter?

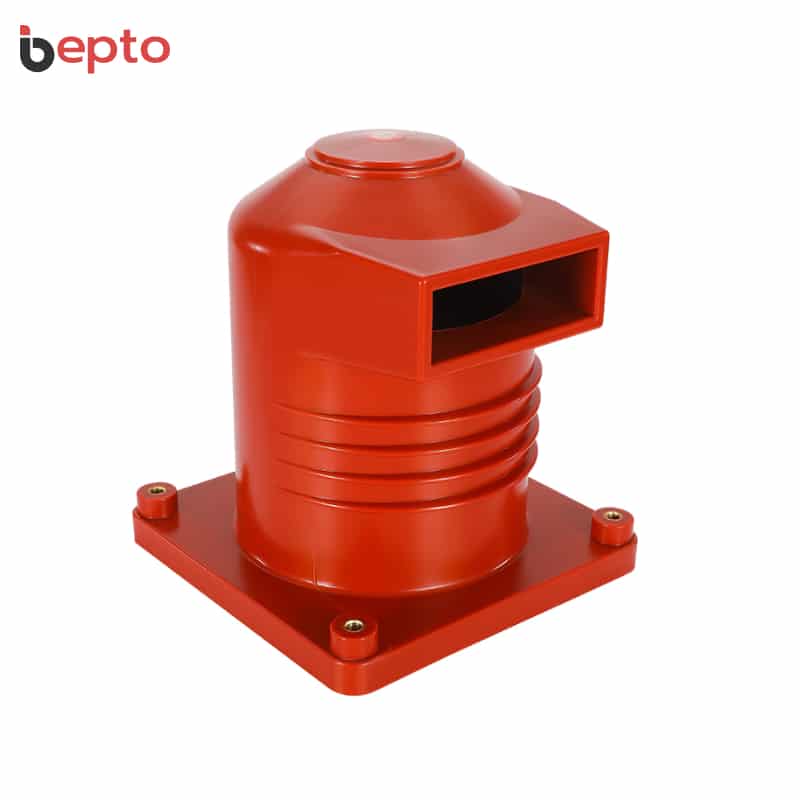

An epoxy contact box is a cast insulation housing used in air-insulated medium voltage switchgear to enclose and electrically isolate the primary contacts — the metallic connection points through which load current and fault current pass during normal and abnormal operating conditions.
The contact box performs three simultaneous functions:
- Electrical insulation: Maintains dielectric separation between live contacts and grounded enclosure structures at voltages typically ranging from 6 kV to 40.5 kV
- Mechanical support: Holds contact assemblies in precise alignment to ensure consistent contact pressure and minimize resistance heating
- Arc containment: Provides a degree of physical barrier during switching transients and fault events
Epoxy resin is the material of choice due to its combination of high dielectric strength (typically 18–25 kV/mm per IEC 60243-11), dimensional stability, and compatibility with vacuum pressure impregnation (VPI) casting processes. Properly formulated contact boxes meet IEC 62271-1 general requirements and IEC 62271-200 for metal-enclosed switchgear.
However, these performance characteristics are highly sensitive to thermal history. A contact box that has never experienced thermal cycling above its design threshold will perform reliably for 20–30 years. One subjected to repeated thermal excursions begins accumulating micro-damage from the first cycle onward.
What Are the Technical Root Causes of Thermal Stress Cracking?
Thermal stress cracking in epoxy contact boxes is a multi-mechanism failure process. Each mechanism compounds the others, accelerating the progression from micro-crack initiation to structural failure.
Coefficient of Thermal Expansion (CTE) Mismatch
The most fundamental cause is the CTE mismatch2 between epoxy resin and the embedded metal components (copper contacts, brass inserts, steel fasteners).
- Epoxy resin CTE: 50–70 × 10⁻⁶ /°C
- Copper conductor CTE: 17 × 10⁻⁶ /°C
- Steel insert CTE: 11–13 × 10⁻⁶ /°C
During each thermal cycle, the epoxy expands and contracts at 3–5× the rate of embedded metals. This differential movement generates interfacial shear stress at the epoxy-metal boundary. Over hundreds of thermal cycles, these stresses initiate micro-cracks at the interface that propagate inward through the resin matrix.
Thermal Aging and Glass Transition Temperature (Tg) Degradation
Epoxy resins have a defined glass transition temperature3 (Tg) — typically 120°C to 155°C for switchgear-grade formulations. Below Tg, the material behaves as a rigid solid. Above Tg, it transitions to a rubbery, mechanically weakened state.
Prolonged operation at temperatures approaching Tg — common in overloaded industrial plant feeders — causes irreversible chain scission in the polymer network, permanently lowering Tg and reducing fracture toughness.
Comparative Failure Risk by Operating Condition
| Operating Condition | Thermal Cycle Severity | Estimated Crack Initiation Timeline |
|---|---|---|
| Normal load, stable ambient | Low (ΔT < 30°C) | 25–30 years |
| Moderate overload, seasonal cycling | Medium (ΔT 30–60°C) | 12–18 years |
| Heavy overload, industrial ambient | High (ΔT 60–90°C) | 5–8 years |
| Fault events + high ambient temp | Extreme (ΔT > 90°C) | 2–4 years |
Residual Casting Stress
Even before installation, epoxy contact boxes carry internal residual stresses introduced during the casting and curing process. Rapid or uneven cooling during manufacture creates a pre-stressed resin matrix. When thermal cycling begins in service, these residual stresses add directly to the thermally induced stress field — reducing the effective fatigue life of the component.
How Does Industrial Plant Environment Accelerate Contact Box Degradation?
Industrial plant environments impose a uniquely aggressive combination of stressors on epoxy contact boxes that far exceeds the conditions assumed in standard laboratory type testing.
High Ambient Temperature Zones
Steel mills, cement plants, and chemical processing facilities routinely expose MV switchgear to ambient temperatures of 45°C to 65°C — well above the IEC standard reference of 40°C. This elevated baseline compresses the thermal margin between operating temperature and Tg, dramatically accelerating thermal aging4.
Frequent Load Cycling
Industrial processes with variable production schedules — batch manufacturing, shift-based operations, or demand-response energy management — subject contact boxes to daily thermal cycles. A contact box experiencing two full load cycles per day accumulates 730 thermal cycles per year, compared to fewer than 100 in a stable utility substation environment.
Vibration and Mechanical Coupling
Heavy machinery in industrial plants generates structural vibration that transmits through switchgear mounting frames into contact box assemblies. Vibration-induced micro-motion at the epoxy-metal interface accelerates crack propagation in components already weakened by thermal cycling.
Contamination and Partial Discharge
Airborne conductive dust (carbon black, metallic particles) common in industrial plants deposits on contact box surfaces. Combined with surface micro-cracks, this contamination creates partial discharge (PD) initiation sites that erode the epoxy surface through electrical treeing — a secondary degradation mechanism that compounds thermal cracking and directly threatens medium voltage insulation reliability.
How Do You Troubleshoot and Resolve Epoxy Contact Box Cracking?
A structured troubleshooting approach allows maintenance teams to identify cracking at the earliest possible stage and implement corrective action before dielectric failure occurs.
Visual Inspection (Quarterly)

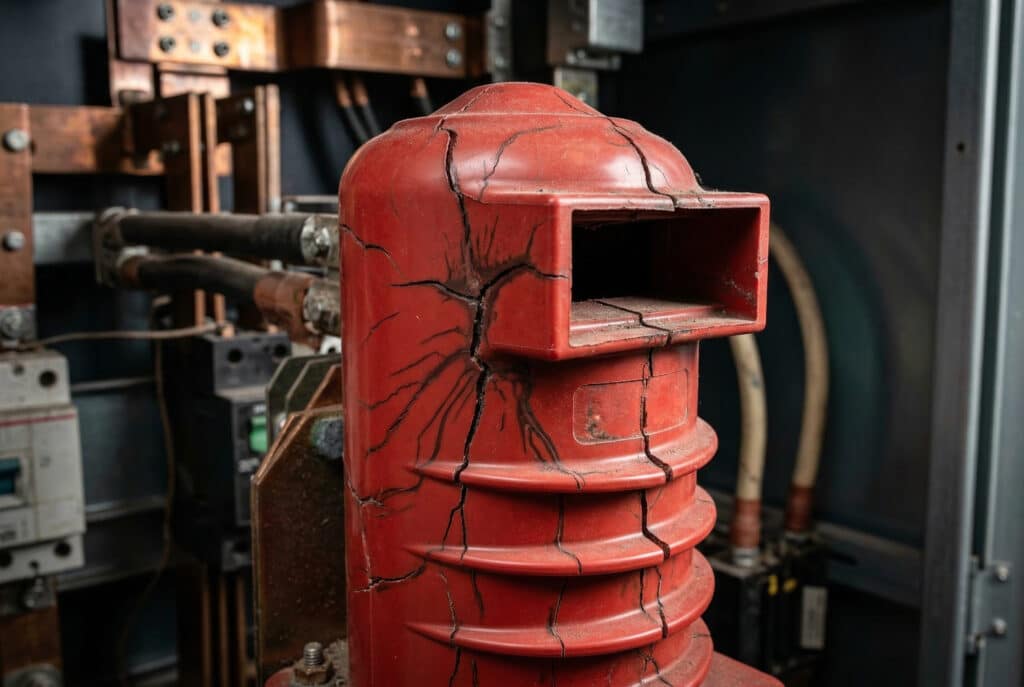

Inspect all accessible contact box surfaces under adequate lighting for hairline cracks, surface discoloration (yellowing or browning indicates thermal aging), and tracking marks. Use a 10× magnifying loupe for interface zones around metal inserts.Partial Discharge Measurement (Annual)
Perform offline PD testing per IEC 602705 using a calibrated PD detector. A PD level exceeding 10 pC at rated voltage is a reliable early indicator of internal crack propagation and insulation degradation in medium voltage contact boxes.Infrared Thermography (Semi-Annual)
Conduct IR scanning during loaded operation. A temperature differential exceeding 10°C between contact boxes on the same busbar phase indicates abnormal resistance heating — typically caused by contact misalignment resulting from epoxy deformation or cracking.Dielectric Withstand Test (Every 3–5 Years)
Apply AC withstand voltage per IEC 62271-1 at 80% of the original type test voltage. Failure to withstand confirms insulation degradation requiring immediate replacement.Root Cause Documentation and Corrective Action
Upon confirmed cracking, document operating load history, ambient temperature records, and maintenance logs. Determine whether the failure is driven by overloading, environmental factors, or material quality. Replace with contact boxes specifying:
– Tg ≥ 140°C
– Filler content ≥ 60% (silica or alumina) to reduce CTE
– Certified per IEC 62271-200 with type test reportsPreventive Replacement Scheduling
For contact boxes in service beyond 15 years in high-cycle industrial environments, schedule proactive replacement during the next planned outage — regardless of visible condition. Micro-crack accumulation at this stage is statistically near the critical threshold for dielectric failure.
Conclusion
Epoxy contact box cracking under thermal stress is a well-understood failure mechanism — driven by CTE mismatch, Tg degradation, residual casting stress, and the uniquely aggressive conditions of industrial plant environments. For medium voltage reliability teams, the answer lies in combining material-aware procurement standards, structured troubleshooting protocols, and proactive replacement scheduling. At Bepto Electric, our epoxy contact boxes are engineered with high-Tg formulations and optimized filler ratios specifically to withstand the thermal demands of demanding MV applications.
FAQs About Epoxy Contact Box Cracking
Q: What causes epoxy contact boxes to crack in medium voltage switchgear?
A: The primary cause is CTE mismatch between epoxy resin and embedded metal components. Repeated thermal cycling generates interfacial shear stress that initiates and propagates micro-cracks through the resin matrix over time.
Q: How can I detect early-stage cracking in an epoxy contact box?
A: Combine quarterly visual inspection with annual partial discharge testing per IEC 60270. PD levels exceeding 10 pC at rated voltage reliably indicate internal crack propagation before visible surface failure appears.
Q: Why do industrial plant environments cause faster contact box degradation?
A: High ambient temperatures, frequent load cycling, mechanical vibration, and conductive dust contamination combine to accelerate both thermal aging and partial discharge erosion — far exceeding standard laboratory test conditions.
Q: What glass transition temperature (Tg) should I specify for replacement contact boxes?
A: Specify Tg ≥ 140°C for industrial plant applications. Higher Tg formulations maintain mechanical integrity at elevated operating temperatures and resist the irreversible polymer chain scission that reduces fracture toughness.
Q: When should epoxy contact boxes be proactively replaced in high-cycle MV installations?
A: Plan proactive replacement after 15 years of service in high thermal-cycle environments. At this point, cumulative micro-crack accumulation statistically approaches the critical threshold for dielectric failure, regardless of visible surface condition.
-
