Introduction
Across industrial plants, utilities, and commercial substations worldwide, thousands of indoor medium voltage breakers installed in the 1980s and 1990s are quietly approaching — or well past — their design lifecycle. Many are oil-type or early-generation air-magnetic breakers that no longer meet modern power distribution reliability standards, yet replacing the entire switchgear cubicle is prohibitively expensive and operationally disruptive.
The answer is targeted Indoor VCB retrofitting: replacing only the breaker mechanism within the existing cubicle frame, restoring full medium voltage switching capability without a full panel overhaul.
For electrical engineers managing aging infrastructure and procurement managers balancing CAPEX constraints, this step-by-step modernization approach delivers maximum lifecycle value. It addresses the core pain points of unreliable interruption performance, unavailable spare parts, and escalating maintenance costs — all while keeping the power distribution system online as long as possible.
This guide walks through every critical phase of an Indoor VCB retrofit, from technical assessment to commissioning.
Table of Contents
- What Is an Indoor VCB Retrofit and Why Does It Matter?
- How Does a Modern Indoor VCB Outperform Legacy Breaker Technology?
- How Do You Select the Right Indoor VCB for a Retrofit Application?
- What Are the Step-by-Step Installation and Commissioning Best Practices?
- FAQs About Indoor VCB Retrofitting
What Is an Indoor VCB Retrofit and Why Does It Matter?
An Indoor VCB retrofit — sometimes called a “breaker-only replacement” or “draw-out mechanism upgrade” — is the process of removing an obsolete circuit breaker from an existing medium voltage switchgear cubicle and installing a dimensionally compatible modern Vacuum Circuit Breaker1 in its place. The bus bars, secondary wiring, and cubicle structure remain untouched.
This is not a cosmetic upgrade. It is a precision engineering intervention that directly extends the operational lifecycle of your power distribution infrastructure.
Key Technical Characteristics of Modern Indoor VCBs
Modern Indoor VCBs deployed in retrofit projects are engineered to meet or exceed the following parameters:
- Rated Voltage: 3.6 kV – 40.5 kV (medium voltage range)
- Rated Current: 630 A – 4000 A
- Short-Circuit Breaking Capacity: Up to 50 kA
- Vacuum Interrupter Dielectric Strength: ≥42 kV (1-minute withstand)
- Mechanical Endurance: ≥10,000 operations (Class M2 per IEC 62271-1002)
- Electrical Endurance: ≥E2 classification
- Insulation System: Epoxy-molded or solid-insulation embedded pole
- Standards Compliance: IEC 62271-100, IEC 62271-200
- Protection Rating: IP4X minimum for indoor panel environments
The vacuum interrupter itself — the heart of the VCB — uses a sealed vacuum envelope (pressure < 10⁻³ Pa) to quench the arc within microseconds of contact separation. This eliminates the carbon contamination, oil degradation, and gas replenishment issues that plagued legacy oil and air-magnetic breakers throughout their service lifecycle.
How Does a Modern Indoor VCB Outperform Legacy Breaker Technology?
The performance gap between a 30-year-old oil circuit breaker and a modern Indoor VCB is not incremental — it is generational. Understanding this gap is essential for justifying the retrofit investment to stakeholders and procurement decision-makers.
Performance Comparison: Legacy Breaker vs. Modern Indoor VCB
| Parameter | Legacy Oil/Air-Magnetic CB | Modern Indoor VCB |
|---|---|---|
| Arc Quenching Medium | Oil or compressed air | High-vacuum interrupter |
| Dielectric Recovery Speed3 | Slow (ms range) | Ultra-fast (µs range) |
| Maintenance Interval | 500–1,000 operations | 10,000+ operations |
| Spare Parts Availability | Scarce / discontinued | Fully supported |
| Operating Mechanism | Spring + hydraulic | Spring-charged, motor-driven |
| Environmental Risk | Oil leak / fire hazard | Zero oil, zero SF6 |
| Footprint Compatibility | Fixed cubicle dimensions | Draw-out retrofit compatible |
| Lifecycle Cost (10-year) | High (frequent overhaul) | Low (near maintenance-free) |
The reliability advantage is decisive in power distribution environments where unplanned outages translate directly into production losses or grid instability.
Real-World Retrofit Case: Industrial Plant in Southeast Asia
A procurement manager at a cement manufacturing facility in Vietnam contacted our team after experiencing three unexpected tripping failures within 18 months on their 11 kV oil circuit breakers — breakers that had been in service since 1994. Spare parts were no longer available from the original manufacturer, and each failure required a 48-hour emergency shutdown.
We supplied a matched set of Indoor VCBs dimensionally compatible with their existing GBC-type cubicles. After retrofit installation, the facility completed 12 months of operation with zero unplanned interruptions. The procurement manager noted that the total retrofit cost was less than 30% of what a full switchgear replacement would have required — a compelling lifecycle cost argument that any CFO can understand.

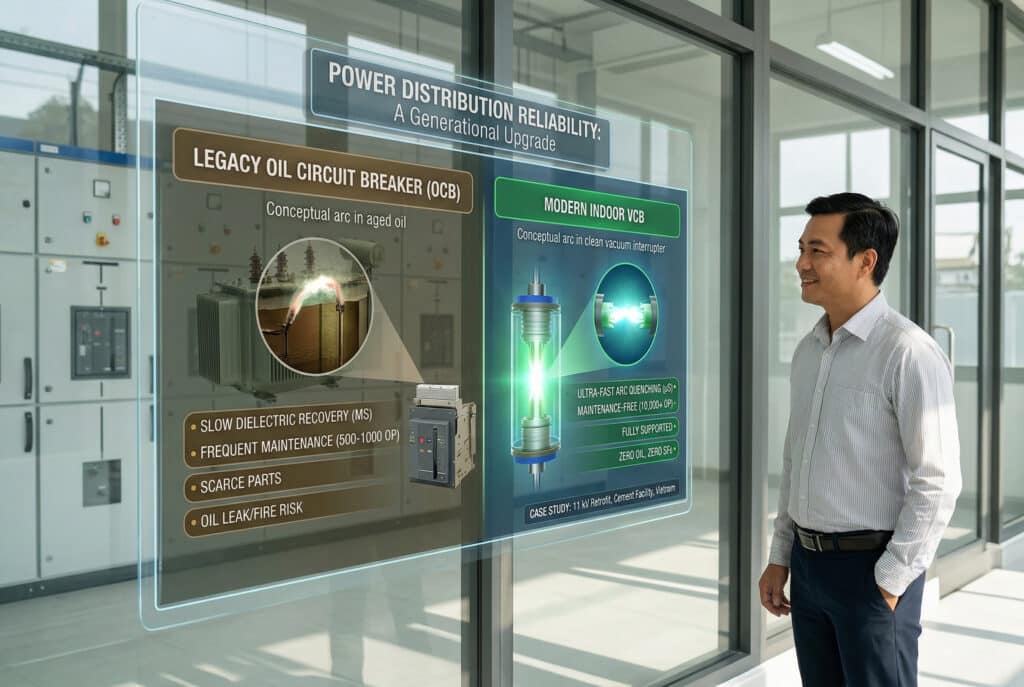

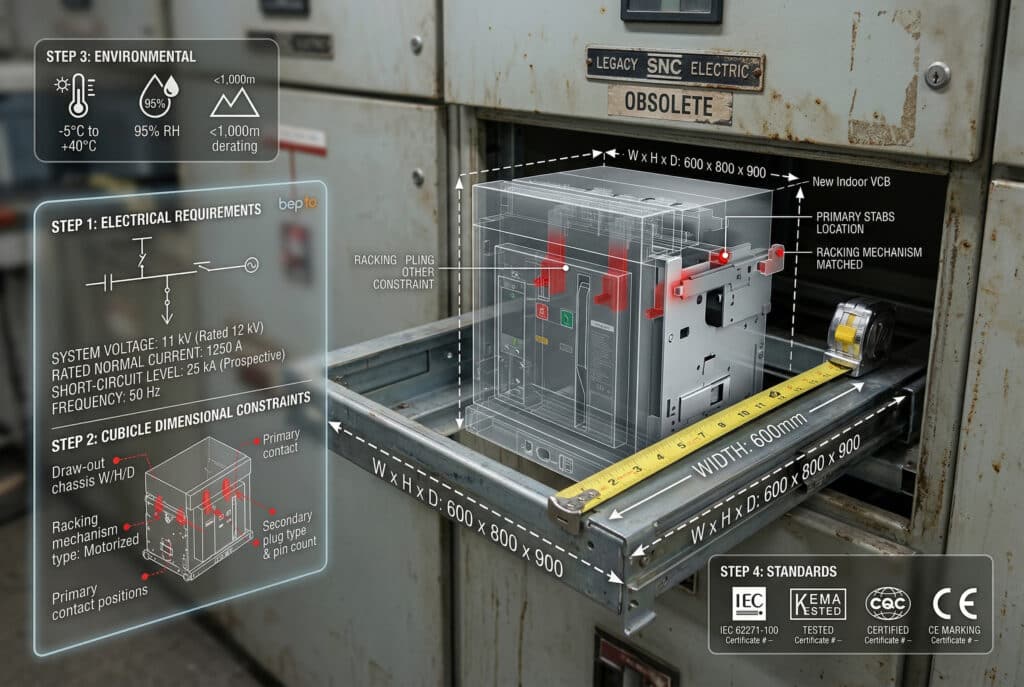

How Do You Select the Right Indoor VCB for a Retrofit Application?
Selecting an Indoor VCB for retrofit is more nuanced than a greenfield specification. The existing cubicle geometry, secondary control wiring, and bus bar configuration all impose constraints that must be resolved before procurement.
Step 1: Define Electrical Requirements
Before any product selection, document the following from the existing nameplate and single-line diagram:
- System Voltage: Confirm nominal and maximum operating voltage (e.g., 11 kV, 33 kV)
- Rated Normal Current: Match or exceed the existing breaker’s continuous current rating
- Short-Circuit Level: Verify the prospective fault current at the installation point
- Frequency: 50 Hz or 60 Hz system
Step 2: Assess Cubicle Dimensional Constraints
This is the most critical step unique to retrofit projects:
- Measure the draw-out chassis dimensions (width × height × depth)
- Identify the racking mechanism type (manual crank, motorized, or fixed-mounted)
- Confirm primary disconnect contact positions (upper/lower stab locations)
- Check secondary plug connector type and pin count
Step 3: Evaluate Environmental Conditions
Indoor VCBs in retrofit applications must be matched to the actual operating environment:
- Temperature Range: Standard –5°C to +40°C; extended range available for tropical or cold-climate installations
- Humidity: Up to 95% RH (non-condensing) for standard indoor panels
- Pollution Degree: IEC Pollution Degree 3 for industrial environments
- Altitude: Derating required above 1,000 m ASL
Step 4: Match Standards and Certifications
Retrofit projects in regulated industries require documented compliance:
- IEC 62271-100: Alternating current circuit breakers
- IEC 62271-200: AC metal-enclosed switchgear
- KEMA / CESI / CQC Test Reports: Third-party type test certificates
- CE Marking: Required for European project sites
Application Scenarios Where Indoor VCB Retrofits Deliver Maximum Value
- Industrial Power Distribution: Cement, steel, petrochemical, and mining facilities with 6–35 kV distribution boards
- Utility Substations: Secondary substations requiring lifecycle extension without civil works
- Commercial Buildings: High-rise and data center MV switchrooms with limited outage windows
- Renewable Energy: Solar farm collection substations where legacy breakers were installed in early-generation designs
What Are the Step-by-Step Installation and Commissioning Best Practices?
A technically correct retrofit can be undermined by poor installation practice. The following sequence reflects field-proven procedures for Indoor VCB replacement in live switchgear environments.
Installation Sequence
- Isolate and Verify Dead: Confirm upstream and downstream isolation; apply locks and safety tags per LOTO procedure
- Remove Legacy Breaker: Rack out to disconnected position; disconnect secondary plug; withdraw chassis from cubicle
- Inspect Cubicle Interior: Check bus bar contacts for pitting or corrosion; clean spout contacts with approved contact cleaner
- Install New Indoor VCB: Align chassis on cubicle rails; connect secondary control plug; verify racking mechanism engagement

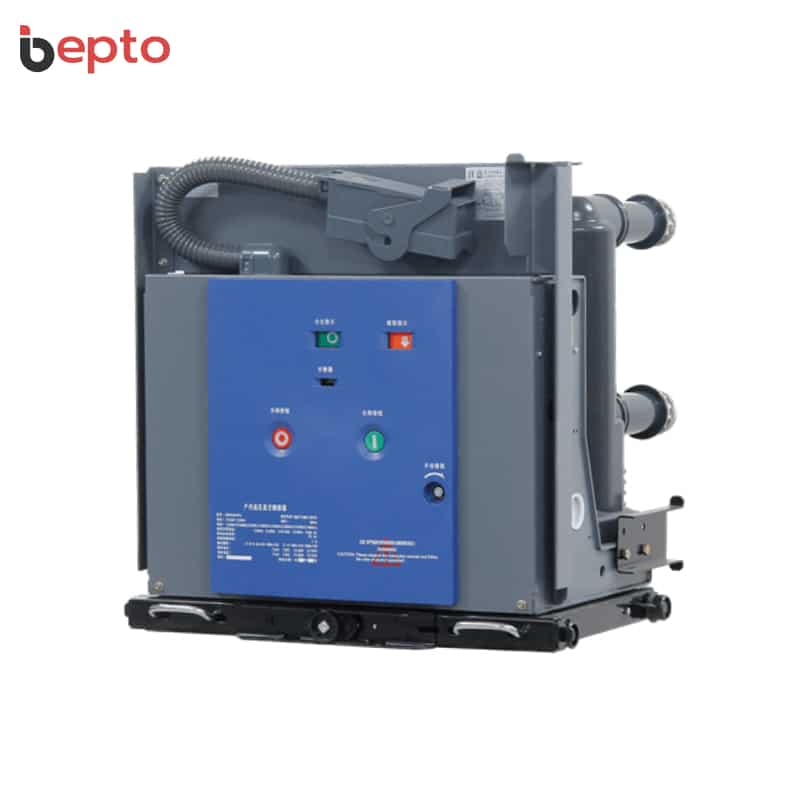

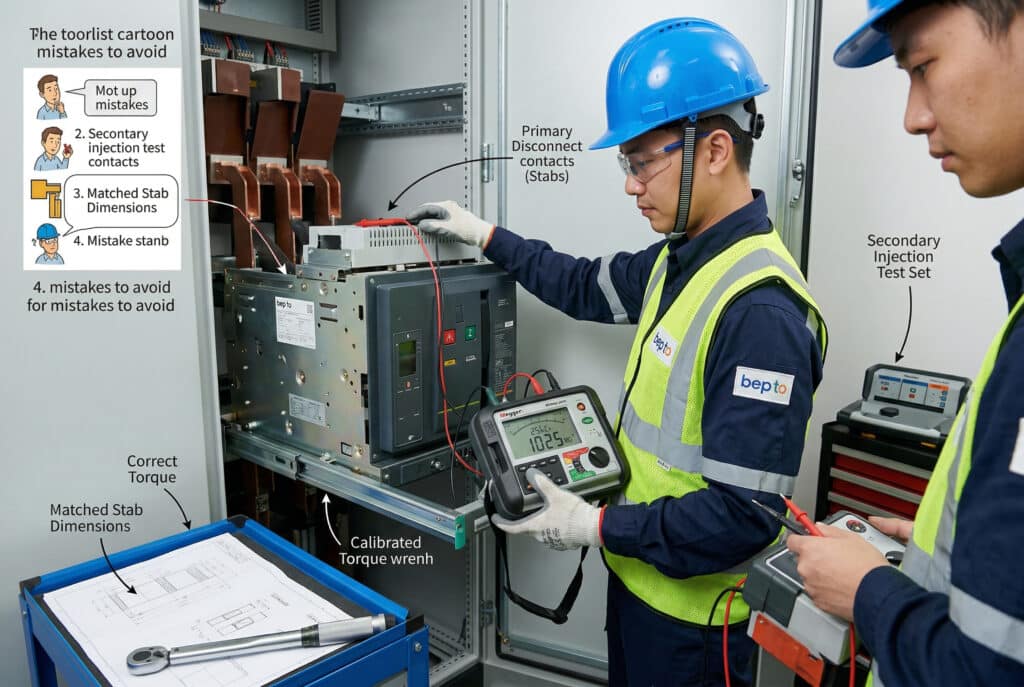

- Perform Pre-Energization Tests:
- Contact resistance4 measurement (< 100 µΩ typical)
- Insulation resistance test (≥ 1,000 MΩ at 2.5 kV DC)
- Vacuum integrity check (Hi-Pot test per IEC 62271-100)
- Mechanical operation test (minimum 5 open/close cycles)
- Functional Test with secondary injection5: Verify trip coil, close coil, and protection relay interface
- Energize and Monitor: Record first-load operating data; confirm no abnormal heating or partial discharge
Common Retrofit Mistakes to Avoid
- Mismatched Stab Dimensions: Even a 5 mm deviation in primary contact position can cause arcing at the disconnect point — always verify with dimensional drawings, not assumptions
- Ignoring Secondary Wiring Compatibility: New VCBs may use different auxiliary contact configurations; verify NC/NO mapping before connecting
- Skipping Vacuum Integrity Test: A vacuum interrupter damaged during shipping will fail catastrophically under fault conditions — never skip Hi-Pot verification
- Incorrect Torque on Primary Connections: Under-torqued connections cause resistive heating; always use a calibrated torque wrench to manufacturer specification
Conclusion
Retrofitting legacy indoor breakers with modern Indoor VCBs is one of the highest-ROI decisions available to engineers and procurement managers responsible for aging medium voltage power distribution infrastructure. By replacing only the breaker mechanism, you restore full switching reliability, eliminate obsolete technology risk, and extend the system lifecycle — at a fraction of full switchgear replacement cost. The core takeaway: a well-executed Indoor VCB retrofit is not a compromise — it is a precision upgrade that delivers new-equipment performance within your existing infrastructure investment.
FAQs About Indoor VCB Retrofitting
Q: Can a modern Indoor VCB always fit directly into an existing legacy switchgear cubicle without modification?
A: Not always. Dimensional compatibility must be verified against cubicle drawings. Most major VCB manufacturers offer retrofit-specific chassis variants designed to match common legacy cubicle platforms such as GBC, VD4, and HVX frames.
Q: What is the typical service lifecycle of a modern Indoor VCB after retrofit installation?
A: A properly installed Indoor VCB rated to IEC Class M2 is designed for 10,000 mechanical operations and 25–30 years of service lifecycle under normal medium voltage power distribution conditions.
Q: Do Indoor VCB retrofits require full switchgear outage or can they be done in sections?
A: In most draw-out switchgear designs, individual breaker replacement requires only that specific feeder to be de-energized. Adjacent feeders can remain live, significantly reducing outage impact on power distribution continuity.
Q: What certifications should I require from a supplier when procuring Indoor VCBs for a retrofit project?
A: Require IEC 62271-100 type test reports from an accredited laboratory (KEMA, CESI, or equivalent), plus dimensional drawings confirming cubicle compatibility. For export projects, CE marking or local regulatory approval may also be required.
Q: How does retrofitting an Indoor VCB affect the existing protection relay coordination in a medium voltage system?
A: The VCB itself does not alter relay settings, but the new breaker’s trip coil voltage, auxiliary contact timing, and operating time must be verified against the existing protection relay specifications to ensure correct coordination is maintained.
-
