Understanding CT B-H Magnetization Curve

Introduction

Ask any protection engineer what causes a current transformer to fail during a fault, and the honest answer always traces back to the same fundamental physics: the core ran out of magnetic headroom. Yet in practice, the B-H magnetization curve — the single graph that defines exactly how much headroom a CT core has — is one of the most overlooked documents in a substation specification package.

The direct answer: the CT B-H magnetization curve describes the nonlinear relationship between magnetic flux density ($B$, in Tesla) and magnetic field intensity ($H$, in A/m) within the transformer core material, defining the core’s linear operating range, its knee point, and its saturation limit — all of which directly determine measurement accuracy and protection reliability under fault conditions.

I’ve reviewed CT datasheets submitted by procurement teams across industrial projects in Europe and Southeast Asia, and the pattern is consistent: engineers specify voltage ratio and accuracy class, but rarely verify the magnetization curve against actual fault current levels. That gap between specification and reality is where protection systems fail. This article gives you a complete, engineering-grade understanding of the B-H curve and how to use it as a practical tool — not just a datasheet footnote. 🔍

Table of Contents

• What Is the CT B-H Magnetization Curve and What Does It Measure?
• How Do Core Materials Affect the Shape and Performance of the B-H Curve?
• How Do You Apply the B-H Curve to Select the Right CT for Your Protection Scheme?
• What Are the Common Mistakes Engineers Make When Interpreting CT Magnetization Curves?
• FAQs About CT B-H Magnetization Curve

What Is the CT B-H Magnetization Curve and What Does It Measure?

The B-H curve is the magnetic fingerprint of a CT core. Every core material — regardless of manufacturer or geometry — produces a characteristic curve that governs how the core responds to increasing magnetomotive force. Understanding this curve is not optional for protection engineers. It is the foundation of every saturation calculation you will ever perform.

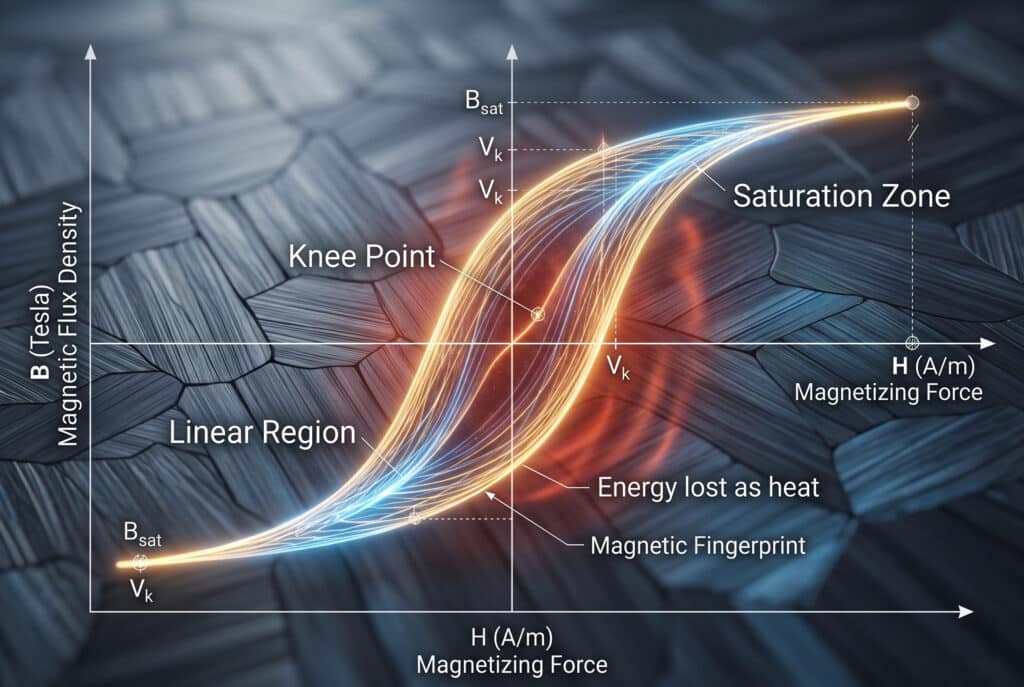

The Three Zones of a B-H Curve

The magnetization curve divides into three functionally distinct regions:

Zone 1 — Linear Region:
In this region, $B$ increases proportionally with $H$. The relationship is governed by the core’s permeability ($\mu = B/H$). This is the only zone where a CT produces an accurate, proportional secondary output. All normal load current electromagnetic induction¹ and protection operation must occur here.

Zone 2 — Knee Point Region:
The knee point marks the boundary between linear behavior and saturation onset. It is formally defined under IEC 61869-2 as the point on the magnetization curve where a 10% increase in excitation voltage produces a 50% increase in exciting current. This is the most critical reference point on the entire curve.

Zone 3 — Saturation Region:
Beyond the knee point, the core material cannot support additional flux. Incremental increases in $H$ produce negligible increases in $B$. The CT’s secondary output collapses — it no longer represents the primary current. This is where protection failures originate.

Key Parameters Read Directly from the B-H Curve

Parameter	Symbol	Definition	Engineering Significance
Saturation Flux Density	$B_{sat}$	Maximum $B$ before full saturation	Sets absolute core capacity
Knee Point Voltage	$V_k$	Excitation voltage at knee point	Primary saturation avoidance criterion
Exciting Current at $V_k$	$I_e$	Magnetizing current at knee point	Indicates core quality — lower is better
Remanent Flux Density	$B_r$	Residual $B$ after $H$ returns to zero	Reduces available flux headroom
Coercive Force	$H_c$	$H$ required to reduce $B$ to zero	Indicates hysteresis loss magnitude
Initial Permeability	$\mu_i$	Slope of B-H curve at origin	Governs linearity at low currents

The Hysteresis Loop

A complete picture of CT core behavior requires understanding the hysteresis loop — the closed B-H curve traced when the core is cyclically magnetized. The area enclosed by this loop represents energy lost as heat per magnetization cycle. For CT cores, a narrow hysteresis loop is desirable because it indicates:

• Low core losses (reduced heating)
• Low remanent flux (more available headroom after fault events)
• High measurement accuracy across the operating range

How Do Core Materials Affect the Shape and Performance of the B-H Curve?

The shape of the B-H curve is not a fixed property — it is entirely determined by the core material² chosen during CT design. Different materials produce dramatically different curve profiles, and selecting the wrong material is one of the most consequential specification errors in CT engineering. ⚙️

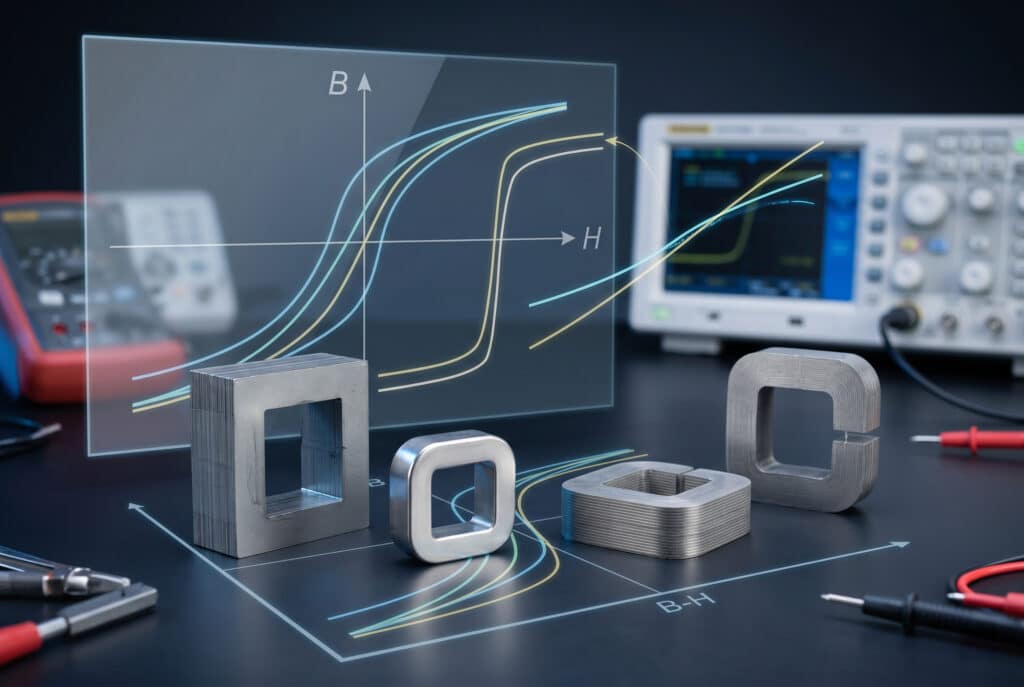

Core Material Comparison

Property	GOES (Silicon Steel)	Nickel-Iron Alloy	Nanocrystalline Alloy
Saturation Flux ($B_{sat}$)	1.8 – 2.0 T	0.75 – 1.0 T	1.2 – 1.3 T
Initial Permeability ($\mu_i$)	Medium	Very High	Very High
Remanence Factor ($K_r$)	60 – 80%	40 – 60%	<10%
Knee Point Sharpness	Gradual	Sharp	Very Sharp

Why Knee Point Sharpness Matters

A sharp knee point — characteristic of nickel-iron and nanocrystalline cores — means the transition from linear to saturated behavior is abrupt and well-defined. This is advantageous because:

• The knee point voltage ($V_k$) can be precisely measured and verified
• The CT operates fully linearly below $V_k$ with high accuracy
• Saturation behavior is predictable and calculable

How Air Gaps Modify the B-H Curve

Some CT designs intentionally introduce a small air gap into the core. This air gap fundamentally reshapes the B-H curve by reducing effective permeability and dramatically reducing remanence, making the curve more linear under transient conditions. This is a hallmark of IEC 61869-2 accuracy classes³ designed for ultra-high-speed protection.

How Do You Apply the B-H Curve to Select the Right CT for Your Protection Scheme?

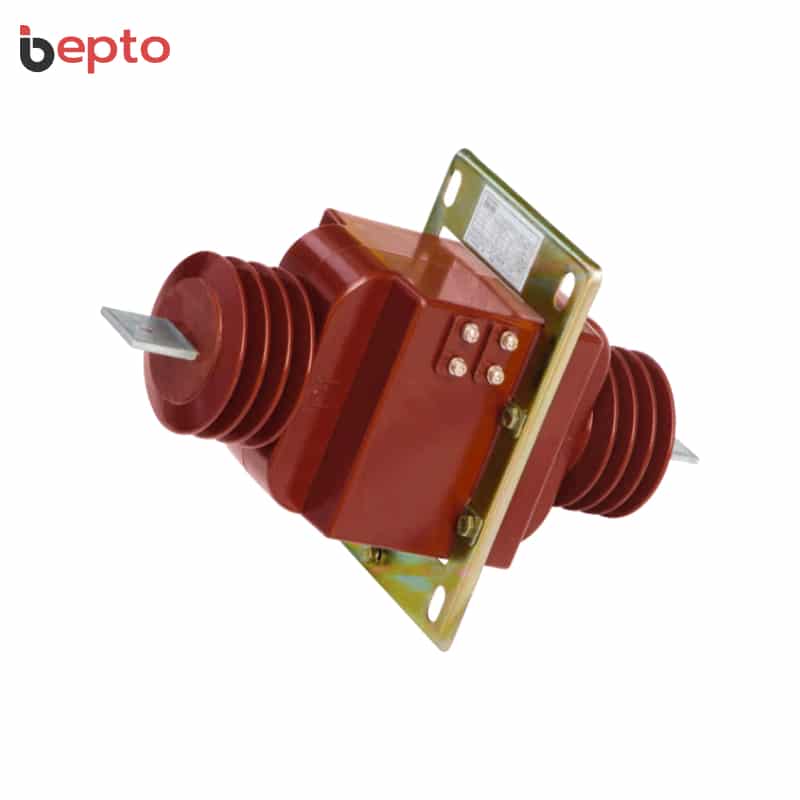

The B-H curve is a practical engineering instrument that drives every CT selection decision.

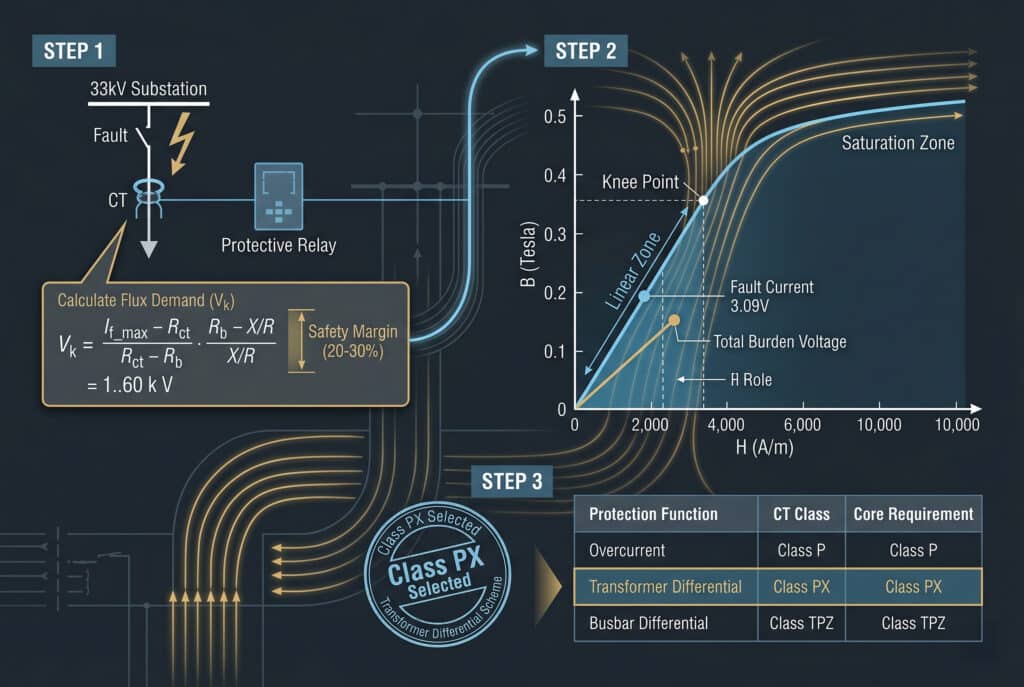

Step 1: Establish the Maximum Flux Demand

Calculate the total flux the core must support under worst-case fault conditions:

$V_k \geq I_{f_max} \times (R_{ct} + R_b) \times (1 + X/R)$

Where:

• $I_{f_max}$ = maximum fault current in secondary amperes
• $R_{ct}$ = CT secondary winding resistance ($\Omega$)
• $R_b$ = total connected burden ($\Omega$)
• $X/R$= system DC offset factor at fault point

Add a safety margin of 20–30% above this calculated value.

Step 2: Verify the Core Operates in the Linear Region

Plot your normal load current and maximum fault current against the CT’s published magnetization curve. Normal load current excitation must fall well within Zone 1 (linear region), while maximum fault current excitation must remain below the knee point to avoid saturation-induced maloperation⁴.

Step 3: Match CT Class to Protection Function

Protection Function	Recommended CT Class	Key B-H Curve Requirement
General Overcurrent	Class P	$V_k$ above max fault burden voltage
Transformer Differential	Class PX or TPY	Matched $V_k$, low remanence
Busbar Differential	Class TPZ	Near-zero remanence, air-gap core

What Are the Common Mistakes Engineers Make When Interpreting CT Magnetization Curves?

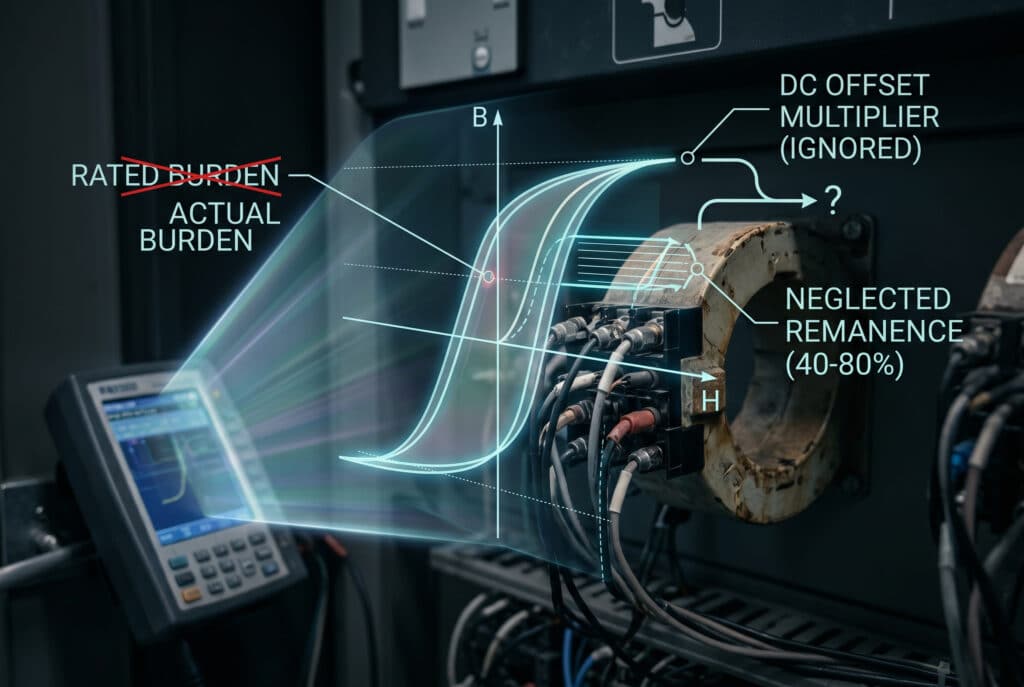

Even experienced engineers make systematic errors when working with B-H curve data.

• Using rated burden instead of actual burden: Overestimates available ALF and leads to undersized $V_k$ selection.
• Ignoring the DC offset multiplier: Calculating required $V_k$ based on symmetrical fault current alone is the single most common cause of CT saturation.
• Confusing accuracy class with saturation performance: A metering CT is entirely unsuitable for protection applications regardless of its accuracy class.
• Neglecting remanence after fault events: Failing to perform a demagnetization procedure⁵ leaves residual flux that reduces available headroom by 40–80%.

Conclusion

The B-H magnetization curve is the definitive engineering tool that determines whether your current transformer will deliver accurate secondary signals when a fault strikes. Understanding the operating zones, selecting the right material, and verifying the curve through field testing are non-negotiable steps. Master the B-H curve, and you master CT performance. 🔒
