In industrial plant power distribution rooms, maintenance teams routinely top up SF6 gas insulation parts using whatever SF6 cylinder is available on site — often without checking the gas grade, verifying the supplier certificate, or considering what is already inside the compartment. This practice is so widespread that many experienced electricians consider it standard procedure. It is not. Mixing different grades of SF6 gas inside a sealed compartment is one of the most dangerous and least understood maintenance errors in industrial electrical systems.
The direct answer is this: when SF6 of different purity grades, moisture contents, or contamination profiles are mixed inside a gas compartment, the resulting gas blend can have dramatically reduced dielectric strength1, accelerated insulation degradation, and toxic byproduct concentrations that endanger both equipment and personnel safety.
For industrial plant electrical engineers and maintenance managers responsible for SF6 gas insulation parts in medium-voltage switchgear, motor control centers, and plant substations, this is a troubleshooting reality that sits at the intersection of chemistry, safety, and operational reliability. The consequences of getting it wrong range from silent insulation degradation to catastrophic arc flash events — and the root cause is almost never identified until a forensic investigation after the failure. This guide exposes the hidden dangers and establishes the engineering framework to eliminate the risk entirely.
Table of Contents
- What Defines SF6 Gas Grade and Why Does Purity Determine Safety in Gas Insulation Parts?
- How Does Gas Grade Mixing Trigger Insulation Failure and Safety Hazards in Industrial Plants?
- How to Select and Verify the Correct SF6 Gas Grade for Industrial Plant Gas Insulation Parts?
- What Are the Troubleshooting Steps When Gas Contamination Is Suspected in SF6 Gas Insulation Parts?
- FAQs About SF6 Gas Grade Mixing and Safety
What Defines SF6 Gas Grade and Why Does Purity Determine Safety in Gas Insulation Parts?

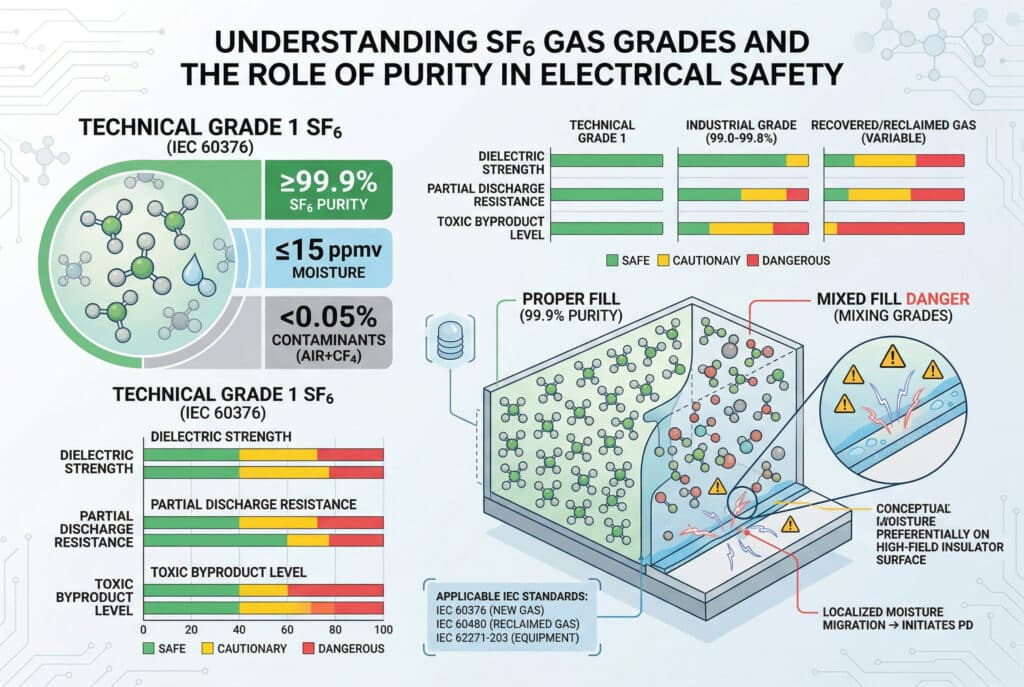

SF6 gas is not a single uniform product. It is manufactured and supplied in multiple grades, each defined by its purity level, moisture content, and permissible contaminant concentrations. In industrial plant applications, where procurement is often decentralized and maintenance teams source SF6 from multiple suppliers across a plant’s operational lifetime, the probability of different gas grades coexisting in the same compartment is extremely high — and extremely dangerous.
The primary SF6 gas grades used in electrical applications are defined by IEC 603762, which establishes the minimum purity and maximum contaminant limits for new SF6 gas intended for use in electrical equipment:
- Technical Grade SF6 (IEC 60376 Grade 1): ≥99.9% SF6 purity; moisture ≤15 ppmv; air + CF₄ ≤0.05%; the mandatory specification for all SF6 gas insulation parts
- Industrial Grade SF6: 99.0–99.8% purity; moisture up to 50 ppmv; may contain elevated CF₄, air, and mineral oil vapor from cylinder contamination
- Recovered/Reclaimed SF6: Variable purity depending on recovery process; may contain SF6 decomposition byproducts3 (SOF₂, SO₂F₂, HF) from previous arcing service; governed by IEC 604804
Key technical parameters that define gas grade safety for SF6 gas insulation parts:
- Minimum SF6 Purity: ≥99.9% per IEC 60376 — below this, dielectric strength is proportionally reduced
- Maximum Moisture Content: ≤15 ppmv at rated fill pressure per IEC 60480 — moisture above this threshold initiates surface partial discharge5 on epoxy insulators
- Maximum Air + N₂ Content: ≤0.05% per IEC 60376 — oxygen reacts with SF6 byproducts to form corrosive sulfates
- Maximum CF₄ Content: ≤0.05% per IEC 60376 — CF₄ has significantly lower dielectric strength than SF6, diluting insulation performance
- Toxic Byproduct Limits: SOF₂ ≤2 ppmv; SO₂ ≤1 ppmv; HF ≤1 ppmv per IEC 60480 for reclaimed gas
- Applicable Standards: IEC 60376 (new gas), IEC 60480 (reclaimed gas), IEC 62271-203 (equipment fill requirements)
The critical safety insight: a gas compartment filled with 99.9% pure SF6 that is subsequently topped up with 99.0% industrial grade SF6 containing 45 ppmv moisture does not average out to a safe blend — the moisture migrates preferentially to high-field insulator surfaces and initiates partial discharge at concentrations far below the bulk gas average.
How Does Gas Grade Mixing Trigger Insulation Failure and Safety Hazards in Industrial Plants?

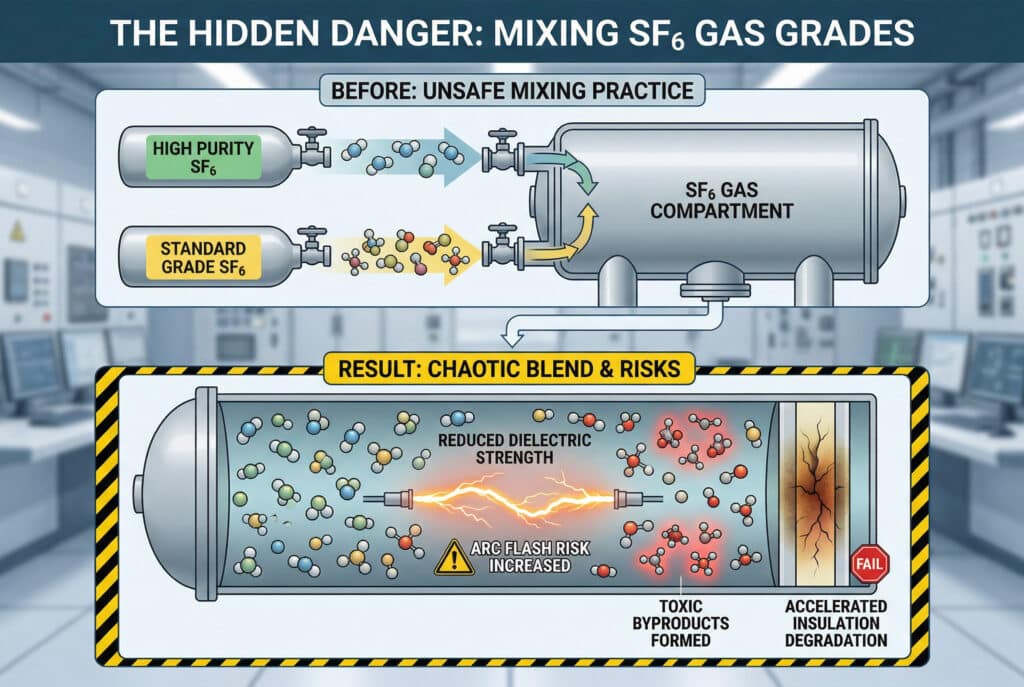

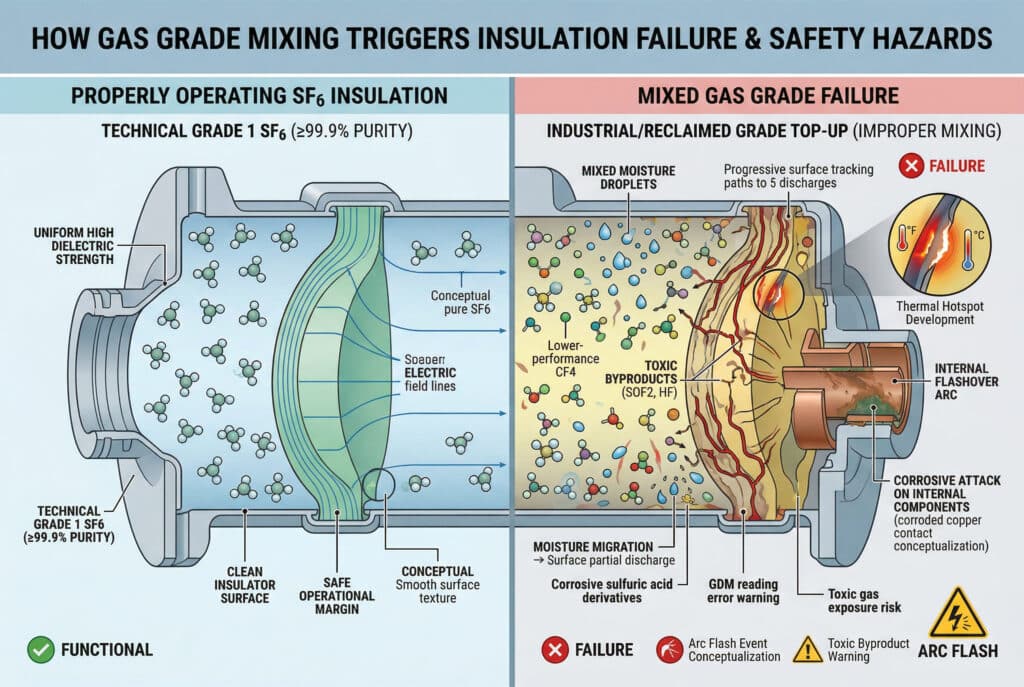

The failure mechanisms triggered by gas grade mixing in SF6 gas insulation parts are both electrochemical and thermodynamic in nature. In industrial plant environments — where equipment operates under continuous load, elevated ambient temperatures, and vibration — these mechanisms accelerate significantly compared to utility substation conditions.
The four primary hazard pathways from gas grade mixing are:
- Dielectric strength reduction from purity dilution — mixing 99.9% SF6 with 99.0% industrial grade reduces the effective dielectric strength of the gas blend; in a 24 kV compartment operating near rated voltage, this margin reduction can be sufficient to trigger internal flashover during a switching transient
- Moisture-induced surface tracking on epoxy insulators — moisture from lower-grade SF6 adsorbs onto cast epoxy spacer surfaces; under electric field stress, surface conductivity increases and tracking channels develop progressively, reducing creepage distance effectiveness
- Toxic byproduct generation and accumulation — if reclaimed SF6 containing residual SOF₂ or HF is mixed with fresh gas, the byproduct concentration in the blend may exceed IEC 60480 safety limits; during subsequent maintenance involving compartment opening, personnel are exposed to toxic gas without warning
- Corrosive attack on internal components — oxygen introduced with lower-grade SF6 reacts with SF6 decomposition byproducts already present from normal arcing service to form sulfuric acid derivatives that corrode copper contacts, aluminum enclosures, and elastomer seals
SF6 Gas Grade Contamination Impact Comparison
| Contaminant Source | Contaminant Type | Effect on SF6 Gas Insulation Part | Safety Risk Level |
|---|---|---|---|
| Industrial grade SF6 top-up | Elevated moisture (>15 ppmv) | Surface PD on epoxy spacers within 6–18 months | High — insulation failure |
| Recovered SF6 without analysis | SOF₂, HF, SO₂F₂ byproducts | Corrosion of contacts and seals; toxic gas exposure | Critical — personnel safety |
| CF₄-contaminated cylinder | CF₄ >0.05% | Dielectric strength reduction 5–15% | Medium — reduced safety margin |
| Air-contaminated cylinder | O₂, N₂ >0.05% | Corrosive byproduct formation; GDM reading error | High — monitoring failure |
| Mineral oil vapor from cylinder | Hydrocarbon contamination | Insulator surface contamination; PD initiation | High — insulation failure |
Customer Case — 12 kV Industrial Plant Switchgear, Chemical Processing Facility, Southeast Asia:
A safety-focused plant electrical manager contacted Bepto Electric following a phase-to-phase internal flashover in a 12 kV SF6 gas insulation part that had been in service for only four years. The unit was rated for 25-year service life. Post-failure gas analysis per IEC 60480 revealed moisture content of 89 ppmv and SOF₂ concentration of 14 ppmv — both massively above IEC limits. Investigation of maintenance records uncovered that the compartment had been topped up three times over four years using SF6 cylinders sourced from two different local industrial suppliers, neither of whom had provided IEC 60376 certificates. One cylinder had been recovered SF6 from a decommissioned unit at another plant site. The mixing of fresh technical grade SF6 with recovered gas containing pre-existing byproducts had created a toxic, moisture-laden blend that destroyed the epoxy spacer insulation within four years. The plant manager stated: “We thought SF6 was SF6. We did not know there were grades. Nobody told us the cylinder certificate mattered.” Following this incident, the facility implemented a mandatory gas certificate verification protocol and replaced all SF6 gas insulation parts with units featuring continuous gas purity monitoring.
How to Select and Verify the Correct SF6 Gas Grade for Industrial Plant Gas Insulation Parts?

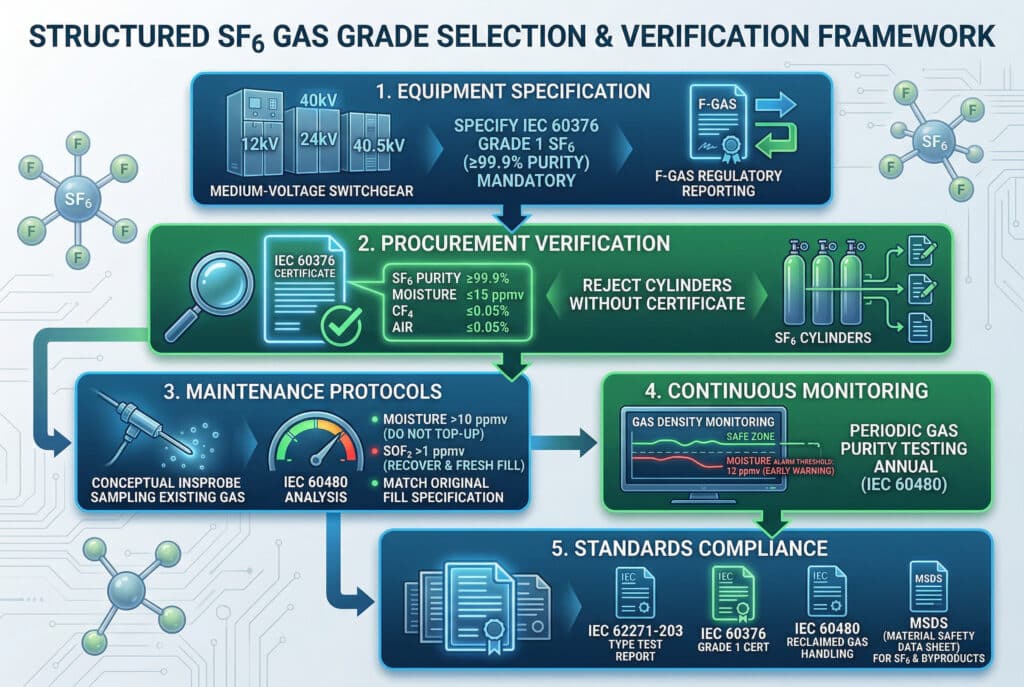

Eliminating gas grade mixing risk in industrial plant SF6 gas insulation parts requires a structured approach that spans equipment specification, procurement verification, and maintenance protocol enforcement. The following step-by-step selection and verification guide is designed for industrial plant electrical teams managing SF6 gas insulation parts across multiple plant areas.
Step 1: Establish Equipment Gas Grade Requirement
- Confirm rated voltage class: 12 kV / 24 kV / 40.5 kV for industrial plant distribution
- Specify IEC 60376 Grade 1 (≥99.9% purity) as the mandatory gas specification in all purchase orders and maintenance procedures
- Document the rated fill pressure and total SF6 charge weight per compartment — required for regulatory reporting under F-Gas regulations
Step 2: Implement Cylinder Certificate Verification at Procurement
- Require IEC 60376 compliance certificate with every SF6 cylinder delivery — reject any delivery without certificate
- Verify certificate parameters: SF6 purity ≥99.9%, moisture ≤15 ppmv, CF₄ ≤0.05%, air ≤0.05%
- Confirm cylinder has not been previously used for gas recovery — recovered SF6 must only be used after full reprocessing and IEC 60480 re-certification
- Assign cylinder tracking numbers and link to equipment maintenance records for full traceability
Step 3: Perform Pre-Fill Gas Analysis for Top-Up Operations
- Before any top-up of existing SF6 gas insulation parts, perform gas sampling of the existing compartment gas per IEC 60480
- If existing gas moisture >10 ppmv or SOF₂ >1 ppmv, do not top up — perform full gas recovery, compartment inspection, and fresh fill
- Verify that replacement SF6 grade matches the original fill specification documented at commissioning
Step 4: Specify Gas Monitoring for Industrial Plant Applications
- Continuous gas density monitoring: Mandatory for all SF6 gas insulation parts in industrial plant substations; output to plant DCS or SCADA
- Periodic gas purity testing: Annual gas sampling per IEC 60480 for all compartments in industrial environments with elevated ambient temperature or vibration
- Moisture alarm threshold: Set at 12 ppmv — 3 ppmv below IEC limit — to provide early warning before threshold breach
Step 5: Verify IEC Standards and Safety Certifications
- IEC 62271-203 type test report confirming dielectric performance at rated fill pressure
- IEC 60376 gas purity certificate for factory fill gas
- IEC 60480 compliance procedure for any reclaimed gas handling on site
- Material Safety Data Sheet (MSDS) for SF6 and identified decomposition byproducts — mandatory for industrial plant safety management systems
Industrial Plant Application Scenarios
- Chemical Processing Plant Substation: Elevated ambient temperature accelerates moisture migration; annual gas purity testing mandatory; specify compartments with integrated moisture sensors
- Steel Mill Power Distribution: High vibration environment accelerates seal wear and micro-leakage; specify FKM seals with enhanced compression set resistance; quarterly leak checks required
- Offshore Platform Electrical Room: Confined space with limited ventilation — toxic byproduct accumulation from contaminated gas is a critical personnel safety risk; specify continuous SF6 gas detector in electrical room
- Pharmaceutical Plant MV Switchgear: Cleanroom-adjacent installations require zero SF6 emission tolerance; specify hermetically welded enclosures with verified ≤0.05% annual leakage rate
What Are the Troubleshooting Steps When Gas Contamination Is Suspected in SF6 Gas Insulation Parts?
When gas grade mixing is suspected — or when gas monitoring data indicates anomalies consistent with contamination — a structured troubleshooting protocol is essential to determine the contamination type, assess the safety risk, and define the correct remediation path before the SF6 gas insulation part is returned to service in the industrial plant.

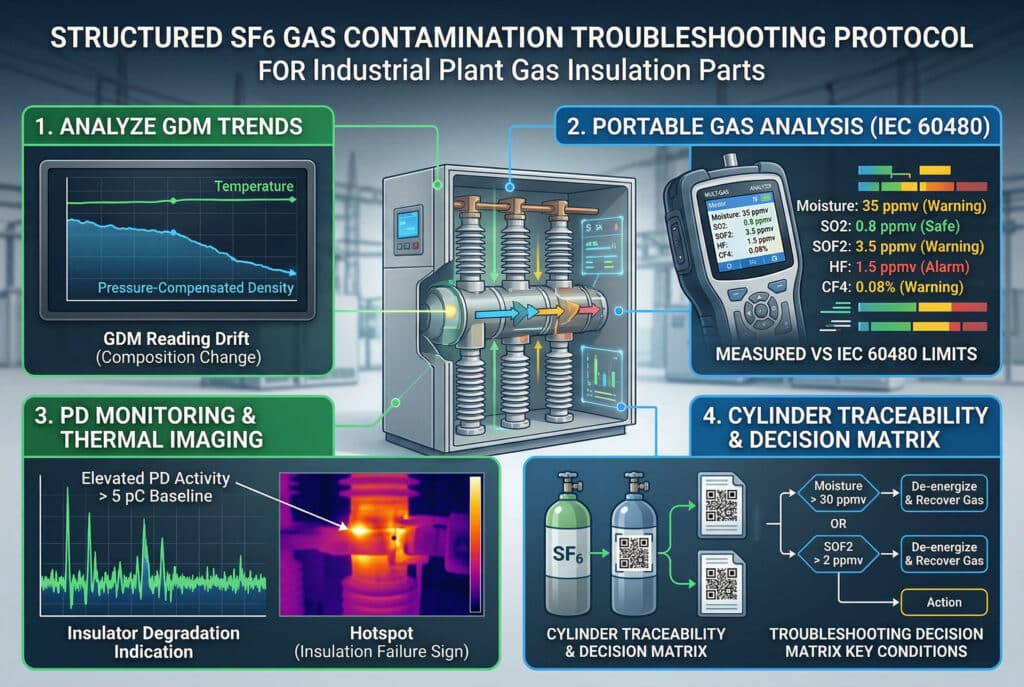

Contamination Identification Checklist
- Review gas density monitor trend data — a GDM reading that has drifted below rated pressure without a corresponding temperature drop indicates either gas leakage or gas composition change from mixing
- Perform portable gas analysis at fill valve — use a calibrated SF6 multi-gas analyzer capable of detecting moisture, SO₂, SOF₂, HF, and CF₄; compare results against IEC 60480 limits
- Check maintenance records for cylinder traceability — identify all SF6 top-up events and verify cylinder certificates for each; any gap in certificate records is a contamination risk indicator
- Inspect partial discharge monitoring data — elevated PD activity above 5 pC baseline indicates insulator surface degradation consistent with moisture or byproduct contamination
- Perform thermal imaging scan — hotspots at bushing interfaces or spacer locations indicate advanced insulation degradation from contaminated gas
Troubleshooting Decision Matrix
- Moisture 15–30 ppmv, no byproducts detected: Increase monitoring frequency to monthly; plan gas recovery and fresh fill at next scheduled outage within 6 months
- Moisture >30 ppmv OR SOF₂ >2 ppmv: De-energize at earliest opportunity; full gas recovery mandatory before next energization; internal inspection of spacers and contacts required
- HF >1 ppmv OR SO₂ >1 ppmv: Immediate de-energization; toxic gas hazard — do not open compartment without full respiratory protection (SCBA); gas recovery by certified SF6 handling contractor only
- CF₄ >0.05% with dielectric margin <10%: Assess switching transient risk; consider temporary voltage reduction; plan full gas recovery and fresh IEC 60376 Grade 1 fill within 30 days
Common Troubleshooting Mistakes to Avoid
- Topping up a contaminated compartment without prior gas analysis — adding fresh SF6 to a compartment with elevated byproducts dilutes the concentration temporarily but does not remove the corrosive compounds; degradation continues
- Opening a contaminated compartment without gas testing — SOF₂ and HF are acutely toxic at concentrations above 1 ppmv; never open an SF6 gas insulation part compartment without first confirming byproduct levels are below IEC 60480 safety limits
- Attributing GDM pressure drop solely to temperature — maintenance teams frequently dismiss low GDM readings as temperature effects without investigating gas composition change; always perform gas analysis when GDM reads more than 5% below temperature-compensated target
Conclusion
Mixing different grades of SF6 gas in industrial plant SF6 gas insulation parts is not a minor procedural shortcut — it is a safety-critical error that silently destroys insulation integrity, generates toxic byproducts, and creates arc flash hazards that endanger both personnel and plant continuity. The chemistry is unforgiving: moisture, oxygen, and decomposition byproducts introduced through lower-grade or recovered SF6 do not remain uniformly distributed — they concentrate at the most vulnerable points in the insulation system and initiate failure from the inside out. By enforcing IEC 60376 Grade 1 gas specification, implementing cylinder certificate verification at procurement, and following a structured contamination troubleshooting protocol, industrial plant electrical teams can eliminate this failure mode entirely. In SF6 gas insulation, the grade on the cylinder certificate is not a procurement detail — it is a safety document.
FAQs About SF6 Gas Grade Mixing and Safety
Q: What is the minimum SF6 gas purity grade required for topping up SF6 gas insulation parts in industrial plant switchgear per IEC standards?
A: IEC 60376 mandates a minimum purity of ≥99.9% SF6 for all new gas used in electrical equipment. Industrial grade SF6 at 99.0–99.8% purity does not meet this requirement and must not be used for topping up or filling SF6 gas insulation parts regardless of cost or availability considerations.
Q: How can a maintenance team identify whether SF6 gas contamination from grade mixing has already caused insulation damage in an SF6 gas insulation part?
A: Perform gas sampling per IEC 60480 using a multi-gas analyzer. Moisture above 15 ppmv or SOF₂ above 2 ppmv confirms contamination. Supplement with partial discharge measurement per IEC 60270 — PD activity above 5 pC baseline indicates active insulator surface degradation requiring immediate remediation.
Q: Is it safe to open an SF6 gas insulation part compartment for inspection if gas grade mixing is suspected in an industrial plant environment?
A: No. Suspected gas grade mixing — particularly involving recovered SF6 — may have generated HF or SOF₂ concentrations above IEC 60480 toxic limits. Gas analysis must be completed before any compartment opening. If HF exceeds 1 ppmv or SOF₂ exceeds 2 ppmv, full respiratory protection (SCBA) and certified SF6 handling contractor involvement are mandatory.
Q: Can recovered or reclaimed SF6 gas be safely reused in SF6 gas insulation parts after reprocessing?
A: Yes, but only after full reprocessing to IEC 60480 specification and independent laboratory re-certification confirming purity ≥99.9%, moisture ≤15 ppmv, and byproduct concentrations below IEC 60480 limits. Recovered SF6 that has not been re-certified must never be mixed with fresh gas or introduced into service equipment.
Q: What immediate safety actions should be taken if SF6 gas analysis reveals toxic byproduct levels above IEC 60480 limits in an industrial plant gas insulation part?
A: De-energize the equipment immediately and isolate from the distribution system. Restrict access to the equipment area and post toxic gas hazard warnings. Engage a certified SF6 gas handling contractor for recovery under controlled conditions with full PPE. Do not attempt compartment opening or gas venting without SCBA respiratory protection and gas monitoring equipment active.
-
