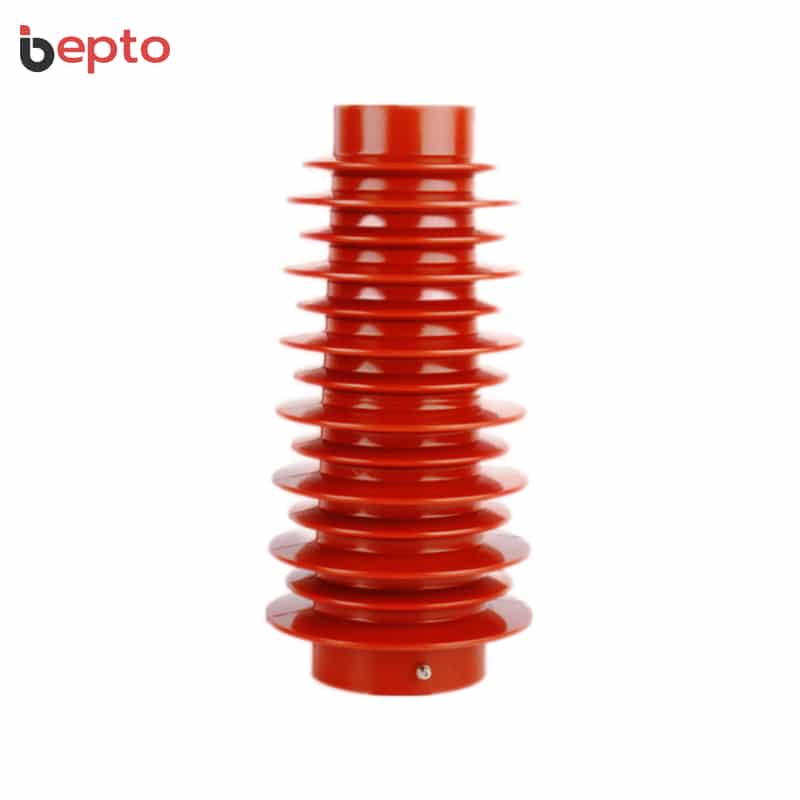

CG5-35kV Sensor Insulator: 8 models high current sensors 130×320-380/145×320-380mm, 2000A-3150A, 95kV withstand 185kV impulse, epoxy resin for HV breaker switchgear substation.
Comprehensive High Current Sensor Insulator Range: Professional CG5-35kV sensor insulator series featuring 8 complete models across two diameter options (130mm, 145mm) and four height configurations (320mm, 340mm, 360mm, 380mm), specifically engineered for 35kV high-current power systems with exceptional 95kV power frequency and 185kV lightning impulse withstand capabilities for diverse HV breakers, outdoor switchgear, and substation applications.
Advanced Multi-Size High Voltage Solutions: Specialized epoxy resin one-piece casting technology across 8 model configurations ensuring superior mechanical stability and weather resistance, designed for demanding high-current operations from 2000A to 3150A with complete dimensional flexibility from compact 130×320mm to heavy-duty 145×380mm for optimal integration across various high-voltage power distribution and substation systems.
Professional Substation Equipment Complete Integration: Essential 35kV sensor insulator supporting critical high-voltage equipment with comprehensive 8-model range and customizable configurations, enabling precise current detection and system protection in demanding electromagnetic and weather conditions across modern power substations, HV breakers, and outdoor switchgear installations.
| Name | Model | Voltage | Diameter(mm) | Height(mm) | Brand |
| Transducer | CG5-130X320 | 35KV | 130 | 320 | Bepto |
| CG5-130X340 | 130 | 340 | |||
| CG5-130X360 | 130 | 360 | |||
| CG5-130X380 | 130 | 380 | |||
| CG5-145X320 | 145 | 320 | |||
| CG5-145X340 | 145 | 340 | |||
| CG5-145X360 | 145 | 360 | |||
| CG5-145X380 | 145 | 380 |

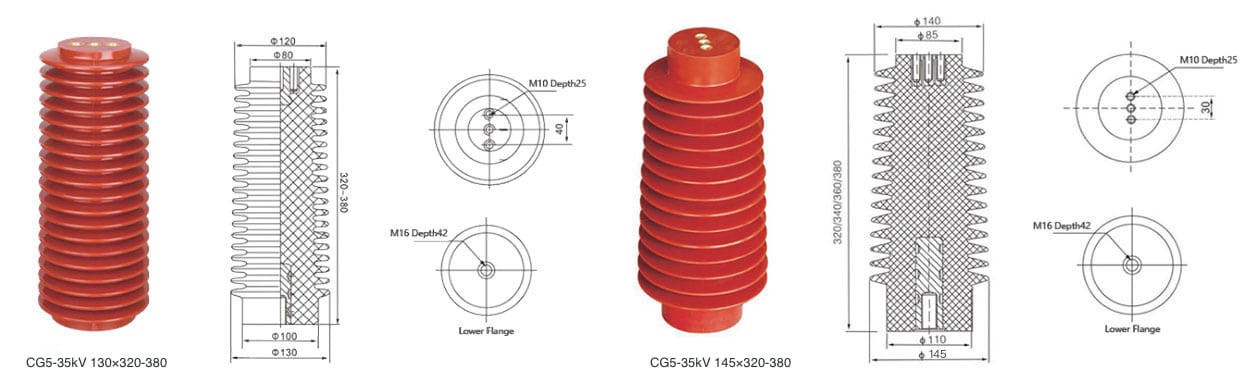

| Model | CG5-35KV/130×320-380 | CG5-35KV/145×320-380 | Customizable Hole Distance |
| Dimensions | 130×320-380 mm | 145×320-380 mm | Customizable |
| Rated Voltage | 35kV | 35kV | 35kV |
| Operating Current | 2000A | 3150A | 2000～3150A |
| Power Frequency Withstand Voltage | 95kV | 95kV | 95kV |
| Lightning Impulse Withstand Voltage | 185kV | 185kV | 185kV |
| Material | Epoxy Resin | Epoxy Resin | Epoxy Resin |
| Applicable Equipment | High Voltage Breaker | Outdoor Switchgear | High Current Equipment |
