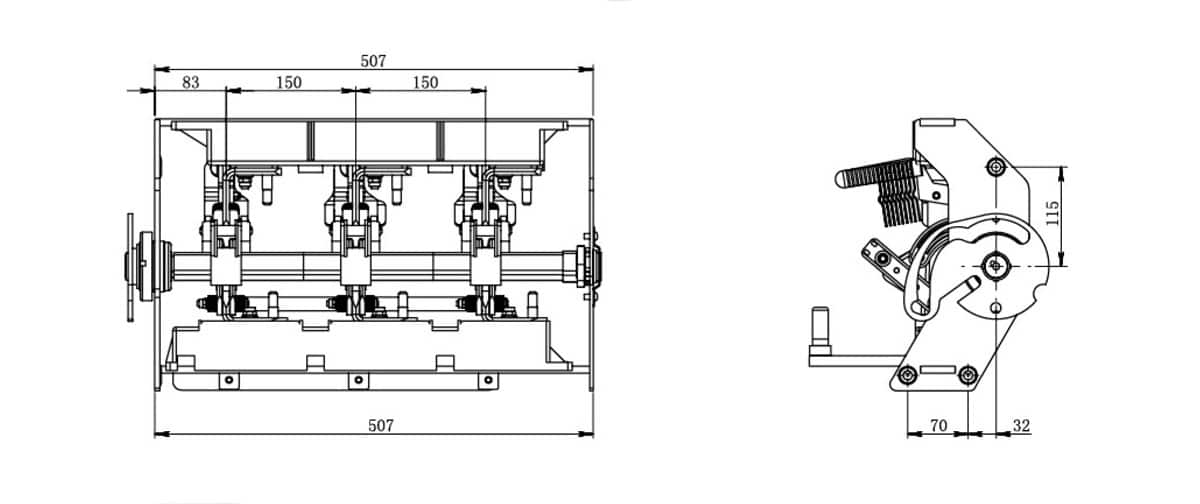

BEC12D/630/20 Load Break Switch: SF6-free 12kV/24kV 630A for gas insulated switchgear GIS, 20kA/25kA withstand, 50kA making current, 5000 operations, automated distribution network ready.
Eco-Friendly BEC12D/630/20 Load Break Switch: Premium BEC12D/630/20 model featuring SF6-free gas insulated switchgear design for 12kV/24kV 630A applications, delivering exceptional 20kA/25kA short-time withstand current and 50kA peak withstand capacity with 50kA short-circuit making capability, compliant with GB/T 3804-2017 and GB/T 16926-2009 standards for environmentally conscious medium voltage distribution systems.
High-Performance Automated Operation: BEC12D/630/20 incorporates electrical operation capability for true distribution network automation with 5,000 mechanical operations endurance and 50Hz rated frequency, featuring 20kA (4s)/25kA (3s) withstand ratings and grounding circuit with 20kA (2s) capacity and 3,000 operations, providing reliable maintenance-free performance for gas insulated switchgear, ring main units, substations, and automated distribution networks requiring sustainable SF6-free switching solutions.
| BEC12D/630/20 Load Break Switch Specifications | Value | Unit |
|---|---|---|
| Model Number | BEC12D/630/20 | – |
| Brand | Bepto Insulation Systems | – |
| Product Type | SF6-Free Load Break Switch for GIS | – |
| Rated Voltage | 12kV / 24kV | kV |
| Rated Current | 630 | A |
| Rated Frequency | 50 | Hz |
| Rated Short-Time Withstand Current | 20 / 25 | kA |
| Rated Peak Withstand Current | 50 / 63 | kA |
| Rated Short-Circuit Duration | 4 | s |
| Rated Short-Circuit Making Current | 50 | kA |
| Mechanical Endurance (Main Circuit) | 5,000 | Operations |
| Grounding Circuit Withstand | 20kA (2s) | kA |
| Grounding Circuit Endurance | 3,000 | Operations |
| Environmental Feature | SF6-Free | – |
| Operation Type | Electrical (Automated) | – |
| Standards Compliance | GB/T 3804-2017, GB/T 16926-2009 | – |
| Application | GIS, Automated Distribution Networks | – |
