JLSZY-35 Outdoor Combined Transformer 35kV CT PT Metering Unit: 35kV high voltage, outdoor epoxy resin casting, combined current and voltage transformer, 5-600/5A CT ratio, 35kV/100V PT ratio, 0.2S/0.5 accuracy class, 350VA thermal output, Y/Y connection, energy metering box, anti-tamper, pillar-type structure, 50Hz, GB1208 GB1207 GB17201.

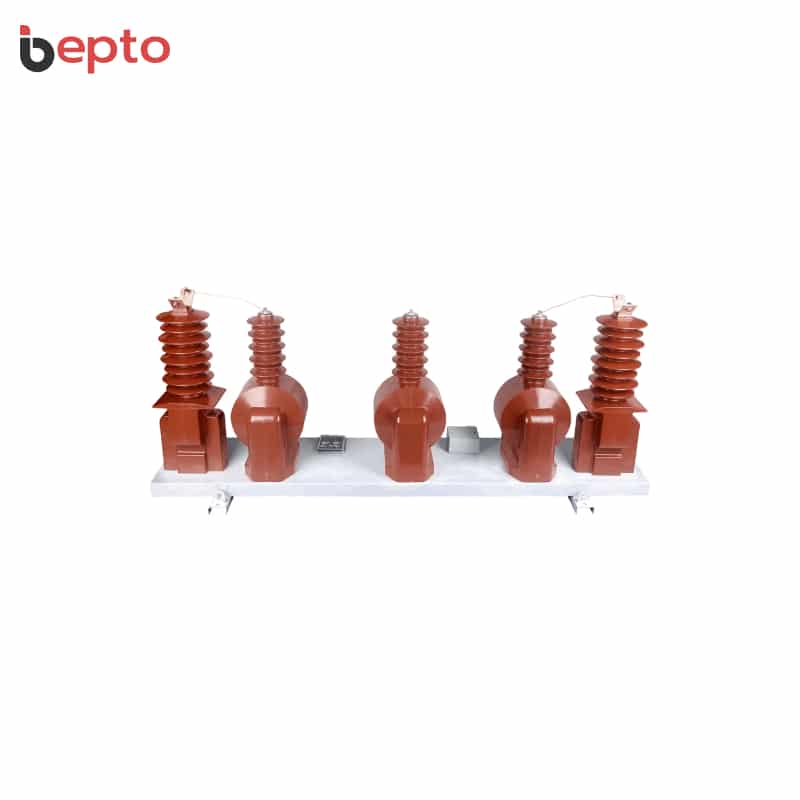

Advanced JLSZY-35 outdoor combined transformer featuring integrated current and voltage transformers for 35kV three-phase power line energy metering, conforming to GB1208, GB1207, and GB17201 standards, outdoor epoxy resin casting pillar-type fully enclosed structure, rated frequency 50Hz, CT ratios 5-600/5A with 0.2S/0.5 accuracy class, PT ratio 35kV/100V (3500/100V) with 0.2/0.5 accuracy class, designed for active and reactive power energy measurement applications.

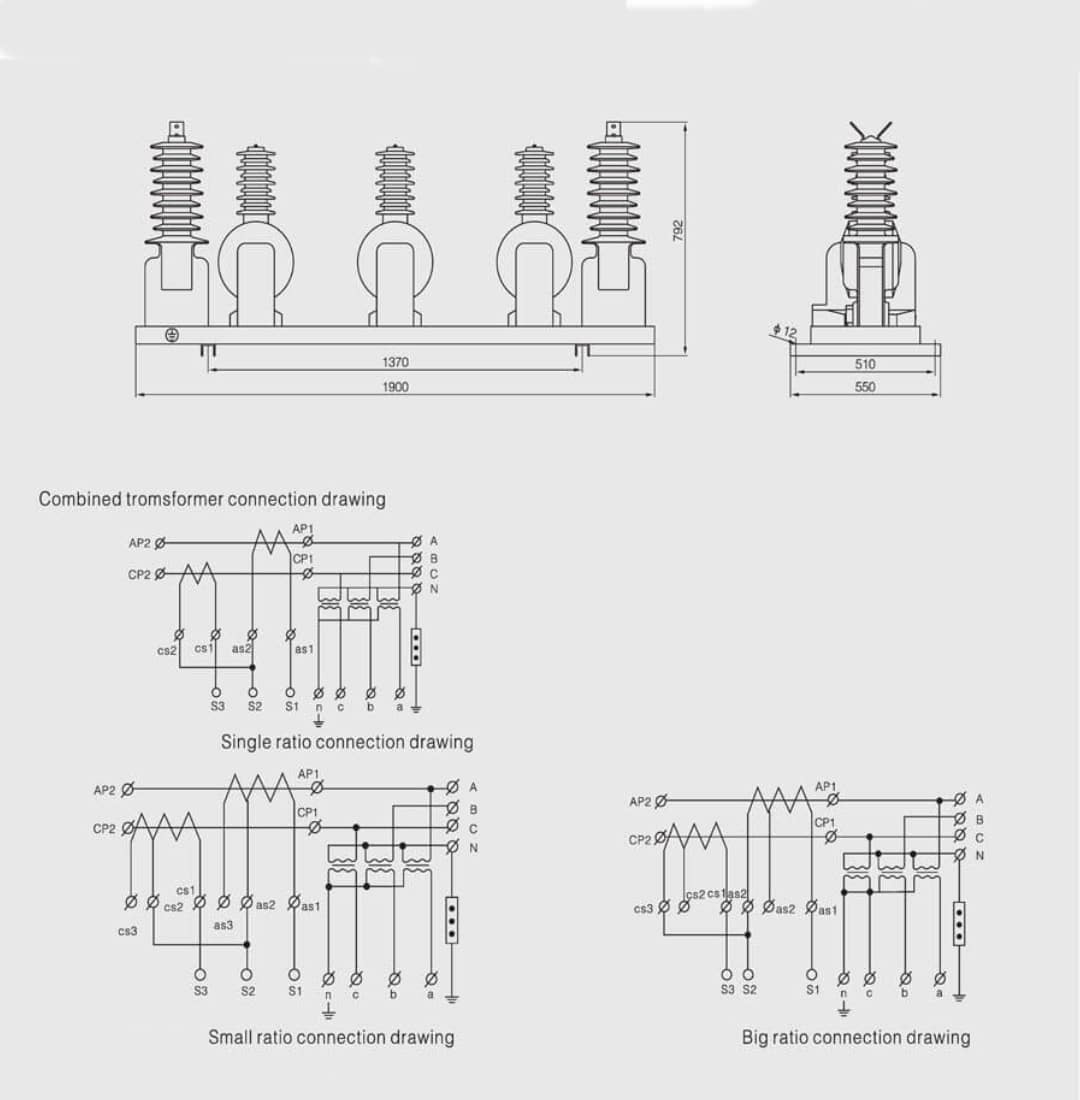

Superior combined design integrates three single-phase voltage transformers in Y/Y connection plus two current transformers on A and C phases, exceptional 350VA thermal output capacity for PT and adjustable CT taps for different current ratios, outdoor epoxy resin casting provides arc resistance, UV resistance, aging resistance, long life, and maintenance-free operation, metal hose secondary outlet ensures safe reliable wiring with anti-tamper measures, suitable for rural outdoor substations, industrial enterprises, replacing oil-immersed JLS-35 metering boxes.
| JLSZY-35 Outdoor Combined Transformer Specifications | Parameter | Unit |
|---|---|---|
| Brand | Bepto Insulation Systems | – |
| Model Number | JLSZY-35 | – |
| Category | Switchgear & HV PT/CT (High Voltage Potential Transformer / Current Transformer) | – |
| Product Type | 35kV Outdoor High Voltage Combined Current and Voltage Transformer Energy Metering Box with Epoxy Resin Casting, 5-600/5A CT Ratio, 35kV/100V PT Ratio, 0.2S/0.5 Accuracy Class, 350VA Thermal Output, Y/Y Connection for Three-Phase Active and Reactive Power Energy Measurement | – |
| Core Technology | 35kV Outdoor Combined Transformer Design + Integrated CT and PT Metering Unit + Outdoor Epoxy Resin Casting Pillar-Type Fully Enclosed Structure + GB1208, GB1207, and GB17201 Standards Compliant + Rated Frequency 50Hz + CT Ratios 5-600/5A + PT Ratio 35kV/100V (3500/100V) + Accuracy Classes 0.2S/0.5 + Y/Y Connection Configuration + Three Single-Phase PT + Two CT on A and C Phases + Adjustable CT Taps + 350VA Thermal Output + Arc Resistance + UV Resistance + Aging Resistance + Long Life + Maintenance-Free + Anti-Tamper Measures + Metal Hose Secondary Outlet + Four Mounting Holes Base + Proven Combined Transformer Technology | – |
| Power (Voltage) | 35kV | – |
| Installation Type | Outdoor | – |
| Phase | Three Phase | – |
| Product Type Name | Combined Transformer / Energy Metering Box | – |
| Rated Frequency | 50Hz | Hz |
| Rated Voltage (PT) | 35kV (35000V) | V |
| PT Voltage Ratio | 35/0.1 (35000/100V) | kV/kV |
| PT Voltage Ratio (Alternative) | 33/0.1 (33000/100V) | kV/kV |
| PT Secondary Voltage | 100V | V |
| PT Connection Type | Y/Y Connection | – |
| PT Accuracy Classes | 0.2, 0.5 | – |
| PT Rated Secondary Output (0.2 Class) | 30 | VA |
| PT Rated Secondary Output (0.5 Class) | 60 | VA |
| PT Limiting Thermal Output | 350 | VA |
| CT Rated Current Ratio (Range 1) | 5/5 – 75/5 | A |
| CT Rated Current Ratio (Range 2) | 100/5 – 200/5 | A |
| CT Rated Current Ratio (Range 3) | 300/5 | A |
| CT Rated Current Ratio (Range 4) | 400/5 – 600/5 | A |
| CT Secondary Current | 5A | A |
| CT Accuracy Classes | 0.2S, 0.5 | – |
| CT Rated Secondary Output (0.2S Class) | 10 or 15 | VA |
| CT Rated Secondary Output (0.5 Class) | 10 or 15 | VA |
| CT Rated Short-Time Thermal Current (5-75/5) | 100 I1n | kA |
| CT Rated Dynamic Current (5-75/5) | 250 I1n | kA |
| CT Rated Short-Time Thermal Current (100-200/5) | 150 I1n | kA |
| CT Rated Dynamic Current (100-200/5) | 375 I1n | kA |
| CT Rated Short-Time Thermal Current (300/5) | 31.5 | kA |
| CT Rated Dynamic Current (300/5) | 80 | kA |
| CT Rated Short-Time Thermal Current (400-600/5) | 63 | kA |
| CT Rated Dynamic Current (400-600/5) | 130 | kA |
| CT Instrument Security Factor | Fs ≤ 10 | – |
| CT Installation Phases | A and C Phases | – |
| CT Adjustable Taps | Yes (Different Current Ratios) | – |
| Load Power Factor | cos φ = 0.8 (Lagging) | – |
| Pollution Class | Class II | – |
| Ambient Temperature | -30°C to +40°C | °C |
| Daily Average Temperature | ≤ 30°C | °C |
| Altitude | ≤ 4000m | m |
| Insulation Type | Outdoor Epoxy Resin Casting | – |
| Structure Type | Pillar-Type Fully Enclosed | – |
| Voltage Level | High Voltage (35kV) | – |
| Standards Compliance | GB1208, GB1207, GB17201 | – |
| Secondary Outlet | Metal Hose | – |
| Mounting Holes | Four Mounting Holes on Base Channel Steel | – |
| FOB Port | Ningbo/Shanghai | – |
| Terms of Payment | Western Union, T/T, Paypal | – |
| 35kV High Voltage | Yes (35kV Rated Voltage) | – |
| Outdoor Combined Transformer | Yes (Outdoor Combined CT and PT) | – |
| Energy Metering Box | Yes (Electric Energy Metering Box) | – |
| CT PT Metering Unit | Yes (Combined Current and Voltage Transformer Metering Unit) | – |
| Outdoor Epoxy Resin Casting | Yes (Outdoor Epoxy Resin Casting Insulation) | – |
| Pillar-Type Fully Enclosed | Yes (Pillar-Type Fully Enclosed Structure) | – |
| 5-600/5A CT Ratio | Yes (Wide Range of CT Ratios) | – |
| 35kV/100V PT Ratio | Yes (35000/100V PT Ratio) | – |
| 0.2S/0.5 CT Accuracy | Yes (0.2S/0.5 CT Accuracy Class) | – |
| 0.2/0.5 PT Accuracy | Yes (0.2/0.5 PT Accuracy Class) | – |
| 350VA Thermal Output | Yes (350VA PT Limiting Thermal Output) | – |
| Y/Y Connection | Yes (Y/Y Connection Configuration) | – |
| Three Single-Phase PT | Yes (Three Single-Phase Voltage Transformers) | – |
| Two CT on A and C Phases | Yes (Two Current Transformers on A and C Phases) | – |
| Adjustable CT Taps | Yes (CT Secondary Winding with Taps) | – |
| Arc Resistance | Yes (Arc-Resistant Epoxy Resin) | – |
| UV Resistance | Yes (UV-Resistant Construction) | – |
| Aging Resistance | Yes (Aging-Resistant Materials) | – |
| Long Life | Yes (Long Service Life) | – |
| Maintenance-Free | Yes (Maintenance-Free Operation) | – |
| Anti-Tamper Measures | Yes (Anti-Tamper Design) | – |
| Metal Hose Secondary Outlet | Yes (Safe Reliable Wiring) | – |
| 50Hz | Yes (Rated Frequency 50Hz) | – |
| GB1208 Compliant | Yes (In Accordance with GB1208 Current Transformer Standard) | – |
| GB1207 Compliant | Yes (In Accordance with GB1207 Voltage Transformer Standard) | – |
| GB17201 Compliant | Yes (In Accordance with GB17201 Combined Transformer Standard) | – |
| Replaces JLS-35 | Yes (Replaces Oil-Immersed JLS-35 Metering Box) | – |
| CT Current Ratio | Accuracy Class | 0.2S Output (VA) | 0.5 Output (VA) | Short-Time Thermal Current | Dynamic Current | Application |
|---|---|---|---|---|---|---|
| 5/5 – 75/5A | 0.2S, 0.5 | 10 or 15 | 10 or 15 | 100 I1n | 250 I1n | Low current 35kV energy metering (5-75A primary) |
| 100/5 – 200/5A | 0.2S, 0.5 | 10 or 15 | 10 or 15 | 150 I1n | 375 I1n | Medium current 35kV energy metering (100-200A primary) |
| 300/5A | 0.2S, 0.5 | 10 or 15 | 10 or 15 | 31.5kA | 80kA | High current 35kV energy metering (300A primary) |
| 400/5 – 600/5A | 0.2S, 0.5 | 10 or 15 | 10 or 15 | 63kA | 130kA | Very high current 35kV energy metering (400-600A primary) |
| PT Voltage Ratio | Accuracy Class | 0.2 Output (VA) | 0.5 Output (VA) | Limiting Thermal Output (VA) | Application |
|---|---|---|---|---|---|
| 35/0.1 (35kV/100V) | 0.2, 0.5 | 30 | 60 | 350 | 35kV three-phase voltage measurement and energy metering |
| 33/0.1 (33kV/100V) | 0.2, 0.5 | 30 | 60 | 350 | 33kV three-phase voltage measurement and energy metering |
| Combined Transformer Feature | Description | Benefit |
|---|---|---|
| Integrated CT and PT Unit | Combined current and voltage transformers in single metering box | Compact all-in-one solution for 35kV energy metering |
| Energy Metering Box | Complete energy metering box (electric energy metering box) | Turnkey solution for active and reactive power measurement |
| Three Single-Phase PT + Two CT | Three single-phase voltage transformers + two current transformers on A and C phases | Complete three-phase metering configuration |
| Y/Y Connection | Voltage transformers connected in Y/Y configuration | Standard three-phase voltage measurement |
| Adjustable CT Taps | CT secondary winding with taps for different current ratios | Flexible current ratio selection without replacing CT |
| 35kV High Voltage | Designed for 35kV three-phase power lines | Suitable for high voltage distribution systems |
| Active and Reactive Power Measurement | Measures both active and reactive energy | Comprehensive energy metering and billing |
| Outdoor Epoxy Resin Casting | Outdoor epoxy resin casting pillar-type fully enclosed structure | Weather-resistant maintenance-free outdoor operation |
| Arc Resistance | Arc-resistant epoxy resin materials | Protects against arc damage |
| UV Resistance | UV-resistant construction | Long-term reliability under outdoor sun exposure |
| Aging Resistance | Aging-resistant materials | Extended service life |
| Long Life | Long service life design | Reduced replacement costs |
| Maintenance-Free | Maintenance-free operation | Reduced maintenance costs and downtime |
| Anti-Tamper Measures | Anti-tamper design prevents electricity theft | Protects revenue from unauthorized connections |
| Metal Hose Secondary Outlet | Secondary wiring through metal hose | Safe reliable secure wiring |
| Four Mounting Holes Base | Base channel steel with four mounting holes | Easy secure installation |
| Replaces Oil-Immersed JLS-35 | Replaces oil-immersed JLS-35 metering box | Environmentally friendly no oil maintenance |
| 350VA Thermal Output Feature | Description | Benefit |
|---|---|---|
| 350VA PT Limiting Thermal Output | 350VA limiting thermal output for PT secondary winding | High capacity for multiple metering devices and relays |
| High Capacity Metering | Adequate capacity for energy meters, protection relays, and monitoring devices | Supports comprehensive metering and protection systems |
| Thermal Withstand Capability | Thermal limit output ensures reliable operation under overload conditions | Protects transformer during temporary overload situations |
| Multiple Load Support | Can drive numerous metering and monitoring devices | Eliminates need for additional transformers |
| Accuracy Class Feature | Description | Benefit |
|---|---|---|
| 0.2S CT Accuracy Class | 0.2S (Class 0.2S) high-precision CT for revenue metering | Highest accuracy for billing and revenue metering applications |
| 0.5 CT Accuracy Class | 0.5 (Class 0.5) standard CT for general metering | Standard accuracy for energy measurement |
| 0.2 PT Accuracy Class | 0.2 (Class 0.2) high-precision PT for revenue metering | High accuracy voltage measurement for billing |
| 0.5 PT Accuracy Class | 0.5 (Class 0.5) standard PT for general metering | Standard accuracy voltage measurement |
| Combined 0.2S/0.2 Metering | 0.2S CT + 0.2 PT for highest accuracy energy metering | Meets highest accuracy requirements for revenue metering |
| 35kV Outdoor Combined Transformer Application Scenario | Recommended Configuration | Key Advantage | Typical Installation |
|---|---|---|---|
| Rural Outdoor Substations | JLSZY-35 | Complete outdoor metering box + maintenance-free + anti-tamper | Rural 35kV distribution substations |
| Industrial Enterprises | JLSZY-35 | Combined CT PT unit + high accuracy 0.2S/0.5 + 350VA output | Industrial 35kV power distribution |
| Small Transformer Stations | JLSZY-35 | Compact all-in-one metering solution + easy installation | Small 35kV transformer stations |
| 35kV Power Distribution | JLSZY-35 | Active and reactive power measurement + Y/Y connection | 35kV power distribution systems |
| Outdoor Energy Metering | JLSZY-35 | Outdoor epoxy resin casting + UV resistance + long life | Outdoor 35kV metering points |
| Oil-Immersed Replacement | JLSZY-35 | Replaces JLS-35 oil-immersed + environmentally friendly + no oil maintenance | Upgrading from oil-immersed metering boxes |
| Anti-Tamper Applications | JLSZY-35 | Anti-tamper measures + metal hose outlet + secure wiring | Areas requiring electricity theft prevention |
| Wide Current Range Applications | JLSZY-35 (5-600/5A) | Adjustable CT taps + wide current ratio range 5-600A | Applications with varying load currents |
| Feature | JLSZY-35 (Epoxy Resin Casting) | JLS-35 (Oil-Immersed) |
|---|---|---|
| Insulation Type | Outdoor epoxy resin casting | Oil-immersed |
| Maintenance | Maintenance-free | Requires oil maintenance |
| Environmental Impact | Environmentally friendly (no oil) | Oil leakage risk |
| UV Resistance | Yes (UV-resistant epoxy resin) | Limited |
| Arc Resistance | Yes (arc-resistant materials) | Limited |
| Aging Resistance | Yes (aging-resistant materials) | Oil degradation over time |
| Service Life | Long life | Shorter life (oil degradation) |
| Fire Risk | Low (no flammable oil) | Higher (flammable oil) |
| Weight | Lighter (no oil) | Heavier (oil-filled) |
| Installation | Easier (no oil handling) | More complex (oil handling) |
| Key Advantage | Maintenance-free + environmentally friendly + long life | Traditional technology |
