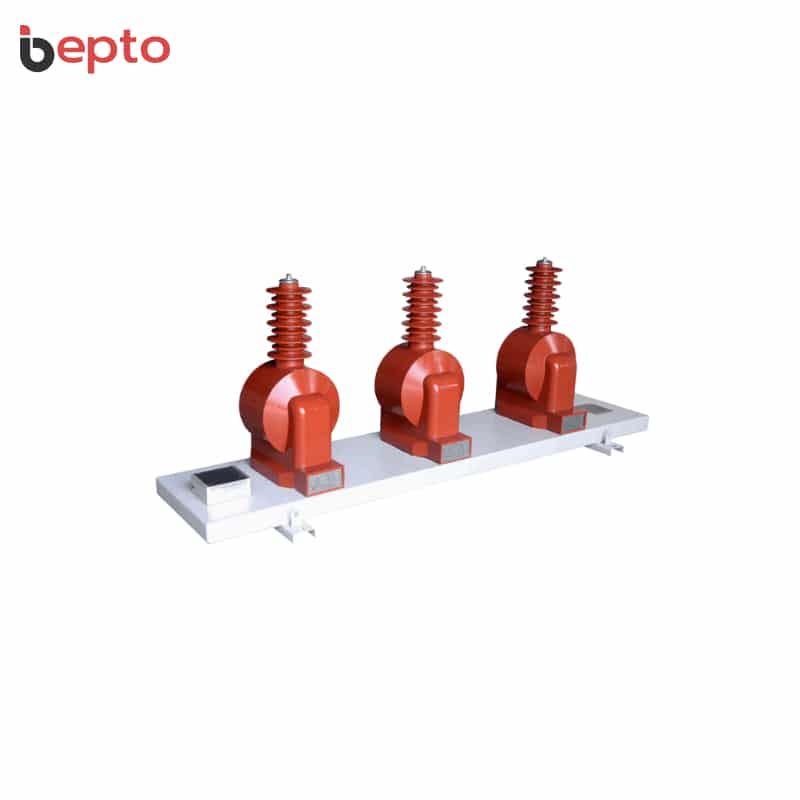

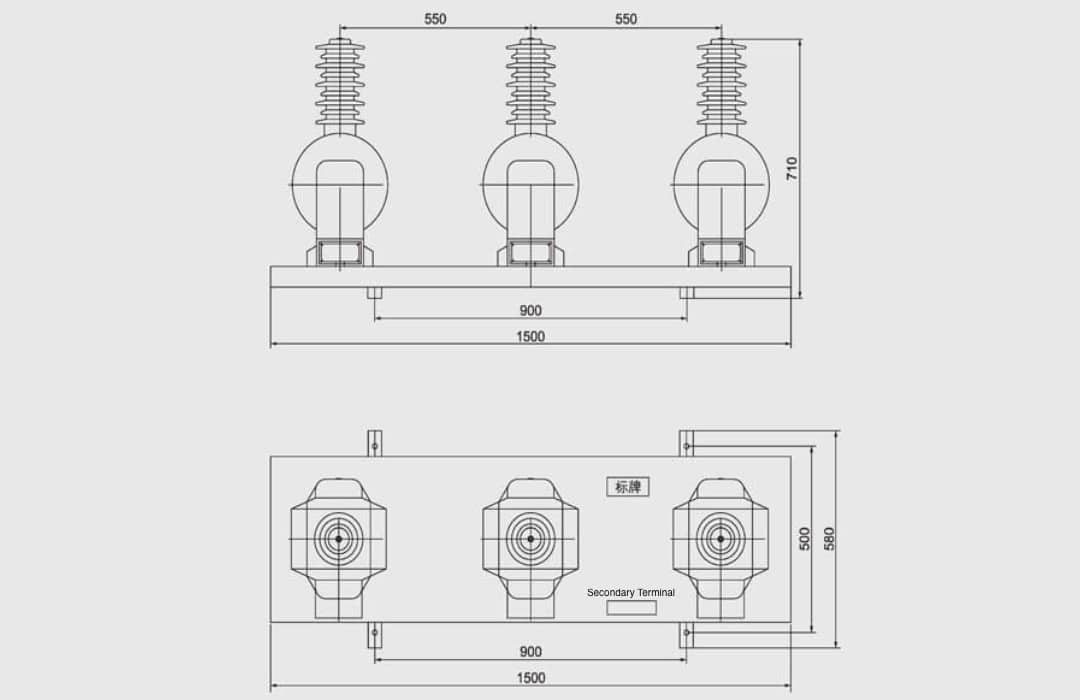

JSZW-35 Outdoor Three-Phase Voltage Transformer 35kV Epoxy Resin Casting PT: German CY1680 epoxy resin, fully enclosed pillar-type structure, 35kV/√3/100V/√3+100V/√3 dual secondary ratio, 0.2/0.5/3P accuracy class, 40.5/95/185kV insulation level, 600VA high output, pollution-resistant, UV-resistant, warm zone suitable, compact three-phase integrated, 50Hz, GB1207-2006.
Premium JSZW-35 outdoor 35kV three-phase voltage transformer featuring German CY1680 epoxy resin casting, fully enclosed pillar-type structure conforming to GB1207-2006 standards, 40.5/95/185kV insulation level, rated frequency 50Hz, designed for outdoor 35kV power systems for voltage and electric energy measurement applications, dual secondary windings 100V/√3+100V/√3 provide flexible metering configurations for comprehensive three-phase monitoring.
Superior German CY1680 outdoor epoxy resin casting with pollution resistance, UV radiation resistance, and strong climate adaptability suitable for warm tropical zones, compact three-phase integrated design with C-shaped high-permeability core, concentric primary and secondary windings cast together, three-phase casting body connected and fixed on base plate with junction box and four installation holes, 600VA high output capacity supports multiple outdoor metering devices, small volume space-efficient construction ideal for outdoor substations.
| JSZW-35 Outdoor Three-Phase Voltage Transformer Specifications | Parameter | Unit |
|---|---|---|
| Brand | Bepto Insulation Systems | – |
| Model Number | JSZW-35 / JSZW-33 Series | – |
| Category | Switchgear & HV PT (High Voltage Potential Transformer) | – |
| Product Type | 35kV Outdoor Fully Enclosed Three-Phase Epoxy Resin Casting Voltage Transformer with German CY1680, Dual Secondary Winding, 0.2/0.5/3P Accuracy Class, 40.5/95/185kV Insulation, 600VA High Output Capacity for 35kV Outdoor Voltage & Energy Measurement | – |
| Core Technology | 35kV Outdoor Fully Enclosed Three-Phase Epoxy Resin Casting Design + German CY1680 Premium Epoxy Resin + Pillar-Type Fully Enclosed Structure + GB1207-2006 Standards Compliant + Rated Insulation Level (40.5/95/185kV) + Rated Frequency 50Hz + Phase-to-Ground Voltage Ratio (35kV/√3/100V/√3+100V/√3) + Dual Secondary Winding Configuration + Accuracy Classes (0.2, 0.5, 3P) + Rated Secondary Load 60-120VA + Limit Output 600VA + Pollution Resistance + UV Radiation Resistance + Strong Climate Adaptability + Warm Zone Suitable + C-Shaped High-Permeability Core + Concentric Winding Design + Three-Phase Integrated Construction + Base Plate with Junction Box + Four Installation Holes + Compact Small Volume + Proven German Premium Technology | – |
| Power (Voltage) | 35kV | – |
| Installation Type | Outdoor | – |
| Phase | Three Phase (Integrated) | – |
| Rated Voltage (JSZW-33) | 33kV/√3 (19.05kV) | per phase |
| Rated Voltage (JSZW-35) | 35kV/√3 (20.2kV) | per phase |
| Voltage Ratio (JSZW-33) | 33000/√3/100/√3 + 100/√3 | V |
| Voltage Ratio (JSZW-35) | 35000/√3/100/√3 + 100/√3 | V |
| Secondary Winding 1 | 100V/√3 (57.7V) | V |
| Secondary Winding 2 | 100V/√3 (57.7V) | V |
| Rated Frequency | 50Hz | Hz |
| Accuracy Classes | 0.2, 0.5, 3P | – |
| Insulation Level (JSZW-33) | 40.5/85/185 | kV |
| Insulation Level (JSZW-35) | 40.5/95/185 | kV |
| Limit Output (JSZW-33) | 600 | VA |
| Limit Output (JSZW-35) | 600 | VA |
| Rated Secondary Load (0.2 Class) | 75 | VA |
| Rated Secondary Load (0.5 Class) | 60 | VA |
| Rated Secondary Load (3P Class) | 120 | VA |
| Load Power Factor | cos φ = 0.8 (Lagging) | – |
| Pollution Class | Class II (Surface Creepage Distance) | – |
| Epoxy Resin Type | German CY1680 | – |
| Core Structure | C-Shaped High-Permeability Material | – |
| Winding Design | Concentric Primary and Secondary Windings | – |
| Insulation Type | Outdoor Epoxy Resin Casting | – |
| Structure Type | Pillar-Type Fully Enclosed Three-Phase Integrated | – |
| Voltage Level | High Voltage (35kV) | – |
| Standards Compliance | GB1207-2006 | – |
| FOB Port | Ningbo/Shanghai | – |
| Terms of Payment | Western Union, T/T, Paypal | – |
| 35kV High Voltage | Yes (35kV Rated Voltage) | – |
| German CY1680 Epoxy Resin | Yes (Premium German Epoxy Resin) | – |
| Fully Enclosed | Yes (Fully Enclosed Pillar-Type Structure) | – |
| Outdoor Three-Phase | Yes (Outdoor Three-Phase Integrated Configuration) | – |
| Three-Phase Integrated | Yes (Three-Phase Integrated Design) | – |
| 600VA High Output | Yes (600VA Limit Output Capacity) | – |
| 100V/√3+100V/√3 Dual Secondary | Yes (Dual Secondary Winding Configuration) | – |
| Pillar-Type Structure | Yes (Pillar-Type Fully Enclosed Design) | – |
| Pollution-Resistant | Yes (Pollution-Resistant Properties) | – |
| UV Radiation Resistant | Yes (UV-Resistant Construction) | – |
| Strong Climate Adaptability | Yes (Strong Climate Adaptability) | – |
| Warm Zone Suitable | Yes (Suitable for Warm Tropical Areas) | – |
| C-Shaped Core | Yes (C-Shaped High-Permeability Core) | – |
| Concentric Winding | Yes (Concentric Primary and Secondary Windings) | – |
| Junction Box | Yes (Base Plate with Junction Box) | – |
| Four Installation Holes | Yes (Four Mounting Holes on Base Plate) | – |
| Compact Small Volume | Yes (Small Volume Space-Efficient) | – |
| 50Hz | Yes (Rated Frequency 50Hz) | – |
| GB1207-2006 Compliant | Yes (In Accordance with GB1207-2006 Standard) | – |
| 40.5/95/185kV Insulation | Yes (Rated Insulation Level) | – |
| 0.2 Accuracy Class | Yes (0.2 Metering Accuracy Class Available) | – |
| 0.5 Accuracy Class | Yes (0.5 Metering Accuracy Class Available) | – |
| 3P Protection Class | Yes (3P Protection Accuracy Class Available) | – |
| Model Type | Rated Voltage | Voltage Ratio | Insulation Level | Limit Output | Application |
|---|---|---|---|---|---|
| JSZW-33 | 33kV/√3 (19.05kV) | 33kV/√3/100V/√3 + 100V/√3 | 40.5/85/185kV | 600VA | 33kV outdoor three-phase voltage and energy measurement |
| JSZW-35 | 35kV/√3 (20.2kV) | 35kV/√3/100V/√3 + 100V/√3 | 40.5/95/185kV | 600VA | 35kV outdoor three-phase voltage and energy measurement |
| German CY1680 Epoxy Resin Feature | Description | Benefit |
|---|---|---|
| Premium German Quality | German CY1680 high-performance outdoor epoxy resin | Superior quality and reliability from renowned German manufacturer |
| Pollution Resistance | Exceptional pollution-resistant properties | Reliable operation in polluted outdoor environments |
| UV Radiation Resistance | Outstanding UV-resistant formulation | Prevents degradation from prolonged outdoor sun exposure |
| Strong Climate Adaptability | Adapts to various outdoor climate conditions | Reliable operation in diverse weather environments |
| Warm Zone Suitable | Optimized for warm tropical climates | Ideal for high-temperature high-humidity tropical regions |
| Excellent Dielectric Properties | High dielectric strength and low loss | Superior electrical insulation performance |
| Weather Resistance | Resistant to extreme temperature, humidity, and pollution | Reliable operation in harsh outdoor environments |
| Moisture-Proof | Excellent moisture resistance | Prevents moisture ingress and electrical failures |
| Chemical Resistance | Resistant to outdoor chemicals and pollutants | Suitable for industrial and coastal environments |
| Proven Technology | Established German technology with global track record | Trusted performance in demanding outdoor applications worldwide |
| Fully Enclosed Pillar-Type Structure Feature | Description | Benefit |
|---|---|---|
| Fully Enclosed Construction | Complete enclosure of all electrical components | Maximum protection from outdoor environmental factors |
| Pillar-Type Design | Vertical pillar-type outdoor structure | Optimal for outdoor 35kV high voltage applications |
| Outdoor Epoxy Resin Casting | Fully enclosed outdoor epoxy resin casting insulation | Excellent insulation and outdoor protection |
| Pollution-Resistant | Resistant to outdoor pollution and dirt | Reliable operation in polluted outdoor environments |
| Moisture-Proof | Fully enclosed against moisture penetration | Suitable for high-humidity outdoor locations |
| UV-Resistant | Resistant to UV radiation degradation | Long-term reliability under outdoor sun exposure |
| Small Volume | Compact small volume design | Space-efficient outdoor installation |
| Strong Climate Adaptability | Adapts to various outdoor climates | Reliable operation in diverse weather conditions |
| Outdoor Three-Phase Integrated Structure Feature | Description | Benefit |
|---|---|---|
| Three-Phase Integrated Design | Three phases integrated into single outdoor unit | Compact installation vs. three separate single-phase units |
| Three-Phase Casting Body Connected | Three-phase casting body connected together | Unified construction for balanced performance |
| Fixed on Base Plate | Three-phase unit fixed on base plate | Stable secure outdoor mounting |
| Junction Box | Base plate with junction box for secondary connections | Protected safe outdoor wiring |
| Four Installation Holes | Four mounting holes on base plate | Secure stable outdoor installation |
| Space-Efficient | Significantly reduced outdoor installation footprint | Ideal for space-constrained outdoor substations |
| Cost-Effective | Single three-phase unit vs. three single-phase units | Reduced equipment and installation costs |
| Simplified Installation | Single unit installation vs. three separate units | Faster outdoor installation and commissioning |
| C-Shaped High-Permeability Core Feature | Description | Benefit |
|---|---|---|
| C-Shaped Core Structure | C-shaped core design | Optimal magnetic circuit for high performance |
| High-Permeability Material | High magneto-conductivity material | Low core loss and high efficiency |
| Concentric Winding Design | Primary and secondary windings concentric-twisted together | Excellent coupling and accuracy |
| Epoxy Resin Casting Shaping | Windings cast together with epoxy resin | Superior insulation and mechanical strength |
| Low Noise | Optimized core design minimizes vibration | Quiet operation |
| High Accuracy | Excellent magnetic properties ensure accuracy | Precise voltage measurement |
| JSZW-33 (33 kV outdoor three-phase with dual secondary windings) | |||
| Accuracy Class | Rated Secondary Load (VA) | Limit Output (VA) | Application |
| 0.2 | 75 | 600 | High-precision outdoor three-phase revenue metering for 33kV systems |
| 0.5 | 60 | 600 | Standard outdoor three-phase metering and monitoring for 33kV systems |
| 3P | 120 | 600 | Outdoor three-phase relay protection for 33kV systems |
| JSZW-35 (35 kV outdoor three-phase with dual secondary windings) | |||
| Accuracy Class | Rated Secondary Load (VA) | Limit Output (VA) | Application |
| 0.2 | 75 | 600 | High-precision outdoor three-phase revenue metering for 35kV systems |
| 0.5 | 60 | 600 | Standard outdoor three-phase metering and monitoring for 35kV systems |
| 3P | 120 | 600 | Outdoor three-phase relay protection for 35kV systems |
| 600VA High Output Capacity Feature | Description | Benefit |
|---|---|---|
| 600VA Limit Output | 600VA maximum output capacity for three-phase unit | Supports outdoor multiple load connections |
| 35kV High Voltage Application | High output capacity for 35kV outdoor systems | Adequate capacity for 35kV outdoor distribution loads |
| Multiple Load Support | Can drive numerous outdoor metering devices and relays | Eliminates need for multiple 35kV outdoor transformers |
| Outdoor SCADA Systems | Sufficient capacity for outdoor data acquisition | Enables advanced 35kV outdoor monitoring and control |
| Dual Secondary Configuration | Two independent 100V/√3 secondary windings | Flexible metering configurations for various applications |
| Insulation Level | Lightning Impulse Withstand | Power Frequency Withstand | Application Environment |
|---|---|---|---|
| 40.5kV | Rated voltage level | Short-duration power frequency | Standard 35kV outdoor systems |
| 95kV (JSZW-35) | Lightning impulse | Medium-duration withstand | Lightning protection requirements for 35kV outdoor |
| 85kV (JSZW-33) | Lightning impulse | Medium-duration withstand | Lightning protection requirements for 33kV outdoor |
| 185kV | Full lightning impulse | Full insulation withstand | Maximum insulation protection for 35kV outdoor |
| 35kV Outdoor Three-Phase Application Scenario | Recommended Model | Key Advantage | Typical Installation |
|---|---|---|---|
| 35kV Outdoor Substations | JSZW-35 | German CY1680 premium quality + three-phase integrated + 600VA output | 35kV outdoor distribution substations |
| 35kV Overhead Distribution Lines | JSZW-35 | Fully enclosed pollution-resistant for outdoor exposure | 35kV pole-mounted distribution systems |
| 35kV Outdoor Switchgear | JSZW-35 | UV-resistant compact design for outdoor switchgear | 35kV outdoor ring main units |
| Warm Tropical Outdoor Environments | JSZW-35 | Strong climate adaptability suitable for warm zones | Tropical region outdoor installations |
| Polluted Outdoor Environments | JSZW-35 | Pollution-resistant German CY1680 epoxy resin | Industrial and coastal outdoor areas |
| Space-Constrained Outdoor Installations | JSZW-35 | Compact small volume three-phase integrated design | Outdoor substations with limited space |
| 35kV Outdoor Energy Measurement | JSZW-35 | Dual secondary 100V/√3+100V/√3 for flexible metering | 35kV outdoor revenue metering systems |
| Feature | JSZW-35 (35kV Outdoor Three-Phase) | JDZW-35 (35kV Outdoor Single-Phase) | JDZX9-35 (35kV Indoor Single-Phase) |
|---|---|---|---|
| Phase Configuration | Three-phase integrated | Single-phase (three units required) | Single-phase (three units required) |
| Installation Type | Outdoor | Outdoor | Indoor |
| Epoxy Resin Type | German CY1680 (outdoor premium) | Swiss Ciba CW5837 (outdoor premium) | Standard indoor-grade |
| Voltage Ratio | 35kV/√3/100V/√3 + 100V/√3 | 35kV/100V | 35kV/√3/100V/√3 + 100V/3 |
| Measurement Type | Phase-to-ground (dual secondary) | Phase-to-phase | Phase-to-ground + grounding protection |
| Limit Output | 600VA (three-phase) | 1000VA (single-phase) | 1000VA (single-phase) |
| Space Requirement | Compact (single three-phase unit) | Larger (three separate units) | Larger (three separate units) |
| Key Advantage | Three-phase integrated + German CY1680 + compact | Swiss Ciba premium + 1000VA high output + hermetically sealed | Phase-to-ground + grounding protection + 1000VA output |
| Typical Application | Outdoor substations, overhead lines, warm zones | Outdoor substations, overhead lines, oil-immersed replacement | Indoor substations, indoor switchgear, ungrounded systems |
| Feature | JSZW-35 (35kV Outdoor Three-Phase) | JSZWK-3/6/10 (3-10kV Outdoor Anti-Resonance Three-Phase) |
|---|---|---|
| Voltage Level | 35kV (high voltage) | 3-10kV (medium voltage) |
| Anti-Resonance | No | Yes (ferroresonance suppression) |
| Epoxy Resin Type | German CY1680 | Standard outdoor-grade |
| Limit Output | 600VA | 1000-1500VA |
| Key Advantage | 35kV high voltage + German CY1680 premium + compact | Anti-resonance + ferroresonance suppression + 1500VA output |
| Typical Application | 35kV outdoor substations, overhead lines | 3-10kV ungrounded systems, resonant grounded systems |
