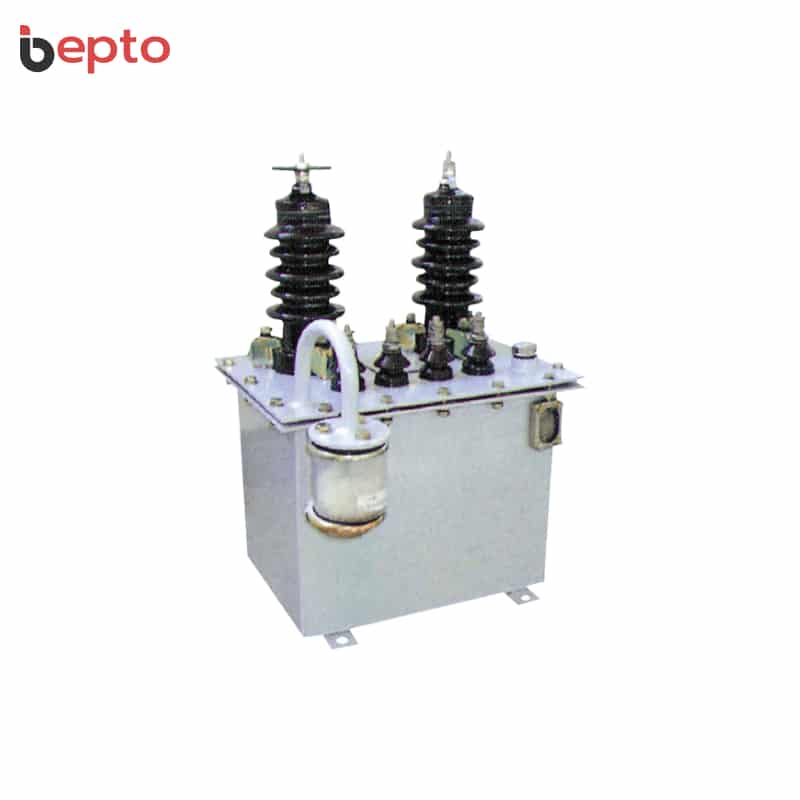

LJW-10/35 LJWD-10/35 Current Transformer Indoor Outdoor Dual-Use Oil-Immersed CT: 10kV/35kV, 5-600A primary current, 0.2/0.5/1/3D accuracy class, steel tank oil-immersed, 75× thermal stability, 187.5× dynamic stability, 40.5/95/185kV insulation, 10-50VA burden, 5A secondary, 50Hz, GB1208 IEC60044-1.
Advanced LJW-10/35 & LJWD-10/35 Dual-Use Current Transformer: Indoor outdoor dual-use steel tank oil-immersed single-phase self-cooling CT conforming to GB1208 and IEC60044-1 standards, rated insulation level 40.5/95/185kV, rated frequency 50Hz or 60Hz, rated secondary current 5A or 1A, ambient temperature -25°C to +40°C, altitude capability up to 4000 meters, rated primary current range 5-600A, LJW series for metering-only applications (0.2 class, 10-50VA burden) and LJWD series for metering plus relay protection (0.2/0.5/1/3D class, 15-50VA burden), exceptional thermal stability 75 times rated current and dynamic stability 187.5 times ensuring superior short-circuit withstand capability, allows continuous operation at 120% rated current.
Superior Dual-Use Design and Oil-Immersed Technology: LJW-10/35 & LJWD-10/35 feature versatile indoor outdoor dual-use installation with robust steel tank oil-immersed construction ensuring reliable operation in harsh environments, advanced vacuum oil-filtering and vacuum oil-filling process ensuring superior insulation performance, 10kV level with oil valve and rain/snow protective cover, 35kV level with oil storage pot and wax diaphragm preventing air contact and reducing oil oxidation, available in single-ratio single-secondary, single-ratio dual-secondary, dual-ratio single-secondary, and dual-ratio dual-secondary configurations, suitable for 10kV/35kV switchgear, power distribution systems, substations, outdoor installations, high-altitude applications, and environments requiring versatile indoor outdoor dual-use capability with oil-immersed reliability.

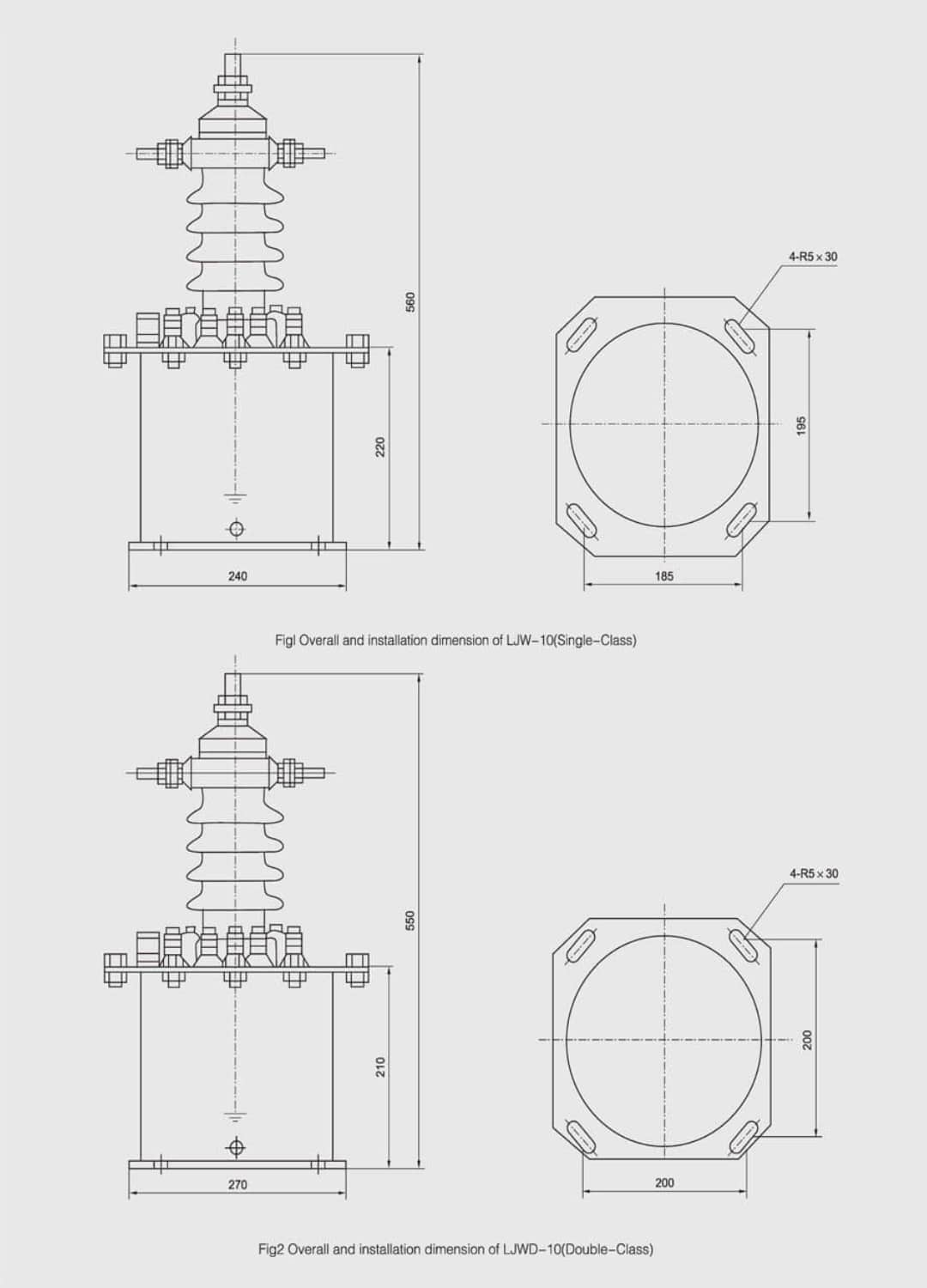

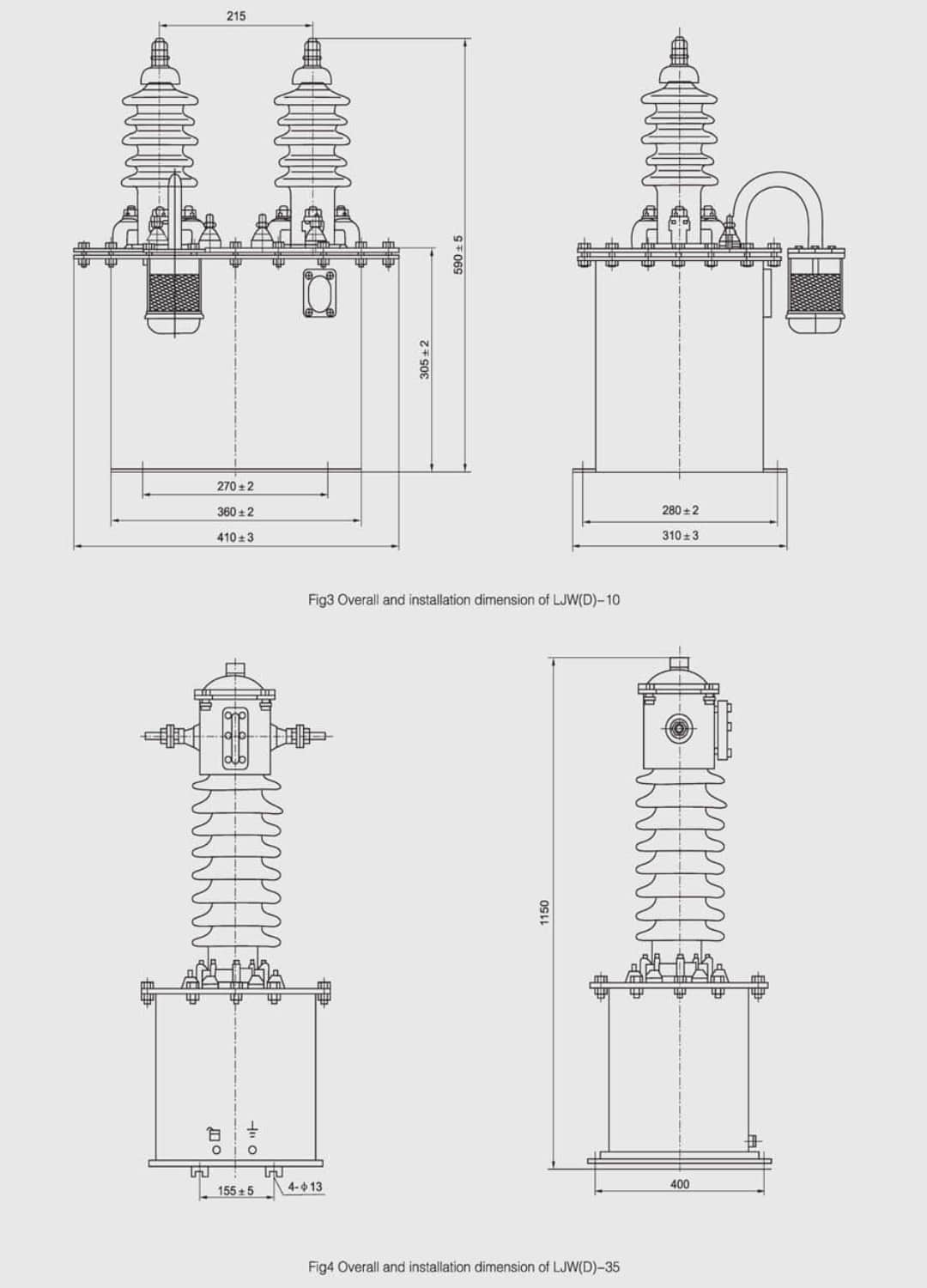

| LJW-10/35 & LJWD-10/35 Current Transformer Specifications | Parameter | Unit |
|---|---|---|
| Brand | Bepto Insulation Systems | – |
| Model Number | LJW-10/35 & LJWD-10/35 | – |
| Category | Switchgear & HV CT (High Voltage Current Transformer) | – |
| Product Type | 10kV/35kV Indoor Outdoor Dual-Use Steel Tank Oil-Immersed Single-Phase Self-Cooling Current Transformer with 5-600A Range, 75× Thermal Stability, 187.5× Dynamic Stability, 0.2/0.5/1/3D Accuracy Class, 40.5/95/185kV Insulation for Metering & Relay Protection | – |
| Core Technology | Indoor Outdoor Dual-Use Design + Steel Tank Oil-Immersed Single-Phase Self-Cooling Type + 10kV/35kV Dual Voltage Design + 75× Thermal Stability + 187.5× Dynamic Stability + GB1208 and IEC60044-1 Standards Compliant + Rated Insulation Level 40.5/95/185kV + Rated Frequency 50Hz or 60Hz + Rated Secondary Current 5A or 1A + Ambient Temperature -25°C to +40°C + Altitude Capability up to 4000m + Rated Primary Current Range 5-600A + Flexible Accuracy Classes (0.2/0.5/1/3D) + Burden Capacity 10-50VA + Continuous Operation at 120% Rated Current + Vacuum Oil-Filtering and Vacuum Oil-Filling Process + Superior Insulation Performance + Oil Valve with Rain/Snow Protective Cover (10kV) + Oil Storage Pot with Wax Diaphragm (35kV) + Multiple Ratio and Secondary Configurations + Reliable Short-Circuit Withstand Capability | – |
| Power (Voltage) | 10kV / 35kV | – |
| Rated Voltage | 10kV / 35kV | – |
| Rated Insulation Level | 40.5/95/185 | kV |
| Rated Frequency | 50Hz or 60Hz | Hz |
| Rated Secondary Current | 5A or 1A | A |
| Rated Primary Current Range | 5-600 | A |
| Ambient Temperature | -25°C to +40°C | °C |
| Altitude Capability | Up to 4000 | meters |
| Structure Type | Indoor Outdoor Dual-Use Steel Tank Oil-Immersed Single-Phase Self-Cooling | – |
| Installation Type | Indoor Outdoor Dual-Use | – |
| Phase | Single Phase | – |
| Thermal Stability | 75 times rated current | – |
| Dynamic Stability | 187.5 times rated current | – |
| Continuous Operation Capability | 120% rated current | – |
| Standards Compliance | GB1208 and IEC60044-1 | – |
| FOB Port | Ningbo/Shanghai | – |
| Terms of Payment | Western Union, T/T, Paypal | – |
| Steel Tank Oil-Immersed | Yes (Steel Tank Oil-Immersed Single-Phase Self-Cooling Type) | – |
| 10kV/35kV Dual Voltage | Yes (10kV and 35kV Voltage Classes) | – |
| Indoor Outdoor Dual-Use | Yes (Versatile Indoor Outdoor Dual-Use Installation) | – |
| 75× Thermal Stability | Yes (75 Times Rated Current Thermal Stability) | – |
| 187.5× Dynamic Stability | Yes (187.5 Times Rated Current Dynamic Stability) | – |
| Vacuum Oil-Filling Process | Yes (Advanced Vacuum Oil-Filtering and Vacuum Oil-Filling) | – |
| High Altitude Capability | Yes (Up to 4000 meters Altitude) | – |
| 120% Continuous Operation | Yes (Allows Continuous Operation at 120% Rated Current) | – |
| 50Hz or 60Hz | Yes (Rated Frequency 50Hz or 60Hz) | – |
| 10kV/35kV Rated Voltage | Yes (Rated Voltage 10kV or 35kV) | – |
| GB1208 Compliant | Yes (In Accordance with GB1208 Standard) | – |
| IEC60044-1 Compliant | Yes (In Accordance with IEC60044-1 Standard) | – |
| 40.5/95/185kV Insulation | Yes (Rated Insulation Level 40.5/95/185kV) | – |
| 5A or 1A Secondary | Yes (Rated Secondary Current 5A or 1A) | – |
| -25°C to +40°C Ambient | Yes (Ambient Temperature -25°C to +40°C) | – |
| 5-600A Primary Range | Yes (Rated Primary Current Range 5-600A) | – |
| 0.2 Accuracy Class | Yes (0.2 Metering Accuracy Class Available) | – |
| 0.5 Accuracy Class | Yes (0.5 Relay Protection Accuracy Class Available) | – |
| 1 Accuracy Class | Yes (1 Relay Protection Accuracy Class Available) | – |
| 3D Accuracy Class | Yes (3D Relay Protection Accuracy Class Available) | – |
| 10-50VA Burden Capacity | Yes (Burden Capacity 10-50VA) | – |
| Type | Voltage class (kA) | Rated current ratio (A) | Measurement class 0.2, capacity (VA) | Capacity for Class 1 relay protection |
|---|---|---|---|---|
| LJW-10 | 10 | 5–400 / 5 | 10–15 | Without relay protection or monitoring |
| LJW-35 | 35 | 5–600 / 5 | 30–50 | Without relay protection or monitoring |
| LJWD-10 | 10 | 5–400 / 5 | 10–15 | 15–30 |
| LJWD-35 | 35 | 5–600 / 5 | 30–50 | 30–50 |
| Model | Voltage | Current Range | Metering | Protection | Key Advantage | Typical Application |
|---|---|---|---|---|---|---|
| LJW-10 | 10kV | 5-400A | 0.2 class, 10-15VA | No | High-precision metering for 10kV systems | 10kV metering-only applications |
| LJW-35 | 35kV | 5-600A | 0.2 class, 30-50VA | No | High-precision metering for 35kV systems | 35kV metering-only applications |
| LJWD-10 | 10kV | 5-400A | 0.2 class, 10-15VA | 0.5/1/3D class, 15-30VA | Metering + protection for 10kV systems | 10kV metering + relay protection applications |
| LJWD-35 | 35kV | 5-600A | 0.2 class, 30-50VA | 0.5/1/3D class, 30-50VA | Metering + protection for 35kV systems | 35kV metering + relay protection applications |
| Configuration Type | Description | Typical Application |
|---|---|---|
| Single-Ratio Single-Secondary | One primary current ratio, one secondary winding | Simple metering or protection applications |
| Single-Ratio Dual-Secondary | One primary current ratio, two secondary windings | Simultaneous metering and protection with single ratio |
| Dual-Ratio Single-Secondary | Two primary current ratios, one secondary winding | Flexible current range with single function |
| Dual-Ratio Dual-Secondary | Two primary current ratios, two secondary windings | Maximum flexibility for metering and protection |
| Accuracy Class | Application | Model Availability | Typical Current Range |
|---|---|---|---|
| 0.2 | High-precision metering, revenue billing, energy measurement | LJW-10, LJW-35, LJWD-10, LJWD-35 | 5-600A |
| 0.5 | Relay protection, overcurrent protection | LJWD-10, LJWD-35 | 5-600A |
| 1 | General relay protection, monitoring | LJWD-10, LJWD-35 | 5-600A |
| 3D | Differential protection, special protection applications | LJWD-10, LJWD-35 | 5-600A |
| Burden Capacity | Voltage Class | Model | Application |
|---|---|---|---|
| 10-15VA | 10kV | LJW-10 (metering), LJWD-10 (metering) | 10kV metering applications |
| 15-30VA | 10kV | LJWD-10 (protection) | 10kV relay protection applications |
| 30-50VA | 35kV | LJW-35 (metering), LJWD-35 (metering & protection) | 35kV metering and protection applications |
| Stability Type | Value | Description | Application |
|---|---|---|---|
| Thermal Stability | 75 × In | 75 times rated current (1s) | Superior short-circuit thermal withstand capability |
| Dynamic Stability | 187.5 × In | 187.5 times rated current | Maximum short-circuit dynamic withstand capability |
| Rated Primary Current (A) | 75× Thermal Current (kA) | 187.5× Dynamic Current (kA) |
|---|---|---|
| 5 | 0.375 | 0.9375 |
| 10 | 0.75 | 1.875 |
| 20 | 1.5 | 3.75 |
| 50 | 3.75 | 9.375 |
| 100 | 7.5 | 18.75 |
| 200 | 15 | 37.5 |
| 300 | 22.5 | 56.25 |
| 400 | 30 | 75 |
| 500 | 37.5 | 93.75 |
| 600 | 45 | 112.5 |
| Environmental Factor | Specification | Application Advantage |
|---|---|---|
| Ambient Temperature | -25°C to +40°C | Wide temperature range for harsh climates |
| Altitude Capability | Up to 4000 meters | High-altitude applications without derating |
| Indoor Outdoor Dual-Use | Versatile installation | Flexible deployment for indoor or outdoor environments |
| Continuous Operation at 120% Rated Current | Long-term overload capability | Reliable operation under overload conditions |
| Oil-Immersed Feature | Description | Benefit |
|---|---|---|
| Vacuum Oil-Filtering | Advanced vacuum oil-filtering process | Superior oil purity and insulation performance |
| Vacuum Oil-Filling | Vacuum oil-filling technology | Eliminates air bubbles ensuring reliable insulation |
| Oil Valve with Rain/Snow Cover (10kV) | Oil valve with protective cover | Prevents water and snow ingress |
| Oil Storage Pot with Wax Diaphragm (35kV) | Oil storage pot with wax diaphragm | Prevents air contact reducing oil oxidation |
| Steel Tank Construction | Robust steel tank | Durable protection for outdoor installations |
