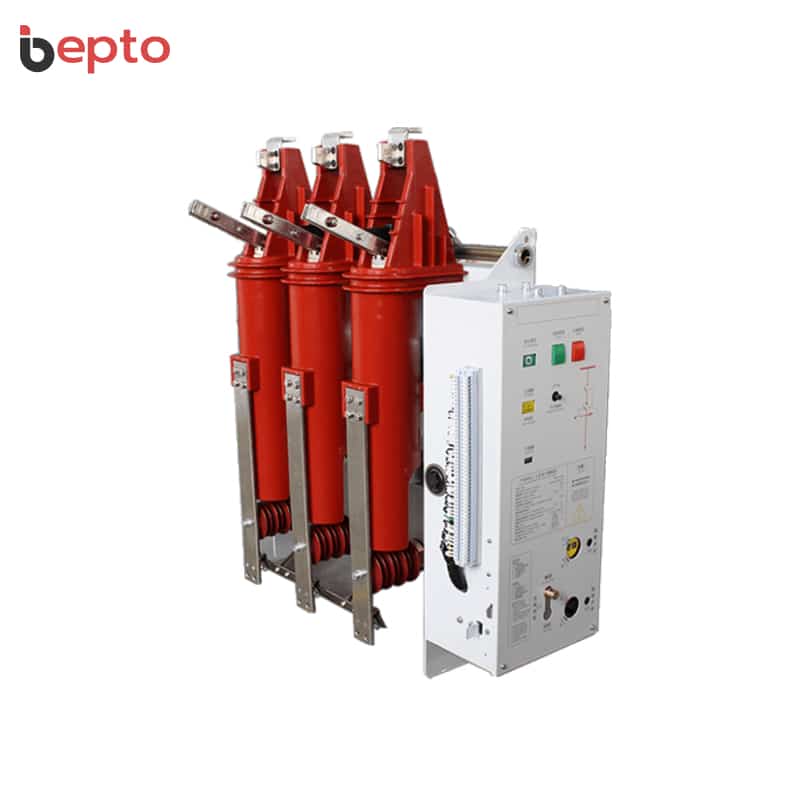

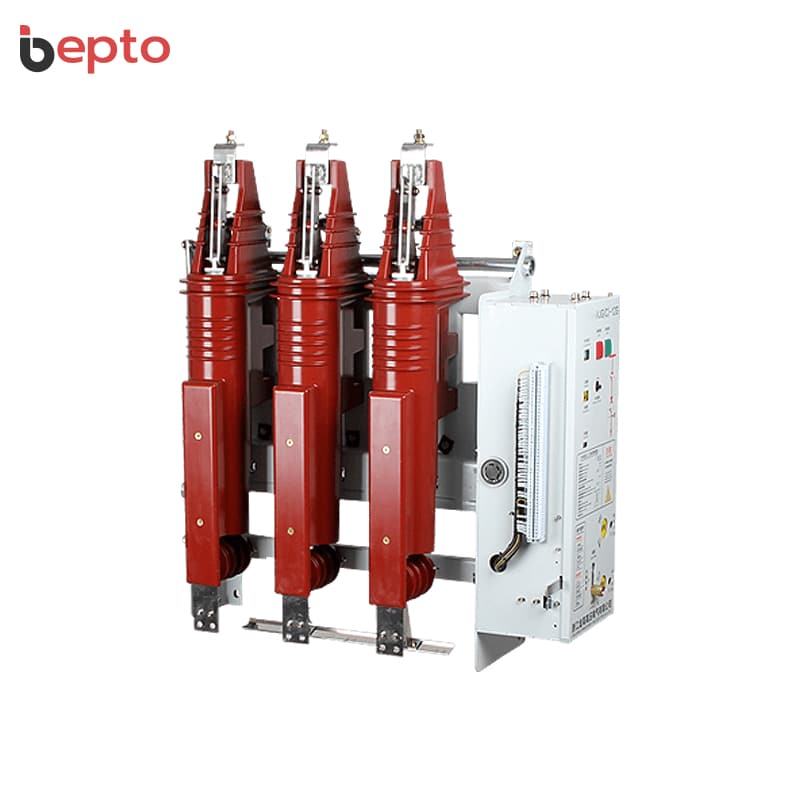

VJG(C)-12GD/24GD SF6-Free Vacuum Circuit Breaker: 12kV/24kV 1250A three-position VCB, EU 2026 compliant, air insulated switchgear, zero SF6, enclosed column, modular design, 10000 cycles, -25°C to +40°C.
Advanced VJG(C)-12GD/24GD SF6-Free Vacuum Circuit Breaker Series: Next-generation SF6-free vacuum switchgear solution designed for secondary substations, RMU systems, compact medium-voltage switchgear, rated voltage 12kV/24kV, three-phase AC 50Hz power system, fully compliant with EU 2026 SF6 restriction under EU F-Gas Regulation, zero SF6, zero greenhouse gas, full electrical performance, delivering 630-1250A rated current, up to 31.5kA short-circuit breaking capacity, 10000 mechanical operations, three-position integrated design (vacuum circuit breaker + rotary disconnector with visible isolation gap + independent earthing switch), forced mechanical interlocking system preventing misoperation, main circuit adopts enclosed column improving environmental adaptability and insulation reliability.
SF6-Free and EU 2026 Ready: VJG(C)-12GD/24GD incorporates 100% SF6-free design utilizing vacuum interruption + solid insulation technology, no gas leakage/refilling/monitoring, lower lifecycle cost compared with SF6 switchgear, modular operating mechanism enabling easy replacement and maintenance, front-access design suitable for compact panels (500×1000×1800mm cabinet), compatible with SF6-free RMU, box-type substations, industrial MV switchgear, operating at -25°C to +40°C, altitude ≤1000m, providing reliable SF6-free vacuum circuit breaking solution for European projects, green substations, low-carbon power networks, renewable energy substations.

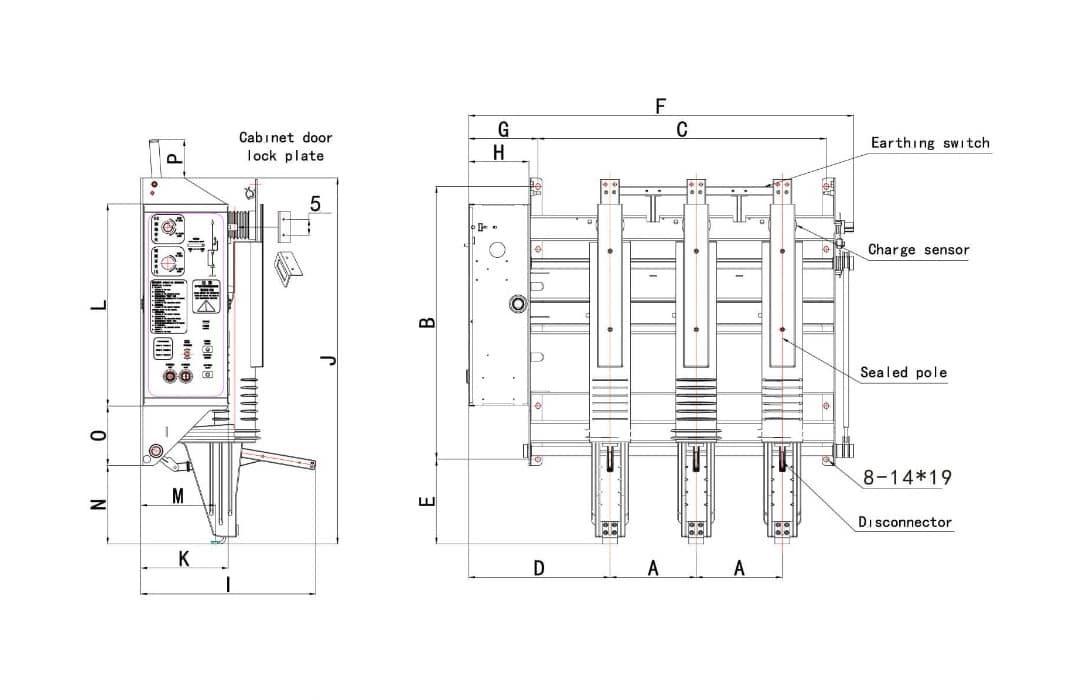

| VIG(C)-12/24GD/(1250)-(31.5) Indoor High-Voltage Three-Position Vacuum CircuitBreaker | |||||||||||||||||
| No. | Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P |
| 1 | VJG(C)-12kV | 210 | 780 | 660 | 368 | 207 | 960 | 218 | 189 | 402 | 1015 | 280 | 645 | 158 | 187 | 100 | 40 |
| 2 | VJG(C)-24kV | 275 | 870 | 920 | 452 | 271 | 1230 | 221 | 192 | 559 | 1168 | 280 | 645 | 239 | 251 | 189 | 123 |

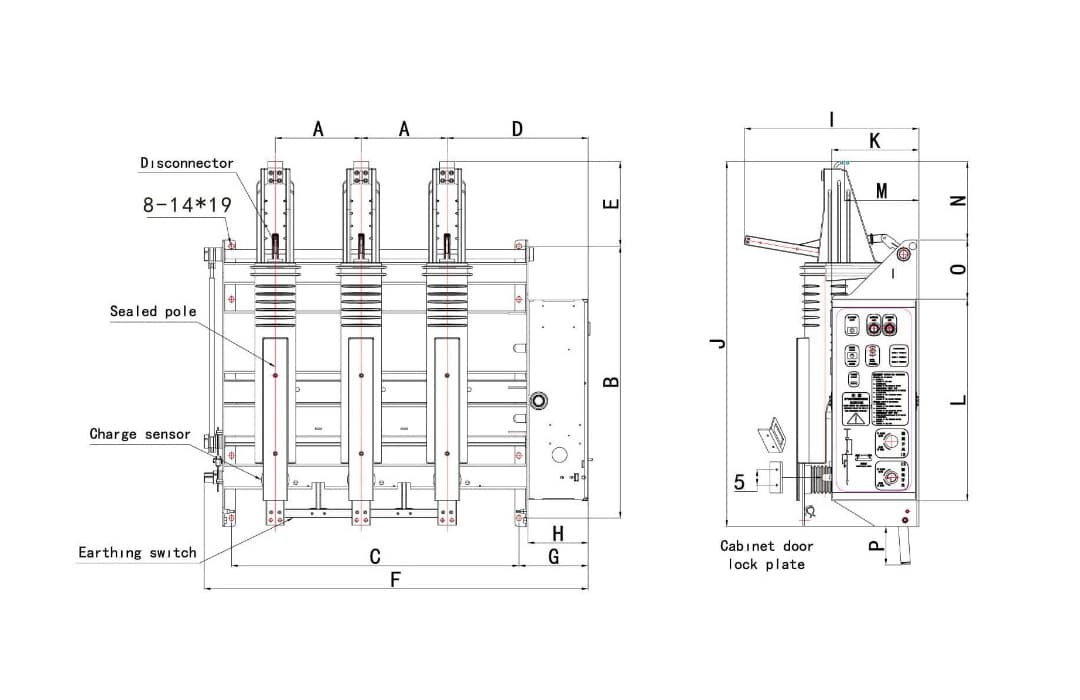

| VIG(C)-12/24GD/(1250)-(31.5) Indoor High-Voltage Three-Position Vacuum CircuitBreaker (Flip-Type) | |||||||||||||||||
| No. | Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P |
| 1 | VJG(C)-12kV | 210 | 780 | 660 | 368 | 207 | 960 | 218 | 189 | 402 | 1015 | 280 | 645 | 158 | 187 | 100 | 40 |
| 2 | VJG(C)-24kV | 275 | 870 | 920 | 452 | 271 | 1230 | 221 | 192 | 559 | 1168 | 280 | 645 | 239 | 251 | 189 | 123 |
| VJG(C)-12GD/24GD SF6-Free Vacuum Circuit Breaker Specifications | VJG(C)-12GD | VJG(C)-24GD | Unit |
| Brand | Bepto Insulation Systems | – | |
| Model Number | VJG(C)-12GD | VJG(C)-24GD | – |
| Product Type | SF6-Free Three-Position Vacuum Circuit Breaker (VCB) EU 2026 Compliant Air Insulated Switchgear | – | |
| Core Technology | 100% SF6-Free Design + Vacuum Interruption + Solid Insulation + Enclosed Column + Three-Position Integrated (VCB + Disconnector + Earthing Switch) + Forced Mechanical Interlocking + Modular Operating Mechanism | – | |
| EU Regulation Compliance | Fully Compliant with EU 2026 SF6 Restriction under EU F-Gas Regulation | – | |
| Environmental Advantage | Zero SF6, Zero Greenhouse Gas, No Gas Leakage, No Refilling, No Gas Monitoring | – | |
| Rated Voltage | 12 | 24 | kV |
| Maximum Working Voltage | 12 | 24 | kV |
| Rated Frequency | 50 | Hz | |
| Rated Current | 630, 1250 | 630, 1250 | A |
| Rated Short-Circuit Breaking Current | 20/25, 31.5 | up to 31.5 | kA |
| Rated Short-Circuit Closing Current (Peak) | 50/63, 80 | up to 80 | kA |
| Rated Withstand Current (Peak) | 50/63, 80 | up to 80 | kA |
| 4s Rated Short-Time Withstand Current | 20/25, 31.5 | up to 31.5 | kA |
| Rated Insulation Level – Industrial Frequency Withstand Voltage | 42/48 | 50/60 | kV |
| Rated Insulation Level – Lightning Impulse Withstand Voltage | 75/85 | 125 | kV |
| Rated Operation Sequence | O-0.3s-CO-180s-CO | – | |
| Mechanical Life (Circuit Breaker) | ≥10000 | ≥10000 | operations |
| Mechanical Life (Disconnector & Earthing Switch) | ≥3000 | ≥3000 | operations |
| Rated Short-Circuit Breaking/Closing Times | 50 | 50 | times |
| Operating Mechanism Rated Voltage | AC/DC 110, 220 | V | |
| Switching Distance of Contact | >11 | mm | |
| Overtravel (Contact Spring Compression Length) | 4±0.5 | mm | |
| Three-Phase Breaking/Closing Asynchronism | <2 | ms | |
| Contact Closing Bounce Time | <2 | ms | |
| Average Breaking Speed | 0.9-1.7 | m/s | |
| Average Closing Speed | 0.6-1.0 | m/s | |
| Closing Time | <0.1 | s | |
| Main Circuit Resistance | <45 | μΩ | |
| Allowance Accumulated Wear Thickness of Contact | 3 | mm | |
| Protection Degree | IP4X | – | |
| Operation Type | Manual Operation (MO) / Electrical Operation (EO, AC/DC Motorized) | – | |
| Ambient Temperature (Maximum) | +40 | °C | |
| Ambient Temperature (Minimum) | -25 | °C | |
| Relative Humidity (Daily Average) | <95 | % | |
| Relative Humidity (Monthly Average) | <90 | % | |
| Altitude | ≤1000 | m | |
| Suitable Cabinet Size | 500×1000×1800 | mm | |
| Three-Position Integrated Design | Yes (Vacuum Circuit Breaker + Rotary Disconnector with Visible Isolation Gap + Independent Earthing Switch) | – | |
| Forced Mechanical Interlocking | Yes (Between Breaker, Disconnector, Earthing Switch, and Cabinet Door to Prevent Misoperation) | – | |
| Enclosed Column Technology | Yes (Improves Environmental Adaptability and Insulation Reliability) | – | |
| Modular Operating Mechanism | Yes (Can Replace or Repair Independently, Good Compatibility) | – | |
| Front-Access Design | Yes (Suitable for Compact Panels) | – | |
| Visible Isolation Gap | Yes (Rotary Disconnector with Visible Break-Brake After Fracture) | – | |
| Lower Lifecycle Cost | Yes (Compared with SF6 Switchgear, No Gas Maintenance) | – | |
| Vertical Arrangement | Yes (Upper: Disconnector, Middle: Vacuum Circuit Breaker, Lower: Earthing Switch) | – | |
| Compatible Switchgear | SF6-Free RMU, Secondary Substations, Box-Type Substations, Industrial MV Switchgear, Compact Fixed Cabinet, Ring Main Unit | – | |
| Standards Compliance | IEC and GB Standards for MV Vacuum Circuit Breakers | – | |
| Key Advantages | SF6-Free, EU 2026 Compliant, Three-Position, Zero Greenhouse Gas, Enclosed Column, Modular Design, 10000 Cycles, Visible Isolation, Forced Interlocking, Lower Lifecycle Cost, Front-Access, Compact Design | – | |
| Primary Applications | Secondary Substations, RMU Systems, Compact MV Switchgear, Renewable Energy Substations, Industrial Power Distribution, European Utility and EPC Projects, Green Substations, Low-Carbon Power Networks | – | |
