A Complete Guide to Verifying Phase Angle Errors in Voltage Transformers

Introduction

When a high voltage grid upgrade is commissioned or an aging voltage transformer enters its mid-lifecycle maintenance window, one measurement error quietly undermines everything downstream: phase angle error. Unlike ratio error — which is immediately visible in metering discrepancies — phase angle error in a PT/VT is invisible to routine inspection yet capable of corrupting protection relay timing, distorting power factor calculations, and triggering false trip events across an entire substation. Phase angle error in a voltage transformer is the difference between where the secondary voltage waveform should be and where it actually is — and in high voltage grid applications, even a deviation of a few minutes of arc translates into measurable revenue loss and compromised protection coordination. This guide provides electrical engineers and grid maintenance teams with a complete, standards-aligned methodology for verifying, diagnosing, and correcting phase angle errors throughout the full lifecycle of a PT/VT installation.

Table of Contents

• What Is Phase Angle Error in a Voltage Transformer and How Is It Defined?
• How Do Winding Design and Core Characteristics Drive Phase Angle Deviation?
• How to Verify Phase Angle Errors Across the PT/VT Lifecycle in Grid Applications?
• What Maintenance Mistakes Accelerate Phase Angle Degradation in High Voltage PT/VT Systems?
• FAQs About Phase Angle Error in Voltage Transformers

What Is Phase Angle Error in a Voltage Transformer and How Is It Defined?

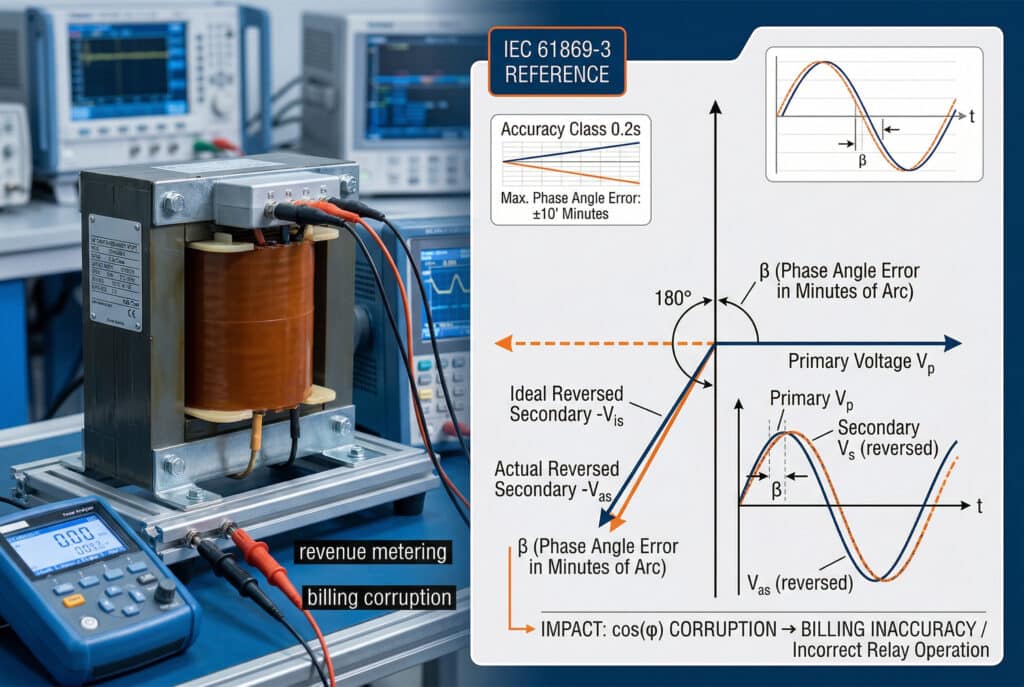

Phase angle error — designated $\beta$ (beta) in IEC 61869-3¹ — is defined as the phase displacement in minutes of arc between the primary voltage phasor and the reversed secondary voltage phasor of a voltage transformer. In an ideal PT/VT, these two phasors are exactly 180° apart when reversed, meaning zero displacement. In a real transformer, magnetizing current², core losses, and leakage reactance introduce a measurable angular shift.

This distinction matters enormously in high voltage grid applications:

• Metering accuracy: Power meters calculate active power as $P = V \times I \times \cos(\phi)$. A phase angle error in the PT/VT shifts $\phi$, directly corrupting active and reactive power³ measurement — and therefore billing and grid balancing calculations
• Protection relay coordination: Distance protection relays, differential relays, and directional overcurrent relays all depend on precise phase relationships between voltage and current signals; phase angle error causes zone boundary shifts and potential misoperation
• Power quality analysis: Harmonic analysis and power factor correction systems rely on accurate phase reference signals from the PT/VT

IEC 61869-3 defines accuracy classes for phase angle error as follows:

Accuracy Class	Maximum Ratio Error (%)	Maximum Phase Angle Error (minutes)	Typical Application
0.1	±0.1	±5	Precision laboratory / revenue metering
0.2	±0.2	±10	Revenue metering, grid billing
0.5	±0.5	±20	General industrial metering
1.0	±1.0	±40	Indication only
3P	±3.0	±120	Protection class (not for metering)

Key technical parameters that define a PT/VT’s phase angle performance:

• Rated voltage factor: 1.2 or 1.9 × Un continuous, affecting core saturation behavior
• Burden⁴ rating: VA rating at which accuracy class is guaranteed (e.g., 25 VA, 50 VA)
• Frequency: 50 Hz or 60 Hz — phase angle error changes with frequency deviation
• Core material: Cold-rolled grain-oriented silicon steel (CRGO) for low core loss and minimal phase shift
• Insulation system: Dry-type epoxy cast or oil-immersed, rated to system voltage class (e.g., 36 kV, 72.5 kV, 145 kV)

How Do Winding Design and Core Characteristics Drive Phase Angle Deviation?

Understanding the root causes of phase angle error requires examining the electromagnetic behavior of the PT/VT core and winding system — because phase angle error is not a manufacturing defect in most cases. It is a predictable consequence of transformer physics that must be controlled through design and verified through testing.

The phase angle error $\beta$ is governed by the magnetizing branch of the equivalent circuit. Specifically:

• Magnetizing current (Im): The reactive component of no-load current that lags the applied voltage by 90°. Higher Im — caused by lower-grade core steel or increased core flux density — increases phase angle error
• Core loss current (Ic): The resistive component of no-load current in phase with the applied voltage. Increased core losses (from aging, elevated temperature, or partial demagnetization) shift the no-load current phasor, directly altering $\beta$
• Leakage reactance: Primary and secondary winding leakage flux introduces additional phase displacement under loaded conditions (burden connected)
• Burden power factor: A highly inductive burden (low power factor) increases the phase angle error contribution from leakage reactance

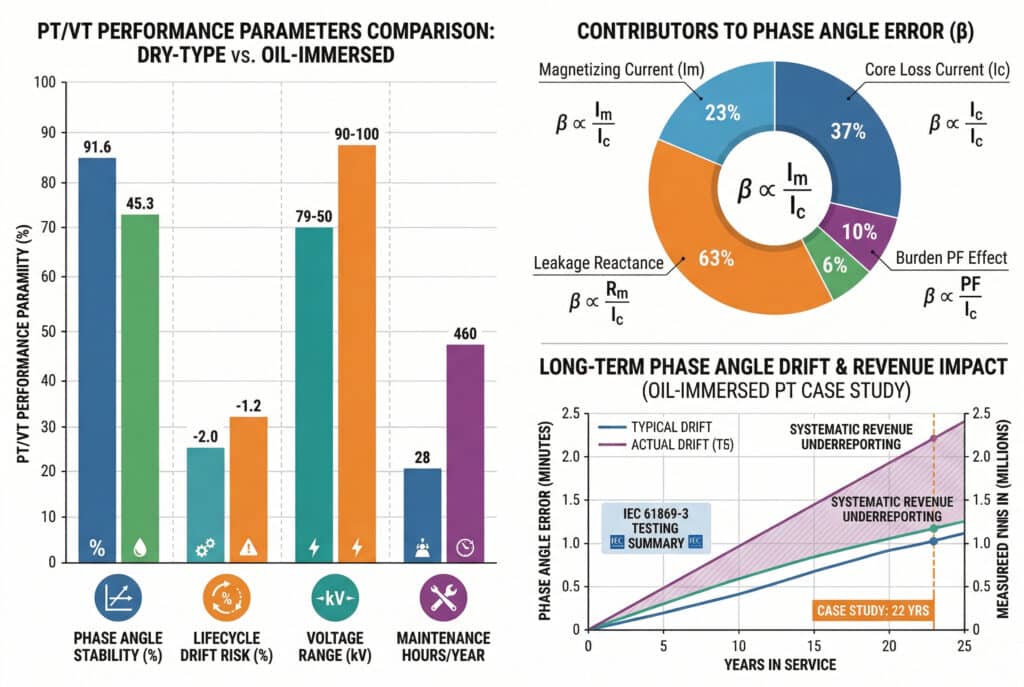

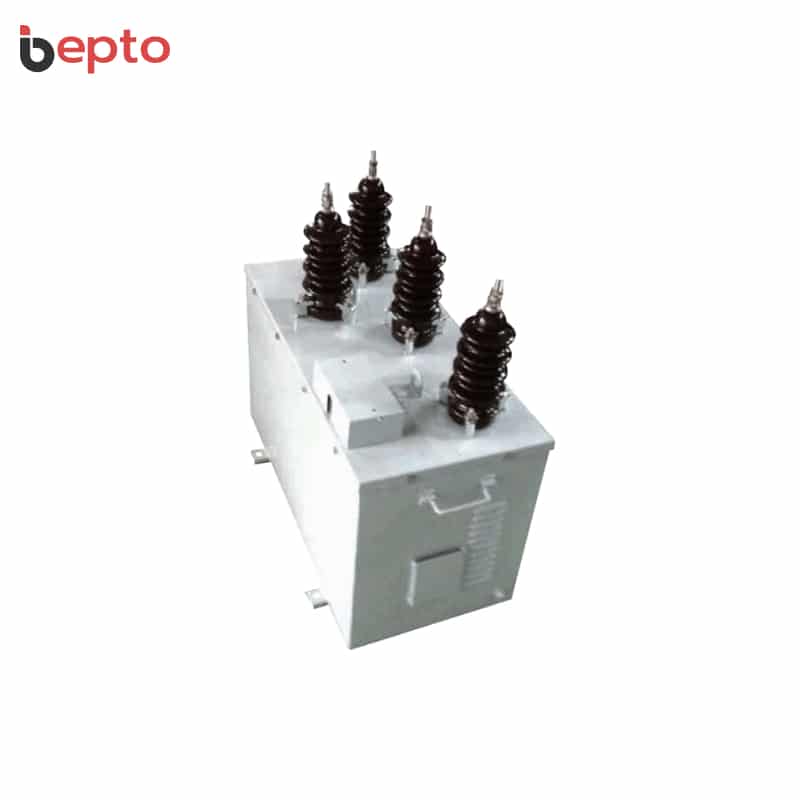

Dry-Type Epoxy Cast vs. Oil-Immersed PT/VT: Phase Angle Performance

Parameter	Dry-Type Epoxy Cast	Oil-Immersed
Core insulation	Epoxy resin encapsulation	Mineral oil / paper
Phase angle stability over lifecycle	Excellent — no oil degradation	Moderate — oil aging affects core insulation
Thermal performance	Class F (155°C)	Dependent on oil condition
Voltage range	Up to 40.5 kV typical	Up to 550 kV (EHV applications)
Maintenance requirement	Minimal — sealed system	dissolved gas analysis5 required
Grid upgrade suitability	Ideal for indoor GIS/AIS upgrade	Standard for outdoor HV transmission
Phase angle drift risk	Low	Higher over 15–20 year lifecycle

A grid maintenance client case directly illustrates lifecycle phase angle drift. A transmission grid operator in Central Europe contacted Bepto during a scheduled grid upgrade project involving replacement of 110 kV substation instrumentation. Their existing oil-immersed PT/VTs — 22 years in service — had passed routine ratio checks for years. However, when the upgrade team performed full IEC 61869-3 type testing as part of the lifecycle assessment, three of seven units showed phase angle errors of 18–23 minutes at Class 0.2 rated burden — well outside the ±10-minute specification. The root cause was oil degradation increasing core insulation resistance and shifting the magnetizing current phasor. Revenue metering had been systematically underreporting reactive power consumption for an estimated 4–6 years. Replacement with Bepto dry-type epoxy cast PT/VTs brought all units within ±6 minutes at full burden.

How to Verify Phase Angle Errors Across the PT/VT Lifecycle in Grid Applications?

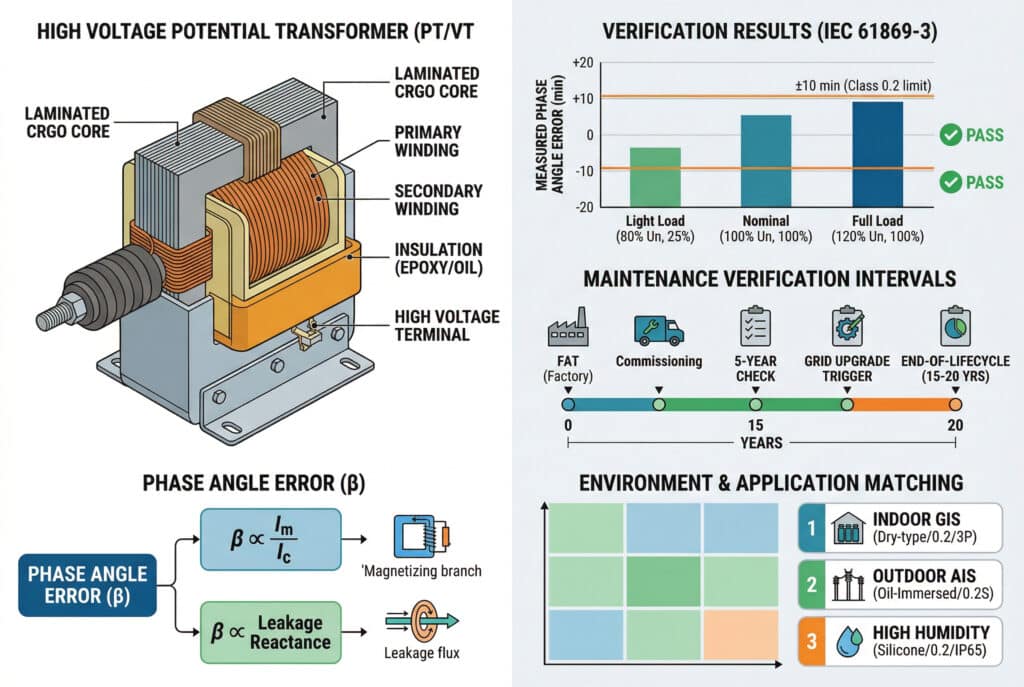

Phase angle verification is not a single test event — it is a lifecycle discipline. The following structured procedure applies to factory acceptance testing, site commissioning, and periodic maintenance verification for high voltage PT/VT installations in grid upgrade projects.

Step 1: Select the Correct Test Method

Two primary methods are used for phase angle error verification:

• Transformer calibrator / comparator method (IEC 61869-3 preferred): A reference standard PT/VT of known accuracy (Class 0.05 or better) is connected in parallel with the unit under test. The calibrator measures the difference in ratio and phase angle between the two units simultaneously. This is the gold standard for revenue metering PT/VTs
• Burden variation method: Phase angle is measured at 25%, 50%, 100%, and 120% of rated burden to verify accuracy class compliance across the full operating range

Step 2: Establish Test Conditions

• Apply 80%, 100%, and 120% of rated primary voltage — IEC 61869-3 requires accuracy class compliance across this range
• Connect burden at rated VA and rated power factor (typically 0.8 lagging per IEC)
• Stabilize temperature: test at ambient 20°C ±2°C for factory acceptance; record actual ambient for site tests
• Verify test frequency matches rated frequency (50 Hz or 60 Hz)

Step 3: Record and Evaluate Results

Test Point	Voltage (% Un)	Burden (% Rated)	Measured Phase Angle Error	Class 0.2 Limit	Pass/Fail
Light load	80%	25%	Record (minutes)	±10 min	—
Nominal	100%	100%	Record (minutes)	±10 min	—
Full load	120%	100%	Record (minutes)	±10 min	—

Step 4: Apply Lifecycle Maintenance Intervals

For high voltage PT/VTs in grid applications, phase angle verification should be scheduled as follows:

• Factory Acceptance Test (FAT): Full IEC 61869-3 type test including phase angle at all burden points
• Site Commissioning: Ratio and phase angle verification at nominal voltage and rated burden
• 5-year maintenance interval: Phase angle check at rated burden; compare against FAT baseline
• Grid upgrade trigger: Full re-verification mandatory when system voltage is uprated or protection relay settings are revised
• End-of-lifecycle assessment (15–20 years): Full type test repetition to determine replacement necessity

Step 5: Match Environmental and System Conditions

Installation Environment	Recommended PT/VT Type	Phase Angle Class
Indoor GIS grid upgrade, 36 kV	Dry-type epoxy cast	0.2 for metering, 3P for protection
Outdoor AIS substation, 110 kV	Oil-immersed, CRGO core	0.2S for revenue metering
High humidity coastal grid	Silicone-encapsulated dry-type	0.2, IP65 minimum
High altitude (>1000 m)	Derated voltage class, oil-immersed	0.2 with altitude correction

What Maintenance Mistakes Accelerate Phase Angle Degradation in High Voltage PT/VT Systems?

Correct Maintenance Procedure for Phase Angle Integrity

1. Verify burden wiring at every maintenance interval — loose or corroded secondary terminal connections increase effective burden impedance, shifting the operating point outside the calibrated accuracy range
2. Measure secondary circuit resistance — total secondary loop resistance should be within the PT/VT’s specified burden range; excess resistance from long cable runs degrades phase angle accuracy
3. For oil-immersed units: perform dissolved gas analysis (DGA) annually — rising levels of CO and CO₂ indicate paper insulation degradation, which directly affects core magnetizing characteristics and phase angle stability
4. Demagnetize the core after DC current injection events — protection relay testing using DC injection can partially magnetize the CRGO core, increasing magnetizing current and phase angle error
5. Document baseline phase angle at commissioning — without a commissioning baseline, lifecycle drift cannot be quantified or trended

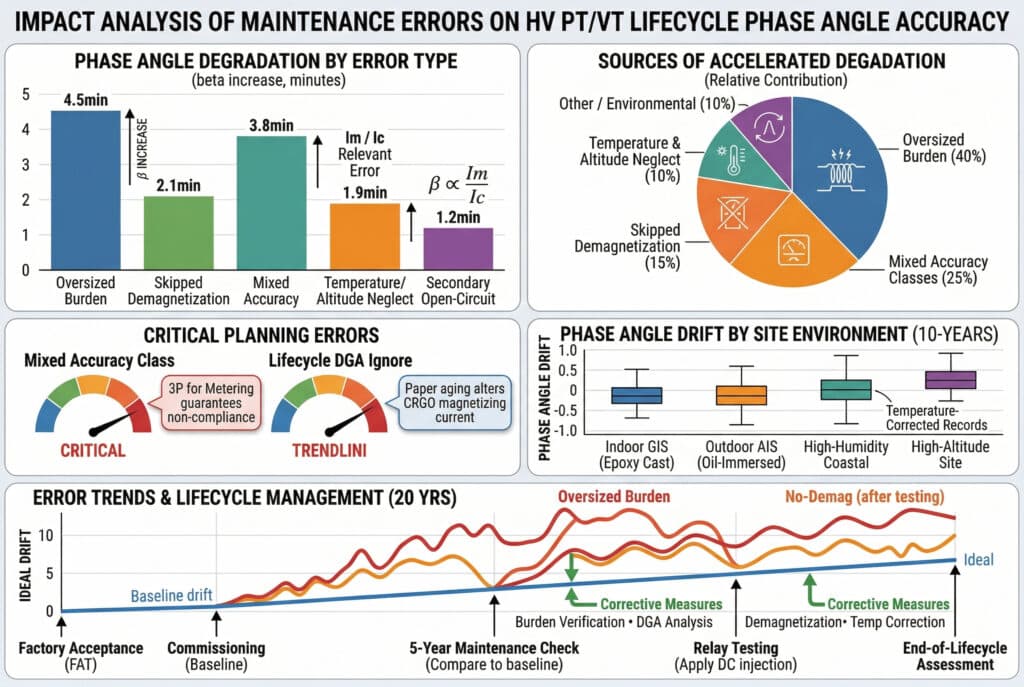

Critical Maintenance Mistakes That Accelerate Phase Angle Degradation

• Connecting oversized burden: Operating a PT/VT above its rated VA burden increases leakage reactance contribution to phase angle error — a common mistake during grid upgrade projects when additional relays are added to existing PT/VT secondary circuits
• Ignoring secondary open-circuit conditions: An open-circuited PT/VT secondary does not present the same hazard as a CT, but sustained operation with no burden shifts the core operating point and accelerates insulation aging
• Skipping demagnetization after relay testing: DC injection from relay test sets leaves residual magnetism in the core, measurably increasing phase angle error at light burden conditions
• Mixing accuracy classes in protection and metering circuits: Connecting a Class 3P protection PT/VT to a revenue metering circuit is a lifecycle planning error that guarantees phase angle non-compliance from day one
• Neglecting temperature correction in high-altitude grid sites: Phase angle error increases at elevated ambient temperatures; installations above 1,000 m require derated specifications and temperature-corrected test records

Conclusion

Phase angle error in a high voltage voltage transformer is a lifecycle-long measurement discipline, not a one-time commissioning checkbox. From factory acceptance testing through grid upgrade re-commissioning and end-of-life assessment, systematic phase angle verification using IEC 61869-3 methodology protects revenue metering integrity, ensures protection relay coordination, and prevents the silent accumulation of measurement error that undermines grid reliability. Specify the right accuracy class, verify at every lifecycle milestone, and treat every phase angle deviation as a system diagnostic event — not an acceptable tolerance.

FAQs About Phase Angle Error in Voltage Transformers

1. Provides the official international standards for the performance and testing of inductive voltage transformers in power systems. ↩

2. Details the electromagnetic behavior of transformer cores to help engineers diagnose sources of phase displacement and measurement drift. ↩

3. Explains the fundamental electrical engineering principles used to calculate energy flow and billing accuracy in high-voltage grids. ↩

4. Describes how secondary load impedance affects measurement precision to ensure compliant metering and protection coordination. ↩

5. Offers a critical diagnostic methodology for predicting insulation failure and preventing catastrophic substation equipment breakdowns. ↩
