How Gas Purity Directly Impacts Arc Quenching Efficiency

Introduction

In industrial plant power distribution systems, SF6 gas insulation parts are specified precisely because sulfur hexafluoride delivers arc quenching performance that no other insulating medium can match at medium and high voltage levels. The dielectric strength of SF6 is approximately 2.5× that of air at atmospheric pressure — and its arc quenching efficiency is governed by a rapid post-arc recovery mechanism that depends entirely on the gas being present at the correct purity level. When that purity is compromised, the arc quenching performance that engineers designed around no longer exists.

Gas purity degradation in SF6 gas insulation parts is the most direct and least monitored pathway to arc quenching failure in industrial plant switchgear — a 5% reduction in SF6 purity caused by air ingress or accumulated decomposition byproducts can reduce arc quenching efficiency by up to 20%, turning a rated interruption event into an uncontrolled fault.

For electrical engineers specifying and commissioning SF6 gas insulation parts in industrial plant environments, maintenance teams troubleshooting recurring arc protection failures, and procurement managers evaluating gas quality management programs, understanding the precise relationship between gas purity and arc quenching performance is the technical foundation of reliable SF6 system operation. This article provides that framework — from the physics of SF6 arc quenching through purity degradation mechanisms to troubleshooting protocols and IEC-aligned recovery procedures.

Table of Contents

• How Does SF6 Gas Purity Govern Arc Quenching Performance in Gas Insulation Parts?
• What Contaminants Degrade SF6 Purity and How Do They Attack Arc Protection Performance?
• How to Troubleshoot Gas Purity Problems in Industrial Plant SF6 Gas Insulation Parts?
• What Gas Purity Management Strategy Protects Arc Quenching Reliability Across the Equipment Lifecycle?

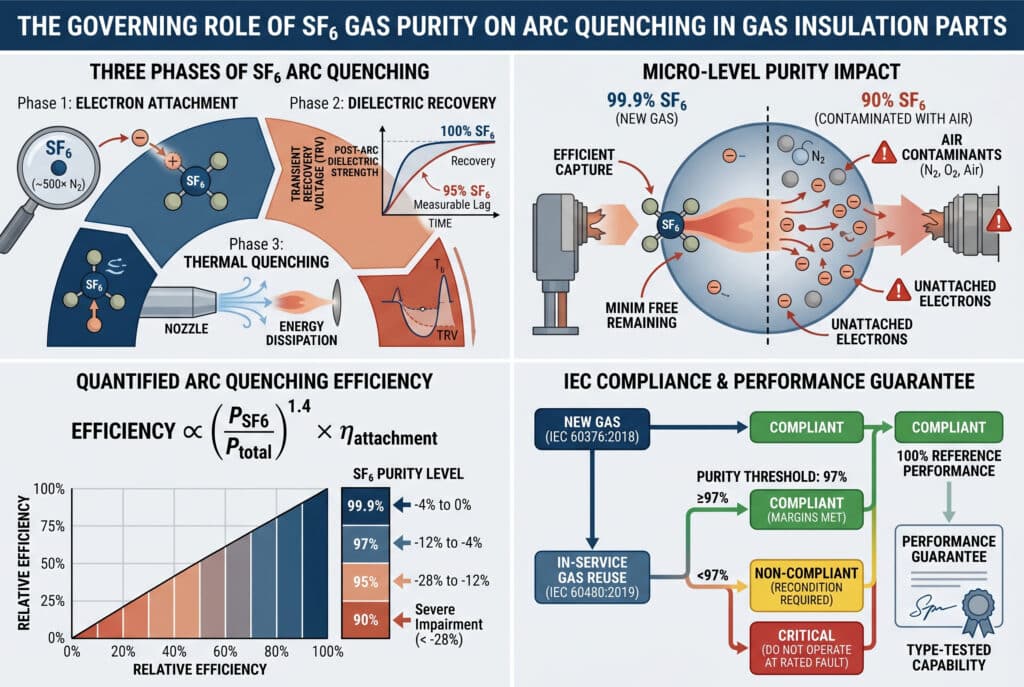

How Does SF6 Gas Purity Govern Arc Quenching Performance in Gas Insulation Parts?

SF6 gas extinguishes electrical arcs through a fundamentally different mechanism than air or oil — and that mechanism is exquisitely sensitive to gas composition. Understanding the physics explains precisely why purity matters and quantifies the performance penalty of every percentage point of contamination.

The SF6 arc quenching mechanism operates in three sequential phases:

Phase 1 — Electron Attachment (Arc Suppression):
SF6 molecules are strongly electronegative — they capture free electrons generated by the arc plasma with exceptional efficiency. The electron attachment coefficient¹ of SF6 is approximately 500× greater than nitrogen at equivalent conditions. This rapid electron capture collapses the arc plasma conductivity at current zero, initiating arc extinction. Any contaminant gas with lower electronegativity — nitrogen, oxygen, air — dilutes this attachment efficiency proportionally.

Phase 2 — Dielectric Recovery (Post-Arc Strength Restoration):
After current zero, the arc channel must recover its dielectric strength faster than the transient recovery voltage² (TRV) rises across the contact gap. SF6 achieves this through rapid recombination of arc plasma species back into stable SF6 molecules. The recovery rate is directly proportional to SF6 partial pressure — meaning that at 95% SF6 purity (5% air contamination), the dielectric recovery rate is approximately 5% slower than at 100% purity. At the microsecond timescales of TRV rise, this difference determines success or failure of arc interruption.

Phase 3 — Thermal Quenching (Energy Dissipation):
SF6 has a specific heat capacity and thermal conductivity profile that efficiently removes energy from the arc channel during the interruption process. Contaminant gases — particularly nitrogen and oxygen — have significantly lower thermal quenching capacity, reducing the energy extraction rate from the arc channel and extending the arc duration at each current zero crossing.

Quantified impact of SF6 purity on arc quenching performance:

$\text{Arc Quenching Efficiency} \propto \left(\frac{P_{SF6}}{P_{total}}\right)^{1.4} \times \eta_{attachment}$

SF6 Purity Level	Relative Arc Quenching Efficiency	Dielectric Recovery Rate	IEC 60480 Status
≥99.9% (new gas, iec 603763)	100% (reference)	Full rated recovery	Compliant — new fill
97–99.9%	96–100%	Marginal reduction	Compliant — in-service reuse
95–97%	88–96%	Measurable degradation	Non-compliant — reconditioning required
90–95%	72–88%	Significant degradation	Non-compliant — immediate action
<90%	<72%	Severe impairment	Critical — do not operate at rated fault current

The iec 60480⁴ purity threshold of 97% for in-service SF6 reuse is not arbitrary — it represents the minimum purity level at which arc quenching performance remains within the design margin of the interrupting device. Operating below this threshold means the SF6 gas insulation part is being asked to interrupt fault currents with a gas mixture whose arc quenching capability has not been type-tested and cannot be guaranteed.

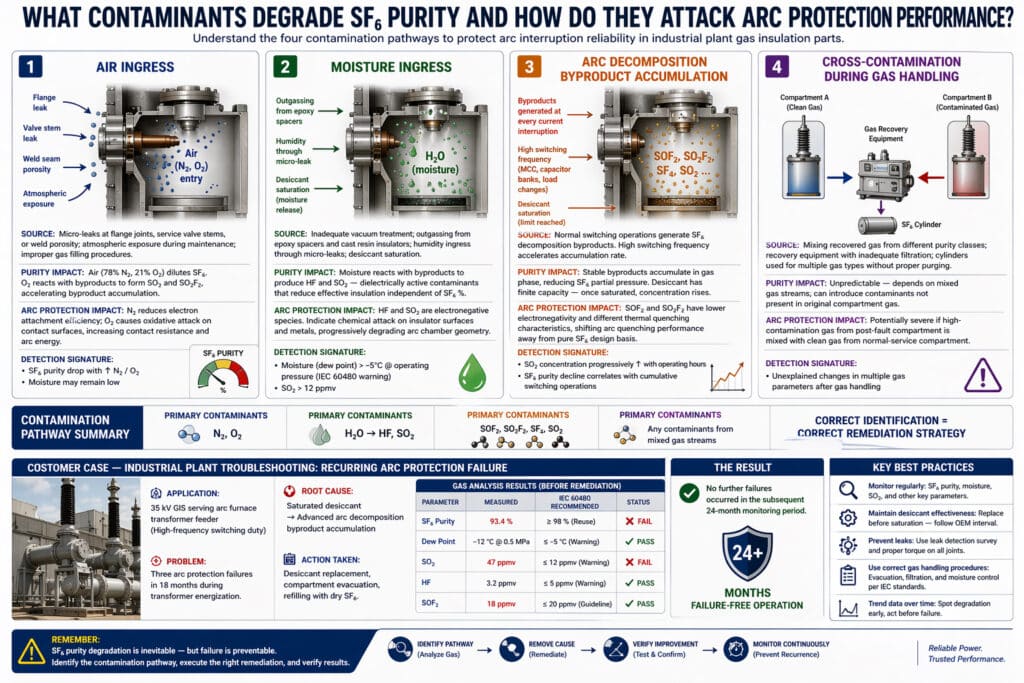

What Contaminants Degrade SF6 Purity and How Do They Attack Arc Protection Performance?

SF6 purity degradation in industrial plant gas insulation parts occurs through four distinct contamination pathways, each with a characteristic signature that enables targeted troubleshooting. Identifying the correct pathway is essential — the remediation strategy for air ingress contamination is fundamentally different from the strategy for arc decomposition byproduct accumulation.

Contamination Pathway 1: Air Ingress

Source: Micro-leaks at flange joints, service valve stems, or weld seam porosity; atmospheric exposure during maintenance operations; improper gas filling procedures that introduce air into the filling line before SF6 purging is complete.

Purity impact: Air (78% N₂, 21% O₂) directly dilutes SF6 concentration. Oxygen is particularly damaging — it reacts with SF6 arc decomposition byproducts to form SO₃ and SO₂F₂, accelerating byproduct accumulation beyond the rate expected from switching operations alone.

Arc protection impact: Nitrogen reduces electron attachment efficiency; oxygen introduces oxidative attack on contact surfaces, increasing contact resistance and arc energy at each interruption event.

Detection signature: Gas analyzer shows SF6 purity drop with corresponding nitrogen/oxygen increase; moisture content may remain low (distinguishing air ingress from maintenance-related moisture contamination).

Contamination Pathway 2: Moisture Ingress

Source: Inadequate vacuum treatment before gas filling; outgassing from epoxy spacers and cast resin insulators; micro-leak pathways that allow atmospheric humidity ingress; desiccant saturation releasing previously absorbed moisture back into the gas phase.

Purity impact: Moisture does not directly reduce SF6 molecular concentration but reacts with arc decomposition byproducts⁵ to produce HF and SO₂, which are dielectrically active contaminants that reduce effective insulation performance independently of SF6 purity percentage.

Arc protection impact: HF and SO₂ generated from moisture-byproduct reactions are electronegative species that partially compensate for SF6 dilution — but their presence indicates active chemical attack on insulator surfaces and metallic components that progressively degrades arc chamber geometry.

Detection signature: Gas analyzer shows elevated moisture (dew point >–5°C at operating pressure per IEC 60480 warning threshold) with SO₂ concentration above 12 ppmv.

Contamination Pathway 3: Arc Decomposition Byproduct Accumulation

Source: Normal switching operations generate SF6 decomposition byproducts at every current interruption event. In industrial plant environments with high switching frequency — motor control centers, capacitor bank switching, frequent load changes — byproduct accumulation rate is significantly higher than in utility substation applications.

Purity impact: Stable decomposition byproducts (SOF₂, SO₂F₂, SF₄) accumulate in the gas phase, reducing SF6 partial pressure. Desiccant absorbs some byproducts but has finite capacity — once saturated, byproduct concentration in the gas phase increases rapidly.

Arc protection impact: SOF₂ and SO₂F₂ have lower electronegativity than SF6 and different thermal quenching characteristics; their accumulation shifts the gas mixture arc quenching performance away from the pure SF6 design basis.

Detection signature: Gas analyzer shows SO₂ concentration progressively increasing with operating hours; SF6 purity decline correlates with cumulative switching operations rather than with maintenance events.

Contamination Pathway 4: Cross-Contamination During Gas Handling

Source: Recovered SF6 gas from one compartment mixed with gas from a different purity class; gas recovery equipment with inadequate filtration transferring contaminants between compartments; SF6 cylinders used for multiple gas types without proper purging.

Purity impact: Unpredictable — depends on the purity levels of the mixed gas streams; can introduce contaminants not present in the original compartment gas.

Arc protection impact: Potentially severe if high-contamination gas from a post-fault compartment is mixed with clean gas from a normal-service compartment during recovery operations.

Customer Case — Industrial Plant Troubleshooting: Recurring Arc Protection Failure:

A maintenance engineer at a steel plant industrial facility contacted us after experiencing three arc protection failures in 18 months on a 35kV SF6 gas insulation part assembly serving a large arc furnace transformer feeder. Each failure occurred during transformer energization — a high-frequency switching duty in that application. Gas analysis revealed SF6 purity of 93.4% — well below the IEC 60480 reuse threshold — with SO₂ concentration of 47 ppmv indicating advanced arc decomposition byproduct accumulation. Root cause: saturated desiccant. No further failures occurred in the subsequent 24-month monitoring period.

How to Troubleshoot Gas Purity Problems in Industrial Plant SF6 Gas Insulation Parts?

Effective gas purity troubleshooting requires a structured diagnostic approach that identifies not just the purity level but the contamination source — because the correct remediation action depends entirely on what is causing the purity degradation.

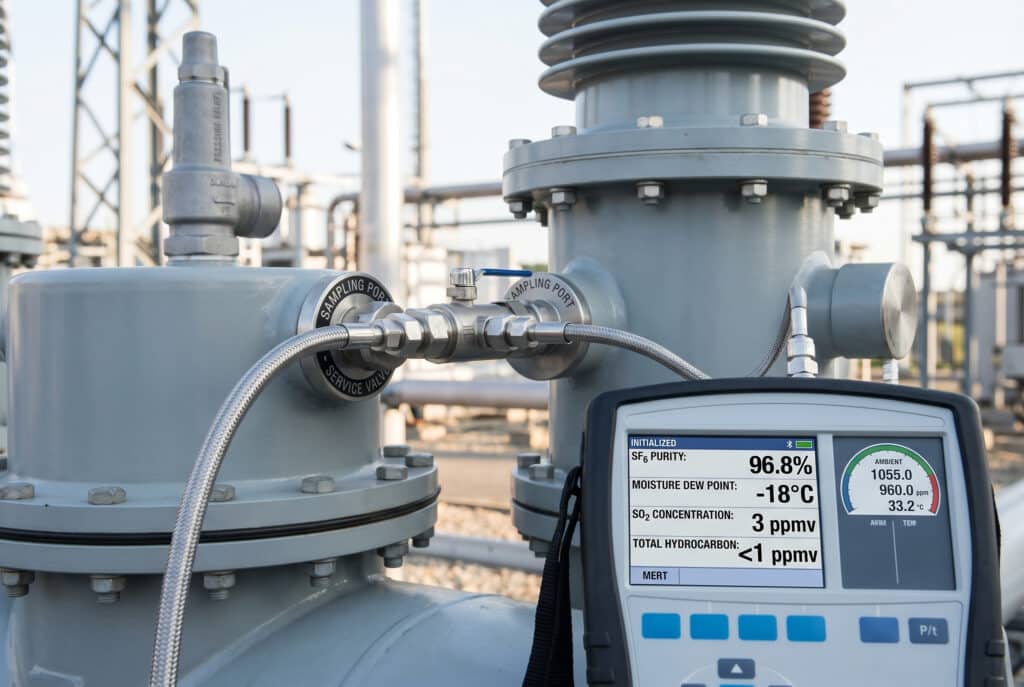

Step 1: Establish Gas Quality Baseline Measurement

• Connect calibrated SF6 multi-parameter analyzer to the compartment service valve — never the pressure relief valve or density monitor connection
• Purge sampling line with minimum 3× line volume before measurement to eliminate atmospheric contamination from the sample
• Measure simultaneously: SF6 purity (%), moisture dew point (°C at operating pressure), SO₂ concentration (ppmv), and total hydrocarbon content (ppmv)
• Record ambient temperature, compartment pressure, and cumulative switching operations since last gas analysis

Step 2: Apply IEC 60480 Diagnostic Decision Matrix

Measurement Result	Probable Contamination Source	Required Action
SF6 purity <97%, N₂/O₂ elevated	Air ingress via leak	Leak survey + seal repair + gas reconditioning
SF6 purity <97%, SO₂ >12 ppmv	Arc byproduct accumulation	Desiccant replacement + gas reconditioning
SF6 purity ≥97%, dew point >–5°C	Moisture ingress / desiccant saturation	Desiccant replacement + vacuum drying
SF6 purity ≥97%, SO₂ 5–12 ppmv	Early byproduct accumulation	Increase monitoring frequency; plan desiccant replacement
SF6 purity <90%, multiple parameters abnormal	Post-fault or severe contamination	Full gas reclaim + component inspection + reconditioning

Step 3: Identify Contamination Source by Trend Analysis

• Compare current measurement against historical records — a sudden purity drop between measurements indicates a discrete event; a gradual decline indicates progressive accumulation
• Correlate purity decline rate with switching operation log — industrial plant applications with high switching frequency show faster byproduct accumulation
• Perform SF6 leak survey using infrared camera if air ingress is suspected — locate and quantify all leak points before gas reconditioning

Step 4: Execute Remediation by Contamination Class

• Purity 95–97% (marginal): Gas reconditioning in-situ using portable SF6 reconditioner with activated carbon and molecular sieve filtration
• Purity 90–95% (non-compliant): Full gas reclaim to certified recovery unit; component inspection for arc damage; refill with certified IEC 60376 SF6 gas
• Purity <90% (critical): Full gas reclaim; mandatory internal inspection; partial discharge measurement; do not return to service without engineering sign-off

Step 5: Post-Remediation Verification

• Perform gas quality analysis 24–48 hours after reconditioning or refill to allow gas-surface equilibration
• Verify SF6 purity ≥97%, moisture dew point ≤–5°C at operating pressure, SO₂ ≤12 ppmv per IEC 60480 reuse criteria

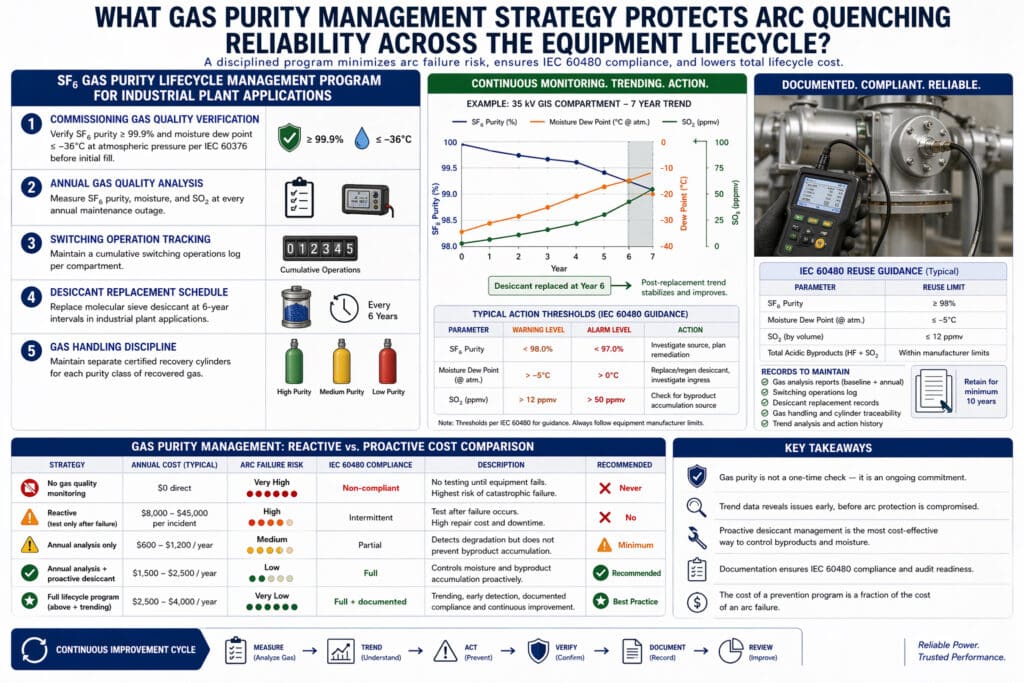

What Gas Purity Management Strategy Protects Arc Quenching Reliability Across the Equipment Lifecycle?

SF6 Gas Purity Lifecycle Management Program for Industrial Plant Applications

1. Commissioning gas quality verification — Verify SF6 purity ≥99.9% and moisture dew point ≤–36°C at atmospheric pressure per IEC 60376 before initial fill
2. Annual gas quality analysis — Measure SF6 purity, moisture, and SO₂ at every annual maintenance outage
3. Switching operation tracking — Maintain a cumulative switching operations log per compartment
4. Desiccant replacement schedule — Replace molecular sieve desiccant at 6-year intervals in industrial plant applications
5. Gas handling discipline — Maintain separate certified recovery cylinders for each purity class of recovered gas

Gas Purity Management: Reactive vs. Proactive Cost Comparison

Strategy	Annual Cost	Arc Failure Risk	IEC 60480 Compliance	Recommended
No gas quality monitoring	$0 direct	Very High	Non-compliant	❌ Never
Reactive (test only after failure)	$8,000–$45,000 per incident	High	Intermittent	❌ No
Annual analysis only	$600–$1,200/year	Medium	Partial	⚠️ Minimum
Annual analysis + proactive desiccant	$1,500–$2,500/year	Low	Full	✔ Recommended
Full lifecycle program (above + trending)	$2,500–$4,000/year	Very Low	Full + documented	✔ Best Practice

Conclusion

Gas purity is not a background parameter in SF6 gas insulation parts — it is the active determinant of arc quenching efficiency and arc protection reliability in every switching operation your industrial plant system performs. The IEC 60480 purity thresholds exist because the physics of SF6 arc quenching are unforgiving: below 97% purity, the electron attachment mechanism that makes SF6 the world’s most effective arc quenching medium begins to fail. Measure gas purity systematically, troubleshoot contamination sources precisely, recondition proactively, and never return an SF6 gas insulation part to rated fault interruption duty with gas quality below IEC 60480 compliance.
