Residual Flux in Current Transformers — Understanding Remanence

Introduction

A current transformer that performed flawlessly during commissioning can fail to operate correctly during a fault months later — with no visible damage, no changed settings, and no modified wiring. The core looks identical. The nameplate hasn’t changed. But something inside the core has shifted permanently, and it happened silently during the last fault event or switching operation. That something is residual flux, and it is one of the most underestimated threats to protection system reliability in service today.

Residual flux — also called remanence — is the magnetic flux density that remains locked inside a CT core after the magnetizing force is removed, permanently occupying a portion of the core’s total flux capacity and reducing the available headroom before saturation, which directly shortens the time-to-saturation during the next fault event and degrades the accuracy of secondary output signals.

I’ve reviewed post-incident protection reports from substations across industrial facilities in the UK, Australia, and the Gulf region, and remanence-related saturation appears far more frequently than the industry acknowledges. The reason is simple: remanence is invisible, it accumulates silently, and it is almost never measured during routine maintenance. This article gives you the complete engineering picture — what causes remanence, how it affects CT performance, how to quantify it, and how to eliminate it before it compromises your protection scheme. 🔍

Table of Contents

• What Is Residual Flux in a CT Core and How Does It Form?
• How Does Remanence Reduce Available Flux Headroom and Accelerate Saturation?
• How Do You Specify and Select CTs Based on Remanence Performance Requirements?
• How Do You Measure, Eliminate, and Monitor Residual Flux in Service?
• FAQs About Residual Flux in Current Transformers

What Is Residual Flux in a CT Core and How Does It Form?

Residual flux is not a defect or a sign of core damage — it is a fundamental property of ferromagnetic materials¹. Every CT core made from silicon steel, nickel-iron alloy, or any other ferromagnetic material will retain some degree of residual magnetism after excitation. The engineering question is never whether remanence exists, but how much exists and whether your protection scheme can tolerate it. ⚙️

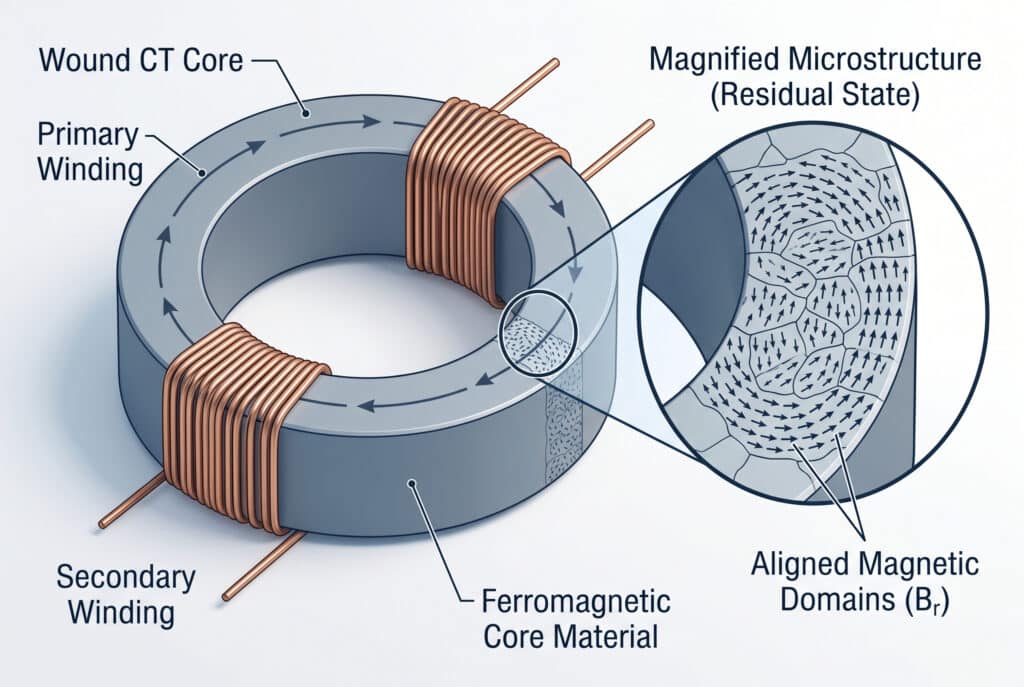

The Hysteresis Loop and Remanence Formation

The origin of residual flux lies in the hysteresis loop — the closed curve traced on the B-H diagram when a ferromagnetic core is taken through a complete magnetization cycle. When the applied magnetic field intensity H is increased to drive the core into saturation, the magnetic domains² within the core material align with the applied field. When H is then reduced back to zero, these domains do not fully return to their original random orientation. A net alignment — and therefore a net flux density — remains.

This retained flux density at $H = 0$ is defined as the remanent flux density ($B_r$). The field intensity required to drive B back to zero is the coercive force ($H_c$). Together, $B_r$ and $H_c$ characterize the hysteresis behavior of the core material.

Primary Causes of Remanence in CT Cores

Residual flux accumulates through several distinct mechanisms, each producing a different magnitude of remanence:

1. Asymmetrical Fault Current with DC Offset:
The most significant source of remanence in protection CTs. When a fault current with DC offset drives the core into saturation, the core traverses a partial hysteresis loop that does not return to the origin when the fault clears. The residual flux left behind can reach 60–80% of the saturation flux density in standard silicon steel cores.

2. Circuit Breaker Interruption:
When a circuit breaker interrupts fault current near a current zero, the abrupt cessation of primary current leaves the core at a point on the hysteresis loop that is not the origin. The resulting remanence depends on the instantaneous flux level at the moment of interruption.

3. Transformer Energization and Inrush:
Energizing a power transformer through a CT subjects the CT core to the transformer’s inrush current — a heavily distorted, DC-biased waveform that drives the CT core along a non-symmetric magnetization path, leaving significant residual flux.

4. DC Testing and Injection:
Secondary injection tests using DC current sources — including insulation resistance tests applied incorrectly — can magnetize the core along a unidirectional path, leaving remanence levels comparable to a fault event.

5. Geomagnetically induced currents³:
In high-latitude installations, geomagnetic disturbances can slowly magnetize CT cores over extended periods, producing remanence without any identifiable fault event.

Remanence Characteristics by Core Material

Core Material	Remanence Factor $K_r$	Coercive Force $H_c$	Saturation Flux $B_{sat}$	Remanence Risk Level
Grain-Oriented Silicon Steel4 (GOES)	60 – 80%	Low–Medium	1.8 – 2.0 T	High
Cold-Rolled Non-Oriented Steel	50 – 70%	Medium	1.6 – 1.8 T	High
Nickel-Iron Alloy (Permalloy 50)	40 – 60%	Very Low	0.75 – 1.0 T	Medium
Amorphous Metal Alloy	20 – 40%	Low	1.2 – 1.5 T	Low–Medium
Nanocrystalline Alloy	5 – 15%	Very Low	1.2 – 1.3 T	Very Low
Air-Gapped Core (Class TPZ)	<1%	N/A (gap dominates)	Effective 0.3–0.5 T	Negligible

The Remanence Factor $K_r$ is the standardized metric defined in IEC 61869-2:

$K_r = \frac{B_r}{B_{sat}} \times 100$

A $K_r$ of 75% means that after a saturating event, 75% of the core’s total flux capacity is already occupied before the next fault begins. Only 25% of the core’s headroom remains available.

How Does Remanence Reduce Available Flux Headroom and Accelerate Saturation?

The engineering consequence of remanence is brutally simple: it reduces the distance between the core’s current operating point and the saturation knee point. Every Weber of residual flux is one less Weber available to accommodate the next fault transient. But the full impact goes deeper than this static reduction — remanence interacts with DC offset in a way that can make an otherwise adequate CT completely inadequate. 🔬

The Flux Headroom Equation

The total flux demand during a fault with DC offset must be accommodated within the core’s available flux headroom:

$\text{Available Headroom} = \Phi_{sat} – \Phi_{residual} = B_{sat} \times A_c \times (1 – K_r)$

Where $A_c$ is the core cross-sectional area. The required flux during a fault is:

$\Phi_{required} = \frac{K_{td} \times I_{f_secondary} \times (R_{ct} + R_b)}{4.44 \times f \times N}$

For the CT to avoid saturation:

$\Phi_{required} \leq \Phi_{sat} \times (1 – K_r)$

This inequality reveals the direct, multiplicative relationship between remanence and required knee point voltage. A core with $K_r = 75$ requires a knee point voltage 4× higher than the same core with zero remanence to achieve equivalent saturation immunity.

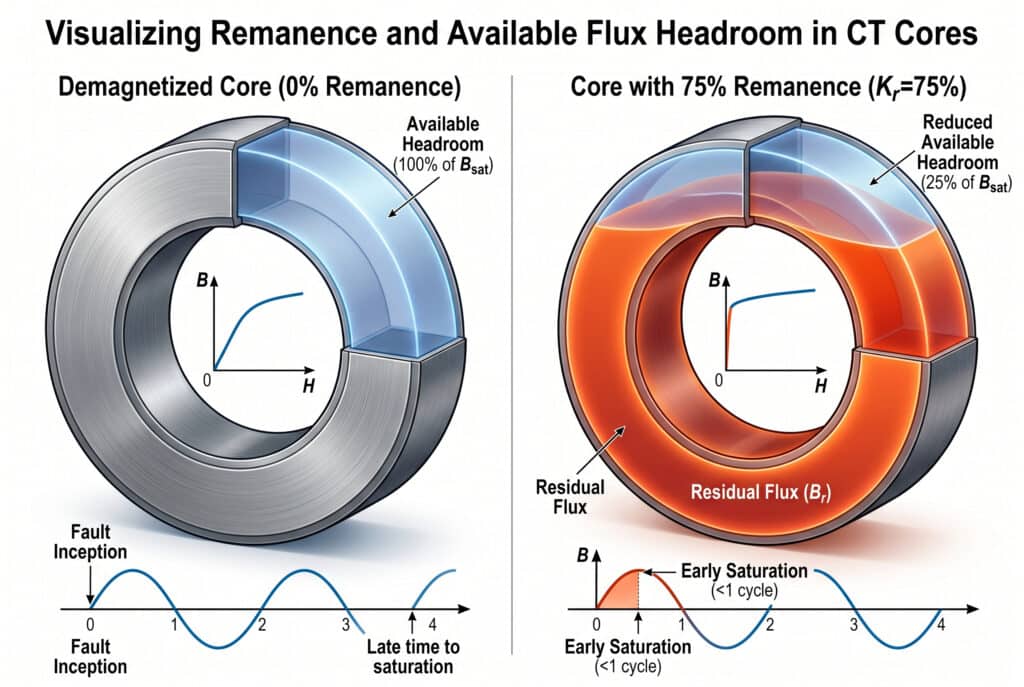

Time-to-Saturation as a Function of Remanence

The most operationally critical impact of remanence is its effect on time-to-saturation ($T_{sat}$) — the time elapsed from fault inception until the CT secondary output becomes significantly distorted. For high-speed protection relays operating in 1–3 cycles, even a modest reduction in $T_{sat}$ can mean the difference between correct operation and failure.

Remanence Level ($K_r$)	Available Headroom	Time-to-Saturation (Typical, X/R=20)	Protection Impact
0% (demagnetized)	100% of $B_{sat}$	3 – 5 cycles	Relay operates correctly
30%	70% of $B_{sat}$	2 – 3 cycles	Marginal — relay may operate
60%	40% of $B_{sat}$	1 – 2 cycles	High risk — relay may fail
75%	25% of $B_{sat}$	<1 cycle	Critical — saturation before relay can respond
90%	10% of $B_{sat}$	<0.5 cycle	Catastrophic — CT useless for protection

Remanence in Auto-Reclose Schemes

Auto-reclose schemes present the most severe remanence challenge in protection engineering. The sequence of events creates a compounding remanence problem:

1. First fault: DC offset drives core toward saturation → fault clears → remanence $B_{r1}$ remains
2. Dead time (0.3–1.0 seconds): Insufficient time for spontaneous demagnetization
3. Auto-reclose energization: Inrush current adds further flux on top of $B_{r1}$
4. Second fault (if persistent): DC offset now acts on a core already carrying $B_{r1} + \text{inrush remanence}$

The cumulative remanence after two fault-reclose cycles in a standard GOES core can approach 85–90% of $B_{sat}$ — leaving the CT functionally saturated before the second fault current even reaches its peak.

Customer Story: A protection engineer named James, working at a 132kV transmission substation in Queensland, Australia, reported repeated failures of the busbar differential protection during auto-reclose operations on a feeder with a history of transient faults. Post-incident analysis revealed that the Class P CTs — specified correctly for the symmetrical fault level — were entering saturation within half a cycle on the second reclose attempt due to accumulated remanence. Bepto supplied Class TPY replacement CTs with nanocrystalline cores ($K_r < 8$), which eliminated the remanence accumulation problem entirely. The protection scheme has operated correctly through six subsequent auto-reclose events without a single false operation. ✅

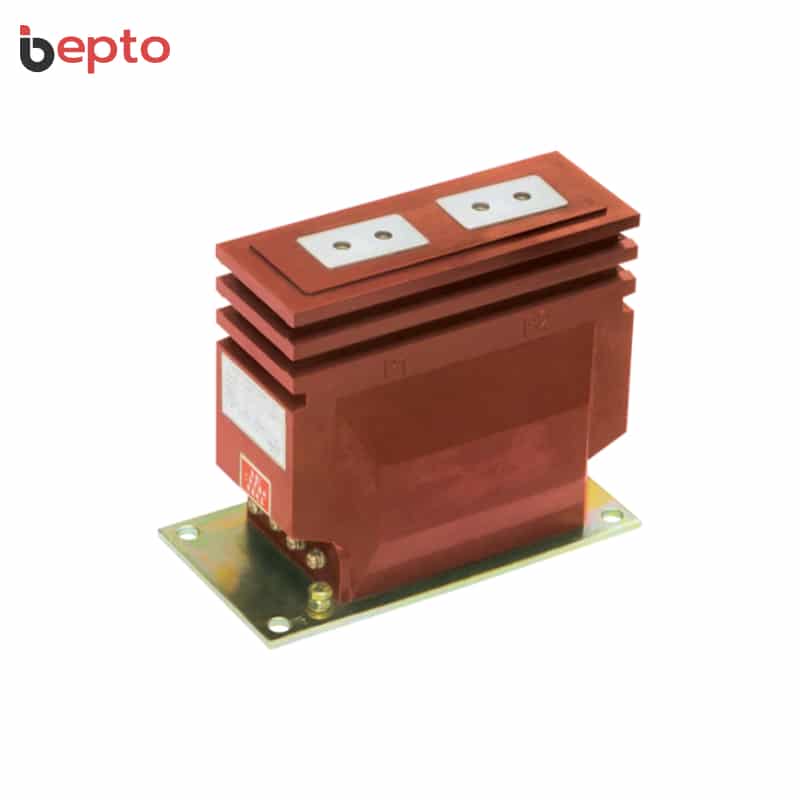

How Do You Specify and Select CTs Based on Remanence Performance Requirements?

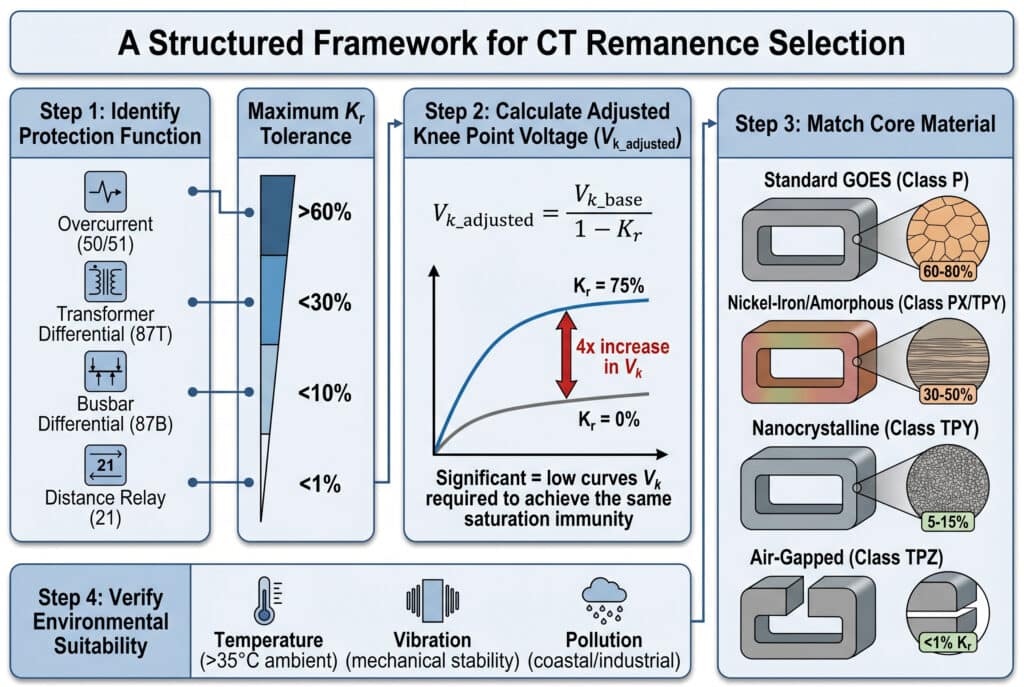

Remanence specification is not a single number to be copied from a previous project — it is a protection-function-specific requirement that must be derived from the operating conditions of each individual CT application. Here is the structured framework for getting it right. 📐

Step 1: Identify the Protection Function and Its Remanence Sensitivity

Different protection functions have fundamentally different tolerances for remanence-induced saturation:

Protection Function	Remanence Sensitivity	Minimum CT Class	Maximum $K_r$
Overcurrent relay (50/51) — time-delayed	Low	Class P	Not specified
Overcurrent relay (50/51) — instantaneous	Medium	Class P or PX	<60%
Earth fault relay (51N)	Low–Medium	Class P	Not specified
Transformer differential (87T)	High	Class PX or TPY	<30%
Busbar differential (87B)	Very High	Class TPZ	<1%
Distance relay (21)	High	Class TPY	<10%
Auto-reclose scheme	Very High	Class PR or TPY	<10%
Generator differential (87G)	Very High	Class TPY	<10%

Step 2: Calculate the Remanence-Adjusted Knee Point Voltage

The standard $V_k$ calculation must be modified to account for remanence:

$V_{k_adjusted} = \frac{V_{k_base}}{1 – K_r}$

Where $V_{k_base}$ is the knee point voltage calculated without remanence. For a core with $K_r = 0.75$:

$V_{k_adjusted} = \frac{V_{k_base}}{0.25} = 4 \times V_{k_base}$

This fourfold increase in required knee point voltage illustrates why remanence specification cannot be treated as a secondary concern.

Step 3: Select Core Material to Match Remanence Requirement

• $K_r$ not specified (time-delayed overcurrent): Standard GOES core, Class P — cost-effective and adequate
• $K_r < 30$ (transformer differential): Nickel-iron alloy or amorphous metal core, Class PX or TPY
• $K_r < 10$ (distance, auto-reclose, generator differential): Nanocrystalline alloy core, Class TPY
• $K_r < 1$ (busbar protection, ultra-high-speed): Air-gapped core, Class TPZ

Step 4: Verify Environmental Suitability

• Tropical installations (>35°C ambient): Verify core material thermal stability — nanocrystalline cores maintain $K_r$ performance up to 120°C; standard GOES cores degrade above 80°C
• Vibration environments (industrial machinery, traction): Mechanical vibration can partially demagnetize cores over time, reducing remanence — beneficial for performance but must be verified not to affect calibration
• High-pollution or coastal sites: Confirm IP65 enclosure with sealed terminal boxes to prevent moisture ingress that accelerates insulation degradation

Customer Story: Maria, procurement director at a switchgear manufacturer in Milan, Italy, was preparing a batch of 24kV indoor switchgear for a wind farm grid connection project. The protection engineer specified Class TPY CTs with $K_r < 10$ for the feeder differential protection. Three competing suppliers offered standard Class PX CTs with GOES cores ($K_r \approx 70$), claiming they met the “TPY equivalent” requirement. Bepto provided nanocrystalline-core Class TPY CTs with factory-certified $K_r = 6.5$, along with full IEC 61869-2 transient performance test reports. The client’s independent testing authority accepted only the Bepto documentation as compliant. Maria’s delivery schedule was protected, and the project passed grid code compliance testing on the first attempt. 💡

How Do You Measure, Eliminate, and Monitor Residual Flux in Service?

Remanence management is an active, ongoing engineering discipline — not a one-time commissioning task. The procedures described here should be embedded in your substation’s maintenance program as standard practice, particularly for CTs in high-speed protection schemes.

Measuring Residual Flux in the Field

Direct measurement of residual flux requires specialized equipment, but a practical indirect assessment can be performed through the magnetization curve comparison method:

1. Apply increasing AC voltage to the secondary terminals (primary open-circuited)
2. Record the V-I excitation curve from zero to above the knee point
3. Compare the measured curve against the original commissioning baseline
4. A shift in the apparent knee point toward lower voltage — or an increase in exciting current at a given voltage — indicates significant residual flux is present

A more direct method uses a fluxmeter connected to a search coil wound on the CT core, but this requires core access that is not available in most installed CTs.

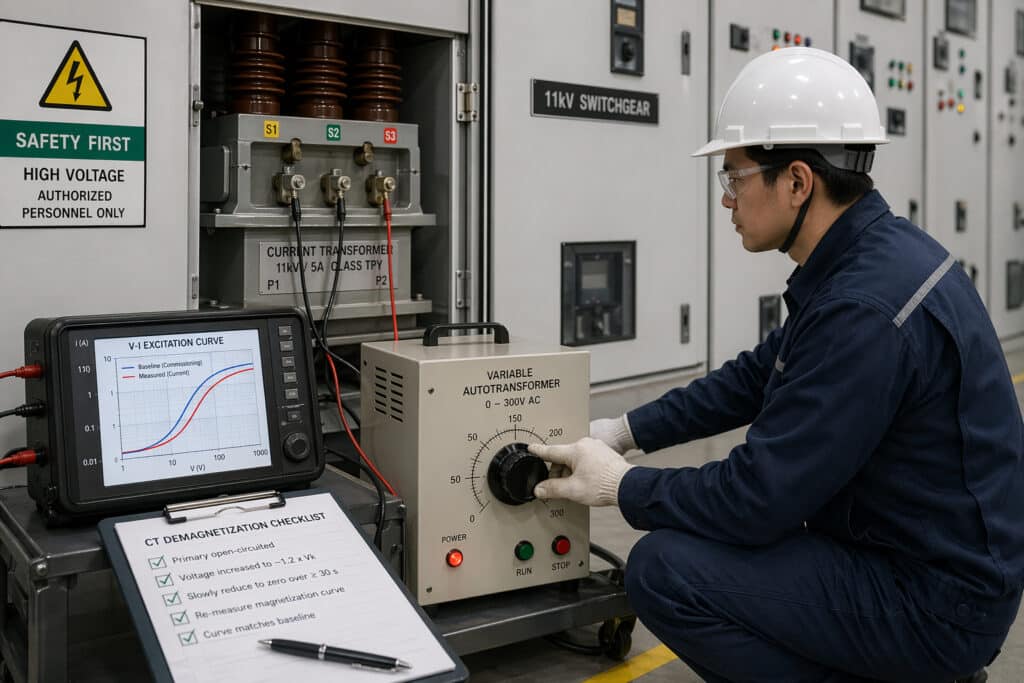

Demagnetization Procedures

AC Demagnetization (Preferred Method):

1. Connect a variable autotransformer⁵ to the CT secondary terminals (primary open-circuited)
2. Gradually increase AC voltage to approximately $1.2 \times V_k$ to ensure full core saturation
3. Slowly and continuously reduce voltage to zero over a minimum of 30 seconds
4. The gradual reduction forces the core through progressively smaller hysteresis loops, converging on the origin
5. Verify by re-measuring the magnetization curve and confirming it matches the original baseline

DC Demagnetization (Alternative):
Apply a series of DC current pulses of alternating polarity with progressively decreasing amplitude, ending at zero. This method is less reliable than AC demagnetization and requires careful control to avoid introducing new remanence.

Installation and Maintenance Checklist

1. Pre-commissioning demagnetization — always demagnetize before energization to eliminate transport and factory-test remanence
2. Post-fault demagnetization — mandatory after any close-in fault with significant DC offset; do not defer this to the next scheduled outage
3. Post-auto-reclose demagnetization — after any auto-reclose sequence involving a persistent fault, demagnetize all CTs in the protection zone before returning to service
4. Annual magnetization curve verification — compare against commissioning baseline for all CTs in high-speed protection schemes
5. Post-DC-test demagnetization — always demagnetize after any DC injection testing, insulation resistance testing, or primary injection testing

Common Maintenance Mistakes

• Assuming remanence dissipates naturally — it does not; residual flux in a properly manufactured CT core can persist indefinitely without active demagnetization
• Demagnetizing with DC current only — DC demagnetization is unreliable and can leave the core in a partially magnetized state; AC demagnetization is the only method that guarantees return to the origin of the hysteresis loop
• Skipping demagnetization after “minor” faults — any fault with measurable DC offset leaves remanence; the magnitude of the fault current does not determine whether demagnetization is needed
• Failing to re-verify the magnetization curve after demagnetization — demagnetization without subsequent curve verification provides no engineering assurance that the procedure was effective
• Using the same demagnetization procedure for all CT classes — Class TPZ air-gapped cores require different procedures than solid-core Class TPY units; always follow the manufacturer’s specific demagnetization instructions

Recommended Maintenance Schedule

Activity	Trigger	Recommended Interval
Full demagnetization + curve verification	Commissioning	Once, before first energization
Post-fault demagnetization	Any close-in fault event	Immediately at next outage
Post-reclose demagnetization	Persistent fault auto-reclose	Before returning to service
Routine magnetization curve check	Scheduled maintenance	Every 3–5 years
Full secondary injection + burden measurement	Major substation outage	Every 10 years

Conclusion

Residual flux is a silent, invisible, and cumulative threat to CT performance — one that grows with every fault event, every switching operation, and every DC test, while leaving no external indication that the core’s available headroom has been compromised. Understanding remanence formation, specifying the correct $K_r$ limit for each protection function, selecting core materials that match your application’s transient demands, and maintaining an active demagnetization program are the four disciplines that keep your protection system performing as designed throughout its operational life. Manage remanence proactively, and your CTs will deliver accurate secondary signals precisely when your protection scheme needs them most. 🔒
