Common Mistakes When Interfacing with High-Voltage Cables

Introduction

The cable interface between a high-voltage XLPE cable¹ and a GIS switchgear² compartment is one of the most mechanically and electrically demanding joints in a grid upgrade project — and one of the most frequently compromised by installation errors that are invisible after assembly, undetectable by routine visual inspection, and capable of initiating partial discharge³ that degrades the joint insulation over months before producing a catastrophic failure at the worst possible moment. GIS switchgear cable interfaces — elbow connectors, plug-in bushings, and separable connectors per IEC 62271-209⁴ — demand a level of surface preparation, dimensional alignment, and assembly force control that is qualitatively different from the cable termination practices that experienced high-voltage cable jointers carry from AIS substation work. The most consequential installation mistakes when interfacing high-voltage XLPE cables with GIS switchgear are not the obvious errors that produce immediate test failures — they are the subtle errors in surface preparation, lubricant application, insertion depth verification, and stress cone seating that pass the commissioning dielectric test and then initiate partial discharge at the interface under the thermal cycling and voltage stress of normal service operation. For grid upgrade project engineers, EPC installation supervisors, and substation commissioning teams responsible for GIS cable interface installation quality, this guide identifies the critical mistakes, explains the failure mechanisms they initiate, and delivers the correct installation procedure that eliminates them.

Table of Contents

• What Is the GIS High-Voltage Cable Interface System and What IEC Standards Define Its Installation Requirements?
• What Are the Most Critical Installation Mistakes at the GIS Cable Interface and What Failure Mechanisms Do They Initiate?
• How to Select and Verify the Correct GIS Cable Interface System for Grid Upgrade Projects?
• What Is the Correct GIS Cable Interface Installation Procedure and How to Verify Interface Integrity Before Energization?

What Is the GIS High-Voltage Cable Interface System and What IEC Standards Define Its Installation Requirements?

The GIS cable interface system is the assembly of components that creates a gas-tight, electrically continuous, and mechanically secure connection between the XLPE cable termination and the SF6-insulated cable compartment of the GIS switchgear — a joint that must simultaneously maintain SF6 gas integrity, provide electrical stress control across the cable screen cutback, and accommodate the mechanical forces of cable weight, thermal expansion, and installation misalignment without compromising the insulation interface.

Interface System Components and Technical Parameters

The GIS cable interface assembly consists of three interdependent components:

• Plug-in elbow connector or straight connector: The separable interface component — typically rated 12 kV to 40.5 kV; insertion force 500–2,500 N depending on voltage class; contact resistance ≤ 20 μΩ at rated current
• Cable stress cone⁵: The pre-moulded or push-on silicone rubber component that controls the electrical stress concentration at the cable screen cutback — creepage distance 25–45 mm/kV depending on pollution class; interface pressure 0.3–0.8 MPa against the connector bore
• GIS cable compartment bushing: The SF6-side interface component — epoxy resin or silicone rubber; rated voltage matching the GIS compartment; gas-tight seal at the compartment flange

Governing IEC Standards

Standard	Scope	Key Installation Requirement
IEC 62271-209	Cable connections for GIS — interface dimensions and test requirements	Defines the interface geometry that must be matched between cable connector and GIS bushing
IEC 60840	Power cables above 30 kV — accessories	Stress cone design and interface pressure requirements
IEC 62067	Power cables above 150 kV	Extended interface requirements for EHV applications
IEC 60502-4	Accessories for cables 6 kV to 30 kV	Installation and test procedures for separable connectors

The IEC 62271-209 interface geometry requirement is the most critical standard for GIS cable interface installation — it defines the dimensional tolerances for the mating surfaces between the cable connector and the GIS bushing that must be verified before assembly begins. A cable connector from one manufacturer mated to a GIS bushing from a different manufacturer without IEC 62271-209 interface verification is the single most common source of GIS cable interface failures in grid upgrade projects.

What Are the Most Critical Installation Mistakes at the GIS Cable Interface and What Failure Mechanisms Do They Initiate?

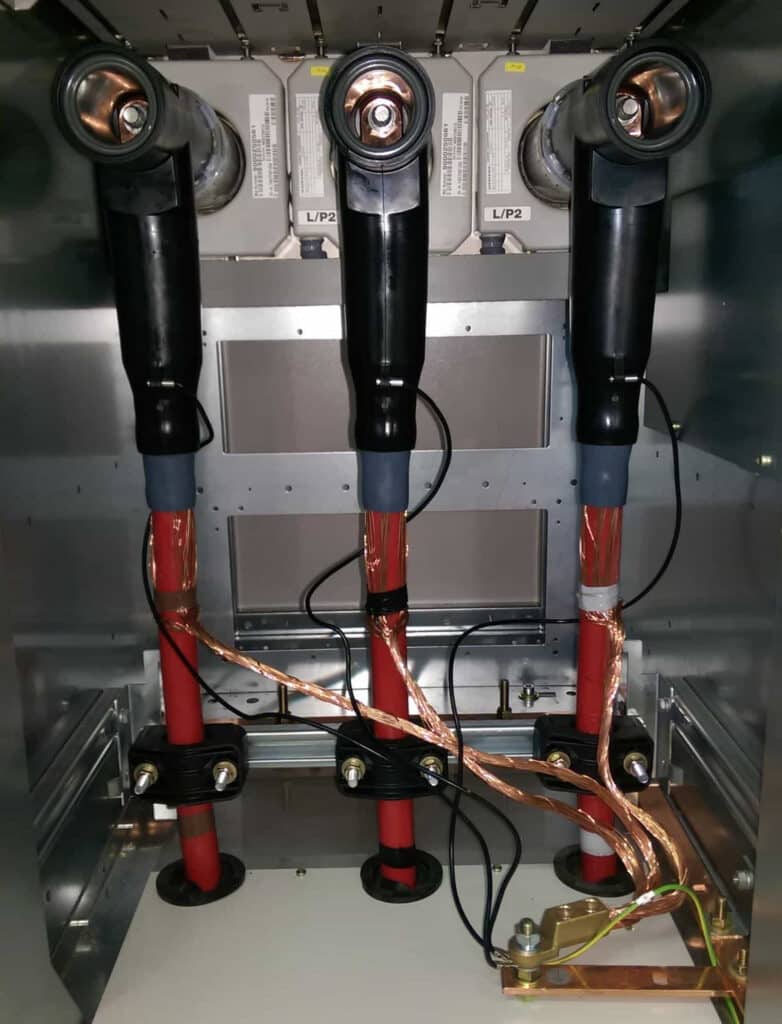

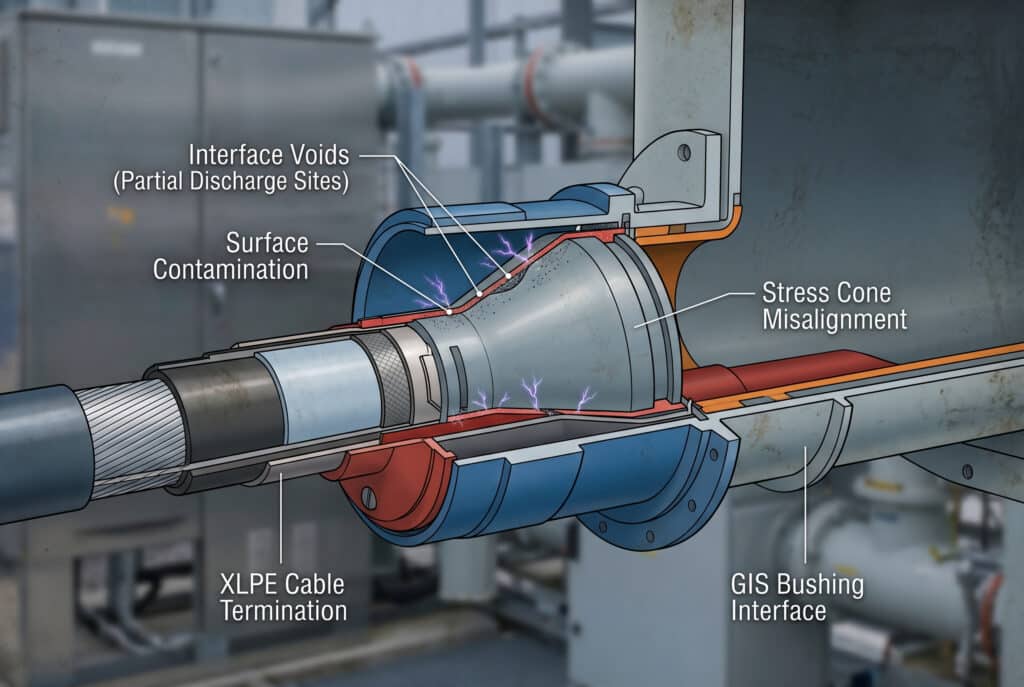

Six installation mistakes account for the majority of GIS cable interface failures identified in post-failure investigations — each with a distinct failure mechanism that explains why the error passes the commissioning test and then produces a service failure months or years later.

Mistake 1: Insufficient or Incorrectly Applied Interface Lubricant

The silicone grease applied to the stress cone and connector bore interface serves two functions: it facilitates insertion without surface damage and it fills micro-voids at the interface that would otherwise become partial discharge sites. The two most common lubricant errors are:

• Under-application: Insufficient lubricant leaves dry contact zones at the interface — micro-voids with dimensions of 0.1–0.5 mm that concentrate electrical stress and initiate partial discharge at voltage stress levels well below the design withstand level
• Wrong lubricant type: Non-silicone lubricants (petroleum-based grease, general-purpose lubricants) are chemically incompatible with the silicone rubber stress cone — they cause swelling, surface degradation, and loss of interface pressure over 6–18 months of service

Failure mechanism: Partial discharge at lubricant-void sites erodes the silicone rubber surface at approximately 0.01–0.05 mm per 1,000 hours of PD activity — producing a progressive tracking channel that eventually bridges the full interface length and initiates a phase-to-earth fault.

Mistake 2: Surface Contamination at the Interface

Any contamination on the stress cone outer surface or the connector bore inner surface — dust, cable insulation swarf from the cutting operation, moisture from condensation, or fingerprint oils — creates a conductive or semi-conductive layer at the interface that:

• Reduces the effective interface resistance from > 10¹² Ω to < 10⁸ Ω at the contamination site
• Creates a capacitive stress concentration that exceeds the local dielectric withstand of the silicone rubber
• Produces partial discharge that is not detectable by the commissioning power frequency withstand test at standard test duration

Detection failure: A contaminated interface typically passes a 1-minute power frequency withstand test at rated test voltage — the PD activity at contamination sites requires 10–100 hours of voltage stress to produce measurable insulation degradation, far beyond any commissioning test duration.

Mistake 3: Incorrect Insertion Depth — Stress Cone Not Fully Seated

The stress cone must be inserted to the manufacturer-specified depth to position the stress relief geometry correctly over the cable screen cutback. Insertion depth errors of as little as 5–10 mm displace the stress cone field control geometry relative to the screen cutback position — creating a region of uncontrolled electrical stress concentration at the screen edge:

$E_{max} = \frac{U_{phase}}{\varepsilon_r \times d_{gap}}$

Where $E_{max}$ is the maximum field strength (kV/mm),$U_{phase}$ is the phase voltage (kV),$\varepsilon_r$ is the relative permittivity of the insulation, and $d_{gap}$ is the gap dimension at the stress concentration point (mm). At 24 kV phase voltage with a 2 mm stress concentration gap and $\varepsilon_r$ = 2.3 (XLPE):

$E_{max} = \frac{13.9}{2.3 \times 2} = 3.0 \text{ kV/mm}$

This field strength exceeds the partial discharge inception voltage of air-filled micro-voids at the screen cutback edge — initiating PD that is invisible at commissioning and destructive over months of service.

Mistake 4: Cross-Manufacturer Interface Mating Without Dimensional Verification

A client case: A project engineer at an EPC contractor in Guangdong, China contacted Bepto after two GIS cable interface failures occurred within 14 months of commissioning a 110 kV grid upgrade substation. Post-failure investigation revealed that the cable elbow connectors had been sourced from a different manufacturer than the GIS cable compartment bushings — the two components were nominally rated to the same voltage class but had interface bore diameters that differed by 1.8 mm from the IEC 62271-209 specified tolerance. The dimensional mismatch produced insufficient interface contact pressure across 40% of the stress cone surface area — creating a distributed partial discharge zone that the commissioning dielectric test did not detect. Both failed interfaces required complete cable compartment replacement at a total remediation cost of ¥1.85 million and a 31-day grid upgrade schedule delay. Bepto’s application engineering team provided the IEC 62271-209 interface dimensional verification checklist that was implemented for the remaining 18 cable interfaces in the project — zero interface failures in 36 months of subsequent service.

Mistake 5: Incorrect Cable Screen Cutback Dimensions

The cable screen cutback length — the distance from the screen edge to the cable insulation surface — must match the stress cone design geometry within ±2 mm. Errors in screen cutback length produced by incorrect cable preparation tooling or measurement error displace the stress cone field control geometry identically to the insertion depth error described above.

Mistake 6: Inadequate Cable Support — Mechanical Stress on the Interface

GIS cable interfaces are designed for zero sustained mechanical load at the interface — the cable weight and any installation misalignment force must be carried by the cable support clamps, not transmitted to the connector interface. Inadequate cable support produces:

• Sustained bending moment at the connector-bushing interface — progressively reduces interface contact pressure on the tension side
• Micro-movement at the interface under thermal cycling — fretting wear of the silicone rubber surface at 0.001–0.01 mm per thermal cycle

How to Select and Verify the Correct GIS Cable Interface System for Grid Upgrade Projects?

Step 1: Define Electrical Requirements

• Voltage rating: Confirm the cable interface system is rated to the GIS compartment voltage — 12 kV, 24 kV, or 40.5 kV; never use a lower-rated interface component on a higher-rated GIS compartment
• Current rating: Confirm the connector current rating matches or exceeds the cable circuit rated current — thermal derating applies when ambient temperature exceeds 40°C
• Short-circuit rating: Confirm the connector short-circuit withstand current matches the GIS compartment fault level — undersized connectors fail mechanically during fault current events

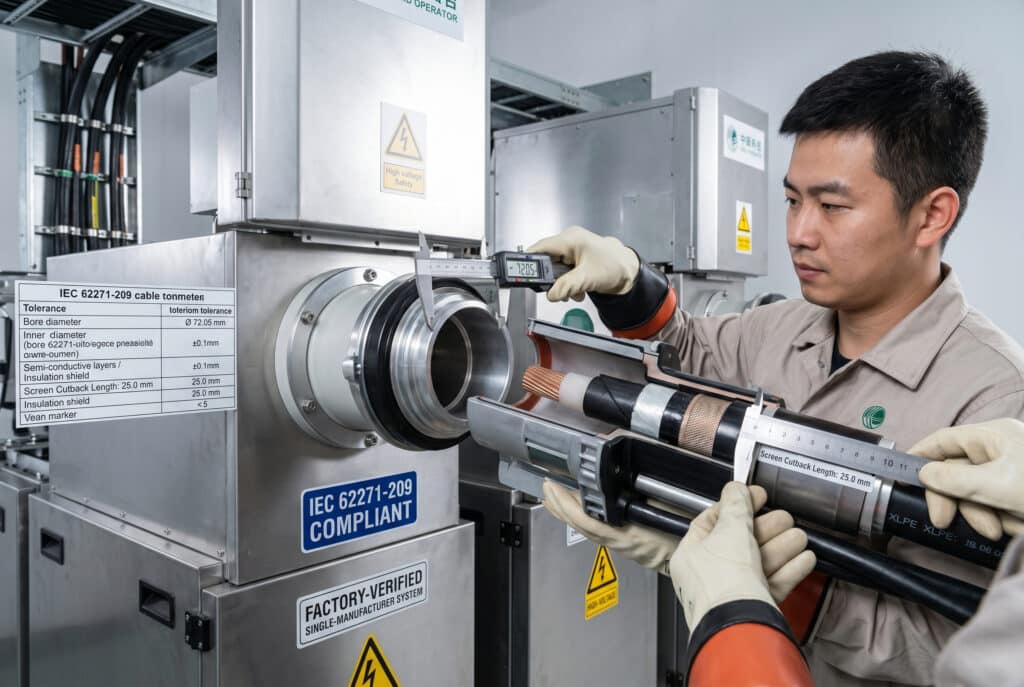

Step 2: Verify IEC 62271-209 Interface Dimensional Compatibility

Interface Parameter	IEC 62271-209 Tolerance	Verification Method
Connector bore diameter	±0.1 mm	Calibrated bore gauge measurement
Bushing spigot diameter	±0.1 mm	Calibrated outside micrometer
Interface contact length	±0.5 mm	Depth gauge measurement
Screen cutback length	±2.0 mm	Steel rule measurement after preparation
Insertion depth mark	±1.0 mm	Manufacturer-specified depth mark on stress cone

Step 3: Consider Environmental Conditions

• Indoor GIS substation: Standard silicone rubber stress cone — operating temperature −25°C to +90°C
• Outdoor or coastal installation: Specify hydrophobic silicone rubber with enhanced tracking resistance — salt fog test per IEC 60507 Class IV minimum
• High-altitude grid upgrade (> 1,000 m): Apply IEC 62271-1 altitude correction factor to interface dielectric withstand verification — 1.13% per 100 m above 1,000 m

Step 4: Confirm Single-Manufacturer Interface System

A second client case: A procurement manager at a regional grid operator in Shandong, China contacted Bepto to specify the cable interface system for a 35 kV GIS substation grid upgrade serving an industrial park. The original specification allowed cable connectors and GIS bushings from different approved vendors — a cost-optimization decision that Bepto’s application engineering team flagged as a dimensional compatibility risk. Bepto recommended and supplied a single-manufacturer interface system with factory-verified IEC 62271-209 dimensional compliance for all 24 cable interfaces. Installation was completed without a single interface rework; the commissioning partial discharge test confirmed zero PD activity above 5 pC at all 24 interfaces.

What Is the Correct GIS Cable Interface Installation Procedure and How to Verify Interface Integrity Before Energization?

Correct Installation Procedure — Step by Step

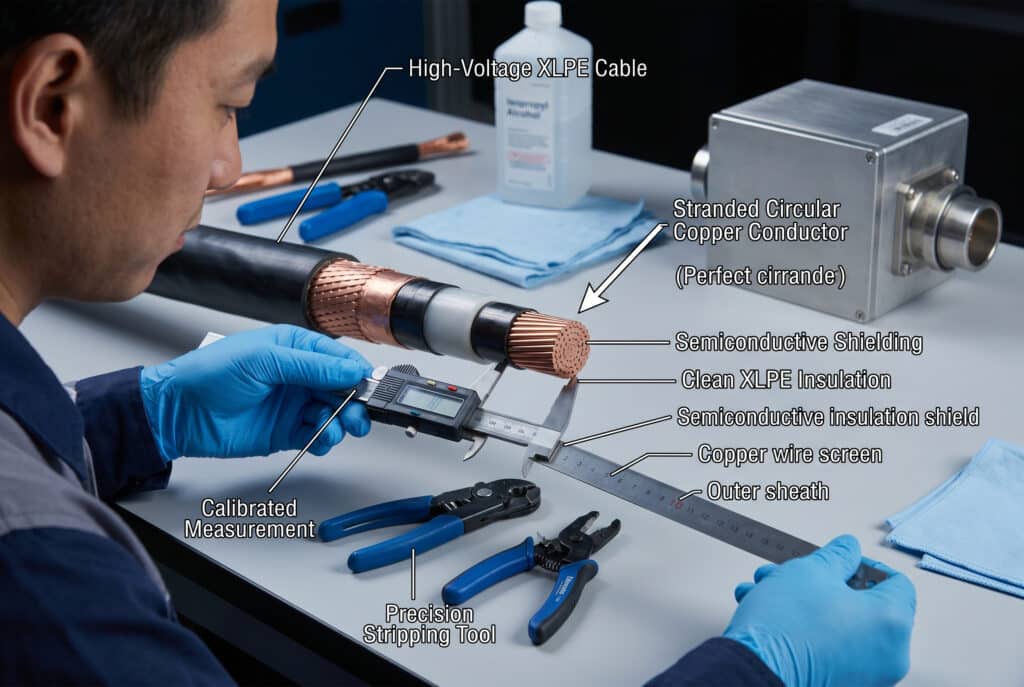

1. Cable end preparation: Cut cable square using manufacturer-specified cutting tool — confirm cut face perpendicular within 1°; measure and mark screen cutback length per stress cone specification ±2 mm; use dedicated screen cutting tool — never use a knife that risks scoring the XLPE insulation surface.
2. Surface cleaning: Wipe XLPE insulation surface and stress cone bore with clean, lint-free cloth moistened with isopropyl alcohol — allow full evaporation (minimum 5 minutes) before lubricant application; wear clean nitrile gloves for all subsequent handling — no bare hand contact with interface surfaces.
3. Lubricant application: Apply manufacturer-specified silicone grease uniformly to the full stress cone outer surface and connector bore inner surface — verify complete coverage with no dry zones; record lubricant batch number and expiry date in the installation record.
4. Insertion depth marking: Mark the correct insertion depth on the cable insulation surface using the manufacturer-specified depth gauge — this mark is the only reliable verification that the stress cone is fully seated after insertion.
5. Controlled insertion: Insert the stress cone assembly with steady axial force — do not rotate during insertion; confirm the depth mark aligns with the connector face after full insertion; insertion force below the manufacturer minimum indicates insufficient interface contact pressure.
6. Cable support installation: Install cable support clamps within 300 mm of the connector interface — verify zero lateral force on the connector after clamp installation by confirming the connector alignment is unchanged.
7. Torque verification: Tighten all interface bolts to the manufacturer-specified torque in the cross-pattern sequence — record torque values in the installation record.

Common Installation Errors to Eliminate

• Error 1 — Reusing lubricant from a previously opened container: Contaminated or partially cured silicone grease produces inconsistent interface coverage — use a new sealed container for each installation.
• Error 2 — Inserting the stress cone in a cold environment: Silicone rubber stiffens below 10°C — insertion force increases and surface damage risk rises; warm the stress cone to minimum 15°C before insertion in cold weather installations.
• Error 3 — Skipping the partial discharge commissioning test: Power frequency withstand test alone does not detect the micro-void PD sites that produce service failures — partial discharge measurement at 1.5× U0 per IEC 60270 is mandatory for every GIS cable interface before energization.

Pre-Energization Verification Checklist

• Insertion depth mark confirmed aligned with connector face — all interfaces.
• Cable support clamps installed and zero lateral force confirmed — all interfaces.
• Interface bolt torque recorded — all interfaces.
• Partial discharge test at 1.5× U0: PD level < 10 pC — all interfaces.
• SF6 compartment gas pressure confirmed at rated filling pressure after cable compartment sealing.

Conclusion

GIS cable interface installation errors are the category of grid upgrade commissioning defect that most reliably converts a successful commissioning test into a service failure — because the failure mechanisms they initiate operate below the detection threshold of power frequency withstand testing and above the detection threshold of partial discharge measurement, making PD commissioning testing the only reliable quality gate between a defective installation and an energized high-voltage circuit. Specify single-manufacturer IEC 62271-209-verified interface systems, enforce the surface preparation and lubricant application procedure without exception, verify insertion depth on every interface, and commission every GIS cable interface with a partial discharge test — because the installation discipline that eliminates these six mistakes is the discipline that delivers the grid upgrade reliability that the project specification promised and the asset owner requires.
