GIS vs AIS: Evaluating Total Cost of Ownership

Introduction

Every grid upgrade project that reaches the switchgear selection decision point eventually confronts the same question: does the higher capital cost of gas-insulated switchgear deliver sufficient lifecycle value over air-insulated switchgear to justify the procurement budget differential — and if so, under what site conditions, load criticality requirements, and maintenance capability assumptions does that justification hold? The question is asked repeatedly in project development meetings, and it is answered repeatedly with the wrong analytical framework — a capital cost comparison that treats the procurement price as the total cost, ignores the 25–40 year operating cost stream that follows commissioning, and produces a GIS-versus-AIS decision that optimizes the procurement budget at the expense of the lifecycle budget that is three to five times larger. Total cost of ownership analysis for GIS versus AIS switchgear is not a capital cost comparison — it is a present value calculation that discounts the full 25–40 year stream of capital expenditure, installation cost, civil works, maintenance labor and materials, SF6 gas management, forced outage cost, and end-of-life disposal cost to a common present value basis, and compares the two present values under the specific site conditions, load criticality parameters, and maintenance cost assumptions that apply to the project being evaluated. GIS switchgear delivers a lower total cost of ownership than AIS switchgear in a defined set of project conditions — high land cost, contaminated or harsh environment, high load criticality with significant outage cost, and limited maintenance capability — and AIS switchgear delivers a lower total cost of ownership in the complementary set of conditions — low land cost, clean indoor environment, moderate load criticality, and available maintenance capability — and the engineering error that produces the wrong switchgear selection is applying the TCO conclusion from one condition set to a project that belongs to the other. For grid upgrade project engineers, procurement managers, and asset managers responsible for medium voltage switchgear selection decisions, this guide delivers the complete GIS versus AIS total cost of ownership framework — from capital cost through end-of-life — that produces defensible, condition-specific selection decisions.

Table of Contents

• What Are the Capital Cost and Installation Cost Components That Define the GIS vs AIS Initial Investment Differential?
• How Do Maintenance Cost, Outage Cost, and SF6 Gas Management Determine the GIS vs AIS Operating Cost Stream Over a 30-Year Lifecycle?
• How to Build a Project-Specific GIS vs AIS Total Cost of Ownership Model for Medium Voltage Grid Upgrade Decisions?
• What Site Conditions and Project Parameters Determine Whether GIS or AIS Delivers the Lower Total Cost of Ownership?

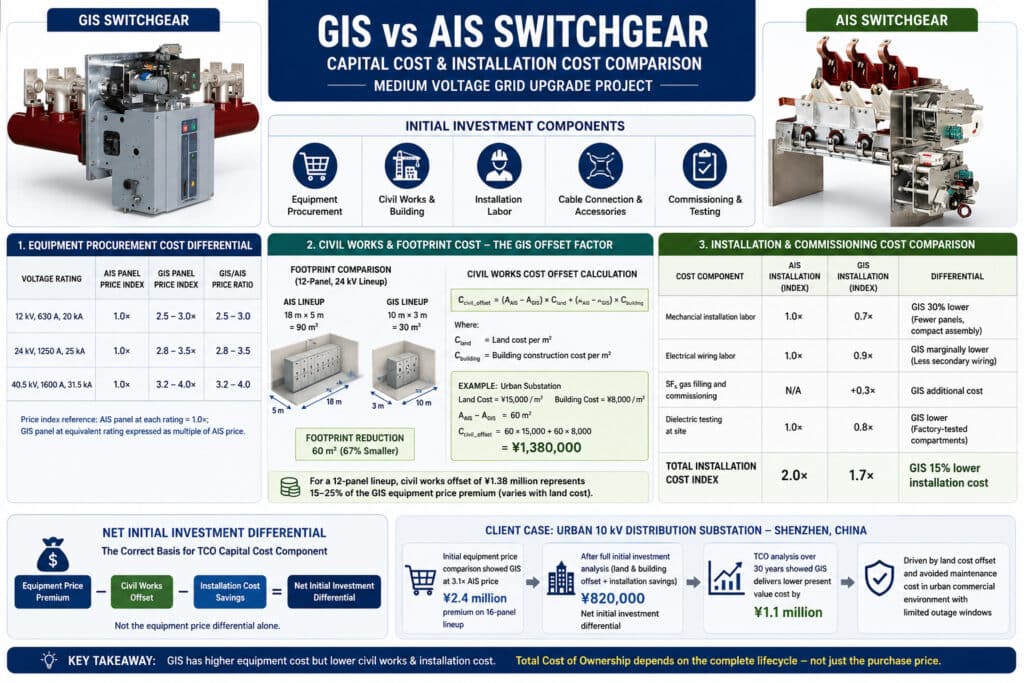

What Are the Capital Cost and Installation Cost Components That Define the GIS vs AIS Initial Investment Differential?

The capital cost differential between GIS and AIS switchgear is the most visible element of the TCO comparison — and the most frequently misrepresented, because the equipment procurement price differential (typically 2.5–4× for GIS versus AIS at equivalent ratings) is quoted without the civil works, installation, and site preparation cost components that partially offset the equipment price gap.

Equipment Procurement Cost Differential

At medium voltage ratings (12 kV to 40.5 kV), the GIS-to-AIS procurement price ratio reflects the manufacturing complexity differential — GIS requires precision-machined aluminum enclosures, SF6 gas handling at the factory, and higher-tolerance sealing system assembly than AIS¹:

Voltage Rating	AIS Panel Price Index	GIS Panel Price Index	GIS/AIS Price Ratio
12 kV, 630 A, 20 kA	1.0×	2.5–3.0×	2.5–3.0
24 kV, 1250 A, 25 kA	1.0×	2.8–3.5×	2.8–3.5
40.5 kV, 1600 A, 31.5 kA	1.0×	3.2–4.0×	3.2–4.0

Price index reference: AIS panel at each rating = 1.0×; GIS panel at equivalent rating expressed as multiple of AIS price.

Civil Works and Footprint Cost — The GIS Offset Factor

GIS switchgear requires 30–60% less floor area than AIS switchgear at equivalent ratings² — the compact gas-insulated enclosure eliminates the air clearance distances that determine AIS panel dimensions. In projects where substation land cost is significant, this footprint reduction produces a civil works cost offset that partially or fully closes the equipment price gap:

Footprint comparison for a 12-panel, 24 kV switchgear lineup:

• AIS lineup footprint: approximately 18 m × 5 m = 90 m²
• GIS lineup footprint: approximately 10 m × 3 m = 30 m²
• Footprint reduction: 60 m² — 67% smaller

Civil works cost offset calculation:

$C_{civil_offset} = (A_{AIS} – A_{GIS}) \times C_{land} + (A_{AIS} – A_{GIS}) \times C_{building}$

Where $C_{land}$ is the land cost per m² and $C_{building}$ is the building construction cost per m². For an urban substation with land cost of ¥15,000/m² and building cost of ¥8,000/m²:

$C_{civil_offset} = 60 \times 15,000 + 60 \times 8,000 = ¥1,380,000$

For a 12-panel lineup, this civil works offset of ¥1.38 million represents 15–25% of the GIS equipment price premium — a significant but partial offset that varies dramatically with land cost.

Installation and Commissioning Cost Comparison

Cost Component	AIS Installation	GIS Installation	Differential
Mechanical installation labor	1.0×	0.7×	GIS 30% lower — fewer panels, compact assembly
Electrical wiring labor	1.0×	0.9×	GIS marginally lower — less secondary wiring
SF6 gas filling and commissioning	Not applicable	+0.3×	GIS additional cost
Dielectric testing at site	1.0×	0.8×	GIS lower — factory-tested gas compartments
Total installation cost index	2.0×	1.7×	GIS 15% lower installation cost

The net initial investment differential — equipment price premium minus civil works offset minus installation cost savings — is the correct basis for the capital cost component of the TCO model, not the equipment price differential alone.

A client case: A procurement manager at a grid development company in Shenzhen, China contacted Bepto to evaluate GIS versus AIS for a 10 kV urban distribution substation serving a new commercial district. The initial equipment price comparison showed GIS at 3.1× the AIS price — a ¥2.4 million premium on a 16-panel lineup. When the Bepto application engineering team completed the full initial investment analysis — including the land cost offset for a 55 m² footprint reduction at ¥18,000/m² land value and the reduced building construction cost — the net initial investment differential reduced to ¥820,000, or 34% of the equipment price premium. The TCO analysis over 30 years showed GIS delivering a lower present value cost by ¥1.1 million, driven primarily by the land cost offset and the avoided maintenance cost in the urban commercial environment where planned outage windows were severely constrained.

How Do Maintenance Cost, Outage Cost, and SF6 Gas Management Determine the GIS vs AIS Operating Cost Stream Over a 30-Year Lifecycle?

The operating cost stream — the annual expenditure on maintenance, gas management, and outage consequence — is where the GIS versus AIS TCO comparison is determined for the majority of projects, because the 25–40 year operating cost stream, discounted to present value, typically exceeds the initial investment by a factor of 2–4×.

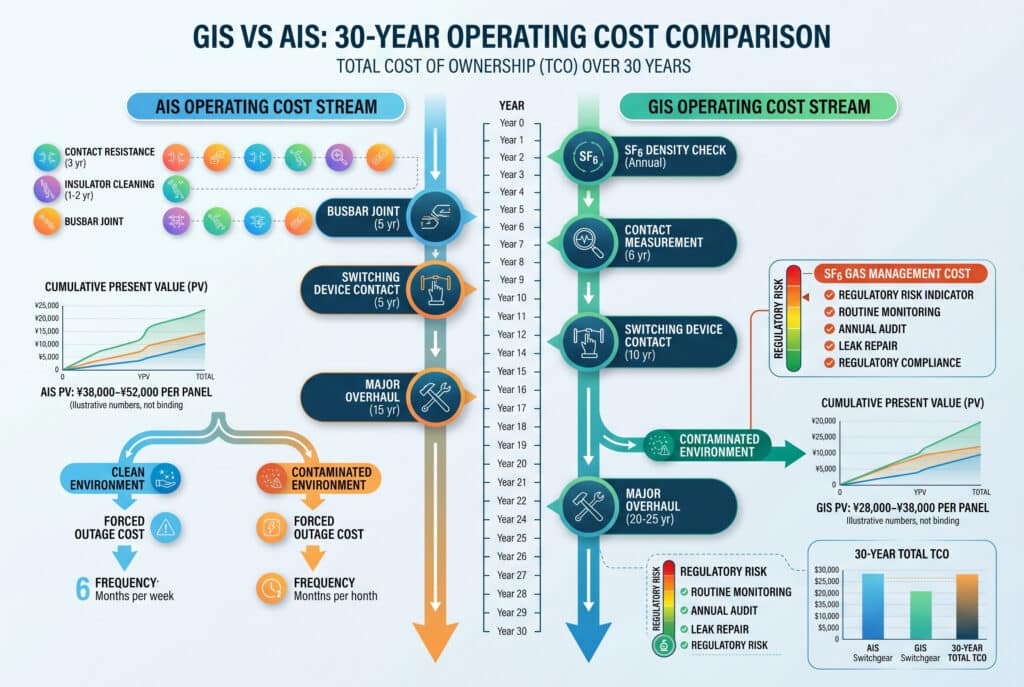

Maintenance Cost Comparison Over 30 Years

GIS and AIS switchgear have fundamentally different maintenance profiles — GIS requires less frequent intervention but higher-cost specialist maintenance when intervention is required; AIS requires more frequent routine maintenance at lower cost per intervention:

Maintenance Activity	AIS Interval	AIS Cost/Event	GIS Interval	GIS Cost/Event
Contact resistance measurement	3 years	¥2,000/panel	6 years	¥3,500/panel
Insulator cleaning and inspection	1–2 years	¥800/panel	Not required	—
Switching device contact inspection	5 years	¥4,500/panel	10 years	¥8,000/panel
SF6 density check and top-up	Not applicable	—	Annual	¥600/panel
Busbar joint re-torque inspection	5 years	¥1,500/panel	Not required	—
Major overhaul	15 years	¥25,000/panel	20–25 years	¥45,000/panel

30-year maintenance cost present value (per panel, 5% discount rate, 12-panel lineup):

$PV_{maintenance} = \sum_{t=1}^{30} \frac{C_{maintenance,t}}{(1+r)^t}$

• AIS 30-year maintenance PV per panel: approximately ¥38,000–¥52,000
• GIS 30-year maintenance PV per panel: approximately ¥28,000–¥38,000

GIS delivers 20–35% lower maintenance present value per panel — but this advantage narrows significantly in clean indoor environments where AIS insulator cleaning frequency is low, and widens in contaminated industrial environments where AIS cleaning frequency is high.

SF6 Gas Management Cost — The GIS-Specific Operating Cost

SF6 gas management is a GIS-specific operating cost with no AIS equivalent — and it is a cost that is increasing as SF6 regulatory pressure intensifies in the European Union³, the United Kingdom, and progressively in other jurisdictions:

Annual SF6 gas management cost components:

• Routine density monitoring: Annual density relay calibration check — ¥600/panel/year
• Annual gas audit: SF6 mass balance audit per IEC 62271-303⁴ — ¥1,200/substation/year
• Leak repair: Average leak event cost including gas recovery, seal replacement, and gas refilling — ¥15,000–¥45,000 per event; frequency approximately 1 event per 15 panel-years in well-maintained GIS
• SF6 regulatory compliance: Leak detection equipment, operator training, and regulatory reporting — ¥8,000–¥15,000/substation/year in regulated jurisdictions

SF6 regulatory risk premium: In jurisdictions where SF6 is subject to phase-down regulation, GIS switchgear faces potential future retrofit cost for alternative insulation gas (g³, clean air, or dry air) — a regulatory risk cost that is difficult to quantify but should be included as a scenario in the TCO model for assets with 30+ year service life.

Forced Outage Cost — The Dominant TCO Variable for High-Criticality Applications

For grid upgrade projects serving high-criticality loads — data centers, hospitals, continuous process industries, urban distribution networks with regulatory interruption penalties — the forced outage cost is frequently the largest single variable in the GIS versus AIS TCO comparison:

$C_{outage_annual} = \lambda_{failure} \times t_{restoration} \times C_{outage_rate}$

Where $\lambda_{failure}$ is the annual failure rate (failures/panel-year), $t_{restoration}$ is the mean time to restore (hours), and $C_{outage_rate}$ is the outage cost rate (¥/hour).

Comparative forced outage parameters:

Parameter	AIS Switchgear	GIS Switchgear
Annual failure rate (clean environment)	0.005 failures/panel-year	0.002 failures/panel-year
Annual failure rate (contaminated environment)	0.015–0.025 failures/panel-year	0.002–0.004 failures/panel-year
Mean time to restore (minor fault)	4–8 hours	8–16 hours
Mean time to restore (major fault)	24–72 hours	48–120 hours
Outage cost sensitivity	High — frequent, shorter outages	High — infrequent, longer outages

The outage cost crossover: In clean environments, AIS and GIS have similar outage cost profiles — AIS has higher failure frequency but shorter restoration time; GIS has lower failure frequency but longer restoration time. In contaminated environments, GIS’s substantially lower failure rate produces a significant outage cost advantage that dominates the TCO comparison.

A second client case: A reliability manager at a copper smelting operation in Yunnan, China contacted Bepto to evaluate GIS versus AIS for a 10 kV switchgear replacement project serving the smelter’s primary drive loads. The existing AIS switchgear had experienced 4 forced outages in the previous 3 years — all attributable to insulator contamination from copper oxide dust — at an average production loss cost of ¥680,000 per outage event. The TCO analysis showed GIS delivering a 30-year present value saving of ¥3.8 million versus AIS replacement — driven entirely by the avoided outage cost from GIS’s sealed enclosure immunity to the copper oxide contamination environment. The GIS equipment premium of ¥1.6 million was recovered in avoided outage cost within 4.2 years.

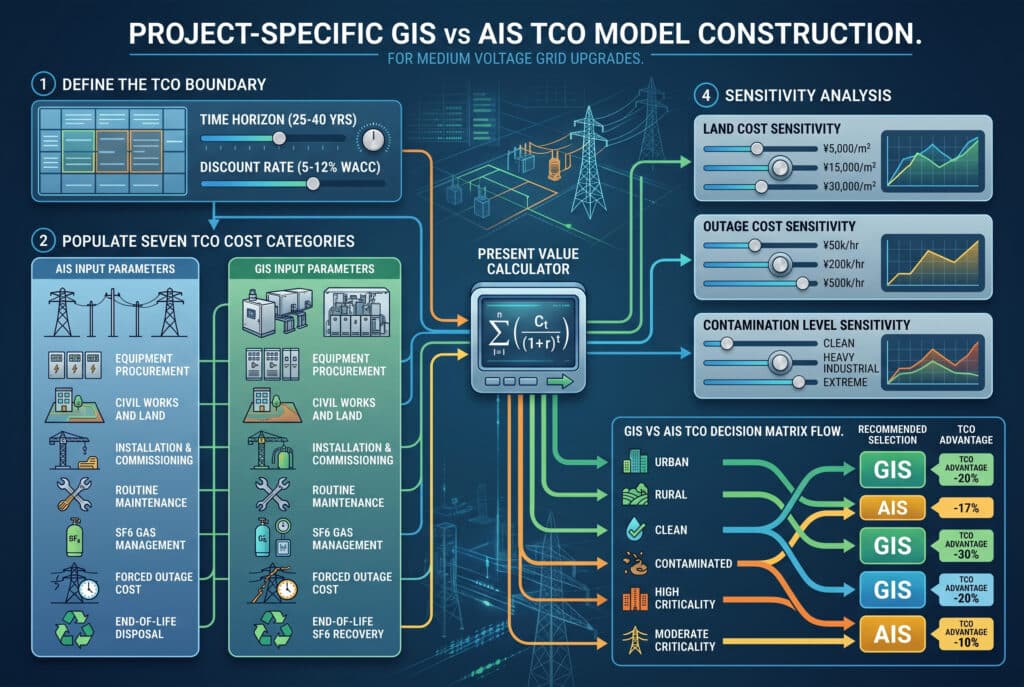

How to Build a Project-Specific GIS vs AIS Total Cost of Ownership Model for Medium Voltage Grid Upgrade Decisions?

Step 1: Define the TCO Model Boundary and Time Horizon

• Time horizon: Match the asset service life — 25 years for projects with planned grid reconfiguration; 35–40 years for permanent substation infrastructure
• Discount rate: Use the project’s weighted average cost of capital (WACC) — typically 5–8% for utility projects, 8–12% for industrial projects
• Cost boundary: Include all costs within the substation fence — exclude transmission and distribution network costs that are identical for both options

Step 2: Populate the Seven TCO Cost Categories

TCO Category	AIS Input Parameters	GIS Input Parameters
1. Equipment procurement	Vendor quotation per panel	Vendor quotation per panel
2. Civil works and land	Footprint × (land cost + building cost/m²)	Footprint × (land cost + building cost/m²)
3. Installation and commissioning	Labor hours × labor rate + materials	Labor hours × labor rate + SF6 filling cost
4. Routine maintenance	Maintenance schedule × unit costs	Maintenance schedule × unit costs
5. SF6 gas management	Zero	Annual monitoring + audit + leak repair frequency
6. Forced outage cost	Failure rate × MTTR × outage cost rate	Failure rate × MTTR × outage cost rate
7. End-of-life disposal	Scrap value − disposal cost	SF6 recovery cost + scrap value − disposal cost

Step 3: Calculate the Present Value for Each Cost Category

$TCO_{total} = C_{procurement} + C_{civil} + C_{installation} + \sum_{t=1}^{T} \frac{C_{maintenance,t} + C_{SF6,t} + C_{outage,t}}{(1+r)^t} + \frac{C_{disposal}}{(1+r)^T}$

Step 4: Perform Sensitivity Analysis on the Three Key Variables

Three variables dominate the GIS versus AIS TCO comparison and must be tested across their realistic ranges:

• Land cost sensitivity: Test at ¥5,000/m², ¥15,000/m², and ¥30,000/m² — determines the land cost threshold above which GIS footprint advantage closes the equipment price gap
• Outage cost sensitivity: Test at ¥50,000/hour, ¥200,000/hour, and ¥500,000/hour — determines the outage cost threshold above which GIS reliability advantage dominates the TCO
• Contamination level sensitivity: Test at SPS A (clean), SPS C (heavy industrial), and SPS D (extreme) — determines the environment threshold above which GIS sealed enclosure advantage justifies the premium

GIS vs AIS TCO Decision Matrix

Site Condition	Land Cost	Outage Cost Sensitivity	Recommended Selection	TCO Advantage
Urban, contaminated, high criticality	High (> ¥10,000/m²)	High (> ¥200,000/hr)	GIS	20–40% lower TCO
Urban, clean, high criticality	High (> ¥10,000/m²)	High (> ¥200,000/hr)	GIS	10–20% lower TCO
Urban, clean, moderate criticality	High (> ¥10,000/m²)	Moderate	GIS marginal	0–10% lower TCO
Rural, contaminated, high criticality	Low (< ¥3,000/m²)	High (> ¥200,000/hr)	GIS	5–15% lower TCO
Rural, clean, moderate criticality	Low (< ¥3,000/m²)	Moderate	AIS	10–25% lower TCO
Rural, clean, low criticality	Low (< ¥3,000/m²)	Low	AIS	20–35% lower TCO

What Site Conditions and Project Parameters Determine Whether GIS or AIS Delivers the Lower Total Cost of Ownership?

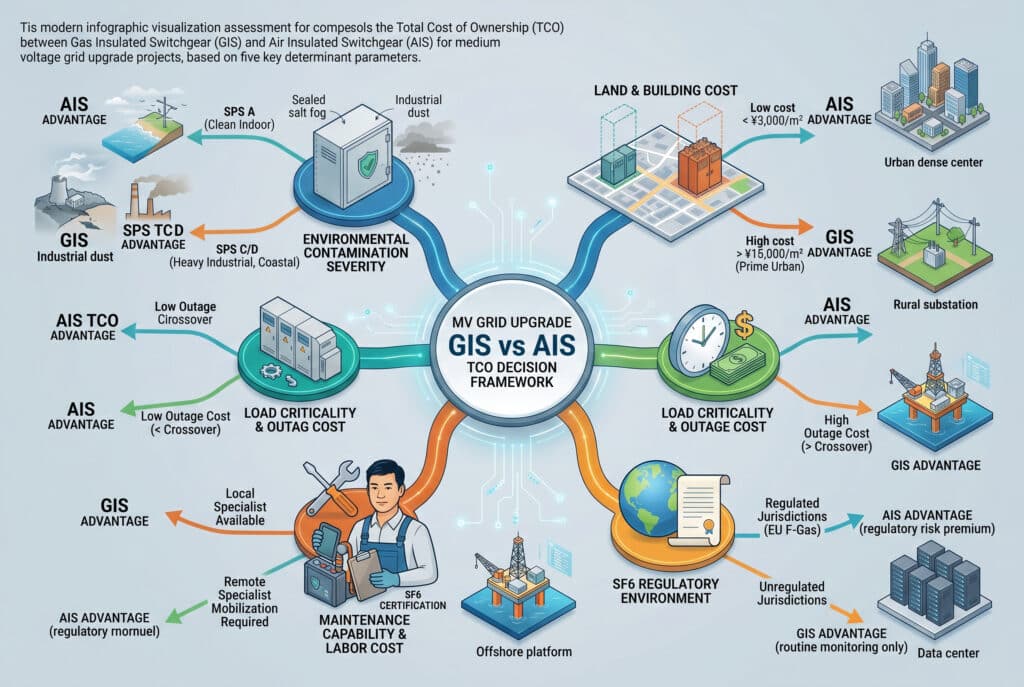

The Five Determinant Parameters for GIS vs AIS TCO Selection

Parameter 1 — Environmental contamination severity:
This is the single most influential parameter in the GIS versus AIS TCO comparison for industrial and coastal applications. GIS sealed enclosure immunity to contamination eliminates the AIS insulator cleaning maintenance cost and, more significantly, the AIS forced outage cost from contamination-driven insulation failure:

• SPS A (clean indoor): AIS maintenance advantage — GIS SF6 management cost not offset by maintenance savings
• SPS C/D (heavy industrial, coastal): GIS reliability advantage — sealed enclosure eliminates contamination failure mode entirely⁵

Parameter 2 — Land and building cost:
The GIS footprint advantage (30–60% smaller than AIS) produces a civil works cost offset that scales directly with land value:

• Land cost < ¥3,000/m²: Civil works offset < 10% of GIS equipment premium — insufficient to close the gap
• Land cost > ¥15,000/m²: Civil works offset 25–40% of GIS equipment premium — significant TCO contribution
• Land cost > ¥30,000/m² (prime urban): Civil works offset may exceed GIS equipment premium — GIS lower initial investment

Parameter 3 — Load criticality and outage cost:
The outage cost rate is the variable that most frequently determines the TCO crossover point between GIS and AIS:

$C_{outage_crossover} = \frac{\Delta C_{GIS-AIS_initial}}{(\lambda_{AIS} – \lambda_{GIS}) \times MTTR \times T \times \frac{1}{r}\left(1 – \frac{1}{(1+r)^T}\right)}$

For a typical 12-panel, 24 kV grid upgrade project with ¥1.5 million net initial investment differential and 30-year lifecycle at 6% discount rate, the outage cost crossover is approximately ¥85,000–¥120,000 per outage hour — above this threshold, GIS delivers lower TCO; below it, AIS delivers lower TCO.

Parameter 4 — Maintenance capability and labor cost:
GIS maintenance requires specialist skills — SF6 gas handling certification, precision leak detection equipment, and manufacturer-specific tooling. In locations where specialist maintenance capability is unavailable locally, GIS maintenance cost increases substantially:

• Locations with local GIS specialist capability: GIS maintenance cost advantage holds
• Remote locations requiring mobilization of specialist teams: GIS maintenance cost premium may eliminate the maintenance cost advantage

Parameter 5 — SF6 regulatory environment:
In jurisdictions with active SF6 phase-down regulation (EU F-Gas Regulation, UK equivalent), GIS switchgear faces regulatory cost risk over a 30-year lifecycle that AIS does not:

• Regulated jurisdictions: Add SF6 regulatory risk premium of ¥50,000–¥150,000 per substation to GIS TCO
• Unregulated jurisdictions: No regulatory risk premium — GIS SF6 management cost limited to routine monitoring and leak repair

Sub-Application Scenarios for Grid Upgrade Projects

• Urban grid upgrade — dense city center: GIS strongly favored — high land cost, contamination from traffic and construction, constrained maintenance access windows, high outage penalty from regulatory interruption standards
• Industrial park distribution substation: GIS favored in contaminated process environments (SPS C/D); AIS favored in clean light manufacturing environments (SPS A/B)
• Rural distribution substation: AIS favored — low land cost, clean environment, lower outage criticality, available maintenance capability
• Offshore platform or coastal substation: GIS strongly favored — salt fog contamination eliminates AIS reliability advantage; compact footprint critical for offshore platform space constraints
• Data center or hospital critical power: GIS favored — high outage cost rate (> ¥500,000/hour for Tier III/IV data centers) makes GIS reliability advantage dominant regardless of land cost

Conclusion

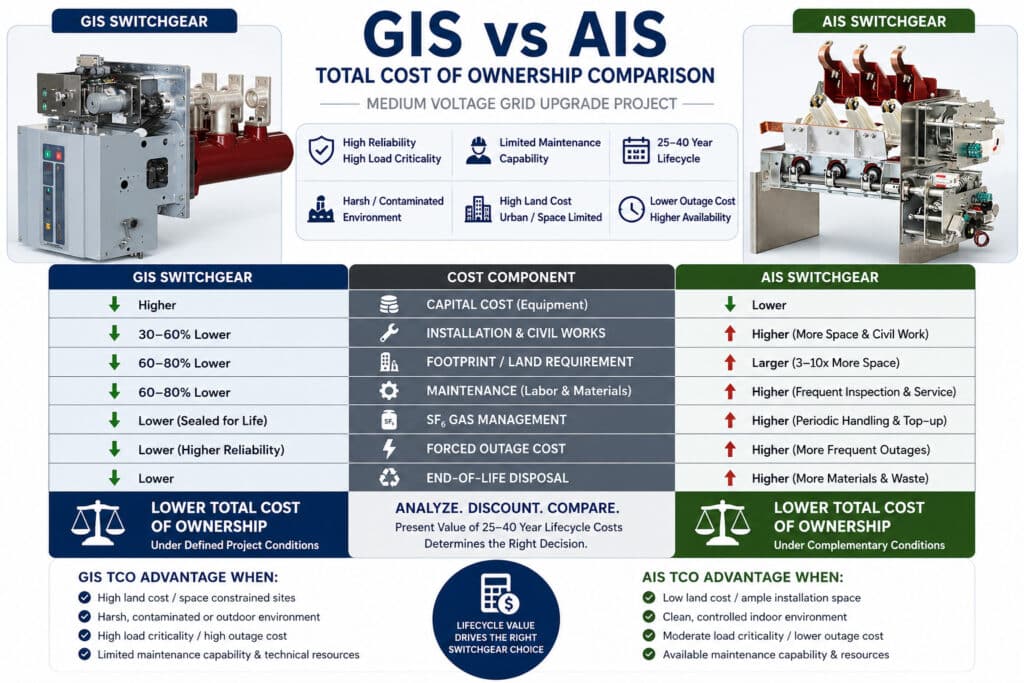

The GIS versus AIS total cost of ownership decision is not a capital cost comparison — it is a present value analysis that integrates procurement price, civil works, installation, 25–40 years of maintenance and gas management, forced outage consequence, and end-of-life disposal into a single lifecycle cost figure that reflects the actual financial performance of each option under the specific conditions of the project being evaluated. GIS delivers lower TCO in urban, contaminated, high-criticality applications where land cost is high, outage cost is significant, and maintenance access is constrained — AIS delivers lower TCO in rural, clean, moderate-criticality applications where land cost is low, outage cost is manageable, and maintenance capability is available. Build the seven-category TCO model for every medium voltage grid upgrade decision, perform sensitivity analysis on land cost, outage cost rate, and contamination severity across their realistic project ranges, identify the parameter values at which the TCO crossover occurs, and make the GIS versus AIS selection based on where the project’s actual parameters sit relative to that crossover — because the switchgear selection that optimizes the 30-year lifecycle cost is the decision that serves the asset owner, the grid operator, and the end consumer better than the selection that minimizes the procurement budget at the expense of the operating cost stream that follows it for three decades.
