What Engineers Get Wrong About Arc Relief Channel Design

Introduction

Arc relief channel design for air-insulated switchgear is one of the most consequential engineering decisions in high voltage substation construction — and one of the most frequently executed with assumptions that are not supported by the IEC 62271-200 internal arc classification test data that the design is supposed to implement. The arc relief channel — the pressure relief duct that directs hot gas, arc plasma, and pressure wave energy from an internal arc flash event away from personnel and toward a safe discharge zone — appears straightforward in concept: a duct from the switchgear panel top to the substation exterior, sized to vent the arc energy before the panel enclosure pressure exceeds its structural limit. In practice, the engineering decisions that determine whether the arc relief channel performs as designed — duct cross-sectional area, duct length and bend geometry, discharge point location, back-pressure at the discharge opening, and the interaction between adjacent panel relief channels in a multi-panel lineup — are each capable of rendering the entire arc protection system non-functional while the panel carries a valid IEC 62271-200 type test certificate that was obtained under test conditions that bear no resemblance to the installed configuration. What engineers most consistently get wrong about arc relief channel design is treating the IEC 62271-200 type test certificate as a system-level approval that covers the installed arc relief configuration — when in fact the type test certifies only the panel enclosure performance under the specific arc relief conditions of the test, and every deviation from those test conditions in the installed configuration — longer duct, additional bends, reduced cross-section, obstructed discharge point — invalidates the type test as evidence of installed system performance and creates an arc protection gap that will not be discovered until an internal arc event occurs. For substation design engineers, AIS switchgear specifiers, and safety engineers responsible for internal arc protection in high voltage substations, this guide delivers the complete arc relief channel engineering framework — from IEC 62271-200 type test interpretation through installed configuration validation — that ensures the arc relief system performs as designed when the arc event it was built to manage actually occurs.

Table of Contents

• What Does the IEC 62271-200 Internal Arc Classification Actually Certify — and What Does It Not Cover?
• What Are the Six Critical Arc Relief Channel Design Parameters That Engineers Most Frequently Get Wrong?
• How to Select and Validate Arc Relief Channel Configuration for Each AIS Switchgear Substation Application?
• What Installation Errors and Post-Commissioning Changes Invalidate Arc Relief Channel Performance in High Voltage Substations?

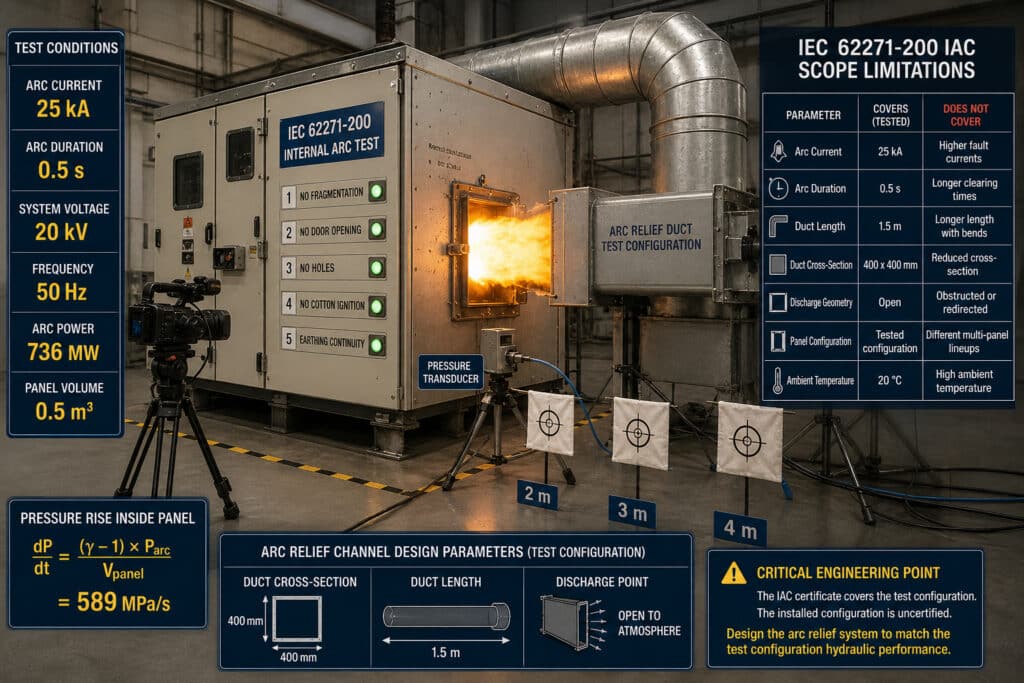

What Does the IEC 62271-200 Internal Arc Classification Actually Certify — and What Does It Not Cover?

The IEC 62271-200 internal arc classification (IAC) is the foundational document that specifies how AIS switchgear enclosures must perform during an internal arc event¹ — but its scope is precisely defined and its limitations are rarely communicated to the substation design engineers who rely on it as the basis for arc protection design decisions.

What the IAC Test Actually Measures

The IAC test subjects a complete switchgear panel assembly to an internal arc at a specified current and duration, and verifies that the panel enclosure meets five acceptance criteria — the indicators — that define whether personnel in defined accessibility zones are protected from the arc event consequences:

The five IEC 62271-200 IAC acceptance indicators:

• Indicator 1 — No fragmentation: No parts of the enclosure are projected beyond defined boundaries that would injure personnel in the accessibility zone
• Indicator 2 — No door/cover opening: Doors, covers, and removable panels remain closed and latched during the arc event — no uncontrolled opening that exposes personnel to arc plasma
• Indicator 3 — No holes in accessible sides: No burn-through of the enclosure walls on sides accessible to personnel — arc plasma cannot escape through the enclosure surface into the personnel zone
• Indicator 4 — Arc does not cause ignition of cotton indicators: Cotton fabric indicators placed at defined distances from the enclosure do not ignite — confirming that thermal radiation and hot gas ejection from the pressure relief opening does not create a burn hazard at the indicator positions
• Indicator 5 — Earthing connection remains effective: The enclosure earthing connection is not disrupted by the arc event — personnel touching the enclosure after the arc event are not exposed to touch voltage

The arc relief channel conditions during the IAC test:
The IAC test is performed with a specific arc relief configuration — duct cross-section, duct length, and discharge point geometry — defined by the manufacturer and documented in the test report. The acceptance indicators are verified under these specific relief conditions. The type test certificate does not certify performance under any other relief configuration.

The Critical Scope Limitation: What the IAC Certificate Does Not Cover

Parameter	What IAC Certificate Covers	What IAC Certificate Does NOT Cover
Arc current	Tested value (e.g., 16 kA, 25 kA, 40 kA)	Higher fault currents at installation node
Arc duration	Tested duration (e.g., 0.1 s, 0.5 s, 1.0 s)	Longer clearing times from upstream protection
Arc relief duct length	Duct length used during test	Longer installed duct with additional bends
Arc relief duct cross-section	Cross-section used during test	Reduced cross-section from site constraints
Discharge point geometry	Open or specific termination used during test	Obstructed, redirected, or shared discharge points
Adjacent panel interaction	Single panel or tested multi-panel configuration	Different multi-panel lineup configurations
Ambient temperature	Test ambient (typically 20°C)	High ambient temperature substations

The engineering implication is direct: A substation design engineer who specifies an AIS switchgear panel with a valid IEC 62271-200 IAC certificate at 25 kA for 0.5 seconds, then installs the panel with an arc relief duct that is 3 metres longer than the test duct, with two 90° bends, and a discharge point that is partially obstructed by a cable tray — has no certified evidence that the installed arc relief system will meet any of the five acceptance indicators during an arc event. The certificate covers the test configuration. The installed configuration is uncertified.

The Arc Relief Channel Pressure Dynamics That Drive the Design Requirements

The internal arc event generates a pressure wave that the relief channel must vent before the panel enclosure pressure exceeds its structural limit. The pressure rise rate inside the panel is:

$\frac{dP}{dt} = \frac{(\gamma – 1) \times P_{arc}}{V_{panel}}$

Where $\gamma$ is the ratio of specific heats for the arc gas mixture (approximately 1.4 for air)², $P_{arc}$ is the arc power (W), and $V_{panel}$ is the panel internal volume (m³). For a 25 kA arc at 20 kV system voltage in a 0.5 m³ panel:

$P_{arc} = \sqrt{3} \times 20,000 \times 25,000 \times 0.85 = 736 \text{ MW}$

$\frac{dP}{dt} = \frac{0.4 \times 736 \times 10^6}{0.5} = 589 \text{ MPa/s}$

589 MPa per second — the panel pressure rises at nearly 600 atmospheres per second during a full fault current arc. The arc relief channel must vent sufficient gas volume to keep the panel pressure below the enclosure structural limit — typically 50–100 kPa above atmospheric — within the first 50–100 milliseconds of arc initiation. Every restriction in the relief channel that increases back-pressure or reduces flow rate directly increases the peak panel pressure and the risk of enclosure structural failure.

A client case that demonstrates the certification gap consequence: A substation design engineer at an EPC contractor in Saudi Arabia contacted Bepto after an internal arc event at a 33 kV AIS substation caused panel enclosure rupture despite the panels carrying a valid IEC 62271-200 IAC certificate at 25 kA for 0.5 seconds. Post-incident investigation revealed that the installed arc relief ducts were 4.2 metres longer than the 1.5-metre test duct documented in the type test report — the additional duct length increased the back-pressure at the panel relief opening by a factor of 3.8, reducing the venting flow rate below the minimum required to keep panel pressure within the structural limit. The enclosure ruptured at 180 ms — before the upstream protection cleared the fault at 350 ms. Two maintenance personnel in the substation at the time of the event sustained burn injuries from the enclosure rupture. Bepto’s technical team provided a duct redesign that matched the hydraulic resistance of the installed duct to the test duct specification — requiring duct cross-section increase from 400 mm × 400 mm to 600 mm × 500 mm for the 4.2-metre installed length.

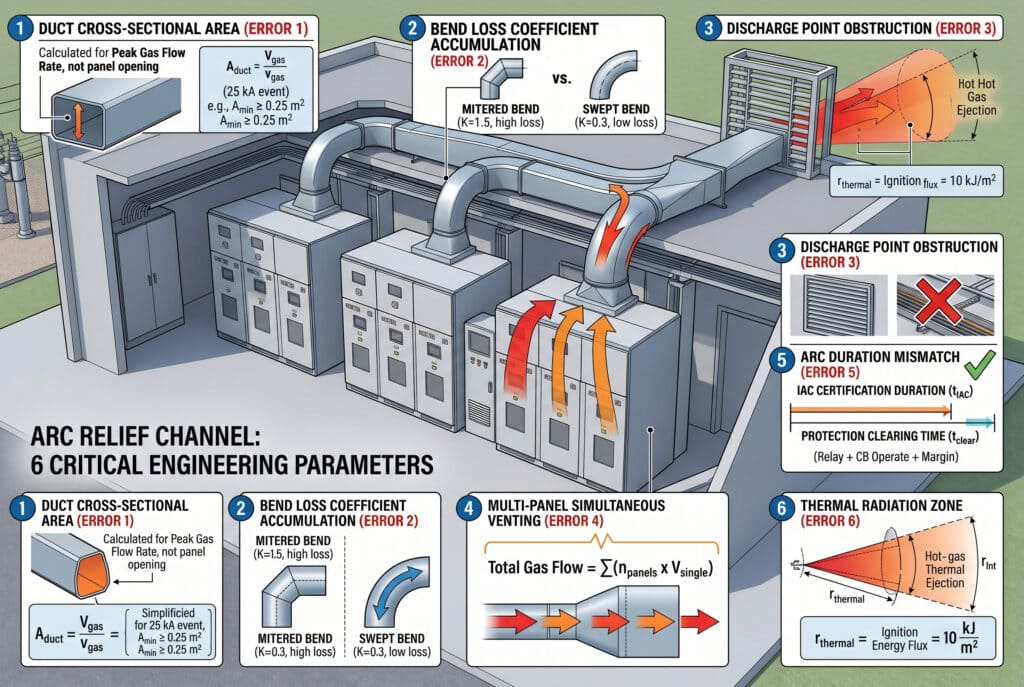

What Are the Six Critical Arc Relief Channel Design Parameters That Engineers Most Frequently Get Wrong?

Six arc relief channel design parameters are responsible for the majority of installed arc protection system failures — each representing an engineering decision that is made during substation design but validated only during an arc event.

Error 1: Duct Cross-Sectional Area Undersizing

The arc relief duct must accommodate the peak gas flow rate generated during the arc event — a flow rate that is determined by the arc power, the panel volume, and the maximum permissible panel pressure. The minimum duct cross-sectional area is:

$A_{duct} = \frac{\dot{V}{gas}}{v{gas}}$

Where $\dot{V}{gas}$ is the peak volumetric gas flow rate (m³/s) and $v{gas}$ is the gas velocity in the duct (m/s). For a 25 kA arc event, the peak gas flow rate from a 0.5 m³ panel is approximately 15–25 m³/s — requiring a minimum duct cross-sectional area of 0.15–0.25 m² (390 mm × 390 mm minimum) at a gas velocity of 100 m/s.

The most common undersizing error: Specifying the arc relief duct cross-section based on the panel relief opening dimensions — not on the gas flow rate calculation. Panel relief openings are sized for the test duct length. Longer installed ducts require larger cross-sections to maintain equivalent hydraulic resistance.

Error 2: Bend Loss Coefficient Accumulation

Each bend in the arc relief duct adds a pressure loss that reduces the effective venting flow rate³. The pressure loss across a 90° bend:

$\Delta P_{bend} = K_{bend} \times \frac{\rho_{gas} \times v_{gas}^2}{2}$

Where $K_{bend}$ is the bend loss coefficient (0.3–1.5 depending on bend radius-to-duct-diameter ratio) and $\rho_{gas}$ is the hot gas density (approximately 0.3–0.5 kg/m³ at arc temperatures). For a 90° mitered bend ($K_{bend}$ = 1.5) at 100 m/s gas velocity:

$\Delta P_{bend} = 1.5 \times \frac{0.4 \times 100^2}{2} = 3,000 \text{ Pa} = 3 \text{ kPa}$

Three 90° bends accumulate 9 kPa of back-pressure — equivalent to adding approximately 2.5 metres of straight duct to the hydraulic resistance. A duct design with three 90° mitered bends and 3 metres of straight duct has the hydraulic resistance of approximately 5.5 metres of straight duct — but is frequently specified as if it has the resistance of 3 metres.

Correct bend specification: Use swept bends with radius-to-diameter ratio ≥ 1.5 ($K_{bend}$ = 0.3) rather than mitered bends — reduces bend pressure loss by a factor of 5 for each bend in the duct run.

Error 3: Discharge Point Obstruction and Back-Pressure

The arc relief duct discharge point must be unobstructed and must discharge into a space with sufficient volume to absorb the arc gas without generating significant back-pressure at the duct outlet. Common discharge point errors:

• Louvered discharge grille: Louvres with 40–60% open area reduce the effective discharge cross-section by 40–60% — increasing discharge velocity and back-pressure proportionally
• Discharge into confined plenum: Discharging multiple panel relief ducts into a shared plenum without adequate plenum volume creates back-pressure that increases with each additional panel venting simultaneously
• Discharge point within 2 metres of building wall: Reflected pressure wave from the building wall returns to the duct outlet and increases effective back-pressure by 20–40%
• Discharge point obstructed by cable tray or conduit: Post-installation cable management installed across the discharge point reduces the effective discharge area without triggering a design review

Error 4: Multi-Panel Lineup Interaction — The Simultaneous Venting Problem

In a multi-panel AIS switchgear lineup, an internal arc in one panel can propagate to adjacent panels through busbar connections — initiating simultaneous arc events in multiple panels that all vent through the same relief duct system simultaneously. The combined gas flow rate from simultaneous multi-panel venting:

$\dot{V}{total} = n{panels} \times \dot{V}_{single_panel}$

For three panels venting simultaneously at 15 m³/s each:

$\dot{V}_{total} = 3 \times 15 = 45 \text{ m³/s}$

A shared relief duct sized for single-panel venting (0.15 m²) at this flow rate produces a gas velocity of:

$v_{gas} = \frac{45}{0.15} = 300 \text{ m/s}$

300 m/s — approaching the speed of sound in the hot gas mixture — producing shock wave formation in the duct and catastrophic back-pressure that defeats the entire relief system. Shared relief ducts for multi-panel lineups must be sized for the maximum credible simultaneous venting scenario — not for single-panel venting.

Error 5: Arc Duration Mismatch with Protection Clearing Time

The IEC 62271-200 IAC test is performed at a specific arc duration — typically 0.1 s, 0.5 s, or 1.0 s. The installed substation protection system must clear the arc fault within the tested duration for the IAC certificate to be applicable⁴. The most dangerous mismatch: Specifying panels with IAC certification at 0.1 s arc duration in a substation where the upstream protection has a time-graded coordination scheme with a 0.5 s clearing time at the switchgear busbar level.

Protection clearing time verification:
$t_{clear} \leq t_{IAC_test}$

This inequality must be verified for every protection relay coordination study — not assumed based on the nominal relay setting. The actual clearing time includes relay operating time, circuit breaker operating time, and any time-grading margin:

$t_{clear} = t_{relay} + t_{CB_operate} + t_{margin}$

For a time-graded scheme with 0.3 s relay setting, 0.08 s CB operating time, and 0.1 s grading margin:

$t_{clear} = 0.3 + 0.08 + 0.1 = 0.48 \text{ s}$

A panel with IAC certification at 0.1 s arc duration is not certified for this 0.48 s clearing time — the arc energy deposited in the panel during the additional 0.38 s exceeds the tested enclosure structural capacity.

Error 6: Thermal Radiation Zone Calculation Omission

The IEC 62271-200 cotton indicator test verifies that thermal radiation and hot gas ejection from the relief duct discharge point does not ignite cotton fabric at defined distances — but the indicator positions are defined for the test configuration. For installed configurations with redirected discharge points, the thermal radiation zone must be recalculated:

$r_{thermal} = \sqrt{\frac{P_{arc} \times t_{arc}}{4\pi \times E_{ignition}}}$

Where $E_{ignition}$ is the ignition energy flux for the material at the discharge point (approximately 10 kJ/m² for cotton, 25 kJ/m² for standard cable insulation). Personnel exclusion zones and combustible material clearances must be established around the discharge point based on this calculation — not assumed from the test configuration indicator positions.

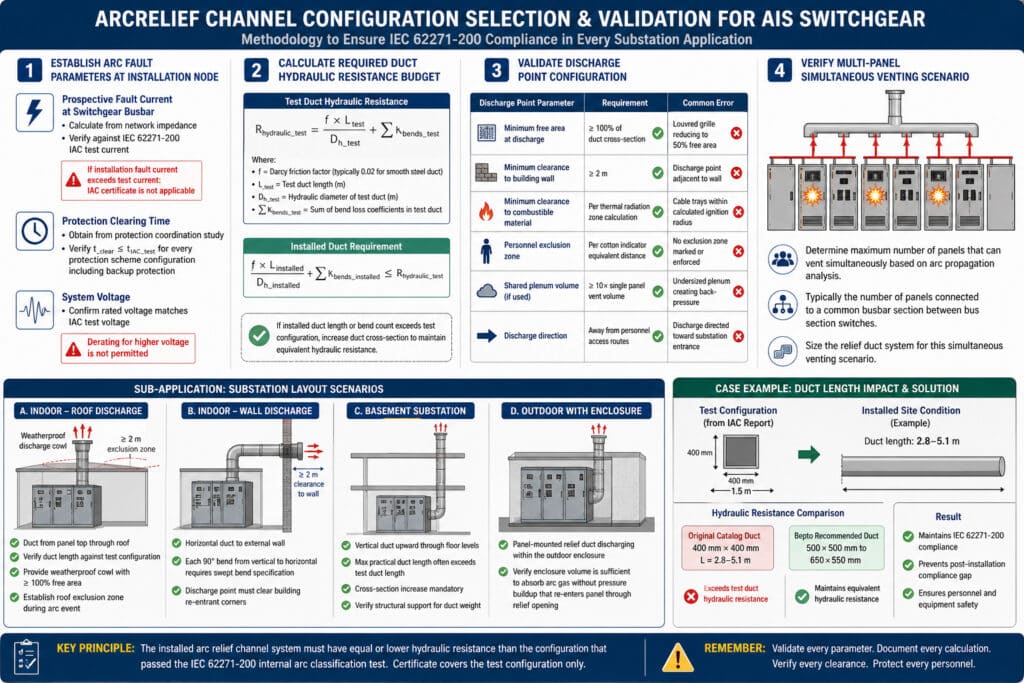

How to Select and Validate Arc Relief Channel Configuration for Each AIS Switchgear Substation Application?

Step 1: Establish the Arc Fault Parameters at the Installation Node

Before specifying the arc relief channel, establish the electrical parameters that determine the arc energy the relief system must manage:

• Prospective fault current at switchgear busbar: Calculate from network impedance — verify against IEC 62271-200 IAC test current; if installation fault current exceeds test current, the IAC certificate is not applicable
• Protection clearing time: Obtain from protection coordination study — verify $t_{clear} \leq t_{IAC_test}$ for every protection scheme configuration including backup protection
• System voltage: Confirm rated voltage matches IAC test voltage — derating for higher voltage is not permitted

Step 2: Calculate the Required Duct Hydraulic Resistance Budget

The installed arc relief duct hydraulic resistance must not exceed the hydraulic resistance of the test duct documented in the IAC type test report. Calculate the test duct hydraulic resistance:

$R_{hydraulic_test} = \frac{f \times L_{test}}{D_{h_test}} + \sum K_{bends_test}$

Where $f$ is the Darcy friction factor (typically 0.02 for smooth steel duct)⁵, $L_{test}$ is the test duct length (m), $D_{h_test}$ is the hydraulic diameter of the test duct (m), and $\sum K_{bends_test}$ is the sum of bend loss coefficients in the test duct. The installed duct must satisfy:

$\frac{f \times L_{installed}}{D_{h_installed}} + \sum K_{bends_installed} \leq R_{hydraulic_test}$

If the installed duct length or bend count exceeds the test configuration, increase the duct cross-section to maintain equivalent hydraulic resistance.

Step 3: Validate Discharge Point Configuration

Discharge Point Parameter	Requirement	Common Error
Minimum free area at discharge	≥ 100% of duct cross-section	Louvred grille reducing to 50% free area
Minimum clearance to building wall	≥ 2 m	Discharge point adjacent to wall
Minimum clearance to combustible material	Per thermal radiation zone calculation	Cable trays within calculated ignition radius
Personnel exclusion zone	Per cotton indicator equivalent distance	No exclusion zone marked or enforced
Shared plenum volume (if used)	≥ 10× single panel vent volume	Undersized plenum creating back-pressure
Discharge direction	Away from personnel access routes	Discharge directed toward substation entrance

Step 4: Verify Multi-Panel Simultaneous Venting Scenario

For AIS switchgear lineups with busbar-connected panels, determine the maximum number of panels that can vent simultaneously based on the arc propagation analysis — typically the number of panels connected to a common busbar section between bus section switches. Size the relief duct system for this simultaneous venting scenario.

Sub-application: Substation Layout Scenarios

• Indoor substation with roof discharge: Duct from panel top through roof — verify duct length against test configuration; provide weatherproof discharge cowl with ≥ 100% free area; establish roof exclusion zone during arc event
• Indoor substation with wall discharge: Horizontal duct to external wall — each 90° bend from vertical to horizontal requires swept bend specification; discharge point must clear building re-entrant corners
• Basement substation: Vertical duct upward through floor levels — maximum practical duct length often exceeds test duct length; cross-section increase mandatory; verify structural support for duct weight
• Outdoor substation with enclosure: Panel-mounted relief duct discharging within the outdoor enclosure — verify enclosure volume is sufficient to absorb arc gas without pressure buildup that re-enters panel through relief opening

A second client case: A selection guide review request came from a procurement manager at a power utility in Nigeria specifying AIS switchgear for twelve 33 kV distribution substations. The original specification required IAC classification at 25 kA for 0.5 s with arc relief ducts sized per the manufacturer’s standard catalog configuration — a 400 mm × 400 mm duct at 1.5 m length. Site surveys revealed that eleven of the twelve substations required duct lengths between 2.8 m and 5.1 m due to ceiling height and roof structure constraints. Bepto’s application engineering team performed hydraulic resistance calculations for each site — determining that duct cross-sections of 500 mm × 500 mm to 650 mm × 550 mm were required for the installed lengths to maintain equivalent hydraulic resistance to the test configuration. The revised duct specifications were incorporated into the procurement documents before tender — preventing the post-installation compliance gap that the original catalog specification would have created at all eleven non-standard sites.

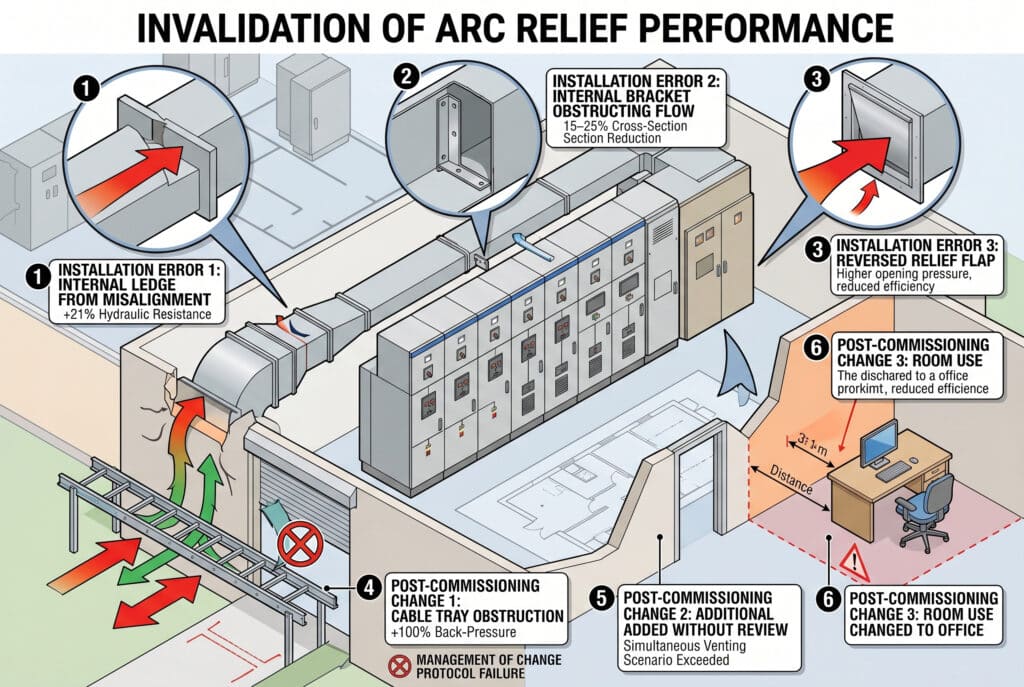

What Installation Errors and Post-Commissioning Changes Invalidate Arc Relief Channel Performance in High Voltage Substations?

Installation Errors That Invalidate Arc Relief Performance

The arc relief channel design can be correctly specified and still fail to perform as designed if installation execution introduces deviations from the design that are not recognized as arc protection system modifications.

Installation Error 1 — Duct joint misalignment creating internal obstruction:
Arc relief duct sections that are misaligned at joints create internal ledges that act as flow obstructions — increasing hydraulic resistance above the design value. A 20 mm internal ledge at a duct joint in a 400 mm × 400 mm duct reduces the effective cross-section by 10% and increases hydraulic resistance by approximately 21% at the joint location.

Verification requirement: Inspect all duct joints with a torch and mirror before panel energization — confirm internal alignment within ±5 mm at all joints.

Installation Error 2 — Duct support brackets installed as internal cross-members:
Installation crews occasionally install duct support brackets as internal cross-members spanning the duct interior — a structural shortcut that creates a permanent flow obstruction. Internal cross-members in a 400 mm × 400 mm duct reduce effective cross-section by 15–25% depending on bracket dimensions.

Verification requirement: Confirm all duct support brackets are external — no internal cross-members permitted in arc relief duct runs.

Installation Error 3 — Pressure relief flap installed in reverse orientation:
Arc relief duct pressure relief flaps — spring-loaded or gravity-operated flaps that seal the duct under normal conditions and open under arc pressure — must be installed with the opening direction aligned with the gas flow direction. Reverse installation creates a flap that opens against the gas flow, requiring higher pressure to open and reducing the effective duct cross-section during opening.

Verification requirement: Confirm pressure relief flap opening direction matches gas flow direction — mark flow direction on duct during installation.

Post-Commissioning Changes That Invalidate Arc Relief Performance

Post-commissioning changes to the substation that affect the arc relief channel are the most dangerous source of arc protection invalidation — because they occur after the commissioning verification has been completed and are frequently not recognized as arc protection system modifications.

Change 1 — Cable tray installation across discharge point:
Secondary cable management installed after switchgear commissioning frequently routes cable trays across or adjacent to arc relief duct discharge points — reducing the effective discharge area without triggering a formal design change review. A cable tray reducing the discharge point free area by 30% increases discharge back-pressure by approximately 100% — doubling the peak panel pressure during an arc event.

Change 2 — Additional panels added to existing lineup:
Expanding an AIS switchgear lineup by adding panels to an existing busbar section increases the maximum simultaneous venting scenario — potentially exceeding the capacity of the existing shared relief duct system. Each panel addition to a busbar section must trigger a re-evaluation of the shared relief duct sizing.

Change 3 — Substation room use change:
Converting an adjacent room from a cable basement to a personnel work area moves people into proximity with the arc relief duct discharge zone — without changing the discharge point location or establishing the required personnel exclusion zone for the new occupancy.

Change 4 — Protection relay setting modification:
Increasing protection relay time-grading margins to improve coordination with downstream protection increases the arc clearing time — potentially exceeding the IAC test duration. Every protection relay setting change must be evaluated against the IAC test duration to confirm continued compliance.

Post-Commissioning Verification Checklist

Verification Item	Frequency	Method	Acceptance Criterion
Discharge point free area measurement	Annual	Physical measurement	≥ 100% of duct cross-section — no new obstructions
Duct internal inspection	Every 3 years	Torch and mirror or borescope	No internal obstructions, corrosion, or joint misalignment
Pressure relief flap operation test	Every 3 years	Manual operation test	Opens freely at design pressure — no binding or corrosion
Personnel exclusion zone verification	Annual	Site survey against thermal radiation zone calculation	No permanent occupancy within calculated exclusion zone
Protection clearing time verification	After every relay setting change	Protection coordination study review	$t_{clear} \leq t_{IAC_test}$ confirmed
Simultaneous venting scenario review	After every panel addition	Hydraulic resistance recalculation	Shared duct capacity ≥ simultaneous venting requirement

The Management of Change Protocol for Arc Relief Systems

Every modification to the substation that could affect arc relief channel performance must pass through a formal Management of Change (MOC) review that includes:

1. Arc protection impact assessment: Does the change affect duct cross-section, duct length, bend count, discharge point free area, simultaneous venting scenario, or protection clearing time?
2. Hydraulic resistance recalculation: If any arc relief parameter changes, recalculate the installed duct hydraulic resistance and verify it remains within the test configuration budget
3. IAC compliance re-verification: Confirm that the modified configuration remains within the scope of the IAC type test certificate — or identify the need for supplementary testing
4. Personnel exclusion zone update: Recalculate the thermal radiation zone for any discharge point geometry change and update the exclusion zone markings and access restrictions

Conclusion

Arc relief channel design errors in AIS switchgear substations are not discovered during design reviews, commissioning inspections, or routine maintenance visits — they are discovered during internal arc events, when the relief channel that was assumed to perform as designed either fails to vent the arc energy within the panel structural limit or directs arc plasma and thermal radiation toward personnel who were assumed to be protected by the IEC 62271-200 IAC certificate on the panel nameplate. The six critical design errors — duct undersizing, bend loss accumulation, discharge point obstruction, multi-panel simultaneous venting, arc duration mismatch, and thermal radiation zone omission — are each individually capable of rendering the arc protection system non-functional, and they compound when multiple errors are present in the same installation. Treat the IEC 62271-200 IAC type test certificate as the starting point of arc relief channel design — not the endpoint: calculate the installed duct hydraulic resistance against the test duct specification for every site, validate the discharge point free area and personnel exclusion zone against the thermal radiation zone calculation, verify protection clearing time against the IAC test duration for every protection scheme configuration, implement a formal Management of Change protocol that captures every post-commissioning modification that affects arc relief performance, and re-evaluate the simultaneous venting scenario every time a panel is added to an existing busbar section — because the arc relief channel that performs correctly when the arc event occurs is the one that was designed, installed, and maintained as an engineered system rather than a catalog accessory.
