Introduction

Inside every solid-insulated switchgear panel rated for medium voltage duty, sealed within a ceramic or glass envelope no larger than a beverage can, is a device operating in one of the most extreme environments achievable in electrical engineering: a vacuum so complete that air pressure is reduced to less than one ten-thousandth of atmospheric. In this environment, the physics of electrical arc extinction change fundamentally — and the result is the most reliable, lowest-maintenance arc quenching technology available for MV switchgear applications.

A vacuum interrupter works by separating contacts inside a hermetically sealed chamber maintained at pressures below 10⁻³ mbar, where the absence of gas molecules forces any arc formed during switching to exist exclusively as a metal vapor plasma — a plasma that diffuses and extinguishes instantaneously at the first current zero, leaving the contact gap restored to full dielectric strength within microseconds.

For electrical engineers specifying SIS switchgear and procurement managers evaluating MV switching technology, understanding how vacuum interrupters work is the foundation for appreciating why vacuum-based switchgear achieves E2 electrical endurance as a standard design outcome, why sealed vacuum designs eliminate the maintenance burden of air arc chutes and SF6 gas systems, and why vacuum interrupters are the technology of choice for the next generation of compact, environmentally responsible MV power distribution equipment.

This article provides a complete technical reference for vacuum interrupter operation — from fundamental physics to contact material selection, performance benchmarking, application specification, and lifecycle management.

Table of Contents

• What Is a Vacuum Interrupter and How Does It Achieve Arc Extinction?
• How Do Vacuum Interrupter Components Determine Switching Performance?
• How to Specify Vacuum Interrupter-Based Switchgear for Your MV Application?
• What Are the Maintenance Requirements and Failure Modes of Vacuum Interrupters?

What Is a Vacuum Interrupter and How Does It Achieve Arc Extinction?

A vacuum interrupter is a hermetically sealed switching element consisting of two separable contacts enclosed within an evacuated ceramic or glass envelope, maintained at an internal pressure of 10⁻³ to 10⁻⁶ mbar throughout its operational life. The sealed construction preserves the vacuum integrity that makes arc extinction possible — and the physics of arc behavior in vacuum is fundamentally different from arc behavior in any gas medium.

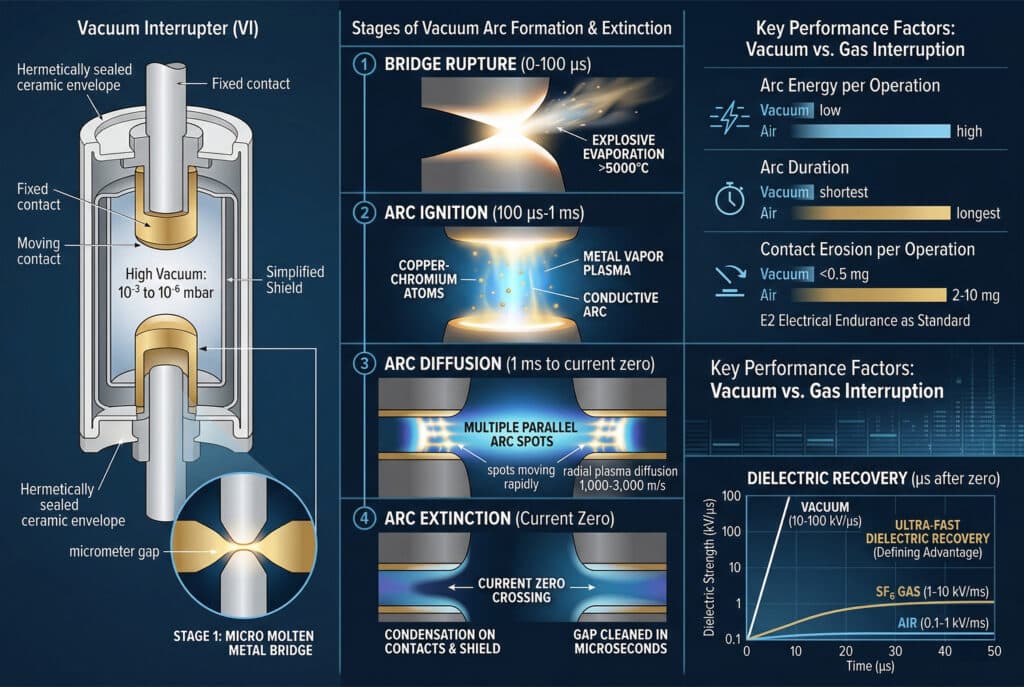

The Physics of Vacuum Arc Formation

When vacuum interrupter contacts begin to separate under load or fault current, the following sequence occurs:

Stage 1 — Contact Bridge Rupture (0–100 μs):
As contacts separate, the last point of metal-to-metal contact forms a microscopic molten metal bridge. This bridge ruptures almost instantaneously, creating a gap of micrometers. The intense current density through the rupturing bridge generates temperatures exceeding 5,000°C at the contact surface, causing explosive evaporation of contact material.

Stage 2 — Metal Vapor Arc Ignition (100 μs–1 ms):
The evaporated contact material — primarily copper and chromium atoms — ionizes under the applied voltage, forming a conductive metal vapor plasma that carries the full circuit current. This is the vacuum arc. Unlike gas arcs, which are sustained by ionization of the surrounding gas medium, the vacuum arc is sustained exclusively by metal vapor continuously evaporated from the contact surfaces by arc heating.

Stage 3 — Arc Diffusion and Current Conduction (1 ms to current zero):
The vacuum arc distributes itself across the contact surface as multiple parallel arc spots — each arc spot carrying 50–200A of current and continuously evaporating fresh contact material. The arc spots move rapidly across the contact surface, distributing erosion uniformly and preventing localized contact damage. The metal vapor plasma expands radially outward from the contact gap at velocities of 1,000–3,000 m/s.

Stage 4 — Arc Extinction at Current Zero (at current zero crossing):
As the AC current approaches zero, arc spot activity decreases proportionally. At current zero, arc spot generation ceases entirely — there is no longer sufficient current to sustain the evaporation process. The metal vapor plasma, deprived of its energy source, diffuses outward and condenses on the contact surfaces and the internal arc shield within microseconds. The contact gap is left in a clean, particle-free vacuum state.

Stage 5 — Dielectric Recovery (microseconds after current zero):
With the metal vapor condensed and the contact gap restored to high vacuum, dielectric strength¹ recovers at a rate of approximately 10–100 kV/μs — orders of magnitude faster than SF6 (kV/ms range) or air (kV/10ms range). This ultra-fast dielectric recovery is the defining advantage of vacuum arc extinction: the contact gap can withstand the full transient recovery voltage (TRV)² before the TRV has risen to any significant fraction of its peak value.

Vacuum Arc Extinction vs. Gas Arc Extinction

Parameter	Vacuum	SF6 Gas	Air
Arc Medium	Metal vapor plasma	Ionized SF6 gas	Ionized air plasma
Arc Sustaining Mechanism	Contact evaporation	Gas ionization	Gas ionization
Arc Extinction Trigger	Current zero (no gas to re-ionize)	Current zero + gas blast cooling	Current zero + arc chute cooling
Dielectric Recovery Rate	10–100 kV/μs	1–10 kV/ms	0.1–1 kV/ms
Arc Duration	< 0.5 cycle	< 1 cycle	1–3 cycles
Arc Energy per Operation	20–100J (630A)	100–500J (630A)	500–2,000J (630A)
Contact Erosion per Op	< 0.5 mg	0.5–3 mg	2–10 mg
Post-Arc Residue	Condensed metal film	SF6 decomposition products	Carbon deposits
Re-Strike Risk	Very Low	Low	Moderate

Why Vacuum Interrupters Achieve E2 Electrical Endurance as Standard

The combination of low arc energy per operation (20–100J versus 500–2,000J for air) and ultra-fast dielectric recovery produces contact erosion rates of less than 0.5mg per load-break operation. For a vacuum interrupter with a contact wear allowance of 3mm total erosion depth and a contact erosion rate of 0.3mg per operation, the theoretical contact life exceeds 10,000 load-break operations — the E2 class threshold — without any contact maintenance. This is not an exceptional design achievement for vacuum technology; it is the inherent consequence of the vacuum arc physics.

How Do Vacuum Interrupter Components Determine Switching Performance?

The switching performance of a vacuum interrupter — its breaking capacity, electrical endurance, dielectric withstand, and operational consistency — is determined by the design and material selection of five critical internal components. Understanding these components explains why vacuum interrupter quality varies significantly between manufacturers and why type test certificates must reference specific production designs.

Component 1: Contact Material — The Arc Extinction Engine

Contact material selection is the single most critical design decision in vacuum interrupter engineering. The contact material must simultaneously satisfy five conflicting requirements:

• High arc erosion resistance: Minimize material loss per arc operation to achieve E2 endurance
• Low contact welding tendency: Resist fusion bonding during high-current making operations
• High electrical conductivity: Minimize contact resistance (< 100 μΩ) and resistive heating under rated current
• Low chopping current: Minimize current chopping level to limit overvoltage generation during inductive switching
• Good vacuum compatibility: Low outgassing rate to preserve vacuum integrity over 20+ year service life

No single pure metal satisfies all five requirements simultaneously. The industry standard solution is copper-chromium alloy (CuCr)³, typically in the composition range CuCr25 (25% chromium by weight) to CuCr75 (75% chromium):

• Copper component: Provides high electrical conductivity, low contact resistance, and good arc spot mobility
• Chromium component: Provides arc erosion resistance, anti-welding properties, and low vapor pressure for vacuum compatibility

CuCr Contact Performance:

• Contact resistance: 20–80 μΩ (pair)
• Chopping current: 3–8A (low overvoltage risk for inductive switching)
• Erosion rate: 0.2–0.5 mg per load-break operation at 630A
• Welding resistance: Excellent up to rated making current (2.5 × Isc peak)
• Vacuum compatibility: Outgassing rate < 10⁻⁸ mbar·L/s at 20°C

Component 2: Arc Shield — Protecting the Envelope

The arc shield is a cylindrical metal screen (typically stainless steel or copper) positioned coaxially around the contact gap inside the ceramic envelope. Its function is critical: to intercept the metal vapor and condensed droplets ejected from the arc spots during switching operations, preventing them from depositing on the inner surface of the ceramic or glass envelope.

Without an arc shield, metal vapor deposition on the insulating envelope would progressively reduce its surface resistivity, eventually creating a conductive path that short-circuits the contact gap — causing dielectric failure. The arc shield absorbs the metal vapor deposits, maintaining envelope insulation integrity throughout the device’s operational life.

Arc Shield Design Parameters:

• Material: Stainless steel (standard) or oxygen-free copper (high-endurance designs)
• Position: Floating potential (electrically isolated) or connected to one contact
• Surface area: Must be sufficient to absorb cumulative metal vapor from full E2 duty cycle
• Thermal design: Must dissipate arc heat without exceeding material temperature limits

Component 3: Ceramic Envelope — The Vacuum Vessel

The ceramic envelope (or glass envelope in lower-voltage designs) is the hermetic pressure vessel that maintains the vacuum environment throughout the interrupter’s service life. It must simultaneously provide:

• Mechanical strength: Withstand atmospheric pressure differential (approximately 10N/cm²) plus dynamic forces from contact operation
• Dielectric strength: Withstand rated lightning impulse voltage (BIL) across the envelope wall
• Hermetic sealing: Maintain vacuum integrity (leak rate < 10⁻¹⁰ mbar·L/s) for 20–30 year service life
• Thermal stability: Withstand temperature cycling from -40°C to +105°C without seal degradation

Alumina ceramic (Al₂O₃, 95–99% purity) is the standard envelope material for MV vacuum interrupters, offering superior mechanical strength, dielectric properties, and hermetic sealing capability compared to glass. The ceramic-to-metal seals at the end flanges are brazed joints using active metal brazing — the highest-reliability hermetic joining technology available.

Component 4: Bellows — Enabling Contact Movement

The flexible metal bellows is the mechanical element that allows the moving contact to travel the required stroke distance (typically 6–12mm for MV applications) while maintaining hermetic vacuum integrity. The bellows is a thin-walled corrugated stainless steel tube brazed between the moving contact stem and the end flange, flexing with each open-close operation.

Bellows fatigue life is a critical design parameter — the bellows must survive the full M2 mechanical endurance cycle count (10,000 operations) without fatigue cracking. Premium vacuum interrupter designs use electroformed nickel bellows or precision-formed stainless steel bellows with fatigue life exceeding 30,000 cycles, providing a substantial safety margin above M2 class requirements.

Component 5: Getter Material — Preserving Vacuum Integrity

Even with perfect hermetic sealing, residual outgassing from internal metal surfaces gradually releases gas molecules into the vacuum space over decades of service. Without active gas absorption, the internal pressure would slowly rise above the 10⁻³ mbar threshold required for reliable arc extinction.

Getter materials — typically barium, zirconium, or titanium alloys — are positioned inside the vacuum envelope to chemically absorb outgassed molecules throughout the service life. The getter is activated during manufacturing by high-temperature vacuum baking, which drives off surface contamination and activates the getter’s absorption capacity. A properly designed getter system maintains internal pressure below 10⁻⁴ mbar for 25+ years of service.

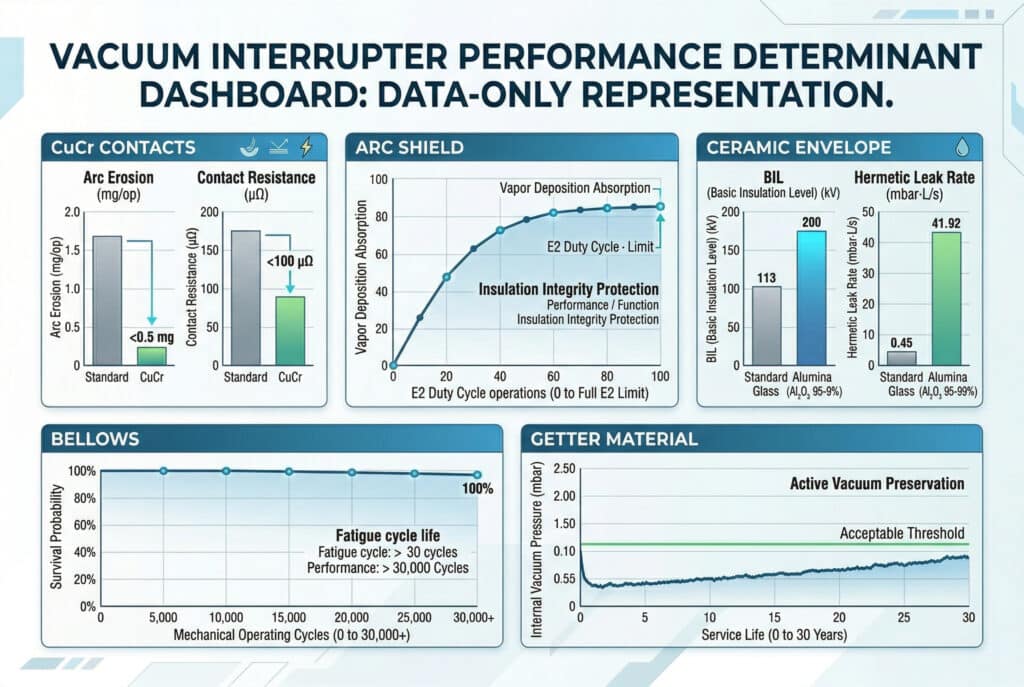

Vacuum Interrupter Component Performance Summary

Component	Primary Function	Key Material	Performance Parameter
CuCr Contacts	Arc extinction, current conduction	CuCr25–CuCr75	< 0.5 mg erosion/op; < 100 μΩ resistance
Arc Shield	Metal vapor interception	Stainless steel / Cu	Absorbs full E2 duty cycle vapor
Ceramic Envelope	Vacuum vessel, dielectric barrier	Al₂O₃ 95–99%	BIL withstand; < 10⁻¹⁰ mbar·L/s leak rate
Bellows	Hermetic contact travel	Stainless steel	> 30,000 fatigue cycles
Getter	Vacuum preservation	Ba / Zr / Ti alloy	Maintains < 10⁻⁴ mbar for 25+ years

Customer Case: Vacuum Interrupter Reliability in a Harsh Industrial Environment

A quality-focused enterprise owner operating a 12kV industrial substation in a cement manufacturing plant in the Middle East contacted Bepto after repeated failures of SF6 load break switches installed in their MV collection switchgear. The combination of extreme ambient temperatures (up to 55°C), heavy airborne cement dust, and frequent motor switching duty (up to 8 start/stop operations per day per feeder) was causing SF6 seal degradation, gas pressure loss, and failed switching operations — requiring emergency maintenance interventions every 6–8 months.

After upgrading to Bepto’s SIS switchgear incorporating vacuum interrupters with CuCr contacts and sealed ceramic envelopes, the plant maintenance team reported zero switching failures over a subsequent 28-month monitoring period. The sealed vacuum interrupters were completely unaffected by ambient temperature, dust contamination, or switching frequency — and the 8 daily operations per feeder (approximately 2,920 operations per year) remained well within the E2 class duty cycle of the vacuum interrupter design. The plant subsequently standardized on vacuum-based SIS switchgear for all MV feeder applications across their regional manufacturing network.

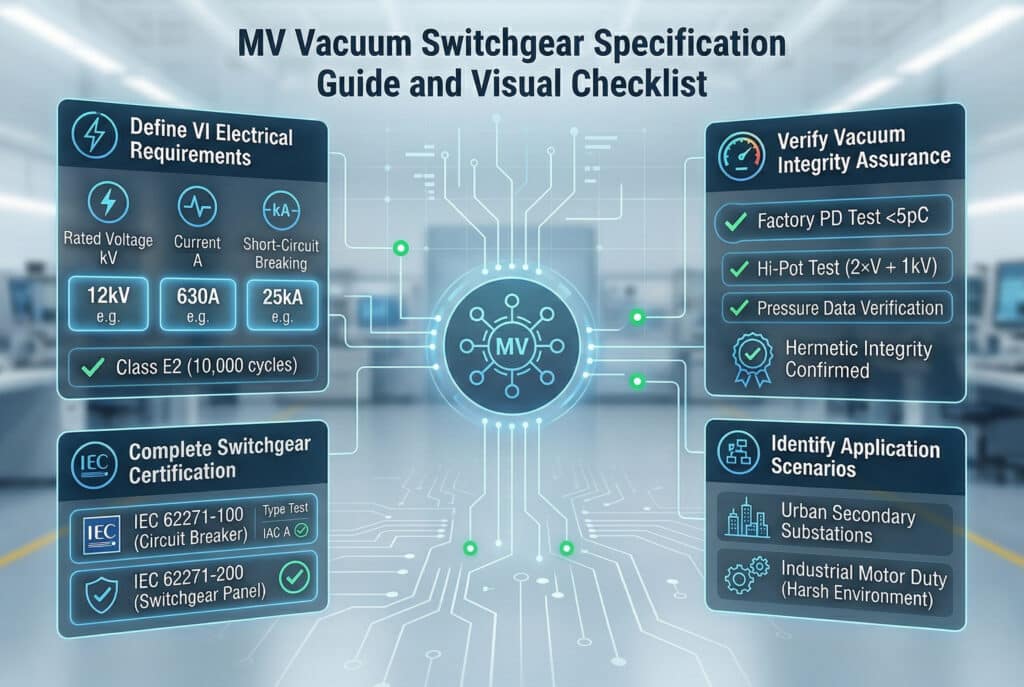

How to Specify Vacuum Interrupter-Based Switchgear for Your MV Application?

Specifying vacuum interrupter-based SIS switchgear requires verification of both the vacuum interrupter’s intrinsic performance parameters and the complete switchgear assembly’s compliance with IEC 62271 standards. A vacuum interrupter that meets its individual component specifications but is incorrectly integrated into the switchgear assembly can still fail to deliver rated performance.

Step 1: Define Vacuum Interrupter Electrical Requirements

• Rated Voltage: 12kV, 24kV, or 40.5kV — contact gap distance scales with voltage; verify BIL (75kV / 125kV / 185kV) matches system insulation level
• Rated Normal Current: 630A, 1250A, or 2500A — verify contact resistance and thermal rating at maximum ambient temperature
• Rated Short-Circuit Breaking Current: 16kA, 20kA, 25kA, or 31.5kA — verify CuCr contact composition and arc shield design are rated for the specified Isc
• Electrical Endurance Class: E2 mandatory for frequent switching; verify type test certificate confirms 10,000-cycle duty without contact maintenance
• Special Duty Ratings: Confirm capacitive switching, transformer magnetizing switching, or motor switching ratings if applicable to the installation

Step 2: Verify Vacuum Integrity Assurance

• Factory vacuum test: Each vacuum interrupter must be individually tested for vacuum integrity before assembly into switchgear; request factory test records
• Power frequency hi-pot test: Applied voltage test at 2× rated voltage + 1kV for 1 minute across open contacts; confirms vacuum integrity and contact gap dielectric withstand
• Partial discharge⁴ test: PD < 5 pC at 1.2 × Um/√3 per IEC 60270; confirms absence of internal discharge sources that indicate vacuum degradation
• Vacuum pressure measurement: Some manufacturers provide vacuum gauge indicators; request internal pressure verification data from factory testing

Step 3: Match Standards and Certifications

• IEC 62271-100⁵: Circuit breaker type test — including vacuum interrupter short-circuit breaking, load-break, and endurance tests
• IEC 62271-200: Metal-enclosed MV switchgear assembly — complete panel type test including internal arc classification
• IEC 62271-1: Common specifications — dielectric withstand, temperature rise, and mechanical endurance
• GB/T 1984: China national standard for AC high-voltage circuit breakers
• Internal Arc Classification (IAC): Specify IAC AFL or AFLR per IEC 62271-200 for personnel safety in accessible installations

Application Scenarios

• Urban Secondary Substations: SIS with vacuum interrupters for compact footprint, zero SF6 environmental impact, and minimal maintenance in space-constrained installations
• Industrial MV Substations: Vacuum interrupters for motor feeder switching duty — high switching frequency, harsh environment, E2 endurance mandatory
• Renewable Energy MV Collection: Vacuum-based SIS for solar and wind farm feeder switching — daily operations, 25-year design life, zero maintenance access
• Marine and Offshore: Sealed vacuum interrupters immune to salt fog, humidity, and vibration — superior to SF6 for marine duty
• Data Center MV Distribution: Vacuum SIS for critical power infrastructure requiring zero unplanned maintenance and highest switching reliability
• Railway Traction Substations: Vacuum interrupters for high-frequency traction load switching with consistent sub-60ms operating times

What Are the Maintenance Requirements and Failure Modes of Vacuum Interrupters?

The sealed construction of vacuum interrupters eliminates the majority of maintenance requirements associated with air arc chutes and SF6 gas systems — but it does not eliminate all maintenance obligations. Understanding the specific failure modes of vacuum interrupters and the condition monitoring techniques that detect them is essential for lifecycle management of vacuum-based SIS switchgear.

Pre-Commissioning Vacuum Interrupter Checklist

1. Power Frequency Hi-Pot Test — Apply 2× rated voltage + 1kV across open contacts for 1 minute; any flashover or significant current indicates vacuum degradation or contact gap deficiency
2. Partial Discharge Test — Measure PD level at 1.2 × Um/√3 per IEC 60270; PD > 5 pC indicates internal discharge source — reject and replace before commissioning
3. Contact Resistance Measurement — Measure closed-contact resistance with 100A DC test current; record baseline value (typically 20–80 μΩ per interrupter); values > 100 μΩ indicate contact surface contamination or insufficient contact force
4. Contact Travel Verification — Measure contact stroke and overtravel per manufacturer specification; insufficient stroke reduces breaking capability; excessive stroke stresses bellows
5. Operating Time Measurement — Record close and open times at rated control voltage; baseline values are the reference for all future condition assessments
6. Visual Inspection of Ceramic Envelope — Inspect for cracks, chips, or surface contamination; any mechanical damage to the ceramic envelope compromises vacuum integrity

Vacuum Interrupter Failure Modes

Vacuum Degradation (Slow Leak):
The most insidious vacuum interrupter failure mode — gradual pressure rise from micro-leaks in ceramic-metal brazed joints or bellows fatigue cracks. As internal pressure rises above 10⁻¹ mbar, arc extinction behavior changes from clean metal vapor extinction to gas-assisted arc behavior, with increasing re-strike probability. Vacuum degradation is undetectable by external visual inspection — only electrical testing reveals it.

Detection: Annual power frequency hi-pot test across open contacts; PD measurement at rated voltage; operating time trend monitoring (vacuum degradation causes arc duration changes that affect operating time consistency)

Contact Erosion Beyond Wear Limit:
Progressive contact material loss from arc operations eventually reduces the contact gap compensation range to zero — the moving contact reaches its mechanical travel limit before achieving the rated contact gap. At this point, the open-gap dielectric withstand falls below the BIL requirement.

Detection: Contact travel measurement — when remaining contact stroke falls below manufacturer’s minimum wear indicator threshold, the interrupter must be replaced; contact resistance trend (increasing resistance indicates surface erosion beyond the conductive layer)

Bellows Fatigue Failure:
Fatigue cracking of the flexible bellows after exceeding its design cycle life allows atmospheric air ingress, destroying the vacuum environment instantaneously. Bellows failure is typically sudden rather than gradual — the interrupter transitions from full vacuum to atmospheric pressure in milliseconds.

Detection: Power frequency hi-pot test immediately detects bellows failure (atmospheric pressure causes immediate flashover at voltages far below rated); operating time monitoring (bellows failure may cause mechanism binding)

Contact Welding:
High-current making operations — particularly making onto fault currents approaching or exceeding the rated making current — can cause momentary contact surface fusion. CuCr contacts are highly resistant to welding under rated conditions, but repeated fault making operations above rated peak current progressively increase welding risk.

Detection: Trip coil current monitoring (welded contacts require abnormally high trip force, detectable as delayed or failed trip operation); contact resistance measurement (welded contacts show near-zero resistance even in the open position)

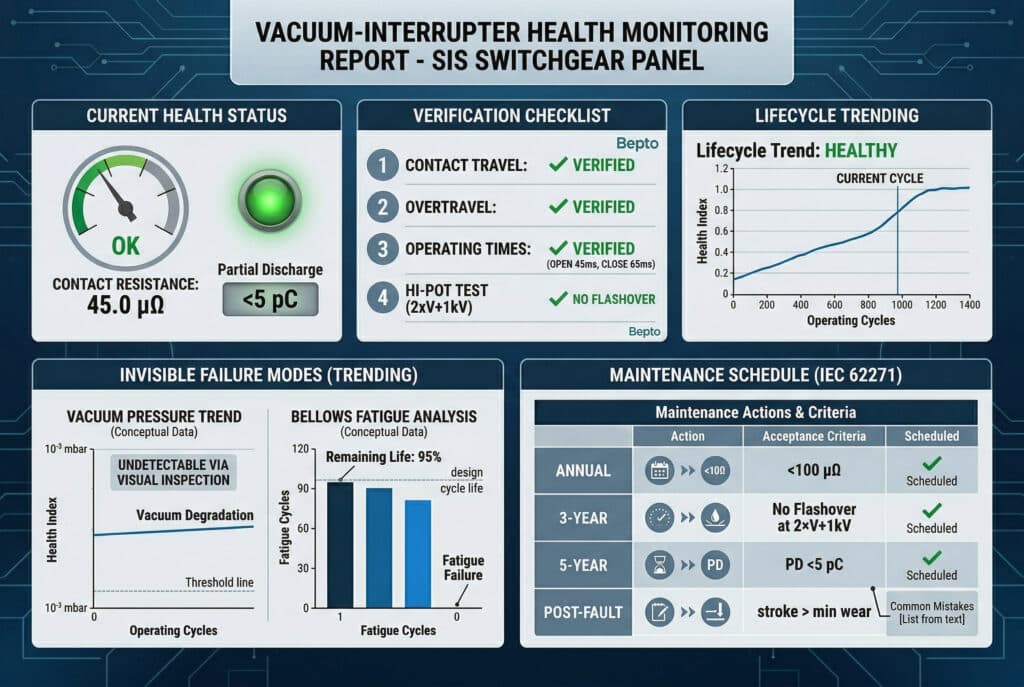

Maintenance Schedule for Vacuum Interrupter SIS Switchgear

Interval	Action	Acceptance Criterion
Annual	Contact resistance measurement; operating time check; visual inspection	< 100 μΩ; within ±20% of baseline; no physical damage
3 years	Power frequency hi-pot test across open contacts	No flashover at 2× rated voltage + 1kV
3 years	Partial discharge measurement at 1.2 × Um/√3	PD < 5 pC per IEC 60270
5 years	Contact travel / stroke measurement	Remaining stroke > manufacturer minimum wear limit
5 years	Full electrical verification per IEC 62271-100	All parameters within rated specification
Per fault-break op	Hi-pot test + contact resistance + PD measurement	Full acceptance criteria as above
At E2 limit	Manufacturer assessment; replacement if contact wear limit reached	Per manufacturer protocol

Common Vacuum Interrupter Maintenance Mistakes

• Relying on visual inspection alone — vacuum degradation, contact erosion, and incipient bellows fatigue are all invisible externally; electrical testing is the only reliable condition assessment method
• Skipping post-fault electrical testing — each fault-break operation consumes contact life equivalent to 10–50 normal operations and may cause incipient bellows stress; post-fault hi-pot and PD tests are mandatory
• Applying excessive contact force — over-tightening the contact pressure spring to compensate for perceived contact wear accelerates bellows fatigue; always set contact force per manufacturer specification
• Ignoring operating time drift — gradual increase in opening time is an early indicator of mechanism wear or vacuum degradation; trending operating time data enables predictive maintenance before functional failure

Conclusion

Vacuum interrupters represent the most technically advanced arc extinction technology available for medium voltage switchgear — combining the fundamental physics of metal vapor arc extinction with precision contact material engineering, hermetic ceramic construction, and sealed-for-life maintenance philosophy to deliver E2 electrical endurance, sub-cycle arc extinction, and 25-year service life as standard design outcomes. For engineers specifying SIS switchgear and procurement managers evaluating MV switching technology, understanding how vacuum interrupters work is the foundation for specifying equipment that genuinely delivers its design life without the maintenance burden, environmental obligations, and performance variability of gas-based alternatives.

Specify vacuum interrupters for every MV application where switching frequency, environmental conditions, maintenance access, or environmental compliance make sealed, maintenance-free arc extinction the engineering requirement — because vacuum technology does not merely meet the performance standard, it defines it.
