Introduction
Surface shielding technology in solid insulation switchgear is one of the most consequential and least understood design elements in medium voltage substation engineering — a semiconductive or metallic grounded screen applied to the outer surface of the epoxy resin1 encapsulated busbar and switching module that controls the electric field distribution2 at the solid insulation boundary and provides the touch-safe, zero-voltage outer surface that makes SIS switchgear fundamentally different from every other medium voltage switchgear technology in terms of personnel safety. Yet in project specifications, selection guides, and procurement evaluations reviewed across hundreds of substation upgrade projects, the same cluster of engineering misconceptions about surface shielding appears repeatedly — misconceptions that produce incorrect SIS switchgear specifications, inadequate safety assessments, and field installations where the surface shielding system has been compromised by installation errors that eliminate the safety and insulation performance benefits that the technology was designed to deliver. What engineers most consistently get wrong about SIS switchgear surface shielding is treating the grounded outer screen as a passive mechanical coating rather than an active electric field control system whose integrity, continuity, and correct earthing connection are as critical to the switchgear’s dielectric performance and personnel safety as the primary insulation itself. For substation design engineers, electrical safety officers, and procurement managers responsible for SIS switchgear selection and installation in high voltage substation applications, this guide corrects the five most consequential misconceptions about surface shielding technology with the technical precision that the selection guide literature rarely provides.
Table of Contents
- What Is SIS Switchgear Surface Shielding Technology and How Does It Control Electric Field Distribution?
- What Are the Five Most Consequential Engineering Misconceptions About Surface Shielding Performance?
- How to Correctly Specify Surface Shielding Requirements in SIS Switchgear for High Voltage Substation Projects?
- What Installation and Maintenance Errors Compromise Surface Shielding Integrity in Service?

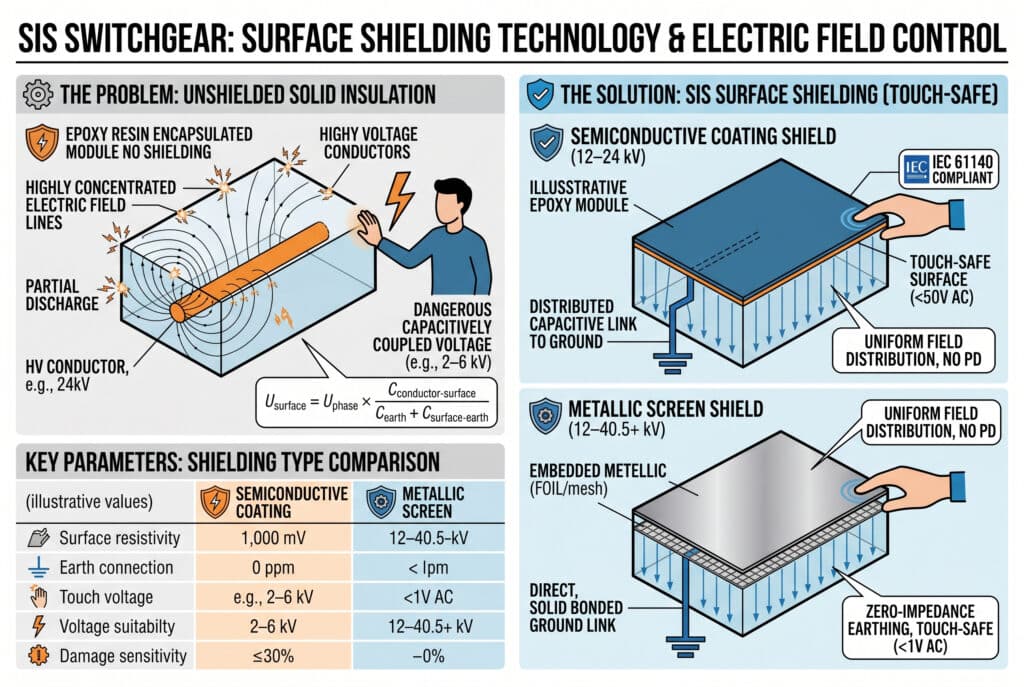

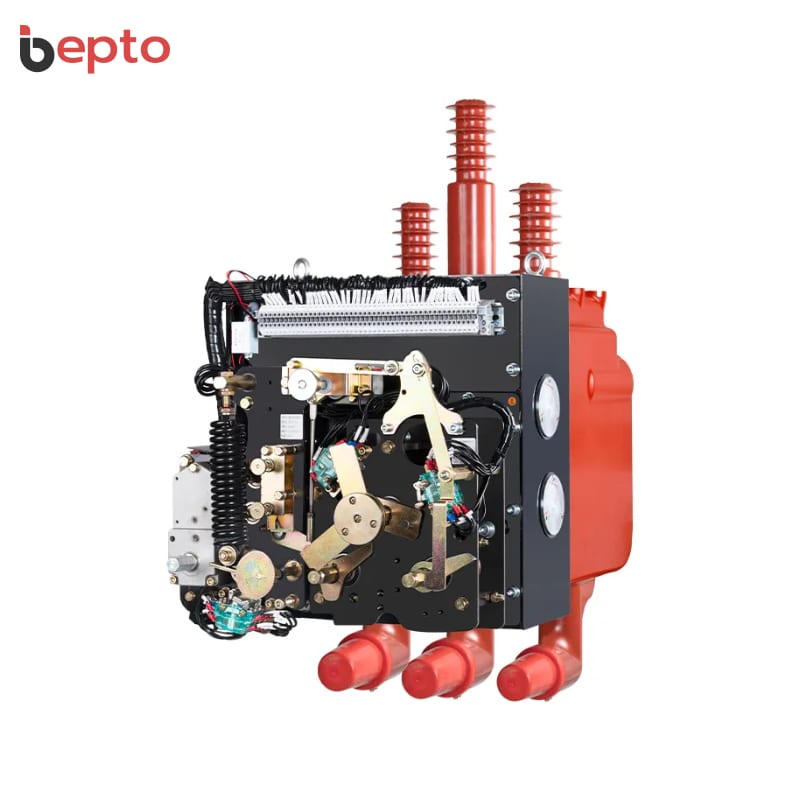

What Is SIS Switchgear Surface Shielding Technology and How Does It Control Electric Field Distribution?
Surface shielding in SIS switchgear is the system of conductive or semiconductive layers applied to the outer surface of the epoxy resin encapsulated modules that performs two simultaneous and interdependent functions: it controls the electric field distribution within the solid insulation to prevent stress concentration at the epoxy-air boundary, and it presents a continuously earthed outer surface that eliminates the capacitively coupled voltage that would otherwise appear on the outer surface of an unshielded solid insulation module at high voltage.
The Electric Field Problem That Surface Shielding Solves
Without surface shielding, the outer surface of a solid epoxy resin insulation module at 24 kV would carry a capacitively coupled surface voltage determined by the capacitive voltage divider formed between the high-voltage conductor and the grounded switchgear enclosure:
For a 24 kV phase voltage (13.9 kV) epoxy module with typical geometry, this capacitively coupled surface voltage reaches 2–6 kV — sufficient to produce a dangerous electric shock to personnel touching the outer surface and sufficient to initiate partial discharge at surface irregularities where the local electric field exceeds the partial discharge inception voltage of air at the epoxy surface.
Surface Shielding System Architecture
SIS switchgear surface shielding is implemented in two primary configurations:
- Semiconductive coating3 shield: A carbon-loaded epoxy or silicone coating applied to the outer surface of the encapsulated module — surface resistivity 10³–10⁶ Ω/square; provides continuous capacitive coupling to earth through the semiconductive layer; cost-effective for 12–24 kV applications
- Metallic screen shield: A continuous copper or aluminum foil or mesh screen embedded in or applied to the outer surface of the epoxy module and connected to the switchgear earth bar — provides zero-impedance earthing of the outer surface; required for 40.5 kV and above where the capacitively coupled surface voltage on a semiconductive coating exceeds safe touch voltage limits
Key Technical Parameters of Surface Shielding Systems
| Parameter | Semiconductive Coating | Metallic Screen |
|---|---|---|
| Surface resistivity | 10³–10⁶ Ω/square | < 0.1 Ω/square |
| Earth connection | Capacitive (distributed) | Direct (bonded) |
| Touch voltage at rated voltage | < 50 V AC (IEC 61140) | < 1 V AC |
| Voltage class suitability | 12–24 kV | 12–40.5 kV |
| Damage sensitivity | Abrasion — coating removal | Mechanical — screen discontinuity |
| IEC 62271-200 compliance | Type tested with coating intact | Type tested with screen bonded |
Governing Safety Standard
IEC 611404 — Protection against electric shock — defines the 50 V AC touch voltage limit that the surface shielding system must maintain on the outer surface of SIS switchgear modules under all normal operating conditions. The surface shielding system is the engineering control that delivers IEC 61140 compliance for solid insulation switchgear — without it, SIS switchgear outer surfaces are not touch-safe at medium voltage ratings.
What Are the Five Most Consequential Engineering Misconceptions About Surface Shielding Performance?
These five misconceptions appear in project specifications, installation procedures, and maintenance records across substation projects in every geography — each one producing a specific, predictable failure mode that the correct understanding of surface shielding technology would have prevented.
Misconception 1 — “The Surface Shield Is Just a Paint Coating”
The most pervasive misconception treats the semiconductive or metallic surface shield as a cosmetic or mechanical protective coating — equivalent to the paint on a switchgear panel enclosure — rather than as a functional electrical component whose integrity is as critical as the primary insulation.
The consequence: Maintenance personnel sand, abrade, or apply non-conductive touch-up paint to damaged areas of the semiconductive coating during routine maintenance — creating unshielded patches on the epoxy surface where the electric field reverts to the uncontrolled distribution, local field stress exceeds the partial discharge5 inception voltage, and PD activity initiates at the patch boundary. A 50 mm² unshielded patch on a 24 kV SIS module surface produces local electric field stress of 4–8 kV/mm at the patch edge — well above the PD inception threshold of 1–2 kV/mm for air at the epoxy surface.
Misconception 2 — “Surface Shielding Earthing Is Optional for Low Voltage Classes”
Some engineers specify SIS switchgear at 12 kV without requiring the surface shielding earth connection to be made to the switchgear earth bar — reasoning that the lower voltage class produces a lower capacitively coupled surface voltage that is “probably safe enough.”
The consequence: IEC 61140 does not have a voltage-class exemption for touch voltage limits — 50 V AC is the limit regardless of the system voltage. A 12 kV SIS module with an unconnected semiconductive coating shield carries a surface voltage of 0.8–2.5 kV under normal operating conditions — 16–50× the IEC 61140 touch voltage limit. The “probably safe enough” assessment is not an engineering calculation; it is an assumption that eliminates the primary personnel safety function of the surface shielding system.

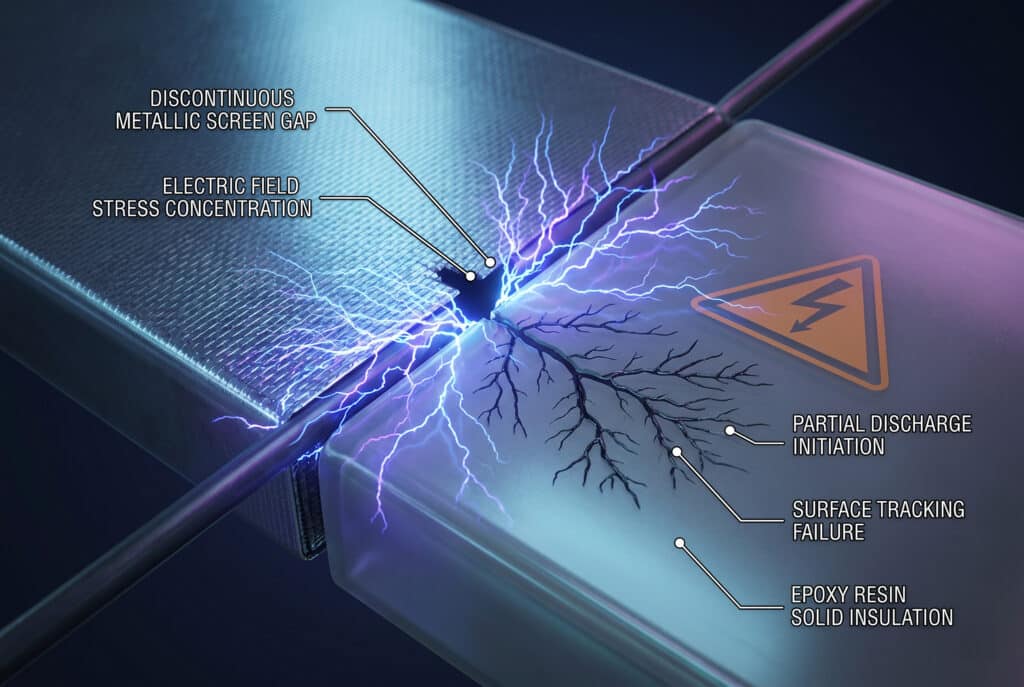

Misconception 3 — “A Discontinuous Metallic Screen Still Provides Adequate Shielding”
Engineers specifying metallic screen SIS switchgear at 40.5 kV sometimes accept screen continuity gaps — at module joints, cable entry points, or mechanical damage locations — on the basis that the screen covers “most” of the surface and provides “most” of the shielding benefit.
The consequence: Electric field shielding is not a proportional function of screen coverage — a 10 mm gap in a continuous metallic screen concentrates the full unshielded electric field at the gap location. The field stress at a screen gap in a 40.5 kV SIS module reaches 15–25 kV/mm — sufficient to initiate partial discharge in air at the gap that erodes the epoxy surface and progresses to a tracking failure within 500–2,000 hours of operation.
A client case: A substation design engineer at an EPC contractor in Jiangsu, China contacted Bepto after a 35 kV SIS switchgear panel developed a visible tracking mark on the encapsulated busbar module surface within 8 months of commissioning. Post-failure inspection identified a 15 mm screen continuity gap at the joint between two encapsulated busbar sections — the gap had been created during installation when the screen bonding tape at the module joint was omitted by the installation team. The tracking channel had progressed 35 mm from the gap edge toward the cable termination. Bepto’s technical team specified the correct screen continuity bonding procedure and supplied replacement bonding tape and conductive adhesive for the repair. The repaired installation has operated without recurrence for 30 months.
Misconception 4 — “Surface Shielding Eliminates the Need for Partial Discharge Testing”
Some procurement specifications for SIS switchgear omit the partial discharge commissioning test on the basis that the surface shielding system “prevents PD” — conflating the surface shielding function (controlling external field distribution) with the primary insulation function (preventing internal PD within the epoxy casting).
The consequence: Surface shielding controls the electric field at the epoxy-air boundary — it does not prevent partial discharge within voids, delaminations, or inclusions inside the epoxy casting. Internal PD in SIS switchgear is not detectable by visual inspection and is not prevented by surface shielding integrity — it requires IEC 60270 partial discharge measurement at 1.5× U0 to detect. Omitting PD commissioning testing on the basis of surface shielding presence leaves internal casting defects undetected.
Misconception 5 — “All SIS Switchgear Surface Shielding Systems Are Equivalent”
Engineers selecting between SIS switchgear products from different manufacturers sometimes treat surface shielding as a standardized feature — assuming that any product labeled “SIS” with “surface shielding” provides equivalent electric field control and touch safety performance.
The consequence: Surface shielding system design, material specification, and IEC type test verification vary significantly between manufacturers — a semiconductive coating with surface resistivity of 10⁷ Ω/square (upper limit of the acceptable range) provides substantially less field control than a coating at 10³ Ω/square, and a metallic screen with discontinuous bonding at module joints provides substantially less protection than a continuously bonded screen. Without requiring the manufacturer to provide the IEC 62271-200 type test report that includes surface voltage measurement with the shielding system in place, the specification cannot verify that the product delivers IEC 61140 touch voltage compliance.

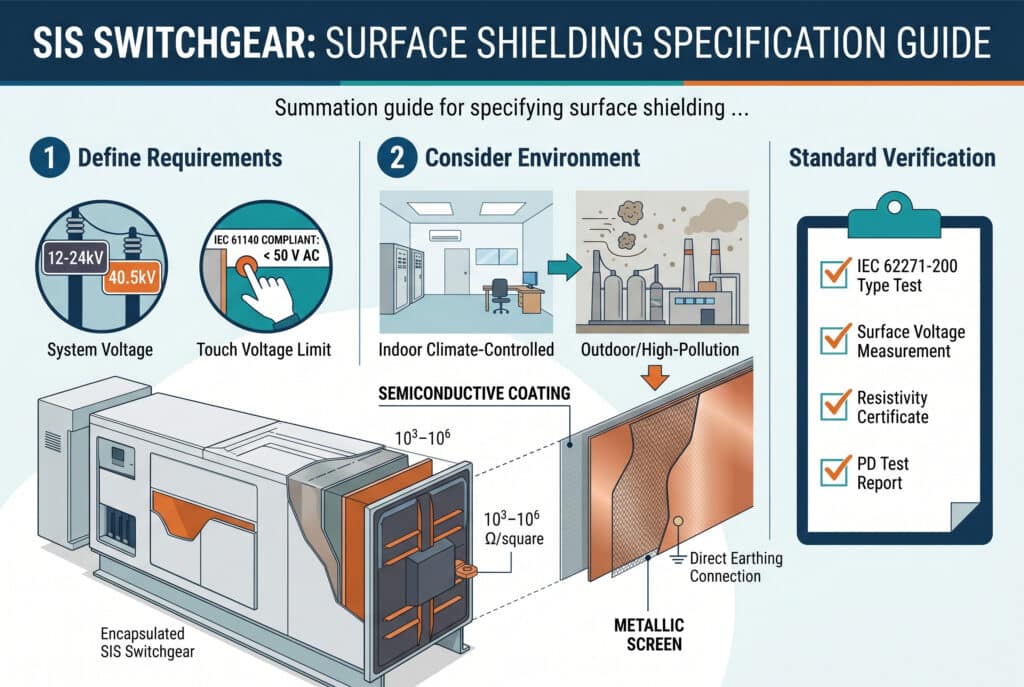

How to Correctly Specify Surface Shielding Requirements in SIS Switchgear for High Voltage Substation Projects?
Step 1: Define Electrical and Safety Requirements
Establish the surface shielding specification parameters from the project’s electrical and safety requirements:
- System voltage: Determines the minimum shielding type — semiconductive coating acceptable at 12–24 kV; metallic screen required at 40.5 kV
- Touch voltage limit: Specify IEC 61140 compliance — maximum 50 V AC on any accessible outer surface at rated operating voltage
- Personnel access frequency: High-frequency personnel access (daily inspection routes adjacent to live SIS modules) requires metallic screen shielding at all voltage classes — the lower impedance earth connection provides greater safety margin than semiconductive coating
Step 2: Consider Substation Environmental Conditions
- Indoor climate-controlled substation: Semiconductive coating shielding acceptable — stable temperature and humidity prevent coating degradation
- Outdoor or uncontrolled environment substation: Metallic screen shielding specified — UV radiation, thermal cycling, and moisture degrade semiconductive coatings faster than metallic screens
- High-pollution substation (SPS Class III/IV): Metallic screen with sealed module joints — prevents conductive pollution from bridging screen gaps at module interfaces
Step 3: Match Standards and Certifications
Require the following verifications for every SIS switchgear product submitted for evaluation:
| Certification Requirement | Specification Clause | Verification Document |
|---|---|---|
| IEC 62271-200 type test | Full type test including surface voltage measurement | Original test report — not summary certificate |
| IEC 61140 touch voltage compliance | Surface voltage ≤ 50 V AC at rated voltage | Measurement data in type test report |
| Semiconductive coating resistivity | 10³–10⁶ Ω/square | Manufacturer material test certificate |
| Metallic screen continuity | Zero discontinuity at module joints | Factory inspection record |
| Partial discharge test | < 10 pC at 1.5× U0 | IEC 60270 test report |
Sub-Application Scenarios
- Urban distribution substation: Metallic screen SIS — high personnel access frequency; compact footprint critical; touch safety non-negotiable in public-adjacent installations
- Industrial plant substation: Semiconductive coating SIS at 12–24 kV — controlled access; stable indoor environment; cost-optimized for large panel count
- Renewable energy collector substation: Metallic screen SIS at 35 kV — outdoor or semi-outdoor installation; long maintenance intervals; screen durability over 25-year asset life
- High-altitude substation (> 1,000 m): Metallic screen SIS — reduced air density increases surface PD risk at coating discontinuities; metallic screen eliminates air-gap PD initiation at surface
What Installation and Maintenance Errors Compromise Surface Shielding Integrity in Service?
Installation and Maintenance Steps
- Pre-installation shielding integrity inspection: Inspect all encapsulated module surfaces for coating damage or screen discontinuities before installation — reject any module with visible coating abrasion > 25 mm² or screen gap > 5 mm; document inspection results with photographs
- Screen bonding at module joints: Apply manufacturer-specified conductive bonding tape at all module-to-module joints — verify tape overlap ≥ 50 mm on each side of the joint; measure joint resistance < 1 Ω with a calibrated low-resistance ohmmeter before panel assembly
- Earth connection verification: Confirm the surface shielding earth connection to the switchgear earth bar is made with the manufacturer-specified conductor and torqued to the specified value — measure earth connection resistance < 0.5 Ω; record in the installation commissioning record

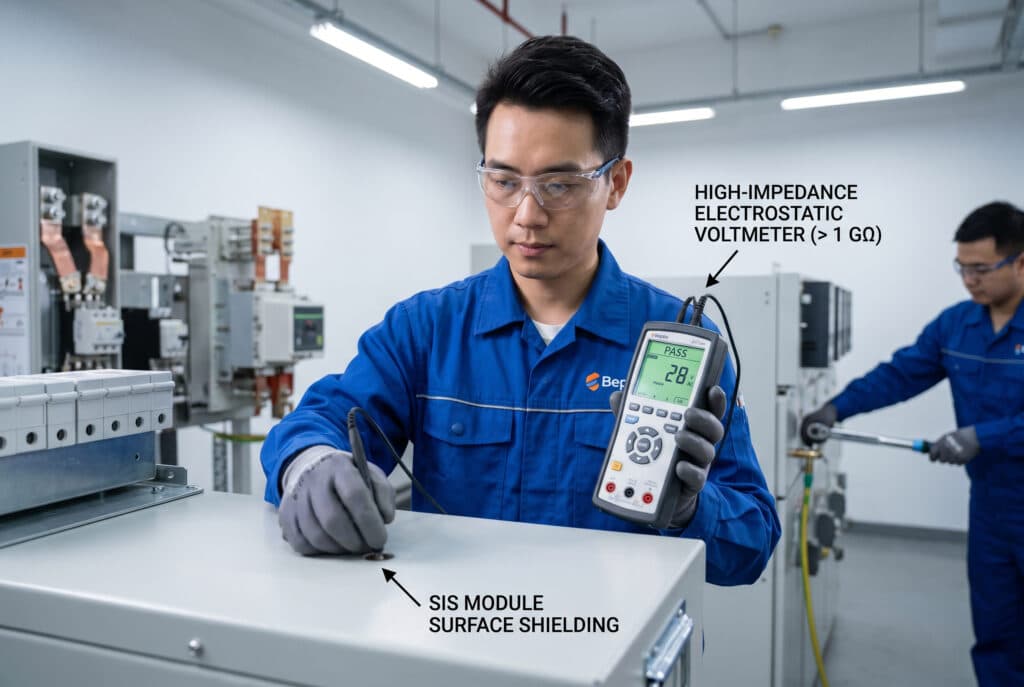

- Touch voltage measurement at commissioning: Measure surface voltage on all accessible encapsulated module surfaces with a high-impedance voltmeter at rated operating voltage — confirm < 50 V AC on all surfaces; any surface exceeding 50 V AC requires immediate investigation of shielding continuity and earth connection before personnel access is permitted
Common Errors to Eliminate
- Error 1 — Repairing damaged semiconductive coating with non-conductive paint or epoxy filler: Any repair material applied to a damaged coating area must have surface resistivity within the 10³–10⁶ Ω/square specification range — use only the manufacturer-supplied conductive repair compound; non-conductive repair creates an unshielded patch that initiates PD
- Error 2 — Omitting screen bonding tape at module joints during installation: Module joint bonding tape is not optional hardware — it is the continuity element that prevents the screen gap PD failure mode; its omission is the single most common installation error that produces early-life SIS switchgear surface tracking failures
- Error 3 — Performing touch voltage measurement with a standard multimeter: Standard multimeters have input impedance of 10 MΩ — insufficient to measure the capacitively coupled surface voltage on a semiconductive coating shield accurately; use a high-impedance electrostatic voltmeter (> 1 GΩ input impedance) for touch voltage measurement on semiconductive coating shielded modules
A second client case: A procurement manager at a regional power grid operator in Shandong, China contacted Bepto to evaluate two competing SIS switchgear proposals for a 10 kV urban distribution substation upgrade — both products were labeled as “surface shielded SIS” in the manufacturer’s marketing materials. Bepto’s evaluation requested the IEC 62271-200 type test reports for both products and found that one manufacturer’s report included surface voltage measurement data confirming 38 V AC at rated voltage — IEC 61140 compliant. The second manufacturer’s report contained no surface voltage measurement data — the type test had been performed without the surface shielding earth connection made, rendering the touch safety performance unverified. Bepto recommended the certified product; the grid operator adopted the IEC 61140 surface voltage measurement requirement as a mandatory procurement specification clause for all future SIS switchgear purchases.
Conclusion
Surface shielding technology in SIS switchgear is not a passive coating — it is an active electric field control system whose integrity, continuity, and correct earthing connection determine both the dielectric reliability of the solid insulation and the touch safety of the switchgear for every person who works in the substation. The five misconceptions corrected in this guide — treating shielding as cosmetic, omitting earthing at lower voltage classes, accepting screen discontinuities, substituting shielding for PD testing, and assuming all SIS shielding systems are equivalent — each produce specific, preventable failures that the correct specification and installation discipline eliminates. Require IEC 62271-200 type test reports with surface voltage measurement data confirming IEC 61140 compliance, specify metallic screen shielding for 40.5 kV and high-access-frequency applications, enforce screen bonding tape installation at every module joint, verify earth connection resistance at commissioning, and measure touch voltage on every accessible surface before personnel access is permitted — because the surface shielding system that is specified correctly, installed completely, and verified at commissioning is the system that delivers the high voltage substation safety performance that SIS switchgear was designed to provide.
FAQs About SIS Switchgear Surface Shielding Technology
Q: What is the maximum permissible touch voltage on the outer surface of an SIS switchgear encapsulated module under normal operating conditions per IEC 61140, and which shielding type reliably achieves this limit at 40.5 kV?
A: IEC 61140 specifies 50 V AC maximum touch voltage — metallic screen shielding with direct earth bonding achieves < 1 V AC at 40.5 kV; semiconductive coating alone at 40.5 kV typically exceeds the 50 V limit without supplementary metallic screening.
Q: Why does a 10 mm gap in the metallic screen of a 35 kV SIS switchgear module represent a critical safety and insulation reliability defect rather than an acceptable minor installation imperfection?
A: A 10 mm screen gap concentrates the full unshielded electric field at the gap location — local field stress reaches 15–25 kV/mm at 35 kV, initiating partial discharge in air at the gap that erodes the epoxy surface and progresses to tracking failure within 500–2,000 operating hours.
Q: What surface resistivity range must a semiconductive coating shield on SIS switchgear maintain to provide effective electric field control at 12–24 kV medium voltage ratings?
A: 10³–10⁶ Ω/square — below 10³ Ω/square the coating approaches metallic conductivity and may cause circulating currents; above 10⁶ Ω/square the distributed capacitive earthing becomes insufficient to control surface field stress at medium voltage ratings.
Q: Does the presence of a correctly installed and earthed surface shielding system on SIS switchgear eliminate the requirement for IEC 60270 partial discharge commissioning testing before energization?
A: No — surface shielding controls external field distribution only; it does not prevent internal PD within voids or delaminations in the epoxy casting; IEC 60270 PD measurement at 1.5× U0 is mandatory regardless of surface shielding integrity to detect internal casting defects.
Q: What instrument must be used to measure touch voltage on a semiconductive coating shielded SIS switchgear module, and why is a standard digital multimeter inadequate for this measurement?
A: A high-impedance electrostatic voltmeter with > 1 GΩ input impedance is required — a standard multimeter at 10 MΩ input impedance loads the capacitively coupled surface voltage and reads artificially low values that falsely indicate IEC 61140 compliance on an unshielded or poorly earthed surface.
-
