CH3 40.5-315P/606 40.5KV Three-Way Shielded Contact Box: Triple position design, 185kV lightning impulse, 95kV power frequency, 630-2500A for KYN28-12/24/61 VD4 switchgear.

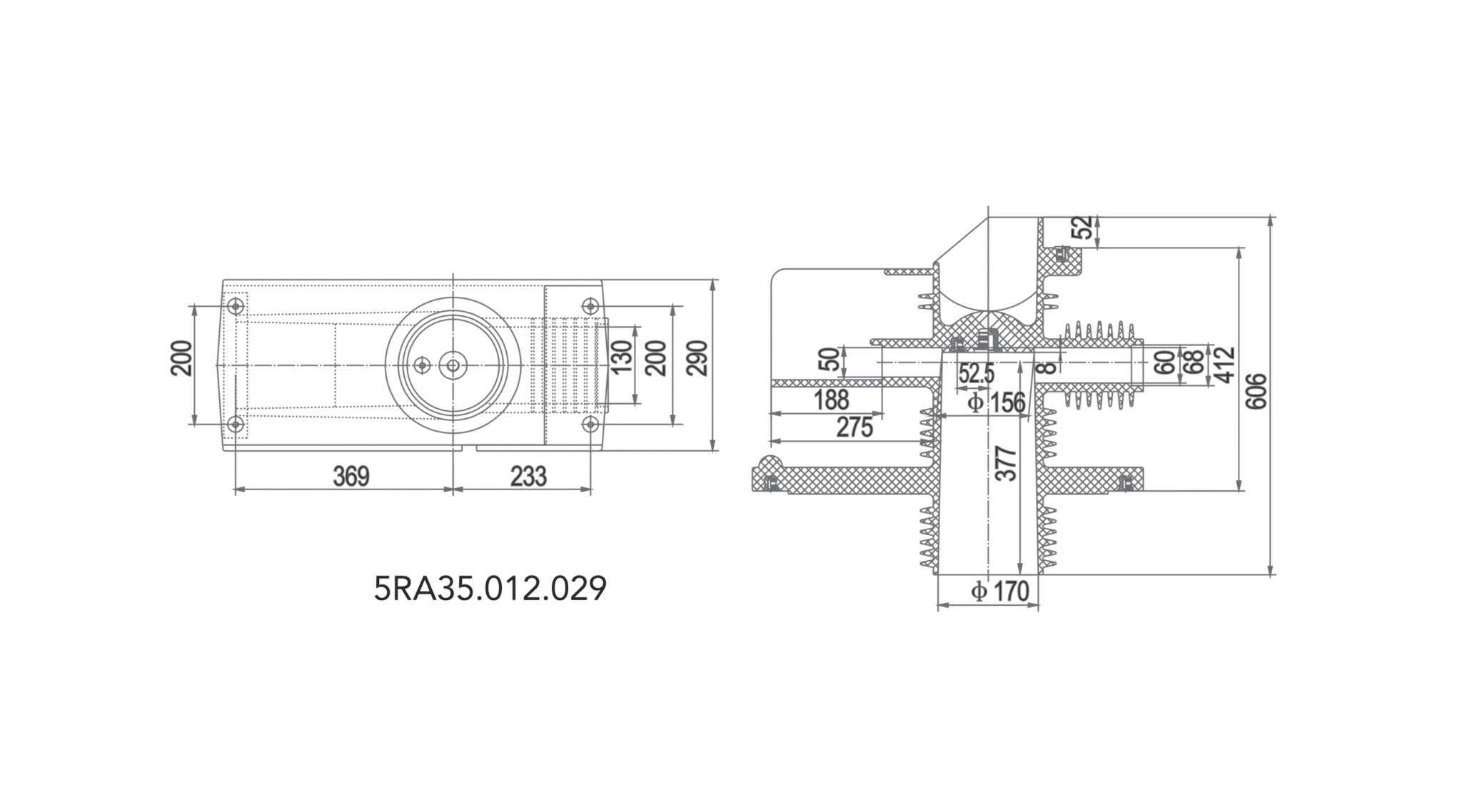

| Selection | Drawing No. | Mounting Distance |
|
CH3 40.5-315P/606
|
5RA35.012.029 | 280 |
| Ietm | Value | Unit |
| Rated Voltage | 40.5 | kV |
| Rated Current | 630-2500 | A |
| PF | 95 | kV/1 min |
| PD | 1.1UR≤3 | pC |
| Lightning Impulse Withstand Voltage | 185 | kV |
| PT | 1A2.5 | |
| TG | 105±5 | °C |
| Flame Rating | V1 | UL94 |
| V0 special needs | ||
| Creepage than from | 20 | mm/kV |
| Color | 3009 | RAL |
