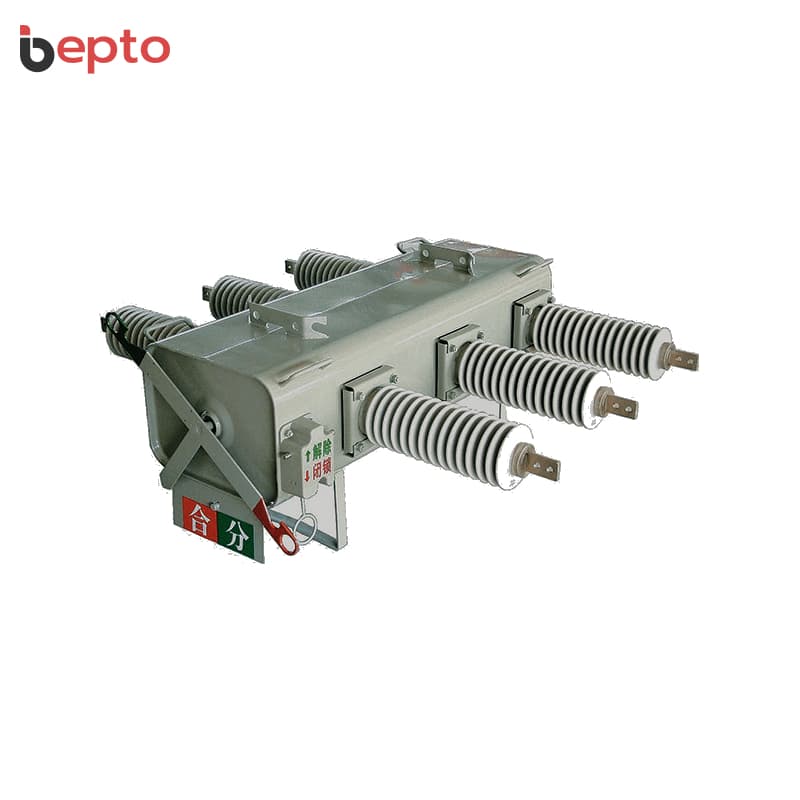

FLW36-12/24/40.5kV Outdoor SF6 Load Switch: Pole-mounted 12-40.5kV 630A high voltage AC load break switch, SF6 gas insulation, <100ms operation, electronic controller, remote monitoring, 30-year lifespan.
Advanced FLW36-12/24/40.5kV Outdoor SF6 Load Switch: Premium FLW36 series featuring pole-mounted column installation for 12/24/40.5kV 630A outdoor high voltage AC applications (50/60Hz), utilizing SF6 gas insulation for superior arc extinguishing and electrical insulation properties, capable of breaking and closing load currents and overload currents with automatic faulty line section isolation, featuring spring-operated mechanism ensuring fast operation (<100ms closing/opening), equipped with latest technology electronic controller in stainless steel 304L enclosure for various climate conditions, with color-coded contact position indicator (green-open, red-closed) for ground-level visibility.
Remote Monitoring Ready: FLW36 incorporates manual, electrical, and remote operation capability with optional wired/wireless modems for long-distance monitoring and control via FTU interface, designed with proven durable corrosion-resistant materials (304L stainless steel) ensuring 30-year lifespan, factory-filled sealed SF6 gas complying with IEC60265-1 and GB3804-1990 standards, providing reliable outdoor load switching solution for power distribution systems, substations, utilities requiring simple column installation with reduced construction costs and fast deployment.
| FLW36-12/24/40.5kV Outdoor SF6 Load Switch Specifications | Technical Parameters | Unit |
|---|---|---|
| Model Number | FLW36-12/24/40.5kV | – |
| Brand | Bepto Insulation Systems | – |
| Product Type | Outdoor Pole-Mounted SF6 Load Switch (High Voltage AC) | – |
| Installation Type | Pole-Mounted Column Installation | – |
| Rated Voltage | 12 / 24 / 40.5 | kV |
| Rated Current | 630 | A |
| Rated Frequency | 50 / 60 | Hz |
| Insulation Medium | SF6 Gas (Sulfur Hexafluoride) | – |
| Operating Mechanism | Spring-Operated Energy Storage | – |
| Operating Speed | <100 | ms |
| Operation Modes | Manual / Electrical / Remote | – |
| Remote Control | Wired/Wireless Modem (Optional) | – |
| Controller Type | Electronic Controller with FTU Interface | – |
| Controller Enclosure | 304L Stainless Steel Box | – |
| Contact Position Indicator | Color-Coded (Green-Open, Red-Closed) | – |
| Indicator Visibility | Ground-Level Visible | – |
| Material | 304L Stainless Steel (Corrosion-Resistant) | – |
| Design Lifespan | 30 | Years |
| Gas Filling | Factory-Filled Sealed SF6 Gas | – |
| Compliance Standards | IEC60265-1 (1988), GB3804-1990 | – |
| Bushing Options | Ceramic / Rubber / Epoxy Equipment Bushings | – |
| Climate Suitability | Various Climate Conditions | – |
| Application | Outdoor Power Distribution, Load Breaking, Faulty Line Isolation | – |
